Side 1/7

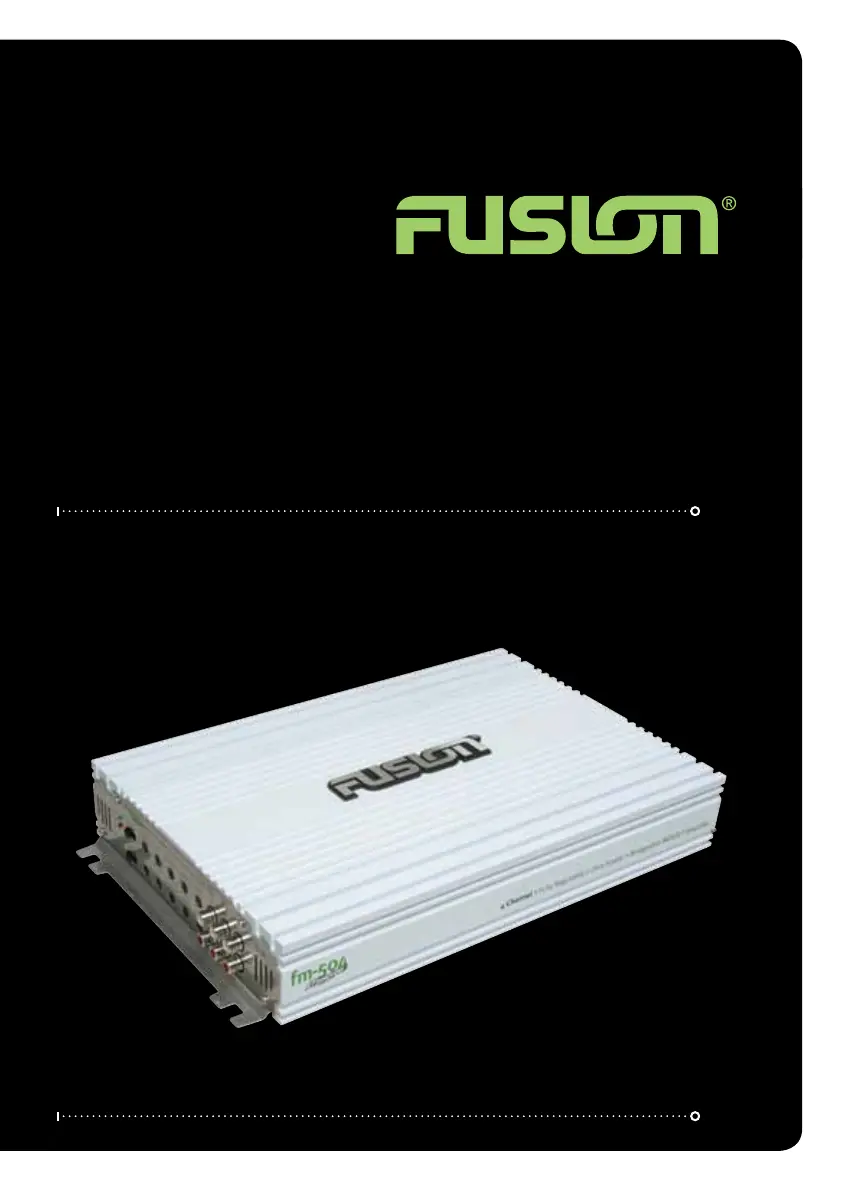

User / Installation Manual
Marine Amplifier
FM-504
www.busse-yachtshop.de | info@busse-yachtshop.de
2010 Version 1.0
Feature Overview
• 2OhmStableMOSFETAmplierDesign
• VariableBassBoost0-+12dB
• VariableLPandHPElectronicsX-OVER@12dB/octave
• FUSIONRegulatedAmplierTechnology(F.R.A.T.)
• FUSIONIntercooledSemi-conductorTechnology(F.I.S.T.)
• GoldPlated4GaugePowerandGroundConnections
• GolsPlatedAudioInputandOutputConnections
• FUTRANZEcientHeatSinkTransferTechnology
• GoldPlatedRCAOutputformulti-ampInstallations
What sets FUSION apart?
TheFUSIONFMseriesamplierscomecompletewithFRATpowersupplies,FISTcoolingsystemandFUTRANZ.Also
allmarineampliersuseheat-temperedPCB’sformaximumproductlifeandperformance.Goldplatedconnectol-
ogy,ensuresyoursignalowsfromtheheadunitthroughtothespeakerswithaslittleinjecteddistortionand
noiseaspossible.Thisresultsisaverycleanandverypowerfulreproductionoftheinputsignal.Allthesefeatures
makeiteasiertoachievesonicperfectioninalmostanyinstallation.
FUTRANZ
Indevelopingextremelypowerfulampliers,itisessentialtokeepthingscoolsoFUSIONdevelopedaheatsink
thathasaheatdissipationabilitylikeneverbefore.Thiswasnotaneasytaskbutnonethelessitwasachieved,
anotherimportantfactorisecientlytransferringtheheatfromthesemi-conductorstotheheatsink,conven-
tionaldesignsuseawhitepasteastheinterfacebetweenthesedevicesandtheheatsink,thisisnotaperfect
solutionwhencompletesurfacecouplingisrequired.SoallMarineAmplierscomeequippedwithacompositeheat
transferringtape.Coreheatinsemi-conductorscausesdistortionandpoorcomponentperformancecharacteris-
tics.TestinghasshownamassivereductionincoreheathasbeenachievedbyusingtheFUTRANZheattransfer-
ringtechnology.Insimpliedtermsthismeansexcellentthermalstabilityandmaximumcomponentreliability.
F.I.S.T (fusion intercooled semi-conductor technology)
FISTisaninnovativemethodofclampingdownallinternalpowerswitchingandaudiooutputdeviceswithan
aluminiumextrusionthathasextremelylowtemperatureco-eciency.ByusingF.I.S.Titcreatestheperfectcool-
ingsolution,rapidlyremovingcoreheatfromallassociatedsemi-conductorsfrombothsidesofthedeviceatonce
resultinginextremelylowdistortionanexcellentthermalstability
F.R.A.T (fusion intercooled semi-conductor technology)
FRATisaregulatedamplierdesign,FUSIONregulatedampliersallowanenormousamountofoutputpowerat
thelowestvoltage(12.6Volts)andextremeoutputat14.4volts.
Contents
Feature Overview.........................................Pg 3
Control Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pg 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pg 6
Connections .............................................Pg 6
Inputs and Gain Setup .................................... Pg 7
2 Channel Installation / Trouble Shooting ....................Pg 8
3 Channel Installation / Power Cable Calculator...............Pg 9
4 Channel Installation / Specifications......................Pg 10
003
FEATURE OVERVIEW
RECORD YOUR PRODUCT DETAILS HERE:
MODELNUMBER DATEOFPURCHASE
AFFIXRECEIPTHERE
www.busse-yachtshop.de | info@busse-yachtshop.de
Control Descriptions
004
CONTROLS
005
CONTROLS
L R
BRIDGE MODE
FUSEFUSE
FRONT
REAR
FE-504
13 15
11 12
FUSEFUSE
FRONT
REAR
L R
MONO
14
20
HZ 55
HZ 8
V 0.3
V0
DB +18
DB
40
HZ 600
HZ40
HZ 160
HZ
LP
REM+12VGND
HP LEVELSUBSONIC
20
HZ 55
HZ 8
V 0.3
V0
DB +18
DB
40
HZ 600
HZ40
HZ 160
HZ
LP HP LEVELSUBSONIC
BASS BOOST
BASS BOOST
OFF LP HP
REAR X-OVER
SELECTOR
FRONT X-OVER
SELECTOR
OFF LP HP
INPUT
FRONT
INPUT
REAR
OUTPUT
L LL
R RR
PWR
PRT
10987654321
4 CHANNEL • FULLY REGULTED 2 OHM STABLE • Bridgeable MOSFET Amplifier
FM-504
FM-504
1 Power And Status LEDs:
thisshowsiftheamplierhasbeencorrectlypoweredupandifanyfaultsarepresent.
2 Crossover Selector:
Settheappropriatemodeofoperation.The3positionsavailableareOFF,LPandHP.Seepoints3and4below.
3 Low Pass:
Setthecrossoverswitch2toLPwhenasubwooferisconnected.Ensurethecrossoverfrequencyissetat
100Hzorbelow,thisfeatureisdesignedtolterallmidtohighfrequenciesthatonlyFULLRANGEspeakers
shouldproduce.NOTE:Failuretodosocouldresultinspeakerdamage.
4 High Pass:
Setthecrossoverswitch2toHPandturnthiscontrolto65Hzorabovewhenusingspeakerssmallerthan6
x6”,thisfeatureisdesignedtolteralllowbassfrequenciesthatonlySUBWOOFERSshouldproduce.NOTE:
Failuretodosocouldresultinspeakerdamage.
5 Bass Boost:
Thisisavariablecontroltoincreasethebassboostat45Hzfrom0-+18dBofgain,adjusttosuit.
6 Subsonic Filter:
ThisisavariablecontrolltersoutallSubBassFrequenciesbelowthesetpointat18dB/octave.
7 Level:
Thisallowsleveladjustmentoftheinputsignal.Usethiscontroltocorrectlymatchtheheadunittothe
amplier.Tosetthiscontrolcorrectly,turntheamplierleveltoMINandtheheadunitto3/4volume,with
theBASSandTREBLEonzero,thenslowlyturnupthisamplierlevelcontroltowardstheMAXendofthe
control.NOTE:Ifthesoundbecomesdistorted,turnthiscontroldown.
8 Front RCA Input:
ConnecttheseRCAconnectorstothefrontLOWLEVELoutputconnectionfromtheheadunit.
9 Rear RCA Input:
ConnecttheseRCAconnectorstotherearLOWLEVELoutputconnectionfromtheheadunit.
10 RCA Output:
UsetheseRCAOutputconnectorstoconnecttoasecondaryamplier.ThisoutputisaSUMMEDOUTPUTcon-
nectionderivedfromthefrontRCAinputandtherearRCAinputconnectors.
11 Ground Connection:
Connectdirectlytosuitablegroundpointviaa4gaugepowercable.NOTE:Thisistobetherstwiretocon-
nectwhenwiringupampliers.Damagecouldresultofthisisnotdone.
12 +12V Connection:
Thismustbeconnectedtothebatterypositive(+)terminalviaa4gaugepowercableandwithaninlinefuse
orcircuitbreakeratthebatteryend.NOTE:Thisistobethelastwiretoconnectupduringinstallationas
damagecouldresult.
13 Remote Connection:
Thisinputisforturningtheamplieronando.Thisrequiresaswitchedpositive(+12V)topower‘ON’the
amplier,thiscanbefoundontherearoftheheadunitintheformofanelectricantennaoutput,oraremote
onoutput.IfnotavailableyoucanwiretotheACCpositiononthekey.
14 Fuses:
Pleaseensurethecorrecttypeoffuseistted,asspeciedinthismanual.PLEASENOTE:theFM-504has2x
25Afuses.
15 Speaker Output:
See4/3/2channelinstallationdiagramsinthismanualforcorrectspeakerconnection.
www.busse-yachtshop.de | info@busse-yachtshop.de
