Flush Mount Series Speaker and
Subwoofer Installation Instructions
Important Safety Information
WARNING
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
WARNING
This device must be installed according to these instructions.
Disconnect the vehicle's or vessel's power supply before
beginning to install this device.
CAUTION
Continuous exposure to sound pressure levels over 100 dBA
may cause permanent hearing loss. The volume is typically too
loud if you cannot hear people speaking around you. Limit the
amount of time you listen at high volume. If you experience
ringing in your ears or muffled speech, stop listening and have
your hearing checked.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
It is strongly recommended that you have your audio system
installed by a professional installer to ensure optimum
performance.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation, go
to www.fusionentertainment.com for product support.
After installing the subwoofer, you should run the subwoofer at
low to medium volumes for the first few hours of use. This helps
to improve the overall sound by gradually loosening up the
moving components of the subwoofer, such as the cone, spider,
and surround
Tools Needed
• Phillips screwdriver
• Torque screwdriver with a Phillips bit
• Appropriate saw or utility knife to cut surface material
• 18 AWG (0.82 mm
2
) speaker wire
• Marine sealant such as 3M
™
4200 or 5200
• Speaker spade connectors (recommended)
• Wire strippers (optional)
• Crimping tool (optional)
• Electrical tape (optional)
NOTE: For customized installations, additional tools and
materials may be needed.
Mounting Considerations
NOTICE
When mounting the speaker in an area exposed to weather or
water, you must mount the speaker on a vertical surface. If you
mount the speaker on a horizontal surface facing up, water can
gather in and around the speaker, causing damage over time.
If you intend to mount the speakers outside the boat, you must
mount them in a location well above the waterline, where they
are not submerged or damaged by docks, pilings, or other
pieces of equipment. When mounted correctly, these speakers
are rated for protection from the front of the speaker. Water
exposure and damage to the rear of the speaker voids the
warranty.
You must turn off the audio system before making any
connections to the stereo, amplifier, or speakers. Failure to do
so could result in permanent damage to the audio system.
You should protect all terminals and connections from grounding
and from each other. Failure to do so could result in permanent
damage to the audio system and void the product warranty.
When selecting a mounting location for the speakers, observe
these considerations:
• You must select mounting locations that provide sufficient
clearance for the mounting depth of the speakers as
specified in the product specifications.
• You must select a mounting location where the panel
thickness is not thinner or thicker than specified in the
product specifications.
• You should select a flat mounting surface for the best seal.
• You should protect the speaker wires from sharp objects and
always use rubber grommets when wiring through panels.
• To avoid interference with a magnetic compass, you should
not mount the speakers closer to a compass than the
compass-safe distance value listed in the product
specifications.
Selecting the correct mounting location optimizes the
performance of each speaker. FUSION
®
speakers are designed
to perform in the widest possible range of mounting locations,
but the more you plan the installation, the better the speakers
will sound. For more information on speaker placement and
specifications, go to www.fusionentertainment.com.

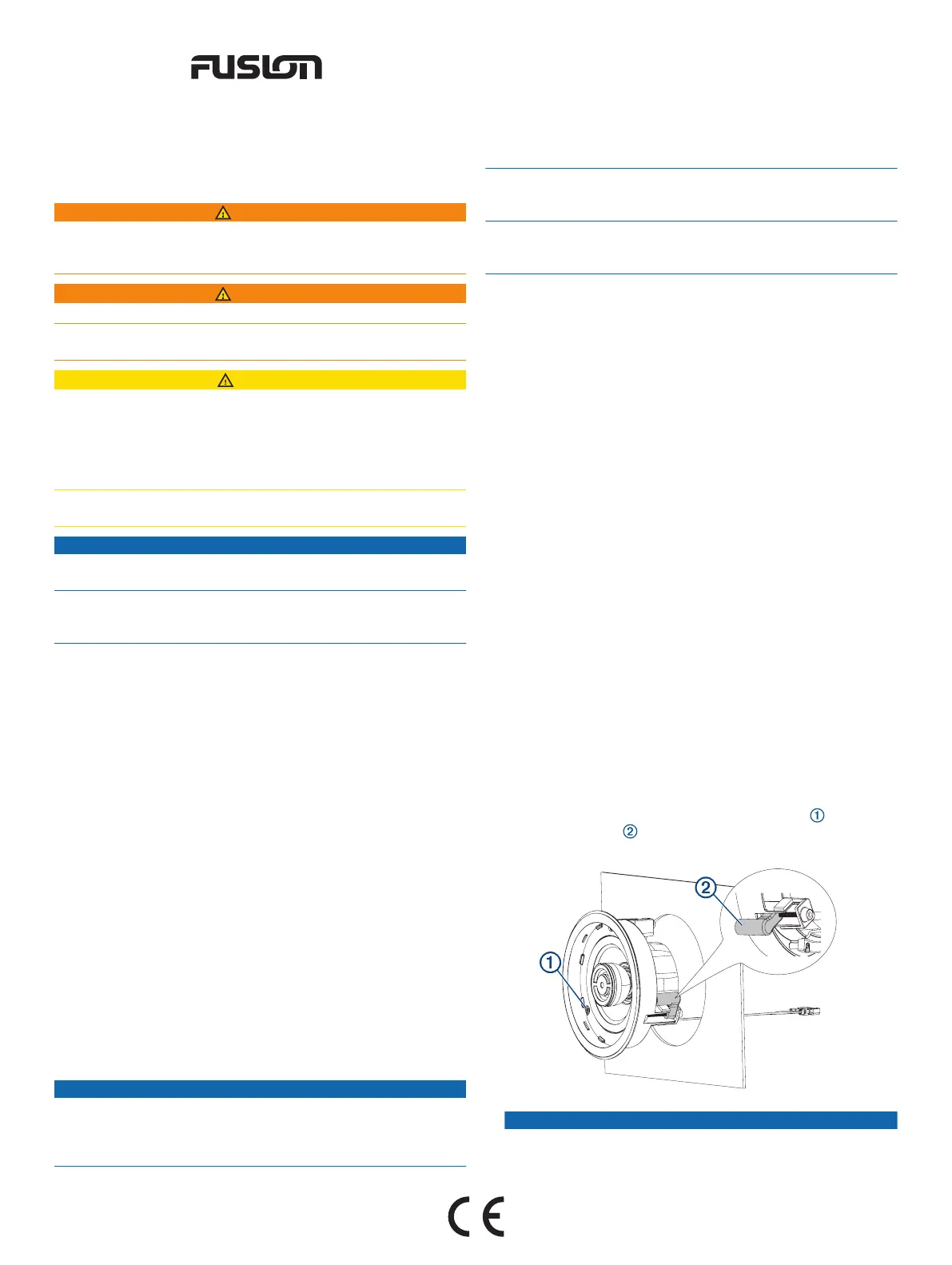

Mounting the Speakers
1
Use the included template with a rotary tool or jigsaw to cut
the hole for the speaker.
2
Connect the speaker wires while observing polarity (Speaker
Wiring, page 2).
3
Apply marine sealant on the speaker and the mounting
surface.
4
Place the speaker in the cutout.
5
Using a #2 Phillips screwdriver, turn the screws to extend
the mounting tabs lightly hold the speaker to mounting
surface.
NOTICE
Although you may use a power screwdriver to initially turn the
screws on the mounting tabs, you must use a torque
screwdriver to complete the installation. Using power tools to
October 2019
190-02582-90_0B
fully tighten the screws can damage the speaker housing and
make it difficult to install the speaker grille.
6
Using a torque screwdriver, tighten the screws by hand to
1.0 Nm (0.74 lbf-ft) on the FM-F65/F77 speaker models or
1.5 Nm (1.11 lbf-ft) on the FM-S10 subwoofer models.
7
With the speaker mounted, place the grille onto the speaker,
and push to secure it.
Speaker Wiring
When connecting the speakers or subwoofer to your stereo or
amplifier, observe these considerations.
• Speaker wire is not included with the speakers or subwoofer.
You should use 18 AWG (0.82 mm
2
) speaker wire to connect
the speakers or subwoofer to the stereo or amplifier.
• The leads on the speakers and subwoofer are terminated
using male spade connectors. You should use female spade
connectors (not included) to connect the speaker wire to the
leads for the best connection.
• The subwoofer features a dual 2 Ohm voice coil that can be
configured for 2.1 operation (two speakers and one
subwoofer) when connected to a compatible FUSION stereo
(Configuring the Subwoofer for 2.1 Operation, page 2).
You can use these tables to identify the polarity and spade-
connector sizes of the leads on the speakers or subwoofer.
FM-F65/F77 Speakers
Lead color Polarity Spade connector size
White Positive (+) 6.3 mm
White with a black stripe Negative (-) 4.8 mm
FM-S10 Subwoofer
Lead color Polarity Spade connector size
White Positive (+) 6.3 mm
Gray with a black stripe Negative (-) 4.8 mm
Gray and white with a black stripe wires are connected to
jumper terminals on the back of the subwoofer. These wires
must remain connected to the jumper terminals for normal use
(4 Ohm) and should be disconnected only when configuring the
subwoofer for 2.1 operation.
Configuring the Subwoofer for 2.1 Operation
The subwoofer features dual 2 Ohm voice coils and is pre-
configured for 4 Ohm operation. You can change the
configuration of the subwoofer for 2.1 operation (two speakers
and one subwoofer) when connected to a FUSION 2 Ohm-
stable stereo with DSP capability, such as an Apollo
™
RA770.
See www.fusionentertainment.com for more information about
compatible stereos.
1
Disconnect the gray wire and the white with a black stripe
wire from the jumper terminals on the back of the subwoofer.
2
Connect the wires from the subwoofer to the stereo using the
following table as a reference.
Subwoofer lead Stereo connection
White Zone 2 right positive (+)
White with a black stripe Zone 2 right negative (-)
Gray Zone 2 left positive (+)
Gray with a black stripe Zone 2 left negative (-)
3
Turn on the connected stereo.
4
Launch the FUSION-Link
™
app, and select the 2.1 option for
the connected stereo.
The subwoofer operates in 2.1 mode, with the volume control
tied to zone 1 on the stereo. The zone 2 volume control and the
zone 2 line out connectors are disabled.
Speaker Information
True-Marine
™
Products
True-Marine products are subjected to rigorous environmental
testing under harsh marine conditions to surpass industry
guidelines for marine products.
Any product that bears the True-Marine stamp of assurance has
been designed for simplicity of use and combines advanced
marine technologies to deliver an industry leading entertainment
experience. All True-Marine products are supported by the
FUSION 3-year worldwide limited consumer warranty.
Registering Your Flush Mount Series
Help us better support you by completing our online registration
today.
• Go to www.fusionentertainment.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
Cleaning the Speakers
NOTE: When mounted correctly, these speakers are rated IP65
for dust and water ingress protection under normal conditions.
They are not designed to withstand high pressure water spray,
which may occur when you wash down your vessel. Failure to
carefully spray-clean the vessel may damage the product and
void the warranty.
NOTICE
Do not use harsh or solvent-based cleaners on the speakers.
Using such cleaners may damage the product and void the
warranty.
1
Clean all salt water and salt residue from the speaker with a
damp cloth soaked in fresh water.
2
Use a mild detergent to remove a heavy buildup of salt or
stains.
Specifications
Specification FM-F65 FM-F77 FM-S10
Peak power
(Watts)
120 W 200 W 400 W
RMS power
(Watts)
30 W 50 W 120 W
Sensitivity (1 W/
1 m)
87 dB 91 dB 87 dB
Frequency
response
100 Hz to
18 kHz
80 Hz to 18 kHz 30 Hz to 2 kHz
Nominal
impedance
4 Ohms 4 Ohms 4 Ohms
Recommended
amplifier power
(RMS)
15 to 80 W per
channel
20 to 150 W per
channel
40 to 300 W per
channel
Min. panel
thickness
3 mm (
1
/
8
in.) 3 mm (
1
/
8
in.) 6 mm (
1
/
4
in.)
Max. panel
thickness
25 mm (1 in.) 25 mm (1 in.) 25 mm (1 in.)
Min. mounting
depth
(clearance)
70 mm (2
3
/
4
in.) 83 mm (3
1
/
4
in.) 140 mm
(5
1
/
2
in.)
Mounting
diameter
(clearance)
Round Ø:
138 mm
(5
7
/
16
in.)
Square: 138 ×
138 mm
(5
7
/
16
in.)
Round Ø:
165 mm
(6
1
/
2
in.)
Square: 165 ×
165 mm
(6
1
/
2
in.)
Round Ø:
269 mm
(10
9
/
16
in.)
Square: 269 ×
269 mm
(10
9
/
16
in.)
Optimal
enclosure size
4 L 8 L 40 L
2 Flush Mount Series Installation Instructions
Specification FM-F65 FM-F77 FM-S10
Operating
temperature
range
From 0 to 50°C
(from 32 to
122°F)
From 0 to 50°C
(from 32 to
122°F)
From 0 to 50°C
(from 32 to
122°F)
Storage
temperature
range
From -20 to
70°C (from -4 to
158°F)
From -20 to
70°C (from -4 to
158°F)
From -20 to
70°C (from -4 to
158°F)
Compass-safe
distance
From the rear:
245 cm (96.5 in.)
From the front:
235 cm (92.5 in.)
From the sides:
195 cm (76.8 in.)
From the rear:
290 cm
(114.2 in.)
From the front:
275 cm
(108.3 in.)
From the sides:
245 cm (96.5 in.)
From the rear:
381 cm (150 in.)
From the front:
350 cm
(137.8 in.)
From the sides:
320 cm (126 in.)
Cone/surround
material
Aluminum dome
tweeter,
polypropylene
cone, rubber
surround
Aluminum dome
tweeter,
polypropylene
cone, cloth
surround
Polypropylene
cone, rubber
surround
Water and dust
rating (from the
front)
IEC 60529 IP65
1
IEC 60529 IP65 IEC 60529 IP65

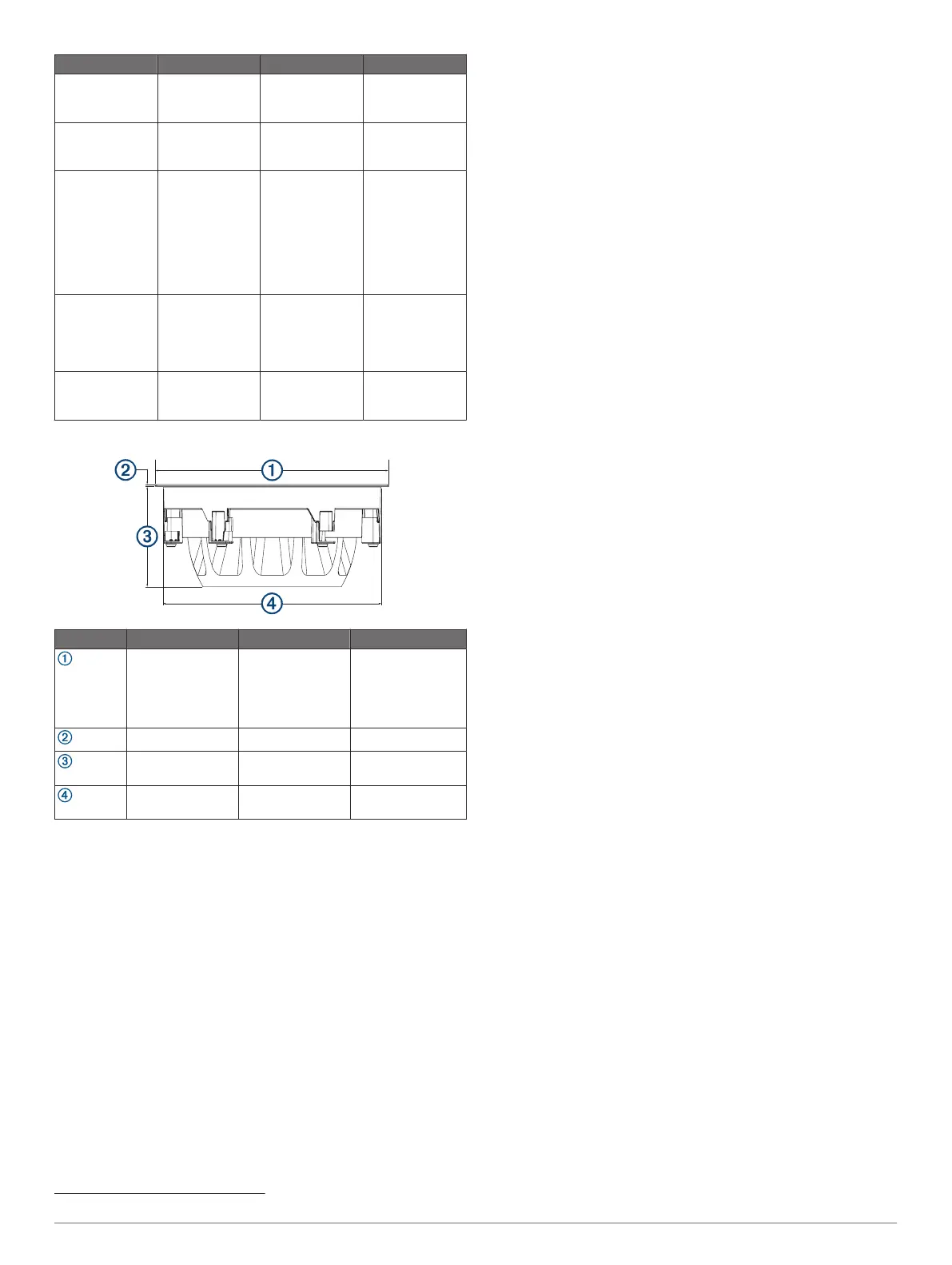

Speaker Dimensions
Dimension FM-F65 FM-F77 FM-S10
Round Ø: 153 mm
(6 in.)
Square: 153 ×
153 mm (6 in.)
Round Ø: 181 mm
(7
1
/
8
in.)
Square: 181 ×
181 mm (7
1
/
8
in.)
Round Ø: 284 mm
(11
3
/
16
in.)
Square: 284 ×
284 mm
(11
3
/
16
in.)
2.5 mm (
1
/
8
in.) 2.5 mm (
1
/
8
in.) 2.5 mm (
1
/
8
in.)
67.1 mm (2
5
/
8
in.) 80.4 mm
(3
3
/
16
in.)
137 mm (5
3
/
8
in.)
135 mm
(5
5
/
16
in.)
162 mm (6
3
/
8
in.) 266 mm (10
1
/
2
in.)
1
Sealed against all dust ingress, and protected against jets of water.
Flush Mount Series Installation Instructions 3

Produkspesifikasjoner

Merke: Fusion
Kategori: Høyttaler
Modell: FM-F77RW

Trenger du hjelp?

Hvis du trenger hjelp med Fusion FM-F77RW still et spørsmål nedenfor, og andre brukere vil svare deg


Høyttaler Fusion Manualer

Fusion

Fusion SG-FL652SPW Bruksanvisning

3 September 2025
Fusion

Fusion SG-F652W Bruksanvisning

3 September 2025
Fusion

Fusion CS-CM50 Bruksanvisning

3 September 2025
Fusion

Fusion FM-F65RW Bruksanvisning

3 September 2025
Fusion

Fusion SG-F88W Bruksanvisning

3 September 2025
Fusion

Fusion SG-FL88SP Bruksanvisning

3 September 2025
Fusion

Fusion XS-F40CWB Bruksanvisning

3 September 2025
Fusion

Fusion SG-F77W Bruksanvisning

3 September 2025
Fusion

Fusion MS-OS420 Bruksanvisning

3 September 2025
Fusion

Fusion SG-FL882SPC Bruksanvisning

3 September 2025

Høyttaler Manualer

Nyeste Høyttaler Manualer

Essentiel B

Essentiel B SB30 Bruksanvisning

1 September 2025
Harman Kardon

Harman Kardon HKTS 9BQ Bruksanvisning

1 September 2025
Harman Kardon

Harman Kardon Citation 100 Bruksanvisning

1 September 2025
Harman Kardon

Harman Kardon Traveler Bruksanvisning

1 September 2025
Harman Kardon

Harman Kardon Allure Bruksanvisning

1 September 2025
Max

Max 215 Bruksanvisning

1 September 2025
Wet Sounds

Wet Sounds ZERO 8 XZ-W Bruksanvisning

1 September 2025
Audison

Audison Prima APBMW X4M Bruksanvisning

1 September 2025
Xiaomi

Xiaomi Beva Magic Star Bruksanvisning

1 September 2025
Hama

Hama Blade Bruksanvisning

1 September 2025
