User / Installation Manual
Marine CD/MP3 Receiver
MS-CD80
Specications and design are subject to change without notice.

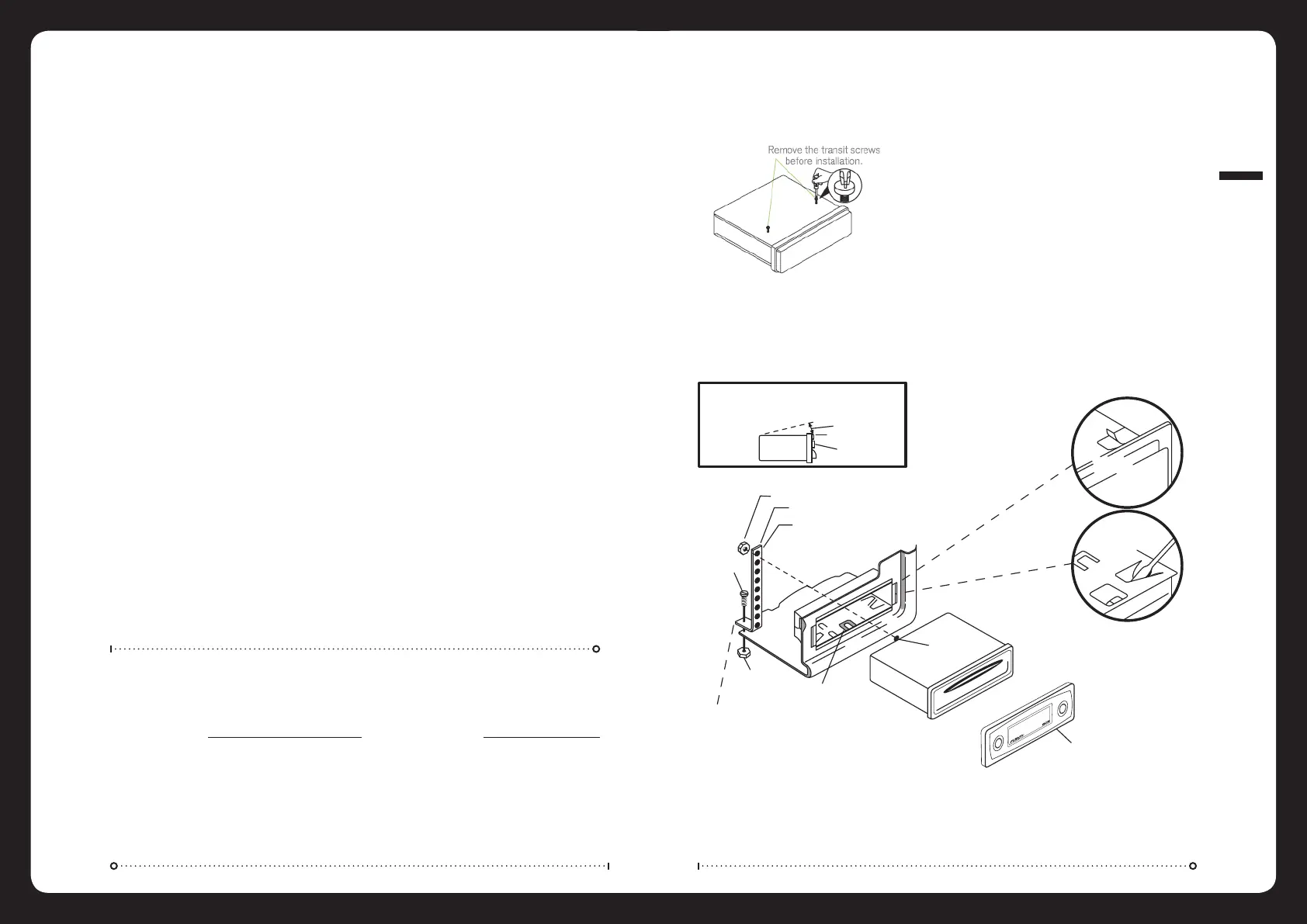

Installation
Mounting Hole Dimensions 180mmW x 178mmD x 50mmH
Insert the sleeve into the mounting hole and select the appropriate tabs to secure it rmly by bending them into position.
Use the supplied strap to support the rear of the unit.
CAUTION:
FOR PROPER OPERATION OF THE CD PLAYER, THE CHASSIS MUST BE MOUNTED
WITHIN 20' OF HORIZONTAL. MAKE SURE THE UNIT IS MOUNTED WITHIN THIS
LIMITATION.
20' MAX
FRONT PANEL
SIDE VIEW
OF
CHASSIS
NUT(5MM)
NUT(5MM)
FASTEN THIS END TO A SECURE LOCATION.
DRIL HOLE IF NECESSARY.
MOUNTING SLEEVE
SCREW STUD
BEND BOTTOM TABS
DOWNWARD
DETACHABLE
FRONT PANEL
BEND TOP
TABS UPWARD
PERFORATED STRAP
FASTEN THIS END TO SCREW STUD ON
REAR OF CHASSIS
SCREW (5MM)
Headunit Installation
Before installing the unit, please remove the two transit screws.
Note: When installing this unit on a vessel, use the two pieces of plastic lm (supplied with the unit) to seal the two holes
after removing the screws.
Version 1.0
001
INSTALLATION
RECORD YOUR PRODUCT DETAILS HERE:
MODEL NUMBER DATE OF PURCHASE
AFFIX RECEIPT HERE
Contents
Installation 1
Button Description 4
General Operation 5
Menu Selection Function 6
Radio Operation 6
CD Operation 7
MP3/WMA Operation 8
iPod® Operation 9
USB Operation 10
Supported MP3/WMA Formats 10
Technical Specifications 12
Tuning Range 12
Notes 13

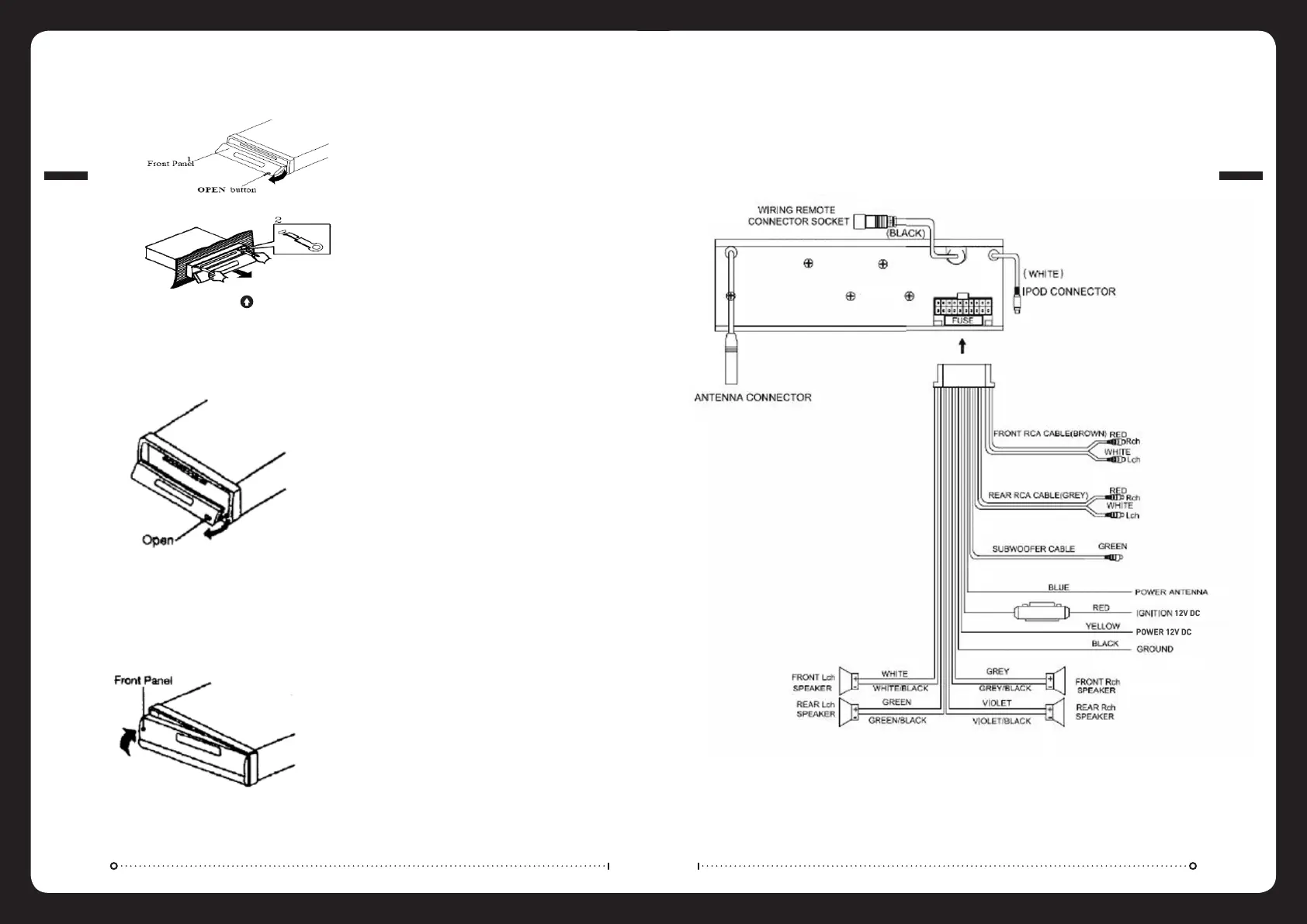

Wiring Connections
Detaching Front Panel
Reattaching Front Panel
Removing The Unit
1. To detach the front panel press the open button
2. Then press the release button on the front underside edge and slide the face toward you.
3. A protective case is supplied to store your removeable front panel in.
1. Press the open button on the face plate
2. Insert the supplied keys into the grooves in the housing until they click (as shown)
3. Pull the levers towards you and slowly remove the unit from the cage.
1. If the panel bracket is in the open position slide the panel back on into position.
2. If the panel bracket is in the upright position clip one end in rstly and then clip the other end in and the
panel will lock in place.
003
WIRING CONNECTIONS
002
REMOVING THE UNIT
