USER / INSTALLATION MANUAL
MARINE STEREO
MS-RA200
PRECAUTIONS
Do not attempt to open the unit. There are no user
serviceable parts or adjustment’s inside.
No responsibility can be taken for use of the unit
other than under normally expected operating
conditions.
If exposed to direct sunlight or operated for extended
periods metal surfaces may become hot. Take care
when handling.
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
» This device may not cause harmful interference,
and
» This device must accept any interference received,
including interference that may cause undesired
operation.
RECORD YOUR PRODUCT DETAILS HERE:
Serial Number
Date Of Purchase
Affix Receipt Here
CONTENTS
INSTALLATION 3
WIRING DIAGRAM 5
CONNECTIONS 6
BUTTON DESCRIPTION 7
GENERAL OPERATION 9
RADIO OPERATION 11
USB/MP3 OPERATION 12
AUX OPERATION 12
iPod/iPhone OPERATION 13
SIRIUS SATELLITE RADIO
(USA ONLY) 15
ZONE OPERATION 16
MENU STRUCTURE 17
TROUBLESHOOTING 18
SPECIFICATIONS AND LICENSING 19
FUSION MARINE ACCESSORIES 21
003
INSTALLATION
INSTALLATION
IF ANY MODIFICATION TO THE VESSEL IS REQUIRED, SUCH AS DRILLING
HOLES ETC FUSION RECOMMENDS CONSULTATION WITH YOUR BOAT
DEALER OR MANUFACTURER BEFOREHAND.
Caution: The MS-RA200 is designed for vessels with a 12V DC Negative ground electrical system
ELECTRICAL WIRING
Note: Appropriate mounting is very important to
ensure correct operation. Select a location that allows
both free/open airflow around rear of chassis, whilst
minimizing exposure to moisture. Allow adequate
room at the rear of the unit for the cable looms
(approx 2”).

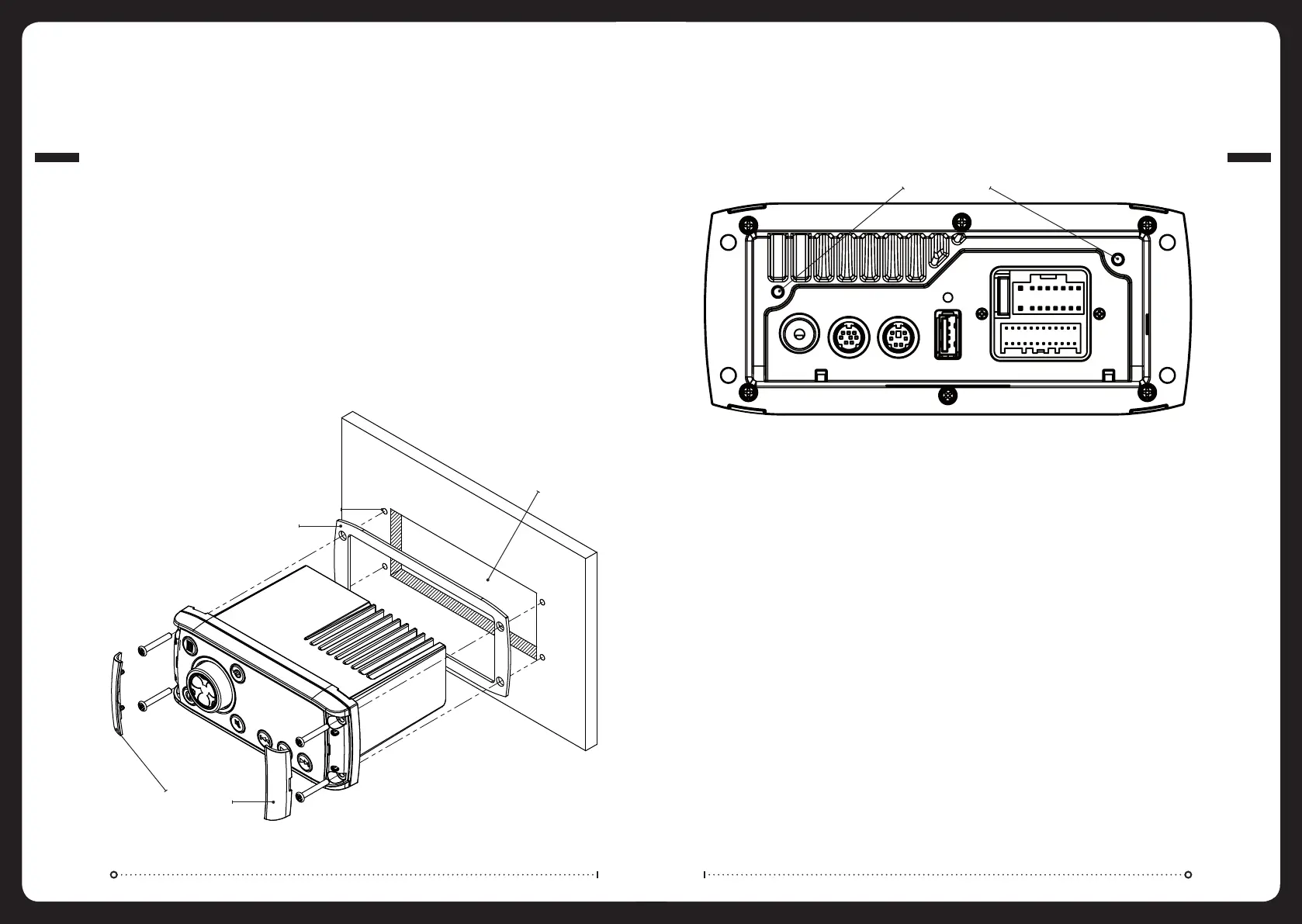

» Create mounting hole for product and drill Screw
Pilot Holes.
Refer to mounting template included with product
or download from www.fusionelectronics.com
» Fit mounting gasket
» Insert the unit into the mounting hole
» Use the supplied 4 x self tapping screws, to affix
the unit into position.
» Attach screw covers
Mounting Gasket
Screw Covers
Screw Pilot Hole
Mounting Hole
Rear support holes
004
INSTALLATION
In some cases a rear support strap (not supplied)
may be required. Please use the two holes indicated
above, to attach the strap using two 8 gauge x 8mm
self-tapping screws (not supplied).
INSTALLATION WARNING
» Ensure the marine vessels +12V lead is removed
from the battery before any equipment is
connected
» Investigate the marine vessels fuel tanks and
electrical wiring locations before you begin
installation
» Ensure all wiring is protected to avoid damage
When wiring the MS-RA200, ensure that the wires are
away from sharp objects and that rubber grommets
and insulated bungs are used when routing the
wiring. Ensure that when connecting the wires to
the speakers and audio system, the terminals and
connections are protected from shorting to each other.
Note: Ensure the Aerial cable is routed away from any
power cables, and is the minimal length, as long cable
runs will affect AM reception performance.
For optimum radio reception please ensure you use
an independent am/fm marine antenna (ground
independent).
Please refer to the following site for further info:
www.pacificaerials.co.nz
