Signature Series Speakers Installation

Instructions

Important Safety Information

WARNING

See the Important Safety and Product Information guide in the

product box for product warnings and other important

information.

WARNING

This device must be installed according to these instructions.

Disconnect the vehicle's or vessel's power supply before

beginning to install this device.

CAUTION

Continuous exposure to sound pressure levels over 100 dBA

may cause permanent hearing loss. The volume is typically too

loud if you cannot hear people speaking around you. Limit the

amount of time you listen at high volume. If you experience

ringing in your ears or muffled speech, stop listening and have

your hearing checked.

Always wear safety goggles, ear protection, and a dust mask

when drilling, cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite

side of the surface.

It is strongly recommended that you have your audio system

installed by a professional installer to ensure optimum

performance.

You must read all installation instructions before beginning the

installation. If you experience difficulty during the installation, go

to www.fusionentertainment.com for product support.

Tools Needed

• Electric drill

• Drill bit (size varies based on surface material)

• Phillips screwdriver

• Appropriate saw or utility knife to cut surface material

• 18 AWG (0.82 mm

) or larger speaker wire

• 4.8 mm and 6.3 mm female speaker spade connectors

(recommended)

• 22 AWG (0.33 mm

) or larger wire for the LEDs (sports

models only)

• 4 mm male and female bullet connectors for the LED wires

(recommended, sports models only)

• Wire strippers (optional)

• Crimping tool (optional)

• Electrical tape (optional)

• Marine sealant (optional)

NOTE: For customized installations, additional tools and

materials may be needed.

Mounting Considerations

NOTICE

When mounting the speaker in an area exposed to weather or

water, you must mount the speaker on a vertical surface. If you

mount the speaker on a horizontal surface facing up, water can

gather in and around the speaker, causing damage over time.

If you intend to mount the speakers outside the boat, you must

mount them in a location well above the waterline, where they

are not submerged or damaged by docks, pilings, or other

pieces of equipment. When mounted correctly, these speakers

are rated for protection from the front of the speaker. Water

exposure and damage to the rear of the speaker voids the

warranty. This includes situations when the speakers are

mounted in a sealed enclosure, especially if they are exposed to

wash down. Using an enclosure with a port or vent exposed to

the outside environment may allow water to collect and damage

the speaker.

You must turn off the audio system before making any

connections to the source unit, amplifier, or speakers. Failure to

do so could result in permanent damage to the audio system.

You should protect all terminals and connections from grounding

and from each other. Failure to do so could result in permanent

damage to the audio system and void the product warranty.

When selecting a mounting location for the speakers, observe

these considerations:

• You must select mounting locations that provide sufficient

clearance for the mounting depth of the speakers as

specified in the product specifications.

• You should select a flat mounting surface for the best seal.

• You should protect the speaker wires from sharp objects and

always use rubber grommets when wiring through panels.

• To avoid interference with a magnetic compass, you should

not mount the speakers closer to a compass than the

compass-safe distance value listed in the product

specifications.

Selecting the correct mounting location optimizes the

performance of each speaker. FUSION

speakers are designed

to perform in the widest possible range of mounting locations,

but the more you plan the installation, the better the speakers'

sound will be. For more information on speaker placement and

specifications, go to www.fusionentertainment.com.

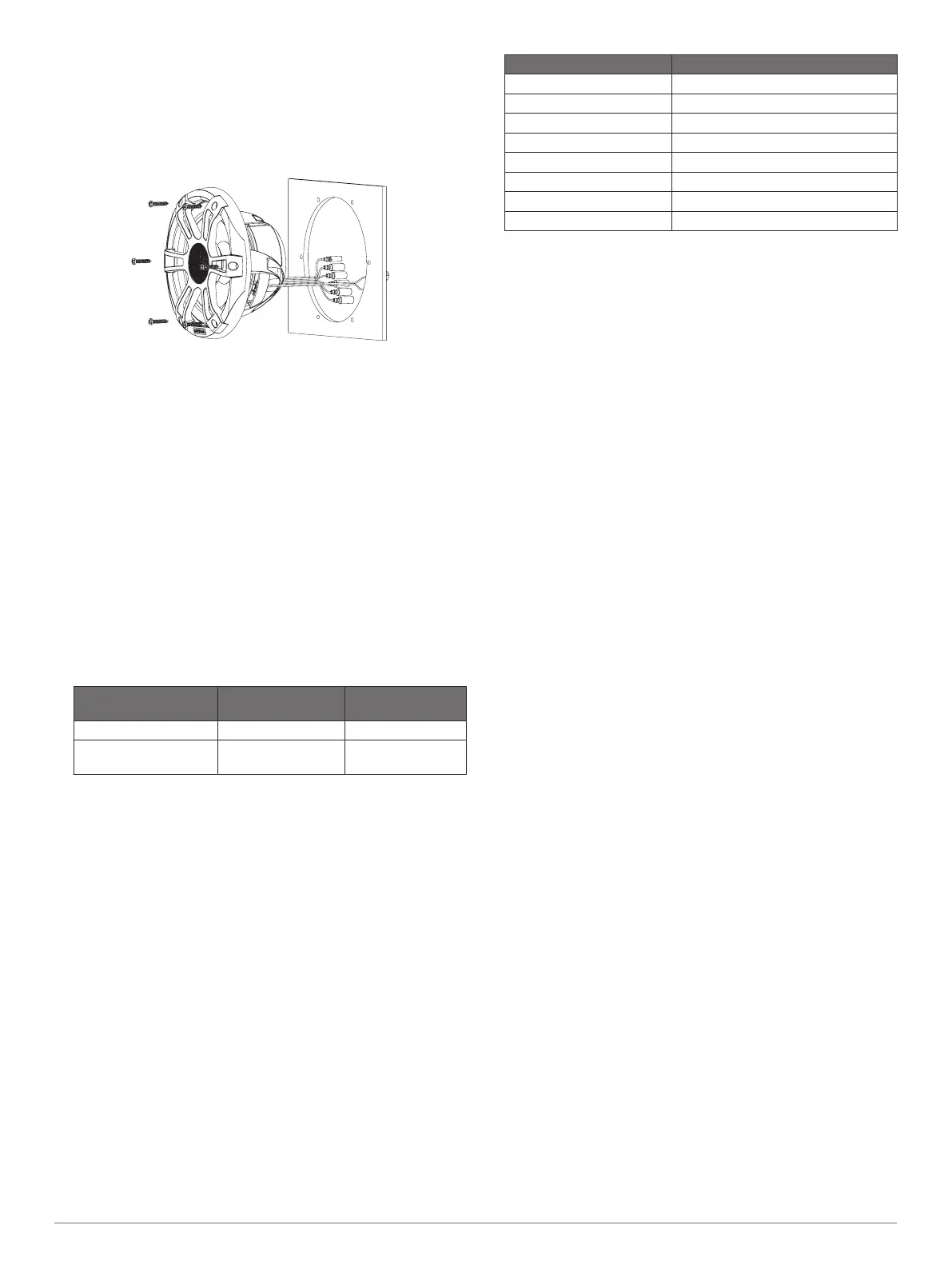

Mounting the Speakers

Before mounting the speakers, you must choose a location

following the guidelines above.

Route the speaker wires (and LED wires, if applicable) from

the source to the speaker location.

Trim the template and make sure it fits in the selected

location.

Orient the template with the FUSION logo at the bottom of

the template.

Secure the template to the selected location.

Using a drill bit appropriate for the mounting surface, drill a

hole inside the dashed line on the template to prepare the

mounting surface for cutting.

Using a jigsaw or rotary tool, cut the mounting surface along

the inside of the line on the template.

Place the speaker in the cutout to test the fit.

If necessary, use a file and sandpaper to refine the size of

the cutout.

After the speaker fits correctly in the cutout, ensure the

mounting holes on the speaker line up with the pilot holes on

the template.

If the mounting holes on the speaker do not line up, mark the

new hole locations.

Using an appropriately sized drill bit for the mounting surface

and screw type, drill the holes.

December 2019

190-02675-90_0A

Remove the template from the mounting surface.

Connect the speaker wires while observing polarity (Speaker

Wiring, page 2).

If necessary, connect the LED wires to the Sports model

speakers (LED Wiring, page 2).

Place the speaker in the cutout.

Secure the speaker to the mounting surface using the

included screws.

NOTE: Do not over tighten the screws, especially if the

mounting surface is not flat.

For Classic model speakers, attach the grille to the speaker

front.

Speaker Wiring

When connecting the speakers to your stereo, observe these

considerations.

• Speaker wire is not included with the speakers. You should

use 18 AWG (0.82 mm

) or larger speaker wire to connect

the speakers to the stereo.

• The leads on the speakers are terminated using male spade

connectors. You should use female spade connectors (not

included) to connect the speaker wire to the speaker leads

for the best connection.

• You can use this table to identify the polarity and spade-

connector sizes of the leads on the speaker.

Speaker wire color Speaker wire

polarity

Spade connector

size

White Positive (+) 6.3 mm

White with a black

stripe

Negative (-) 4.8 mm

LED Wiring

Connecting the LED Wires

You can control the color of the LEDs by connecting the colored

LED wires to the negative (-) terminal of a 12 VDC power

source. You can splice the negative (-) wire to multiple LED

wires to customize the LED color and tone. You must connect

the black LED wire to the positive (+) terminal of the same

12 VDC power source to complete the circuit.

NOTE: This feature is available only on the sports model.

NOTE: Instead of connecting the LED wires for one dedicated

color, you can install a remote control to turn the LEDs on and

off, change the color, and create lighting effects. See your

FUSION dealer or www.fusionentertainment.com for more

information.

The black wire on the LED cable is terminated with a 4 mm

female bullet connector, and the color wires are terminated with

4 mm male bullet connectors. You can connect these to 4 mm

bullet connectors on your wires (not included), or remove the

bullet connectors to connect to the bare wires instead.

Connect the positive (+) wire from a 12 VDC power source to

the black wire on the LED cable.

Connect the negative (-) wire from the same 12 VDC power

source to the colored wire or wires on the LED cable

according to the preferred LED color.

LED Color LED Wire Color

Red Red

Green Green

Blue Blue

Yellow Red and green

Magenta Red and blue

Cyan Blue and green

Cool white Turquoise

Warm white Yellow

NOTE: You can connect the cool white or warm white wire to

change the tone of any LED color combination.

If necessary , route the positive and negative wires, and

connect them to a 12 VDC power source (Connecting the

LED Wires to Power, page 2).

Connecting the LED Wires to Power

NOTE: This feature is available on only the sports model.

You must connect all 12 Vdc wiring to the LEDs to a 3 A fuse at

the power-source end of the cable. You should connect the

positive (+) power wire to a 12 Vdc power source through an

isolator switch or circuit breaker to turn the LEDs on and off. You

can use the same isolator or circuit breaker controlling the

power supply to your stereo, which allows you to turn the LEDs

and the stereo on and off at the same time.

You should use 22 AWG (0.33 mm

) or thicker wire to connect

the LEDs to the battery.

Route the positive power (+) and negative ground (-) wires

from the LED-wire connections to the battery.

Connect the negative wire to the negative (-) battery terminal.

Connect the positive wire to the positive (+) terminal through

a 3 A fuse and isolator switch or circuit breaker.

Attaching the Grille to the Classic Model Speakers

NOTE: This feature is available only on the Classic model

speakers.

With the speakers mounted, hold the grille with the FUSION

logo at the bottom, or at the 6 o'clock position.

Turn the grille counter-clockwise about 10°, so the FUSION

logo is at the 5 o'clock position.

Place the grille on the rim of the speaker.

Twist the grille clockwise to secure it.

Speaker Information

True-Marine

™

Products

True-Marine products are subjected to rigorous environmental

testing under harsh marine conditions to surpass industry

guidelines for marine products.

Any product that bears the True-Marine stamp of assurance has

been designed for simplicity of use and combines advanced

marine technologies to deliver an industry leading entertainment

experience. All True-Marine products are supported by the

FUSION 3-year worldwide limited consumer warranty.

Registering Your Speakers

Help us better support you by completing our online registration

today.

• Go to www.fusionentertainment.com.

• Keep the original sales receipt, or a photocopy, in a safe

place.

2 Signature Series Installation Instructions

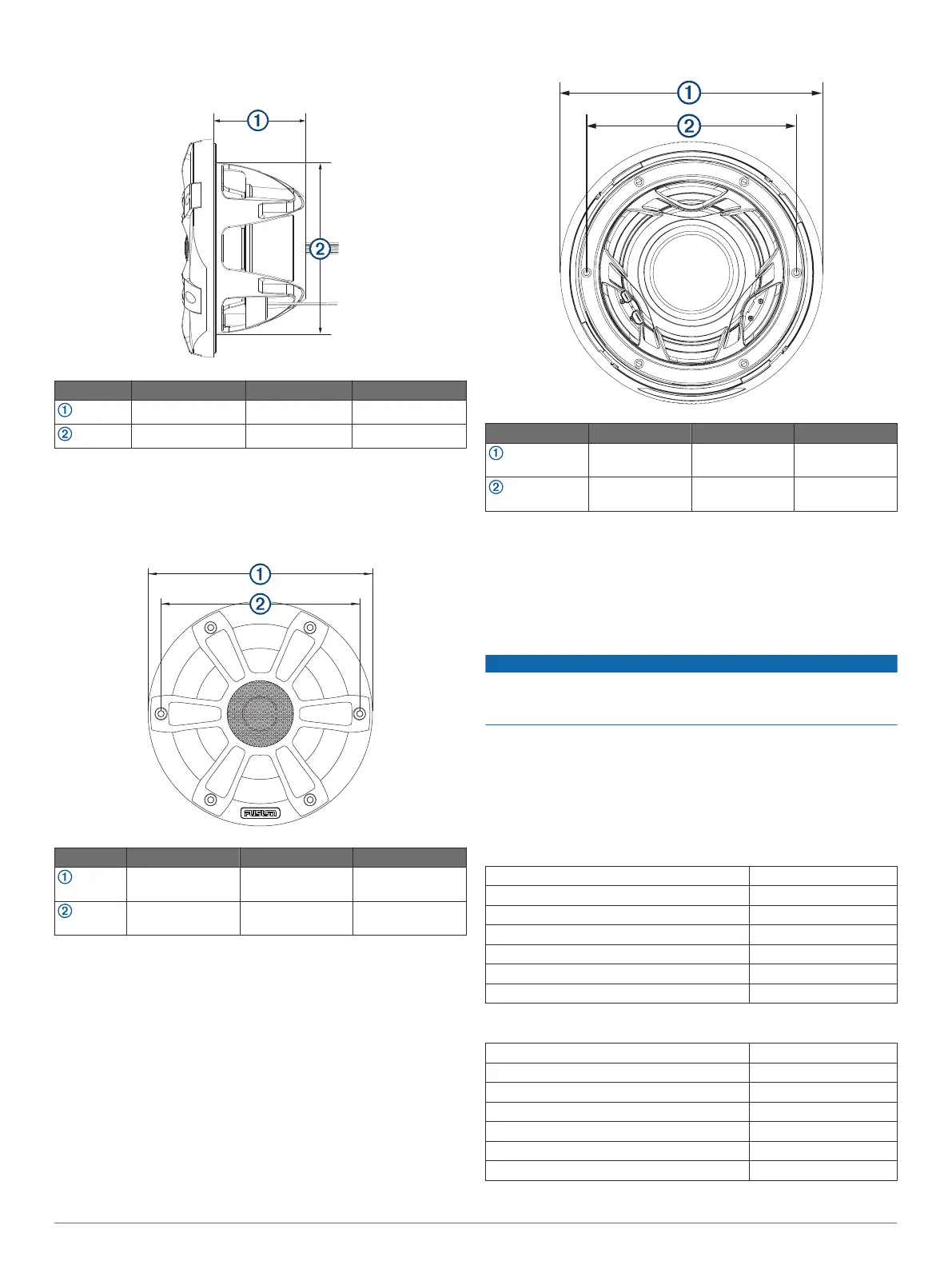

Dimension Drawings

Signature Series Side View

Dimension 6.5" Speakers 7.7" Speakers 8.8" Speakers

76 mm (3 in.) 83 mm (3

in.) 103 mm (4 in.)

133 mm (5

in.) 153 mm (6 in.) 185 mm (7

in.)

A Sports model speaker is shown, but the dimensions are the

same for the Classic model speaker.

NOTE: You must allow at least 3 mm (

in.) of clearance

beyond the depth of the speaker.

Sports Model Front View

Dimension 6.5" Speakers 7.7" Speakers 8.8" Speakers

176 mm

in.)

196 mm

in.)

224 mm

in.)

156 mm (6

in.) 176 mm

in.)

202 mm

in.)

Classic Model Back View

Dimension 6.5" Speakers 7.7" Speakers 8.8" Speakers

200 mm

in.)

220 mm

in.)

247 mm

in.)

156 mm

in.)

176 mm

in.)

202 mm

in.)

Cleaning the Speakers

NOTE: When mounted correctly, these speakers are rated IP65

for dust and water ingress protection under normal conditions.

They are not designed to withstand high pressure water spray,

which may occur when you wash down your vessel. Failure to

carefully spray-clean the vessel may damage the product and

void the warranty.

NOTICE

Do not use harsh or solvent-based cleaners on the speakers.

Using such cleaners may damage the product and void the

warranty.

Clean all salt water and salt residue from the speaker with a

damp cloth soaked in fresh water.

Use a mild detergent to remove a heavy buildup of salt or

stains.

Specifications

6.5" Speakers

Max. power (Watts) 230 W

RMS power (Watts) 75 W

Sensitivity (1 W/1 m) 90 dB

Frequency response 70 Hz to 22 kHz

Min. mounting depth (clearance) 79 mm (3

in.)

Mounting diameter (clearance) 136 mm (5

in.)

Compass-safe distance 310 cm (122 in.)

7.7" Speakers

Max. power (Watts) 280 W

RMS power (Watts) 100 W

Sensitivity (1 W/1 m) 91 dB

Frequency response 60 Hz to 22 kHz

Min. mounting depth (clearance) 86 mm (3

in.)

Mounting diameter (clearance) 156 mm (6

in.)

Compass-safe distance 358 cm (141 in.)

Signature Series Installation Instructions 3

Produkspesifikasjoner

Merke:	Fusion
Kategori:	Høyttaler
Modell:	SG-F882W

Trenger du hjelp?

Hvis du trenger hjelp med Fusion SG-F882W still et spørsmål nedenfor, og andre brukere vil svare deg

Ditt navn*

Din e-post*

Skriv spørsmålet ditt her

Høyttaler Fusion Manualer

Fusion MS-BX402 Bruksanvisning

2 September 2025

Fusion XS-F77SPGW Bruksanvisning

2 September 2025

Fusion EL-F651B Bruksanvisning

2 September 2025

Fusion EL-F651W Bruksanvisning

2 September 2025

Fusion SM-F65CB Bruksanvisning

2 September 2025

Fusion MS-EL602 Bruksanvisning

2 September 2025

Fusion MS-FR7022 Bruksanvisning

2 September 2025

Fusion SG-F772W Bruksanvisning

2 September 2025

Fusion XS-F77CWB Bruksanvisning

2 September 2025

Fusion SG-F882W Bruksanvisning

2 September 2025

Høyttaler Manualer

Nyeste Høyttaler Manualer

Essentiel B SB30 Bruksanvisning

1 September 2025

Harman Kardon HKTS 9BQ Bruksanvisning

1 September 2025

Harman Kardon Citation 100 Bruksanvisning

1 September 2025

Harman Kardon Traveler Bruksanvisning

1 September 2025

Harman Kardon Allure Bruksanvisning

1 September 2025

Max 215 Bruksanvisning

1 September 2025

Wet Sounds ZERO 8 XZ-W Bruksanvisning

1 September 2025

Audison Prima APBMW X4M Bruksanvisning

1 September 2025

Xiaomi Beva Magic Star Bruksanvisning

1 September 2025

Hama Blade Bruksanvisning

1 September 2025
