Side 1/4
®
Waketower Can Speakers Installation Instructions............................................................................2
Instructions d'installation Waketower Can......................................................................................... 4
Waketower Can Istruzioni di installazione......................................................................................... 6
Waketower Can Lautsprecher – Installationsanweisungen............................................................... 8
Instrucciones de instalación de los altavoces Waketower Can....................................................... 10
Waketower Can Waketower Can..................................................................................................... 12
Waketower Can luidsprekers installatie-instructies..........................................................................14
Garmin
®
, the Garmin logo, FUSION
®
, and the Fusion logo, are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express
permission of Garmin.
October 2018
190-02482-90_0A
Waketower Can Speakers Installation
Instructions
Important Safety Information
WARNING
Failure to follow these warnings and cautions could result in
personal injury, damage to the vehicle or vessel, or poor product
performance.
This device must be installed according to these instructions.
Disconnect the vehicle's or vessel's power supply before
beginning to install this product.
CAUTION
Continuous exposure to sound pressure levels over 100 dBA
may cause permanent hearing loss. The volume is typically too
loud if you cannot hear people speaking around you. Limit the
amount of time you listen at high volume. If you experience
ringing in your ears or muffled speech, stop listening and have
your hearing checked.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
It is strongly recommended that you have your audio system
installed by a professional installer to ensure optimum
performance.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation, go
to www.fusionentertainment.com for product support.
What's In the Box
• Two Waketower can speakers
Materials and Tools Needed
• 18 AWG (0.82 mm
2
) wire (speakers)
• 20 AWG (0.5 mm
2
) wire (LEDs)
• 3 A in-line fuses (LEDs)
• Speaker mounting bracket (sold separately)
• Drill and 12 mm (
1
/
2
in.) drill bit
• Wire strippers
• Solder and heat-shrink tubing for wire connections
NOTE: For customized installations, additional tools and
materials may be needed.
Mounting the Speakers
You must purchase mounting brackets for the FUSION
®
Waketower Can speakers separately. Each type of mounting
bracket contains specific installation instructions.
1
If necessary, mark the locations on the waketower or the
deck where you plan to mount the speakers.
2
If necessary, drill a 12 mm (
1
/
2
in.) cable pass-through hole in
the waketower or deck.
3
Route the speaker and LED power wires (not included) to the
mounting locations.
4
Using the installation instructions provided with the mounting
bracket, connect the bracket to the speakers and to the
waketower or the deck.
5
Connect the speaker wires (Speaker Wiring, page 2).
6
If necessary, connect the LED power wires (Speaker LED
Wiring, page 2).
7
If speakers were installed at an angle, rotate the front of the
speaker and the endcap so the FUSION logo appears level
(Adjusting the Angle of the FUSION Logos, page 2).
Speaker Wiring
When connecting the speakers to your stereo, observe these
considerations.
• Speaker wire is not included with the speakers. You should
use 18 AWG (0.82 mm
2
) speaker wire to connect the
speakers to the stereo.
• You should make all wiring connections using solder and
heat-shrink tubing (not included).
• You can use this table to identify the polarity of the leads on
the speaker.
White Positive (+)
White with a black stripe Negative (-)
Speaker LED Wiring
You can control the color of the LEDs through the polarity of the
LED wires.
• Wire is not included with the speakers. You should use
20 AWG (0.5 mm
2
) or thicker wire to connect the speaker
LEDs to power.
• You should connect the positive (+) power wire to a 12 Vdc
power source through an isolator switch or circuit breaker to
turn the speaker LEDs on and off.
NOTE: You can use the same isolator or circuit breaker
controlling the power supply to your stereo, which allows you
to turn the speaker LEDs and the stereo on and off at the
same time.
• You should make all wiring connections using solder and
heat-shrink tubing (not included).
• You can use this table to connect the LED wires from the
speaker to power according to the preferred LED color.
Blue LED Black to negative (-)
Red to positive (+)
White LED Black to positive (+)
Red to negative (-)
Adjusting the Angle of the FUSION Logos
You should secure the speaker to the waketower or the deck
before adjusting the angle of the FUSION logos.
If you installed the speaker at an angle, you can rotate the front
and the endcap so the FUSION logos appear level.
1
Remove the six #2 Phillips screws holding the front of the
speaker to the can.
2
Rotate the front of the speaker until the FUSION logo
appears level.
You can rotate the front of the speaker in 30-degree
increments.
3
Secure the front of the speaker to the can using the screws
you removed in step 1.
4
Rotate the endcap on the back of the can by hand until the
FUSION logo appears level.
5
Repeat this procedure for other speakers on the boat, as
needed.
Speaker Information
True-Marine
™
Products
True-Marine products are subjected to rigorous environmental
testing under harsh marine conditions to surpass industry
guidelines for marine products.
Any product that bears the True-Marine stamp of assurance has
been designed for simplicity of use and combines advanced
marine technologies to deliver an industry leading entertainment
2 Installation Instructions
experience. All True-Marine products are supported by the
FUSION 3-year worldwide limited consumer warranty.
Registering Your Waketower Can
Help us better support you by completing our online registration
today.
• Go to www.fusionentertainment.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
Cleaning the Speakers
NOTE: When mounted correctly, these speakers are rated IP65
for dust and water ingress protection under normal conditions.
They are not designed to withstand high pressure water spray,
which may occur when you wash down your vessel. Failure to
carefully spray-clean the vessel may damage the product and
void the warranty.
NOTICE
Do not use harsh or solvent-based cleaners on the speakers.
Using such cleaners may damage the product and void the
warranty.
1
Clean all salt water and salt residue from the speaker with a
damp cloth soaked in fresh water.
2
Use a mild detergent to remove a heavy buildup of salt or
stains.
Troubleshooting
Before you contact your FUSION dealer or service center, you
should perform a few simple troubleshooting steps to help
diagnose the problem.
If the FUSION speaker has been installed by a professional
installation company, you should contact the company so the
technicians can assess the problem and advise you about
possible solutions.
There is no sound coming from the speakers
• Verify that all connections from the source device and/or the
amplifier are connected correctly to the speaker terminals.
The system lacks bass or high frequencies
• Verify that the correct wire polarity is observed between the
source and speakers.
The wires should be connected positive to positive and
negative to negative.
• Verify that the speakers are attached firmly to the mounting
surface.
The audio is distorted
• Verify that the source volume is not too loud for the speaker,
and reduce the volume if necessary.
• Verify that the panels surrounding the speaker on the vessel
are not rattling.
• Verify that the source device and/or the amplifier are
connected to the speaker terminals correctly.
• If the speaker is connected to an amplifier, verify that the
input level of the amplifier is matched to the output level of
the stereo. For more information, see the manual for the
amplifier.
The LED lights will not turn on
• Verify that all wiring connections are correct and tight.
Specifications
Peak power (watts) 330 W
RMS power (watts) 130 W
Efficiency (1 W/m) 91 dB
Frequency response (+3 DB) 50 Hz to 20 kHz
Nominal impedance 4 ohm
Recommended amplifier power
(RMS)
From 25 to 250 W, playing music
LED color options Blue and white
LED supply voltage From 10.8 to 16 Vdc
LED load current at 14.4 Vdc 150 mA
Operating temperature range From 0 to 50°C (from 32 to 122°F)
Storage temperature range From -20 to 70°C (from -4 to
158°F)
Compass-safe distance 318 cm (10.43 ft.)
Tweeter type Silk dome
Water and dust rating IEC 60529 IP65 (Protected
against dust and water ingress.)

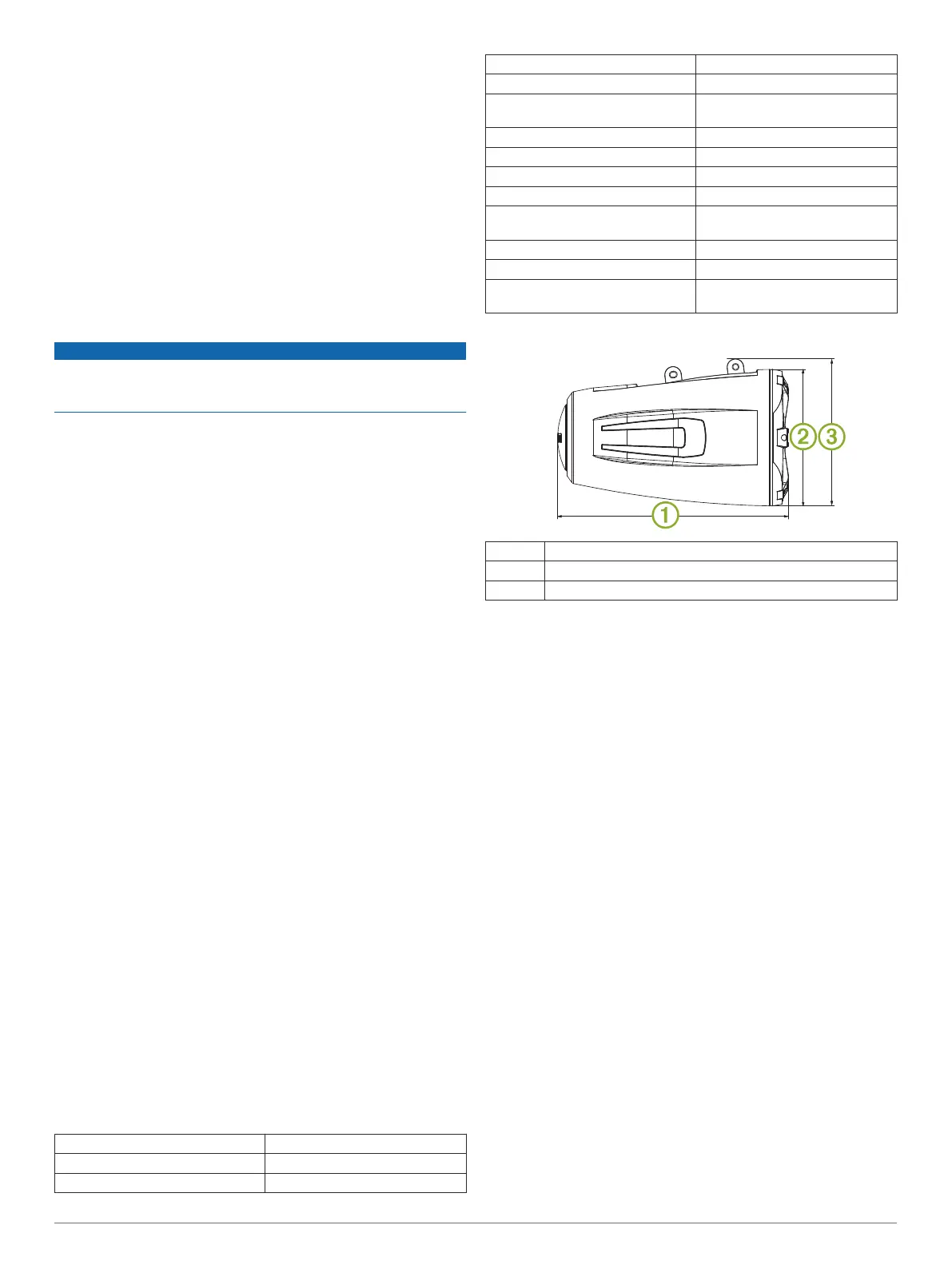

Dimensions
À
385 mm (15
5
/
32
in.)
Á
241 mm (9
1
/
2
in.)
Â
224 mm (8
13
/
16
in.)
Installation Instructions 3
