Side 1/8

FXA-100

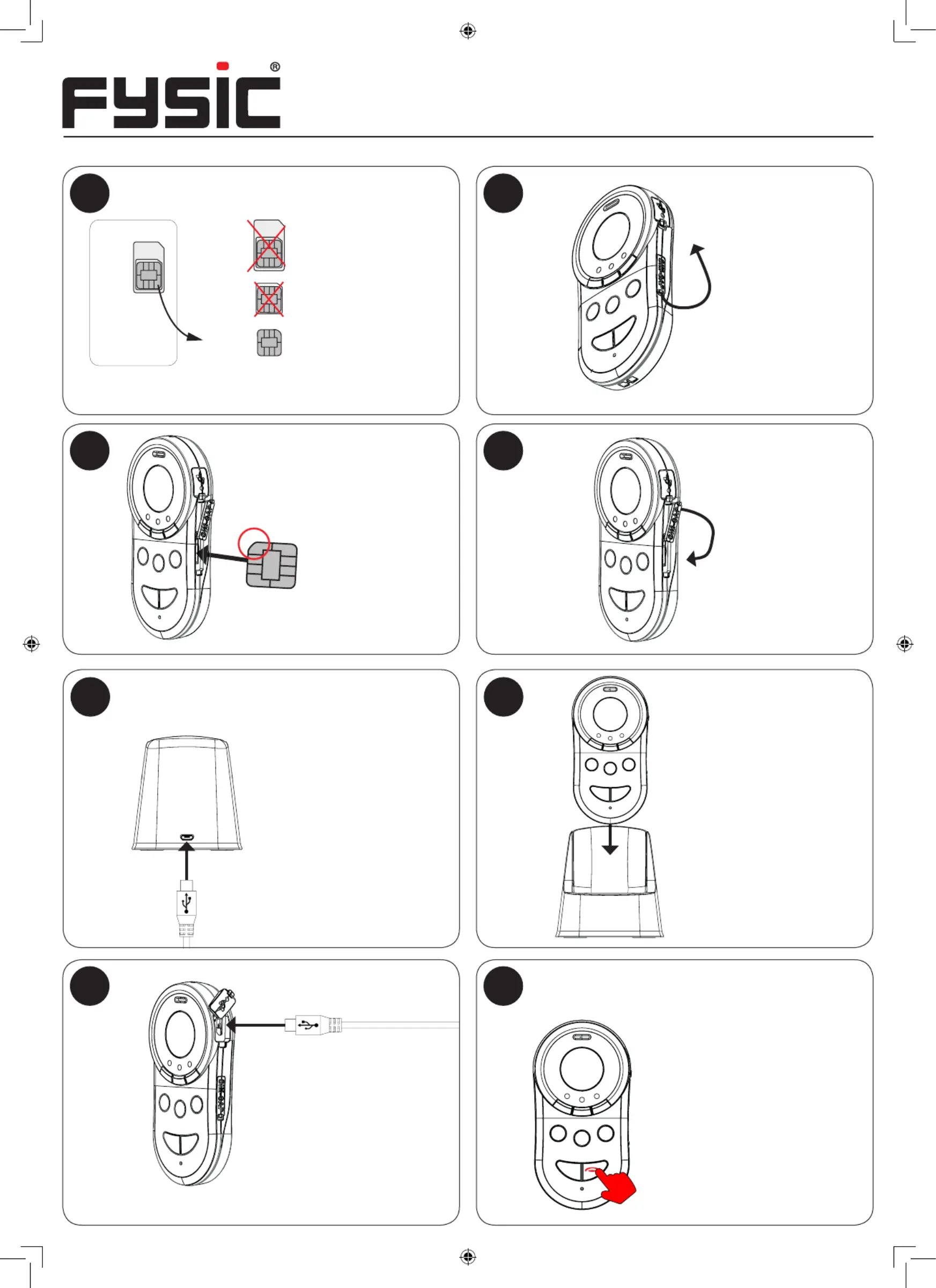

On the right side

of the alarm

button, pull the

rubber cover

"SIM-CAP" to the

right and turn it

upwards

Turn and snap

the rubber

closure back

into place

INSTALLATION GUIDE

5 6

Put the alarm key

on charge

Choose the format:

Nano SIM

Slide the Nano SIM

card into the slot and

press it until it clicks

into place

7 8

Turn on the alarm

key by pressing and

holding the key with

the red cone for 4-5s.

Charge the product

before turning it on.

Charge the alarm key

before rst use

Insert the USB plug

into the back of the

charger

62 2475

87456

A 01724

62 2475

87456

01724

Mini SIM

Micro SIM

Nano SIM

You can also charge

without the charging

station: To do this,

turn the rubber USB

cover upwards and

insert the plug here.

Make sure that

the SIM PIN code

is disabled and

the SIM is already

activated on

another mobile

phone

SIM card:

Charging:

It takes about 8 hours

for an empty battery to

be fully charged

When the battery is

almost empty, an SMS

message can be sent

to SOS No. 1

Note the

angled corner

Switching on:

The system is set

up by sending

SMS messages

to the emergency

key number using

another phone.

SMS

The alarm key must initialize the GPS system properly at rst. It is important to do this properly at rst so that you can make

optimal use of the GPS reception in future.

1. Program an SOS number as described above.

2. Activate the SOS on the alarm key, but do this outside where you can be assured of good GPS reception.

3. Accept the emergency call on your smartphone and wait until you receive the location (during the call) by SMS. This is

most likely another Network Location determination.

4. The call may be disconnected

5. Wait 5 minutes.

Repeat steps 2, 3 and 4 until you receive an SMS via GPS Location.

If you still receive the SMS with a Network Location, repeat these

steps at a di󰀨erent outside location.

If it still does not work, please contact our Service number

(see Manual).

V1.6

SMS codes:

Each SMS to be set starts with $ #, followed by the programming code, then a four-digit password (default “1234”),

then optionally a setting such as a phone number and ends with #.

Note that all programming codes must be sent in capital letters.

SOS1, SOS2, SOS3, SOS4 or SOS5 setting:

$# #SOS1,1234,0612345678

$# # SOS2,1234,0612345678

$# #SOS3,1234,0612345678 etc.

0612345678 is the number here, replace it with the number you wish to set

SOS1, SOS2, SOS3, SOS4 SOS5 erasing:

$# #SOS1,1234,

$# #SOS2,1234,

$# #SOS3,1234, etc.

M1, M2 or M3 setting:

$# #M1,1234,0612345678

$# #M2,1234,0612345678

$# #M3,1234,0612345678

0612345678 is the number here, replace it with the number you wish to set

M1, M2 or M3 erasing:

$# #M1,1234,

$# #M2,1234,

$# # M3,1234,

Request location: GPS,1234$# #

By callback via emergency button: CALL,1234$# #

Call or vibrate: AU,1234,1 (1=Call, 2=Vibrate, 3=Call+Vibrate)$# #

Activating/deactivating the warning tone when the battery is empty:

$#BATTERY,1234,1 BATTERY,1234,0# $#/#

Setting up:

Specications:

Network: GSM900 / DSC1800 / WCDMA / LTE / WIFI

SAR:

<0,4W/kg/<0,6W/kg/<0,3W/kg/<0,4W/kg/<0,1W/kg

Power: GSM: 880-960MHz < 2W

DCS: 1710-1880MHz

< 1W

WCDMA: 1850MHz-1990MHz < 0.2W

LTE: 1920-2170MHz < 0.2W

WIFI: 2412-2484MHz < 0.1W

GPS Initialisation:

FXA-100

Trek aan de

rechterzijde van

de alarmknop het

rubberen klepje

‘SIM-CAP’ naar

rechts en draai

deze naar boven

Draai en klik

de rubberen

sluiting terug op

zijn plek

INSTALLATIEGIDS

5 6

Zet de alarmknop

op de lader

Kies het formaat:

Nano SIM

Schuif de Nano

SIM-kaart in het vak

en druk deze aan tot

deze vastklikt

7 8

Zet de alarmknop aan

door de knop met het

rode hoorntje 4-5s.

ingedrukt te houden.

Laad het product voor

aanzetten eerst op.

Laad de alarmknop

voor eerste gebruik op

Steek de USB-stekker

achter in de lader

62 2475

87456

A 01724

62 2475

87456

01724

Mini SIM

Micro SIM

Nano SIM

U kunt ook zonder het

laadstation opladen:

Draai hiervoor het

rubberen USB-klepje

omhoog en steek de

stekker hier in.

Zorg ervoor dat de

PIN-code van de

SIM uitgeschakeld

is en de SIM reeds

is geactiveerd op

een andere mobiele

telefoon

SIM-kaart:

Opladen:

Het duurt c.a. 8 uur

voor een lege batterij

volledig is opgeladen

Als de batterij bijna

leeg is, kan er een

SMS-bericht naar

SOS nr. 1 gestuurd

worden

Let op het

schuine hoekje

Inschakelen:

Produkspesifikasjoner

Merke:	Fysic
Kategori:	GPS-enhet
Modell:	FXA-100
Innebygd skjerm:	Nei
Vekt:	180 g
Bredde:	70 mm
Dybde:	53 mm
Høyde:	72 mm
Elektronisk kompass:	Nei
USB-port:	Ja
USB-kontakttype:	Micro-USB
Pakkevekt:	300 g
SIM-kortspor:	Ja
Innebygd minne:	Nei
SOS-knapp:	Ja
Produktfarge:	Sort
Batteriliv (maks.):	- timer
Kabler inkludert:	Micro-USB
Hurtigstartsguide:	Ja
Beskyttelsesfunksjoner:	Sjokkresistent
Kroppsmateriale:	Plast
Batterier medfølger:	Ja
Formål:	Personlig
SIM-kort kapasitet:	Enkelt SIM
Minnekort-innstikk:	Nei
