Side 1/67
Grandstream Networks, Inc.
GSC3516/GSC3506
User Manual
GSC35X6 – User Manual
WELCOME
The GSC3516 is a SIP intercom speaker and microphone that allows offices, schools, hospitals, apartments, and more to build
powerful voice intercom solutions that expand security and communication. This robust SIP intercom device offers 2-way
voice functionality with both a high fidelity 15W HD speaker and 3 directional microphones with Multichannel Microphone
Array Design (MMAD) and 1 omnidirectional auxiliary microphone that offers a 4.2-meter pickup distance. The GSC3516
supports a wide range of peripherals including Bluetooth devices, a built-in whitelist, and blacklists to block unwanted calls
easily, integrated dual-band Wi-Fi, and advanced acoustic echo cancellation. By pairing the GSC3516 with other Grandstream
devices, including desktop and cordless IP phones as well as the GDS series of Facility Access products, users can easily sculpt
a state-of-the-art security and voice intercom solution. Thanks to its modern industrial design, a cleanable exterior surface,
and rich features, the GSC3516 is the ideal intercom speaker/microphone for any setting.
The GSC3506 is a 1-way public address SIP speaker that allows offices, schools, hospitals, apartments, and more to build
powerful public address announcement solutions that expand security and communication. This robust SIP speaker offers
crystal clear HD audio functionality with a high-fidelity 30-Watt HD speaker. The GSC3506 support built-in whitelists,
blacklists, and greylists to easily block unwanted calls, SIP and multicast paging, group paging, and PTT. users can easily sculpt
a state-of-the-art security and PA announcement solution. Thanks to its modern industrial design and rich features, the
GSC3506 is the ideal SIP speaker for any setting.
PRODUCT OVERVIEW
Feature Highlights
The following table contains the major features of the GSC35X6:

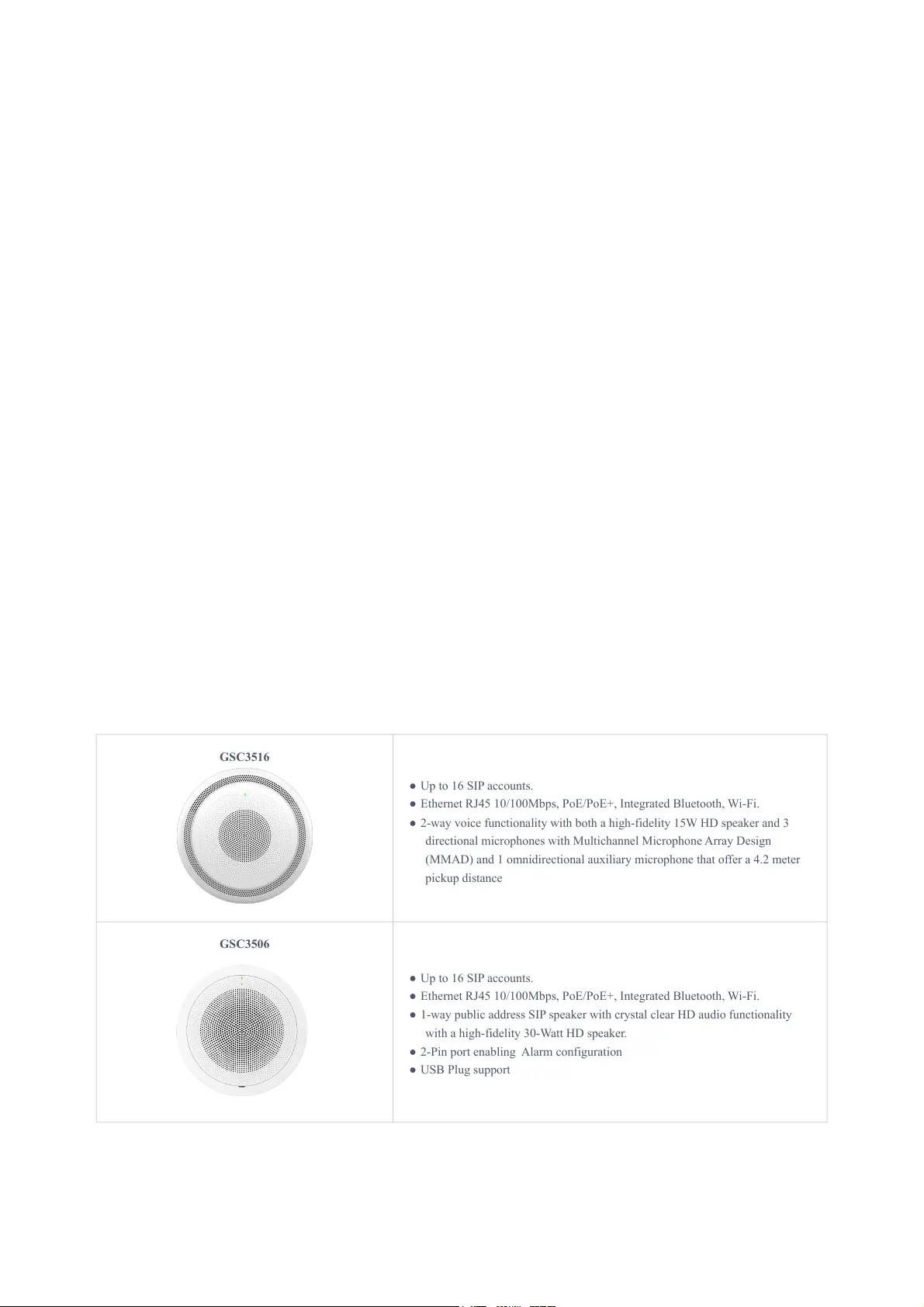

GSC3516/GSC3506 Features in a Glance
GSC3516
● Up to 16 SIP accounts.
● Ethernet RJ45 10/100Mbps, PoE/PoE+, Integrated Bluetooth, Wi-Fi.
● 2-way voice functionality with both a high-fidelity 15W HD speaker and 3
directional microphones with Multichannel Microphone Array Design
(MMAD) and 1 omnidirectional auxiliary microphone that offer a 4.2 meter
pickup distance
GSC3506
● Up to 16 SIP accounts.
● Ethernet RJ45 10/100Mbps, PoE/PoE+, Integrated Bluetooth, Wi-Fi.
● 1-way public address SIP speaker with crystal clear HD audio functionality
with a high-fidelity 30-Watt HD speaker.
● 2-Pin port enabling Alarm configuration
● USB Plug support

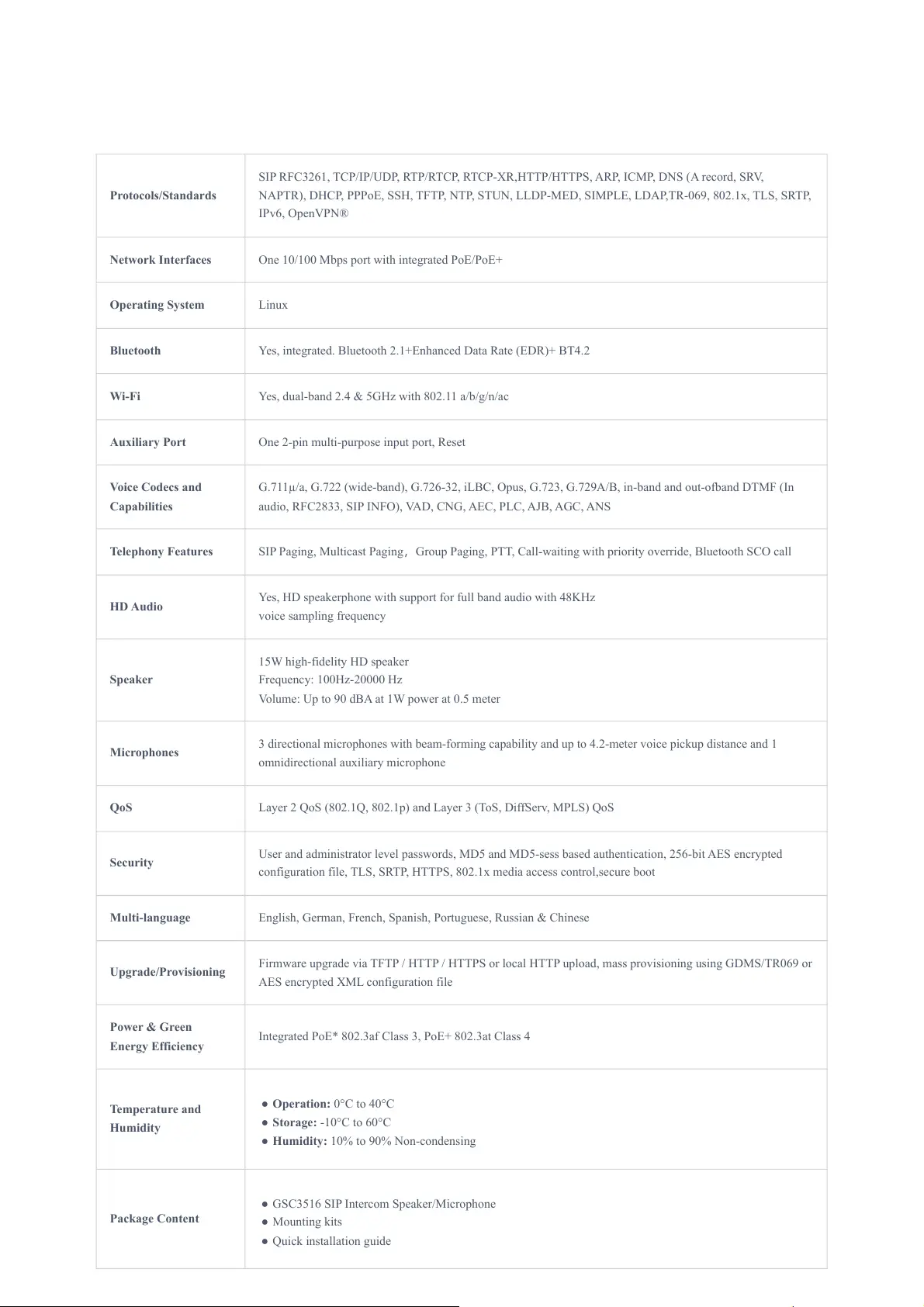

GSC3516 Technical Specifications
The following table resumes all the technical specifications including the protocols/standards supported, voice codecs,
telephony features, languages, and upgrade/provisioning settings for GSC3516.
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR,HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, SIMPLE, LDAP,TR-069, 802.1x, TLS, SRTP,
IPv6, OpenVPN®
Network Interfaces One 10/100 Mbps port with integrated PoE/PoE+
Operating System Linux
Bluetooth Yes, integrated. Bluetooth 2.1+Enhanced Data Rate (EDR)+ BT4.2
Wi-Fi Yes, dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac
Auxiliary Port One 2-pin multi-purpose input port, Reset
Voice Codecs and
Capabilities
G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.723, G.729A/B, in-band and out-ofband DTMF (In
audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Telephony Features SIP Paging, Multicast Paging，Group Paging, PTT, Call-waiting with priority override, Bluetooth SCO call
HD Audio
Yes, HD speakerphone with support for full band audio with 48KHz
voice sampling frequency
Speaker
15W high-fidelity HD speaker
Frequency: 100Hz-20000 Hz
Volume: Up to 90 dBA at 1W power at 0.5 meter
Microphones
3 directional microphones with beam-forming capability and up to 4.2-meter voice pickup distance and 1
omnidirectional auxiliary microphone
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted
configuration file, TLS, SRTP, HTTPS, 802.1x media access control,secure boot
Multi-language English, German, French, Spanish, Portuguese, Russian & Chinese
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using GDMS/TR069 or
AES encrypted XML configuration file
Power & Green
Energy Efficiency
Integrated PoE* 802.3af Class 3, PoE+ 802.3at Class 4
Temperature and
Humidity
● Operation: 0°C to 40°C
● Storage: -10°C to 60°C
● Humidity: 10% to 90% Non-condensing
Package Content
● GSC3516 SIP Intercom Speaker/Microphone
● Mounting kits
● Quick installation guide
