Introduction

Thank you for choosing Harman Kardon!

The ABH 4000 Expansion Hub

will enable you to extend the capabilities of an A-BUS

-based multiroom

system to four zones and up to eight or more rooms, with a Harman Kardon

AB 2 amplified module as the control point. A few simple connections to a

Harman Kardon A-BUS-equipped product, or a source device’s multiroom,

tape or line-level output, will enable you to add the power and simplicity of

A-BUS to your home.

We strongly recommend that you read this instruction sheet carefully before

installing your new ABH 4000. If you do not have experience installing in-wall

electrical and telecommunications components, you are advised to consult

with a qualified low-voltage contractor or custom installer.

If you have any questions about this product, its installation or its operation,

please contact your retailer or custom installer. They are your best source

of product information.

The ABH 4000 will add to your listening pleasure by distributing sound through-

out your home with the level of performance for which Harman Kardon has been

famous for more than fifty years.

Features

• Simple connection to any A-BUS-equipped Harman Kardon receiver and

many other A-BUS products

• Analog audio inputs and outputs, along with IR outputs, enable use with

non-A-BUS products as well

• Adds A-BUS capability to multiroom systems with only a single Category 5

cable run to each remote module

• Allows for up to four separate zones, each distributing an independent

source device

• Two banks available, allowing up to two rooms per zone

• Expandable to up to 16 zones using additional ABH 4000 hubs

• Infrared (IR) commands from each zone are routed separately, allowing for

more than one source device of a given type

• Twelve-volt trigger output may be used to power on source devices

• Designed for easy mounting on wire back-boards, or for shelf placement

IMPORTANT SAFETY AND INSTALLATION INFORMATION!

Wire Separations

Category 5 wiring systems must be installed to minimize the possibility of accidental

contact with hazardous power and lighting wiring. Never place Category 5 wiring

near bare power wires or lightning rods, antennas, transformers, steam or hot

water pipes, or heating ducts. Never place Category 5 wire in any conduit, box,

channel, duct or other enclosure containing power or lighting circuits of any

type. Always provide adequate separation between Category 5 wiring and other

electrical wiring according to code. When in doubt about separation distances,

the “Rule of Sixes” can be used. This rule requires 6 feet of separation between

Category 5 wiring and open high-voltage wiring, lightning grounding wire or

grounding rods. It requires 6 inches of separation from all other high-voltage wiring,

unless in conduit. Of course, local building and electrical codes always govern.

Cutting and Drilling

Always observe all applicable safety rules for in-wall wiring. Be extremely careful

not to cut through or drill into concealed wiring or pipes. Make a small inspection

opening before cutting or drilling.

Additional Installation Information

Common wire-splicing techniques may cause the wire to break, resulting

in poor circuit integrity. This can cause interference and result in poor system

performance.

Dust or dirt can cause special problems on wiring contacts. Be sure all contacts

are clean and that all parts are installed correctly to protect them from dust

and dirt.

Your new Harman Kardon ABH 4000 A-BUS Expansion Hub has been designed

only for use with A-BUS products. Do not connect the RJ-45 jacks to any other

device.

Make sure to follow all instructions when preparing wiring for use with the

ABH 4000 Expansion Hub and associated equipment. Failure to do so may

result in a potential safety hazard, including possible danger to persons and/or

equipment.

If you will be running RJ-45 cable through a ventilation plenum, use plenum-rated

cable to comply with NEC and local electrical codes. Failure to do so may result

in a potential fire or safety hazard.

Installation Planning

The ABH 4000 may be placed flat on a shelf or mounted to a wire back-board

using standard wood screws and the keyhole notches on its outer edges. The

unit’s power supply must be placed on a shelf and should not be attached to a

back-board. When planning an installation, allow sufficient clearance for all wires

and connectors that will be attached to the ABH 4000 so that severe angle

bends of connecting cables are avoided.

The wiring used to connect the ABH 4000 to the A-BUS-equipped product and

A-BUS modules in remote rooms may be Category 5 or higher wiring. Consider

any specific electrical or building code requirements for riser or plenum use. The

system speaker wiring should also be in-wall-rated as required, and may not

exceed 2 square millimeters. To simplify wiring, use two pairs of (4 x 14)

CL-3-rated in-wall wiring and run a single cable from each amplified A-BUS

module to both locations. One pair will be used to connect the first speaker and

the other will continue to the second speaker.

What Is Included

Your ABH 4000 should be packed with the following items. If any of the below

are missing, please contact Harman Kardon customer service.

• ABH 4000 Expansion Hub • One Power Supply

• One AC Power Cord • RJ-45 Connection Jumper Cable

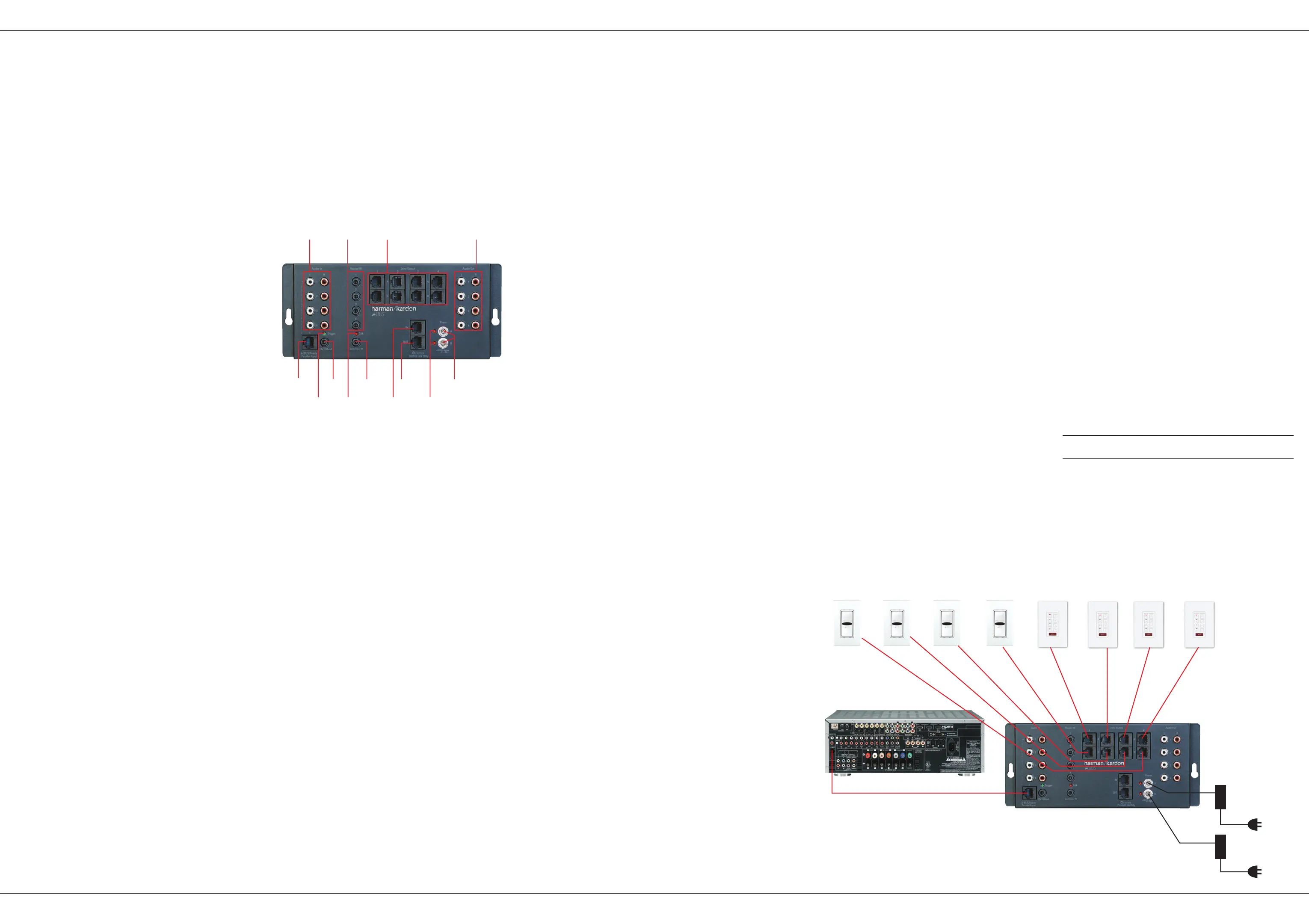

ABH 4000 Connections and Indicators

Audio Inputs: When the ABH 4000 is used with a receiver or source devices

without an A-BUS jack, connect the analog audio outputs from the receiver

or source to one set of these input jacks. Up to four independent devices may

be connected to the Audio Inputs, each of which may be selected by any one

or more of the ABH 4000’s four output zones.

NOTES:

• When any source is selected, the ABH 4000 hub and all A-BUS modules

connected to it that do not have individual power on/off capabilities will turn on.

• Audio Input 1 is wired in parallel with the A-BUS Input. If the A-BUS input is

connected directly to an A-BUS-equipped device, no connections should be

made to Audio Input 1.

A-BUS Input: This jack connects to the device that is providing the A-BUS

system source that feeds the A-BUS modules used with this ABH 4000. In most

applications, the connection will be to the A-BUS port on an A-BUS-equipped

Harman Kardon receiver. Do not connect the A-BUS Input to the Control Link

Output of another ABH 4000, or the expansion output of a Harman Kardon

ABH 4 or other A-BUS expansion hub. Connect multiple hubs, using the Control

Link Input and Output. The connection should be made using a standard

TIA 568A RJ-45 jumper cable.

Status Indicator: This LED will light when the ABH 4000 is activated. In most

cases, it will light when a Harman Kardon A-BUS-equipped product connected

to the ABH 4000 is turned on, or when a command is received from any of

the four zones. When the ABH 4000 is used with non-A-BUS products, the

Status Indicator will light when any of the four sources is selected. When the

Status Indicator is lit, a 12V signal is available at the Trigger Output.

Trigger Output: The Trigger Output may be used to turn on compatible devices

when the ABH 4000 is activated, as indicated by the Status Indicator.

Routed IR Outputs: When the ABH 4000 is used with non-A-BUS sources,

these jacks may be used to route IR signals to devices with compatible remote

IR inputs, or to optional remote IR emitters. The emitters should be placed over

the IR receiver in the source components to be controlled. This enables a remote

to control source components, from the room where an A-BUS module is

installed, when the module includes an IR receiver.

NOTE: The Routed IR Outputs will only emit commands from the zone that has

selected the source, allowing connection of more than one source device of the

same type to the ABH 4000 without concern that commands issued from one

zone will have undesired effects on playback in another zone. However, if the

source devices are physically near each other, you may wish to use light-block-

ing caps with the emitters to prevent cross-communication.

Common IR Output: This output passes control commands from all zones to

compatible non-A-BUS devices, allowing control of common components. It may

Single-Source Hubs

In open-plan areas or adjoining rooms, single-source expansion may be required

so that a common music source is heard in the area. Connect an RJ-45 jumper

cable from one of the ABH 4000’s A-BUS Outputs to the Expansion Input of

an ABH 4 single-source hub. If connected to a Bank B Output, no power supply

is required for Bank B. Complete the system installation by following Steps Two

and Three.

NOTE: Do not connect an ABH 4 hub to the ABH 4000’s Control Link Output,

and do not connect an ABH 4000 hub to an ABH 4’s Expansion Output.

Connections to a Non-A-BUS Product (see Figure 2)

The ABH 4000 may also be used to bring the benefits of A-BUS technology

to virtually any audio system with a few additional steps to connect an audio feed

and to install infrared emitters to control the source equipment. You may wish to

have this installation completed by a trained installer who is familiar with A-BUS

and audio/video systems integration.

Step One: Connect Audio Sources

Connect the audio outputs of up to four sources, using standard audio interconnect

cables (not included) from the Audio Inputs on the ABH 4000 to the analog

audio outputs of each source device, such as a preamplifier, receiver, surround

processor, CD player, tuner or any other device equipped with line-level analog

audio outputs. Although the Audio Inputs on the ABH 4000 are numbered

1 through 4, these numbers do not correspond to the output zones, and one

may select any of the four sources for playback in any of the four A-BUS

Output zones. The numbered Audio Outputs correspond to the Audio Inputs,

not the zones.

Connect the source devices as follows, to allow for the simple source control

available with the AB 2 (as described in the Operation section):

Source 1: Tuner or A/V receiver

Source 2: CD player or changer

Source 3: DVD player

Source 4: Any source device

NOTE: When using an A-BUS-equipped Harman Kardon A/V receiver, do

not use the Source 1 Audio inputs. Source 1 is the AVR connected to the

ABH 4000’s A-BUS Input.

Steps Two and Three are the same as in the Connections to an

A-BUS-Equipped Product section.

Step Four: Connect the IR Outputs to the Source Devices

For non-A-BUS sources, infrared (IR) signals are used to control the sources

remotely from each local A-BUS module. It is recommended that you install

A-BUS modules with built-in IR receivers, such as the Harman Kardon AB 1

and AB 2, so that you may operate each of your sources.

When possible, connect the IR Outputs directly to compatible IR inputs on each

source device.

Each Routed IR Output should be connected to the IR input (or an IR emitter

placed over the IR sensor) of the source device connected to the correspondingly

questions or doubt about the ability of the wall surface to properly support the

weight of the ABH 4000, consult a properly trained installer before proceeding.

• When the anchor is installed, place a screw through the slot on either side

of the ABH 4000, and tighten the screw most of the way into the anchor.

• Slip the ABH 4000 so that it slides down the keyhole notch of the slot, and

tighten it securely.

Connections to an A-BUS-Equipped Product (see Figure 1)

Step One: Connect the ABH 4000 to the Receiver

Connect one end of the included RJ-45 jumper cable to the A-BUS Input

and the other end to the A-BUS jack on the rear panel of your Harman Kardon

receiver.

Step Two: Connect the A-BUS Modules

Connect the RJ-45 jacks on the Cat. 5 cabling that runs to the remote room

modules to the A-BUS Outputs. Make certain that the connector is wired in

accordance with the standard TIA 568A color-coding. Connect the A-BUS modules

in the remote rooms to the Cat. 5 cable in accordance with the color-coding on

the module. Install loudspeakers in each remote room and connect them to the

A-BUS modules, following the manufacturers’ instructions.

NOTE: To control the system from the remote zones, or when a non-A-BUS-

equipped source is used, at least one A-BUS module in each zone must have

an infrared receiver or the ability to control the ABH 4000 (i.e., power the

system on or off and select a source). The Harman Kardon AB 2 module is

equipped with both an IR receiver and built-in capability to control the ABH 4000.

The Harman Kardon AB 1 module has the necessary IR receiver. We recommend

installing at least one AB 1 or AB 2 module in each zone.

Step Three: Connect the AC Power Supply

Connect the AC Power Supply furnished with the ABH 4000 to Power Input A.

If you have connected A-BUS modules to Bank B of the A-BUS Outputs, con-

nect a second AC Power Supply (not included) to Power Input B. Plug each

AC power cord into the socket on its Power Supply. Do not connect the power

cords to an AC outlet at this time.

Optional Step Four: System Expansion

Up to three additional single-source or multisource hubs may be connected

to the system. A single-source hub, such as the Harman Kardon ABH 4, is

connected to only one source device, with the audio and control signals distrib-

uted to the remote zones. A multisource hub, such as the ABH 4000, may be

connected to up to four source devices, with the signals distributed to up to

four independent zones.

Multisource Hubs

Up to four ABH 4000 hubs may be connected to create 16 independent

zones with two room outputs per zone. To expand the audio signal, connect

the Audio Outputs to the next hub’s audio inputs. To expand the control data,

connect an RJ-45 jumper cable from the Control Link Output to the Control

Link Input on the next hub. Complete the system installation by following Steps

Two and Three above.

be convenient to connect this output to the compatible IR input of an A/V receiver

without A-BUS.

IR Indicator: This LED will flash to confirm that an IR signal is being passed

through the ABH 4000. This signal may originate from a remote A-BUS module

in any of the four zones.

A-BUS Outputs: These jacks are the communications link between the remote

A-BUS modules and the ABH 4000, carrying audio signals and power to the

A-BUS modules, and IR or other control commands from the A-BUS modules to

the ABH 4000 and products connected to it. Connect a Category 5 cable from

each remote A-BUS module to these outputs using standard RJ-45 connectors

with cabling wired in compliance with the TIA 568A standard. When expanding

the system using single-source A-BUS devices other than additional ABH 4000

hubs, connect the devices to one of the A-BUS Outputs. If the device is powered

(e.g., an ABH 4 hub), it may be connected without using the ABH 4000’s power

supply.

Audio Outputs: The ABH 4000 passes signals from the Audio Inputs straight

through to the corresponding Audio Outputs for sharing with other devices, such

as an A/V receiver.

Control Link Output: If you are using more than one ABH 4000 in your

system to add additional rooms, connect one end of a jumper cable with RJ-45

connectors to this jack. Connect the other end of the jumper cable to the Control

Link Input on the next ABH 4000. To expand the system using an ABH 4 or

other hub, connect one of the ABH 4000’s A-BUS Outputs to the expansion

input on the ABH 4 or other hub. You may use one of the Bank B A-BUS

Outputs for this purpose without connecting a power supply.

Control Link Input: Connect this jack to the Control Link Output on another

ABH 4000 to expand the total number of rooms in your system.

NOTES:

• The Control Link Input and Output are used to pass control data between

ABH 4000 expansion hubs in an A-BUS system. Do not connect the Control

Link Input or Output to any device other than an ABH 4000.

• Do not connect an ABH 4000 to the Expansion Output of an ABH 4 hub,

as the ABH 4000 will not operate correctly.

Power Inputs: Connect the 2.5mm DC plug at the end of the ABH 4000

power supply to Power Input A, to power Bank A of the system. If you are con-

necting modules to Bank B of the system, a second power supply (not included)

must be connected to Power Input B. Do not use a power supply other than one

recommended by Harman Kardon, to avoid damaging the ABH 4000 or other

system components.

Power Indicators: These LEDs will light to indicate that Bank A or Bank B of the

ABH 4000 is connected to a power source that enables the remote modules and

the infrared relay system to operate. This power source may be either a connection

to an A-BUS product, the ABH 4000’s power supply or through a connection to

another ABH 4000. The ABH 4000’s external power supply must be connected

in order for it to power multiple remote modules.

INSTALLATION AND CONNECTION

Important Safety Note

Before beginning the installation process, turn off all electronics products in

the system and disconnect them from their A/V power connection. This avoids

the possibility of accidental activation that could possibly damage the equipment

or cause personal injury. Do not turn on the equipment until instructed.

The ABH 4000 may be used in two modes of operation. The installation

process will vary, according to which option you select.

• When used in conjunction with an A-BUS-equipped Harman Kardon product,

the ABH 4000 provides the power that enables up to eight remote rooms to

be equipped with A-BUS modules such as the Harman Kardon AB 1 or AB 2,

with more room installations possible through the use of additional ABH 4000

or ABH 4 hubs.

• The ABH 4000 may also be used with any receiver, preamplifier or surround

processor that has an analog audio output to send the selected source to

A-BUS modules installed in remote rooms. Alternatively, up to four source

devices may be connected to the ABH 4000 to create a multiroom audio

system with up to four independent zones.

Mounting the ABH 4000 (optional)

The ABH 4000 may be mounted on a wall, using the screw slots provided on

the sides of the unit, or it may be placed on any flat surface.

• To mount the ABH 4000 to a wall, first make certain that there is sufficient

clearance on all sides for any cables that will be attached.

• While holding the ABH 4000 to the wall, trace the outline of the slots on the

“wings” on the left and right sides of the ABH 4000 onto the wall.

• Drill a pilot hole and install an anchor or retaining socket sufficient to accommodate

a #10 pan-head Phillips-type wood screw that is at least long at each side,

under the circular part of the tracing. If possible, attach at least one side of the

ABH 4000 to a wall stud, instead of using a wall anchor. If you have any

A-BUS

Modules (Harman Kardon AB 1 and AB 2 shown)

A-BUS-Equipped Product

ABH 4000

Step One

Step Two

Step Three

Audio Inputs Audio Outputs

Routed IR

Outputs

A-BUS

Outputs

A-BUS

Inputs

Status

Indicator

Trigger

Output

IR Indicator

Common

IR Output

Control

Link Input

Power

Indicators

Control

Link Output

Power

Inputs

Figure 1 – Connecting the ABH 4000 to an A-BUS-equipped product

ABH 4000_eng_OM_36465 04/06/08 9:08 Side 1

including Play, Pause, Preset Up/Down, Track Skip Up/Down, Chapter

Next/Previous and Disc Skip.

For more sophisticated control, aim a properly programmed remote control, such

as the second-zone remote included with an A-BUS-equipped Harman Kardon

receiver, at the IR Receiver on the AB 1 or AB 2 (or other A-BUS module if so

equipped), and control commands will be passed directly to the source device.

Volume Control

Volume is controlled locally for each room of each zone using its A-BUS module.

On the AB 1, tap the Volume Down Button to temporarily mute the audio, and

tap the Volume Up Button to restore audio. For the AB 2, each short press of

the Power Off Button toggles between the muted and unmuted modes.

NOTE: When the system is turned off, all modules will reset to their minimum

volume.

Powering the System Off

Press and hold the Power Button on an AB 2 to turn off the ABH 4000 and

the entire system, if the Harman Kardon A-BUS-equipped receiver is in tuner

mode. If another source is playing, the AVR will remain on – for example, if

someone is watching a DVD in the main listening room. However, the ABH 4000

will turn off, which terminates the trigger signal and thus turns off any sources

connected to the Trigger Output.

NOTES:

• If you wish to fully power down the system, select the tuner as the source

just before pressing and holding the Off Button.

• If you only wish to power down the ABH 4000, make sure that any sources

being used by others are not connected to the Trigger Output, or they will

turn off.

LED Indicators

The three LED indicators on the ABH 4000 signify the following operational modes:

• The Status Indicator lights when the system is activated either by connection

to an A-BUS-equipped product that is turned on, when a source is selected,

or when the system is turned on from a remote zone. This light also indicates

that the Trigger Output is active.

• The Power Indicators light when an AC Power Supply is connected to either

power input on the ABH 4000 (for Bank A or B) and/or when a connection

is made between the ABH 4000 and an A-BUS-equipped product. This light

does not indicate that the system is powered on; that is indicated by the

Status Indicator.

• The IR Talk Indicator flashes whenever an IR command is transmitted through

the system.

Troubleshooting Guide

If the remote A-BUS modules do not operate at all:

• Verify all connections between the remote modules and the ABH 4000.

• Check the RJ-45 connection between the ABH 4000 and the host product.

• Check the AC power connection at both the ABH 4000’s Power Jacks and

on the Power Supplies.

If the remote module’s status LED is lit but there is no sound:

• Make certain that an active source has been selected on the host receiver.

• Check the RJ-45 connection between the ABH 4000 and the A-BUS-

equipped host product.

• Check the audio connections between the ABH 4000 and the non-A-BUS

host product.

• When the ABH 4000 remote or the AB 2 keypad is in use and the CD player

or The Bridge has been selected, repeat the command, as it issues Play and

Pause and depends on the current status of the source.

For additional troubleshooting information and updated operational and

installation hints, please visit the Product Support section of the Harman Kardon

Web site at www.harmankardon.com.

Specifications

ABH 4000 Dimensions (D x W x H):

83mm x 184mm x 30mm (3-5/16" x 7-3/16" x 1-3/16")

Weight: 410g (0.9 lb)

Power Supply Dimensions (D x W x H):

70mm x 151mm x 36mm (2-13/16" x 5-15/16" x 1-7/16")

Weight: 450g (1 lb)

Power Supply Input: 108V – 264V AC, 115 watts

Power Supply Output: 24-volt, 4-amp supply included

Trigger Output: 12 volts, 100ma

Wiring protocol for A-BUS connections: TIA wiring specification for TIA 568A

Figure 4 – AB 2 module

Figure 5 – ABR remote (included with AB 2)

The AB 2 keypad is operated using “long” and “short” button presses to activate

different commands using the same button. A short press is released quickly. For a

long press, continue to hold the button for about three seconds before releasing it.

Function Table

Source Selection

When an AB 2 is present or using the ABR remote, press any of its four source

buttons to select that source. If the AB 2 and the ABH 4000 are turned off, they

will turn on, and if the source is connected to the Trigger Output, it will be activated

and play will begin. The AB 2’s power indicator LED will light to indicate that the

system is turned on, and the LED indicator for the selected source will light on

the AB 2.

To select The Bridge as the source on an A-BUS-equipped Harman Kardon

product when The Bridge is connected, press and hold the AVR Button on the

AB 2, or press the appropriate source selector on the second-zone remote

included with the AVR.

NOTES:

• The functions selecting The Bridge or a CD player as the source issue the

Play/Pause command. However, the source’s status is not communicated back

to the AB 2, which always issues the same command when the button is

pressed. If the source is selected and no audio is heard, press the button again.

• Some older CD players and other source devices require separate commands

for the Play and Pause functions. These devices may not operate as described

when connected to Source 2.

• It is preferable to connect all of the sources to an A-BUS-equipped Harman Kardon

product, and select and operate them using the second-zone remote included

with the product.

Source Control

If the source is an A-BUS-equipped product, or if it is connected to the Routed

or Common IR Outputs using either a wired connection or an IR emitter, the AB 2

or its remote will provide simple control functions as described in the table above,

Operation

There are no user controls on the ABH 4000; it is controlled using an AB 2

keypad or the remote suppled with the AB 2.

After checking the connections, plug the AC power cord from the ABH 4000’s

Power Supply A into a non-switched AC outlet. If modules have been connected

to Bank B for any zone, a second power supply (sold separately) is required and

must be plugged into Power Supply B and a second non-switched AC outlet.

The power supply is designed specifically for use with the ABH 4000. Do not

substitute another power supply.

When the ABH 4000 is used with an A-BUS-equipped product, the A-BUS

modules in the remote room operate as if they were connected directly to the host

receiver. No further controls are needed. Follow the instructions included with the

A-BUS modules for operation information.

When the multiroom system of a Harman Kardon A-BUS-equipped product is

turned on or when a source is selected from one of the zones, the ABH 4000

will also be activated.

When a non-A-BUS source is used, the ABH 4000 turns on when a source is

selected from one of the zones.

The Status Indicator will light, and the Trigger Output will activate, signaling any

devices connected to it to turn on as well.

Use the second-zone remote included with an A-BUS-equipped product to

operate the sources and the system, as described in the product’s manual. For

simple functions, when an AB 2 keypad is installed, it may be used to operate

the sources and system as described below. The ABR remote included with the

AB 2 may also be used, as described in the Function Table.

numbered Audio Input. The ABH 4000 will route signals from any output zone

that has selected that source device directly to that device. This allows you to

use two sources with the same control code set, such as two CD players, with

control commands affecting only the desired device.

Use the Common IR Output when all devices use independent code sets

to simplify control through a receiver or other central component. All control

commands received from all zones are output through the single Common

IR Output. Connect it to a receiver’s IR input, or connect an IR emitter that is

placed over the receiver’s IR sensor, as shown in Figure 3.

Optional Step Five: System Expansion

See Optional Step Four in the Connections to an A-BUS-Equipped

Product section, to expand the system using additional hubs.

NOTE: The following steps provide additional options that extend the flexibility of

your A-BUS system. If you are not familiar with audio/video systems installations,

you may wish to have them completed by a properly trained installer.

Optional Step Six: Trigger Connection

Connect the Trigger Output to a component or power relay that turns on in

response to a steady-state 12-volt trigger signal. When the ABH 4000 hub

is turned on, the trigger signal will turn on any components connected to the

Trigger Output, or components that are plugged into a power strip connected

to the Trigger Output. When the ABH 4000 is turned off, the components will

also turn off.

Optional Step Seven: Connect IR Emitters

If you are not using direct IR control connections to “IR In” jacks on non-A-BUS

products and wish to control a source product, connect an optional IR emitter

to the Routed or Common IR Outputs and place it over the IR sensor on

the front panel of the unit to be controlled.

Harman Kardon is a trademark of Harman International Industries, Incorporated, registered in the United States

and/or other countries. Designed to Entertain is a trademark of Harman International Industries, Incorporated.

A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd.

All features and specifications are subject to change without notice.

250 Crossways Park Drive, Woodbury, New York 11797

516.255.4545 Fax: 516.682.3583

Part No. ABH-4000-OM

ABH 4000

4-Zone/8-Room Expansion Hub

for A-BUS

Applications

A-BUS

Modules (Harman Kardon AB 1 and AB 2 shown)

Non-A-BUS Sources

ABH 4000

Button Name ABR Remote Long Press on AB 2

(Short Press on AB 2)

AVR Turns on an A-BUS-equipped

Turns on an A-BUS-equipped

product and selects tuner as product, selects The Bridge

source. Subsequent presses as source and if an iPod is

toggle tuner band.

docked in The Bridge, begins

play. If iPod was playing, it

will pause. Press again if no

audio is heard.

CD Turns on CD player and If CD is already playing,

issues Play/Pause command. issues Disc Skip command.

If player is paused, it will begin

playing. If player was playing,

it will pause. Press again if no

audio is heard.

DVD Turns on DVD player and If DVD was turned on (LED

begins play. on AUX button is lit), issues

DVD Play command.

MP3 ABH 4000 selects Source 4. ABH 4000 selects Source 4.

Power Off Mutes or unmutes the AB 2; If Source 1 is playing, turns

only that AB 2 is affected. off an A-BUS-equipped

product. If another source is

playing, AVR remains on and

ABH 4000 is turned off.

Skip (AB 2 only)

Depends on current source: Depends on current source:

Tuner – Preset Up Tuner – Preset Down

CD – Track Skip Up CD – Track Skip Down

DVD – Next Chapter DVD – Previous Chapter

Source 4 – no action Source 4 – no action

Volume Up Volume Up Volume Up

Volume Down Volume Down Volume Down

System Off If Source 1 is playing, turns Not applicable

(ABR remote off an A-BUS-equipped

only) product. If another source is

playing, AVR remains on and

ABH 4000 is turned off.

Figure 2 – Connecting the ABH 4000 to a non-A-BUS-equipped product

ABH 4000

Figure 3 – Connecting the IR outputs to non-A-BUS products

ABH 4000_eng_OM_36465 04/06/08 9:08 Side 2

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Ikke kategorisert
Modell:	ABH 4000

Trenger du hjelp?

Hvis du trenger hjelp med Harman Kardon ABH 4000 still et spørsmål nedenfor, og andre brukere vil svare deg

Ditt navn*

Din e-post*

Skriv spørsmålet ditt her

Ikke kategorisert Harman Kardon Manualer

Harman Kardon ABH 4 Bruksanvisning

7 September 2025

Harman Kardon ABH 4000 Bruksanvisning

7 September 2025

Harman Kardon CSP-1 Bruksanvisning

7 September 2025

Harman Kardon BDS 485S Bruksanvisning

7 September 2025

Harman Kardon CXO-1 Bruksanvisning

7 September 2025

Harman Kardon FSTS1 Bruksanvisning

21 Desember 2024

Harman Kardon Drive + Play 2 Bruksanvisning

17 Desember 2024

Harman Kardon Drive + Play Bruksanvisning

17 Desember 2024

Ikke kategorisert Manualer

Nyeste Ikke kategorisert Manualer

Craftsman CMXMBBARP6DW Bruksanvisning

8 September 2025

Audison Prima APSP G6 Bruksanvisning

8 September 2025

Craftsman CMCST960E1 Bruksanvisning

8 September 2025

Craftsman CMCL050 Bruksanvisning

8 September 2025

Belkin MSC012 Bruksanvisning

8 September 2025

Konftel 55W Bruksanvisning

8 September 2025

Audison Prima ACP 2 Bruksanvisning

8 September 2025

Be Quiet! Pure Power 13 M 550W Bruksanvisning

8 September 2025

Grunkel RMC-1500 Bruksanvisning

8 September 2025

Toro 25453E Bruksanvisning

8 September 2025
