Side 1/90

Wireless portable hi- speaker for iPad, iPhone and iPod

PL AY

™

WIRELESS

Owner’s Manual

HARMAN KARDON

GO + PLAY WIRELESS

HARMAN KARDON

Welcome

Thank you for purchasing the Harman Kardon Go + Play

™

Wireless portable hi-fi speaker for

iPhone/iPod and iPad. This system has been designed to meet the highest audio-performance

standards, and features HARMAN TrueStream, which guarantees peak wireless sound and

clarity. The Harman Kardon Go + Play Wireless system will meet all your listening and travel

needs, allowing you to immerse yourself in your favorite music wherever you are.

Introduction

The Harman Kardon Go + Play Wireless portable, high-fidelity wireless speaker system for

iPhone/iPod and iPad performs like a home theater system. With a groundbreaking design

that’s built for comfort, performance and freedom, the Harman Kardon Go + Play Wireless

unit will surround you with luxurious Harman Kardon

sound when you’re wirelessly streaming

audio to it via Bluetooth. Carry the unit by its stainless-steel arch handle to enjoy the ultimate

portable soundstage. The system will provide clean, powerful sound for any music source

connected to the Aux input and will even charge your iPhone/iPod and iPad while it is plugged

into the rear USB port. Enjoy the pinnacle of wireless audio performance with the Harman

Kardon Go + Play Wireless system – it will kick your listening experience into the future.

Special Features

IEQ – Intelligent equalization technology tailors the performance of the Harman Kardon

Go + Play Wireless microprocessor and digital signal processing (DSP) to optimize the system’s

output, based on battery or power-supply operation.

Bi-amplification – The Harman Kardon Go + Play Wireless unit uses two amplifiers to allow

for clean, powerful sound output.

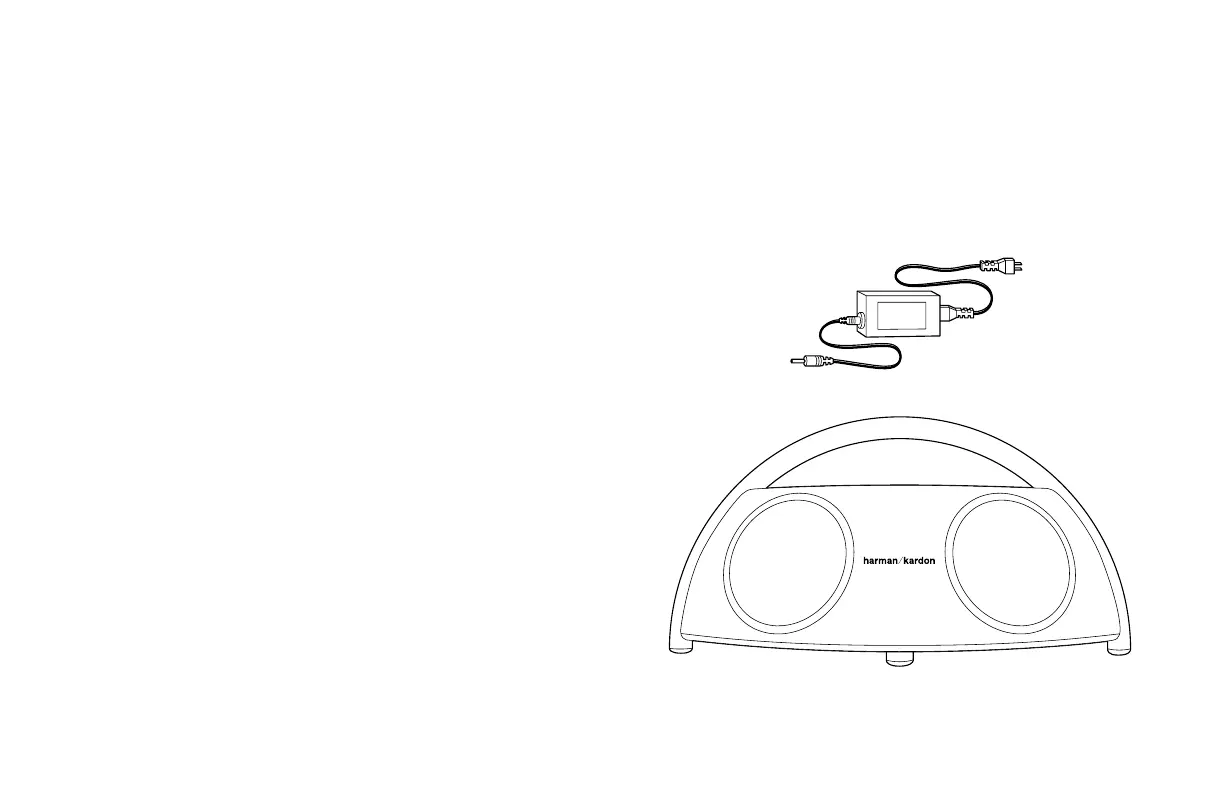

Package Contents

Carefully unpack your Harman Kardon Go + Play Wireless system and identify all components.

Power Supply

(AC cord varies with region)

Harman Kardon Go + Play Wireless Unit

EnglIsh

GO + PLAY WIRELESS

HARMAN KARDON

General Setup

1. Connect the power supply into the “DC In” jack.

2. Plug the adapter into the wall outlet.

3. If you prefer to use batteries, install eight (8) type D batteries into the bottom of the unit.

4. Press the Power button. The Status LED will illuminate white.

5. When Go+Play Wireless is on, press the Power button to put it into the standby mode; when

it is in standby, press the Power button to turn it on.

• When Go+Play Wireless is in standby, it will automatically turn on when it detects audio

playing from a paired wireless device via Bluetooth.

• When Go+Play Wireless is on, it will automatically enter the standby mode after 10

minutes of inactivity (no audio input and no user-control operation). Power consumption

while in standby mode does not exceed 0.5W.

Volume Down

Button

Power Button/

Status LED

Volume Up

Button

USB Port

Cover

Aux In Jack

Cover

DC In Jack

Cover

Battery Installation

1. Unscrew the two battery-compartment cover screws counterclockwise to the unlocked

position; remove the battery-compartment cover.

2. Place eight (8) fresh D-cell batteries as shown.

3. Replace the battery compartment cover.

Note: System will not use battery power when using AC power. When the batteries are low, the

Status LED will illuminate amber.

DO NOT MIX BATTERY TYPES.

DO NOT MIX CHARGED AND PARTIALLY CHARGED BATTERIES.

BATTERIES WILL NOT RECHARGE WHILE IN THE UNIT.

Battery Disposal

Alkaline batteries are considered nonhazardous. Rechargeable batteries (i.e., nickel cadmium,

nickel metal-hydride, lithium and lithium-ion) are considered hazardous household materials

and may pose an unnecessary health and safety risk.

In the European Union and other locations, it is illegal to dispose of any battery with household

trash. All batteries must be disposed of in an environmentally sound manner. Contact your local

waste-management officials for information regarding the environmentally sound collection,

recycling and disposal of used batteries.

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	hub & dokkstasjon
Modell:	GO + Play Wireless
Vekt:	3400 g
Bredde:	500 mm
Dybde:	230 mm
Høyde:	240 mm
LED-indikatorer:	Status
Bruksanvisning:	Ja
Bluetooth:	Ja
Bluetooth-profiler:	A2DP, HFP
Strømkildetype:	AC
Garantikort:	Ja
Antall USB 2.0-porter:	1
Volumkontroll:	Digitalt
Impedans:	10000 Ω
Diskanthøyttaler:	Ja
AC-inngangsspenning:	100-240 V
Batteriteknologi:	Alkalinsk
Batteritype:	D
Strømforbruk (standby):	0.5 W
Produktfarge:	Hvit
Antall støttede batterier:	8
Hodetelefontilkobling:	3,5 mm
Kabler inkludert:	AC
Strømforbruk (vanlig bruk):	65 W
Fjernkontroll medfølger:	Ja
AUX-inngang:	Ja
Signal-til-støy-forhold (SNR):	85 dB
DC-inngangskontakt:	Ja
Total Harmonic Distortion (THD):	1
Subwoofer inkludert:	Ja
USB-lading:	Ja
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	- W
Frekvensrekkevidde:	40 - 20000 Hz
Subwoofer RMS-styrke:	60 W
Apple docking-kompabilitet:	iPad mini, iPhone 5, iPod Nano 7, iPod Touch 5
Inngangssensitivitet:	250 mV
