Side 1/4

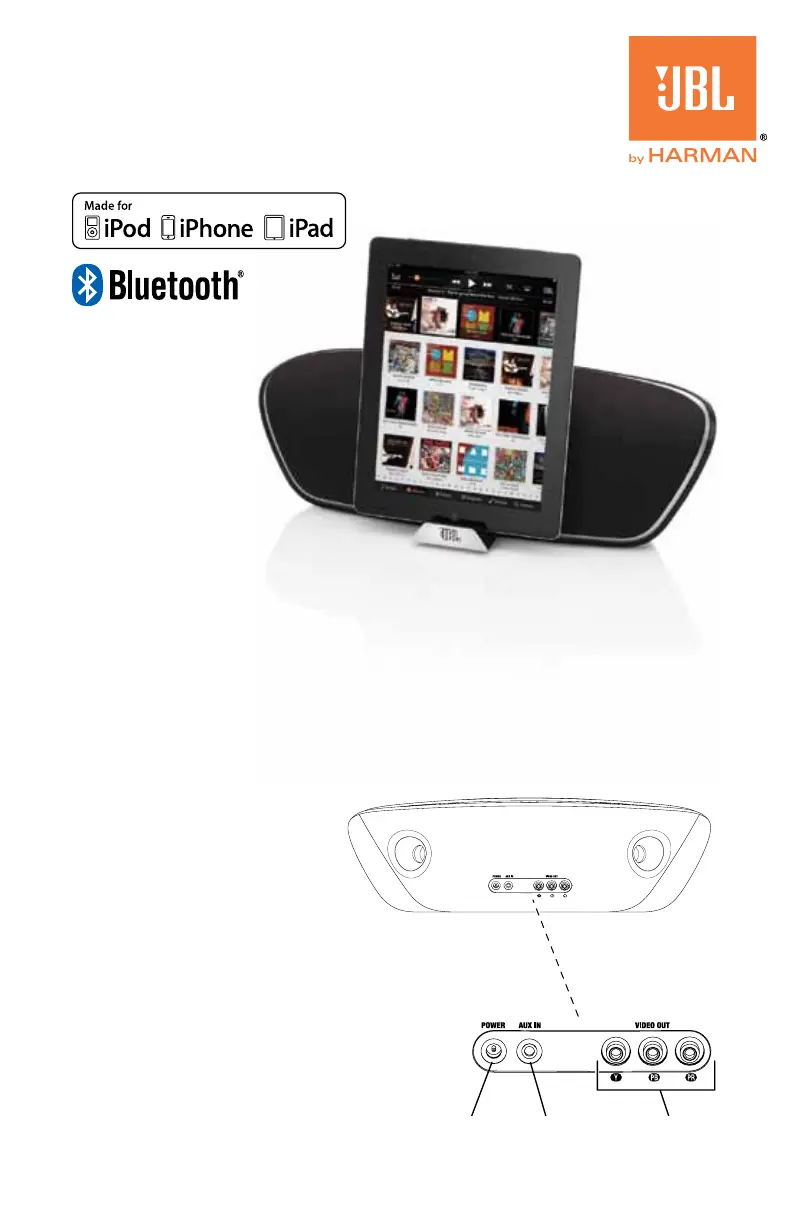

Quick Setup Guide

JBL OnBeat

™

VenUe

WeLcOme

Thank you for purchasing the JBL OnBeat

™

Venue iPad dock. This quick setup guide will

show you how to connect and set up your dock. To download the free JBL Musicflow App

for your portable device, please go to the Apple App Store.

cOnnectIOnS

1. If you are going to use your OnBeat Venue with another audio source, plug one end of

a 3.5mm (1/8”) stereo cable (not supplied) into the OnBeat Venue’s Aux In connector,

and plug the other end into the audio source’s audio out or headphone out connector.

2. If you are going to use your

OnBeat Venue with a video

display, use a component video

cable (not supplied) to connect

the OnBeat Venue’s Component

Video Out jacks to the video

display’s component video

inputs. When you play audio/

video content on the device

the video will appear on the

connected display.

3. Plug the OnBeat Venue’s power

supply into the Power connector

on the unit and into a working

AC power outlet. The OnBeat

Venue will automatically turn

on and go into the Bluetooth

pairing mode (the Bluetooth

LED will be flashing blue).

Power

Connector

Aux

Input

Component

Video Out

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	hub & dokkstasjon
Modell:	JBLOnBeat Venue
Bredde:	415 mm
Dybde:	138 mm
Høyde:	131 mm
Bluetooth:	Ja
Innebygde høyttalere:	Ja
FM-radio:	Nei
Kompatibilitet:	iPad, iPhone or iPod
Bassrefleks:	Ja
Dimensjoner (B x D x H):	415 x 131 x 138 mm
Produktfarge:	Hvit
AUX-inngang:	Ja
DC-inngangskontakt:	Ja
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	30 W
Komposittvideo ut:	1
Utjevner/frekvenskorrigerer:	Nei
Høyttaler type:	1-veis
Frekvensrekkevidde:	60 - 20000 Hz
Apple docking-kompabilitet:	iPad, iPad mini, iPhone, iPod
Innebygget lader:	Ja
