Haws 8605WC Bruksanvisning

Les nedenfor 📖 manual på norsk for Haws 8605WC (4 sider) i kategorien Ikke kategorisert. Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Side 1/4
08 Page /18 Model 8605WC 1 of 4
1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359 Fax (775) 359-4712 -7424
E-mail: haws@hawsco.com website: www.hawsco.com
Shower & Eye/Face Wash Booth
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
No. 2080194(13)
LIMITED WARRANTY
HAWS warrants that this specific product is guaranteed against defective material or poor
workmanship for a period of under this one year from date of shipment. HAWS liability
warranty shall be discharged by furnishing without charge F.O.B. HAWS Factory any
goods, or part thereof, which shall appear to the Company upon inspection to be of
defective material or not of first class workmanship, provided that claim is made in writing
to Haws within a reasonable period after receipt of the product. Where claims for defects
are made, the defective part or parts shall be delivered to the Company, prepaid, for
inspection. HAWS will not be liable for the cost of repairs, alterations or replacements, or
for any expense connected therewith made by the owner or his agents, except upon
written authority from HAWS, Sparks, Nevada. HAWS will not be liable for any damages
caused by defective materials or poor workmanship, except for replacements, as provided
above. Buyer agrees that Haws has made no other warranties either expressed or implied
in addition to those above stated, except that of title with respect to any of the products or
equipment sold hereunder and that HAWS shall not be liable for general, special, or
consequential damages claimed to arise under the contract of sale.
The emergency equipment manufactured by HAWS is warranted to function if installation
and maintenance instructions provided are adhered to. The units also must be used for the
purpose for which they were intended. This product is intended to supplement first-aid
treatment. Due to widely varying conditions, Haws cannot guarantee that the use of this
emergency equipment will prevent serious injury or the aggravation of existing or prior
injuries.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED, PROVIDED
OR GIVEN BY HAWS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1- - - 800 766 5612
FOR CUSTOMER SERVICE: 1- - - 888 640 4297
08 Page /18 Model 8605WC 2 of 4
LOCATION OF UNIT: The Model 8605WC Barrier Free Emergency Shower &
Eye/Face Wash Booth should be installed in close proximity to potential accident
areas. It should be clearly identified free from obstructions and easy to access.
SUPPLY LINE: The minimum recommended line size is 1 IPS with 30 90 psi (2- -6
ATM) flowing pressure. Where sediment or mineral content is a problem, an inlet filter
is recommended.
PLUMBING CONNECTIONS: Inlet supply is female 1 IPS. Waste outlet is 3 IC
(Inside caulk).
TROUBLESHOOTING
PROBLEM REPAIR CHECKLIST
1.
No flow.
1.
Check the main shut- off valve.
2.
Insufficient water flow.
2.
Verify minimum 30 psi (2 ATM)
flowing supply line pressure.
3.
Insufficient water flow. On
eyewash, however, shower is
sufficient.
3.
a.
Probable clogging of flow control
due to inadequate line flushing.
Unscrew eye/face wash head and
remove the four screws to
disassemble the head. Clean flow
control and reassemble head. See
SP65 Installation Drawing for details.
4.
Insufficient water flow at the
showerhead, however,
eyewash is sufficient.
4.
Probable clogging of flow control
inside showerhead. Unscrew
showerhead off of elbow and clean
rubber flow control.
5.
Eyewash stream does not meet
desired eye level.
5.
Possible blocked flow control, see
above solution. Possible non-
leveled eyewash assembly.
6.
Water does not drain properly.
6.
Check the main waste line of your
building to see if it does handle the
capacity required for the entire
drainage system.
For more information on Haws products, see our website: www.hawsco.com
© 2018 Haws
®
Corporation All Rights Reserved
HAWS
®
and other trademarks used
in these materials are the exclusive property of Haws Corporation.

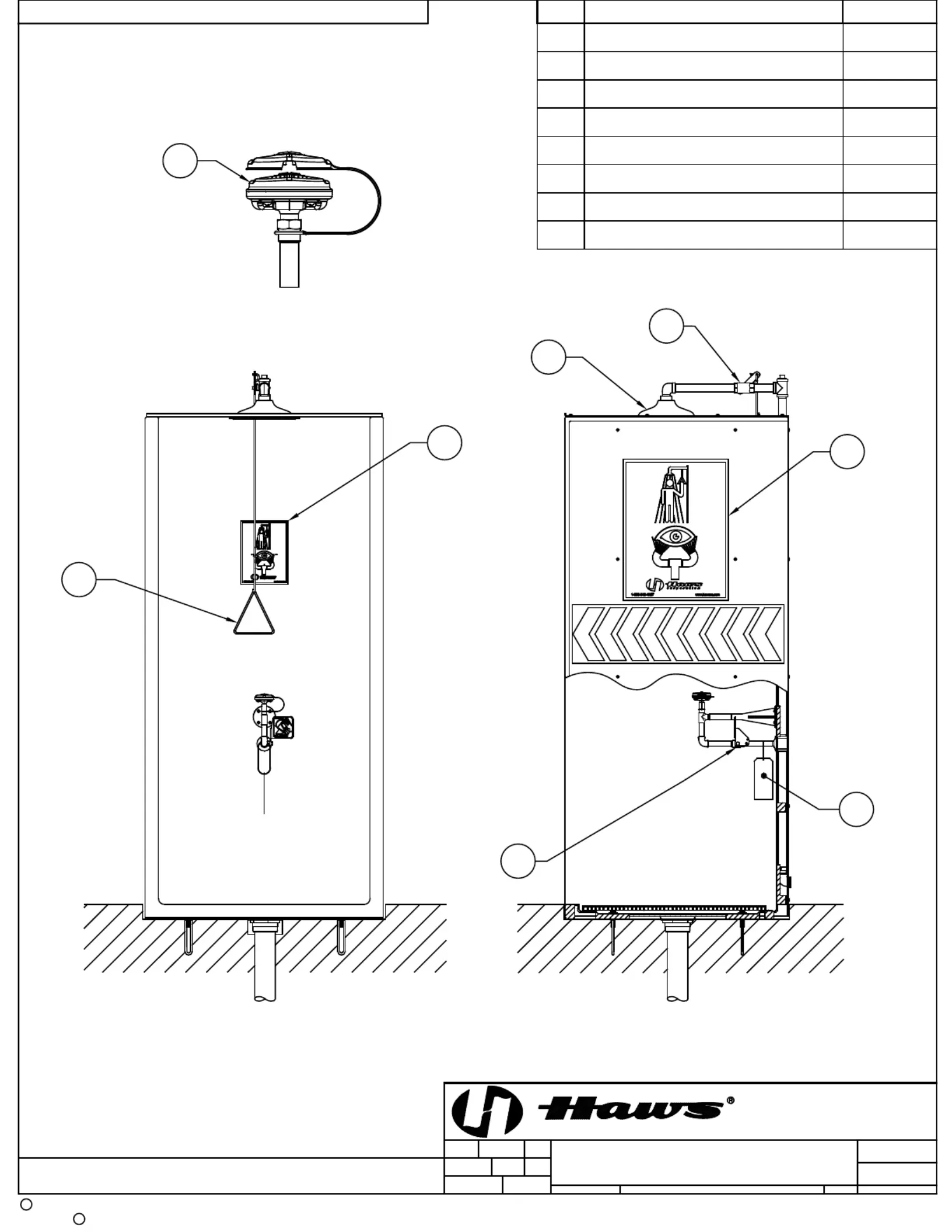

PARTS BREAKDOWN
5
3
VALVE ASSEMBLY
TEST TAG
SHOWER/EYEWASH SIGN
PULL ROD
2
4
4
5
3
2
7
6
SHOWER HEAD
SHOWER/EYEWASH LABEL
6
7
SHOWER VALVE ASSEMBLY8
8
1
EYE/FACE WASH ASSEMBLY
1
0006575890
SP829
SP178LG
SP170
SP178
SP202
SP229
SP65
APPROVED
DRAWN
PART NUMBER
SCALE:
SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
ITEM DESCRIPTION
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PART NO.
RTM
8/16/01
13
0002080194
8605WC
EMERGENCY SHOWER
1:1
1 1
MJ
08/07/18
FV
3 of 4
PARTS BREAKDOWN
5334
2018
NG
