Side 1/17
1Model: PRT-RP Model: PRT-RP
2Slimline Series
Table of Contents
Model: PRT-RP
Slimline Series1
3Slimline Series
What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
The programmer allows you to set “On” and “O” periods to suit your own lifestyle.
The room thermostat works by sensing the air temperature, switching on the heating
when the air temperature falls below the thermostat setting, and switching it o once
this set temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
dierent temperatures in your home at dierent times of the day (and days of the week)
to meet your particular needs and preferences.
Setting a programmable room thermostat to a higher temperature will not make the
room heat up any faster. How quickly the room heats up depends on the design & size
of the heating system.
Similarly reducing the temperature setting does not aect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in the
room being controlled at a lower temperature, and saves energy.
The way to set and use your programmable room thermostat is to nd the lowest
temperature settings that you are comfortable with at the dierent times you have
chosen, and then leave it alone to do its job.
5Slimline Series
1
Installation Procedure
This Slimline Series thermostat is designed to be ush mounted and requires a back
box of 35mm (minimum depth) to be sunk into the wall prior to installation.
Step 1
Carefully separate the front half of the thermostat from the back plate by placing a
small at head terminal driver into the slots on the bottom face of the thermostat.
Step 2
Place the thermostat front somewhere safe.
Terminate the thermostat as shown in the diagrams on pages 25-27 of this booklet.
Step 3
Screw the thermostat back plate securely into the back box.
Step 4
Clip the front of the thermostat back onto the thermostat back plate.
Do
Mount the thermostat at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not install near to a direct heat source as this will aect functionality.
Do not push hard on the LCD screen as this may cause irreparable damage.
9Slimline Series

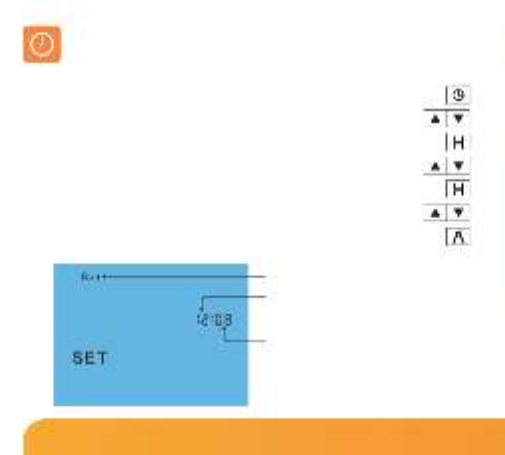

Setting the Clock
To set the clock, follow these steps.
• With the thermostat turned ON, press the Clock key twice .................................
• Use the Up/Down keys to set the hours ..............................................................
• Press H to conrm settings ................................................................................................
• Use the Up/Down keys to set the minutes .........................................................
• Press H to conrm settings ...............................................................................................
• Use the Up/Down keys to set the day of the week ..........................................
• Press A to conrm settings and return to main display ..........................................
Day
Hours
Minutes
Temperature Display
11 Slimline Series
Comfort Levels Explained
The thermostat provides Weekday/Weekend or 7 Day Programming options.
You should consult the “Optional Features” section to select the required mode.
The thermostat is supplied with comfort levels already programmed, but these can be
changed easily. The default times and temperatures are;
08.00 - 21°C (Wake) 09.30 - 16°C (Leave) 16.30 - 22°C (Return) 23.00 - 17°C (Sleep)
If you only want to use 2 levels, you should program the unused levels to --.--
Note:ForWeekday/Weekendprogramming,the4comfortlevelsarethesameforall
weekdaysbutcanbedierentfortheweekends.
For7Dayprogramming,eachdaycanhave4dierentcomfortlevels.
• To program comfort levels, press Clock once ...................................................................
For7Dayprogramming,
onlyMonisdisplayed
inthedayindicatoreld.
ForWeekday/Weekendprogramming,
MonTueWedThuFri
aredisplayedonscreen.
13 Slimline Series

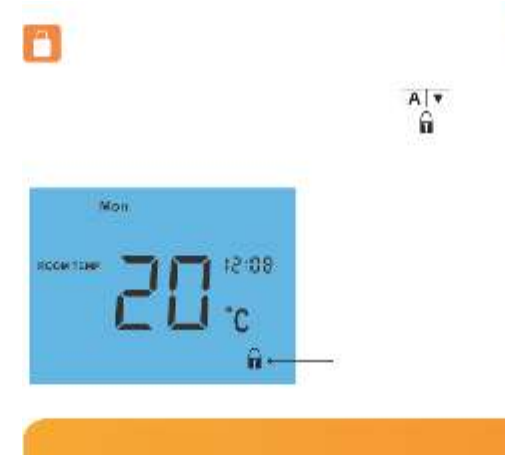

Locking the Thermostat
The thermostat has a keypad lock facility. To activate the lock follow these steps.
• Press and hold the A and Down keys together for 10 seconds ..........
• You will see the lock symbol appear on screen .............................................
• To unlock, repeat the steps above until the lock symbol disappears.
Note:Thekeypadlockindicatorisonlydisplayedwhenthelockisactive.
Keypad Lock Indicator
Temperature Contro
15 Slimline Series
Temperature Hold
The temperature hold function allows you to manually override the current operating
program and set a dierent temperature for a desired period.
• Press H to commence temperature hold ...................................................................
• Use the Up/Down keys to enter the required Hold time..............................
• Press H to conrm settings ..............................................................................................
• Use the Up/Down keys to enter the required Hold temperature..............
• Press A to conrm settings and return to main display ........................................
You will see the Hold For indication is displayed on screen.
The time will countdown the set duration and then revert to the normal program.
To cancel temperature hold, follow the same steps but reduce the Hold time to 00:00 hours.
Hold ON Indicator
Hold Time Remaining
Holiday
17 Slimline Series

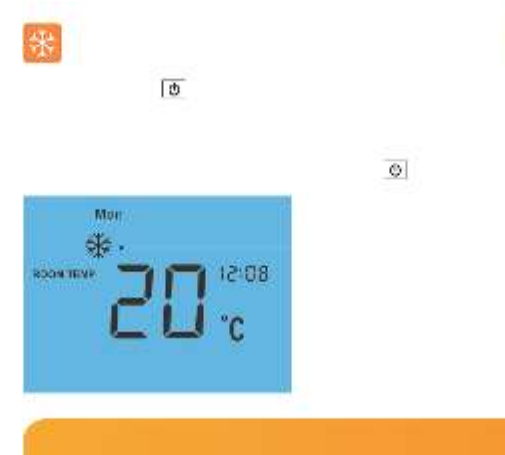

Pressing the Power button once will place the thermostat in frost protect mode.
In this mode, the thermostat will display the frost icon and will only turn the heating
on should the room temperature drop below the set frost temperature (see page 19).
Should the heating be turned on whilst in frost mode, the ame icon will be displayed.
To cancel the frost protect mode, press the Power button once again.
Frost Protection Mode Enabled
Frost Mode Heating On/O
