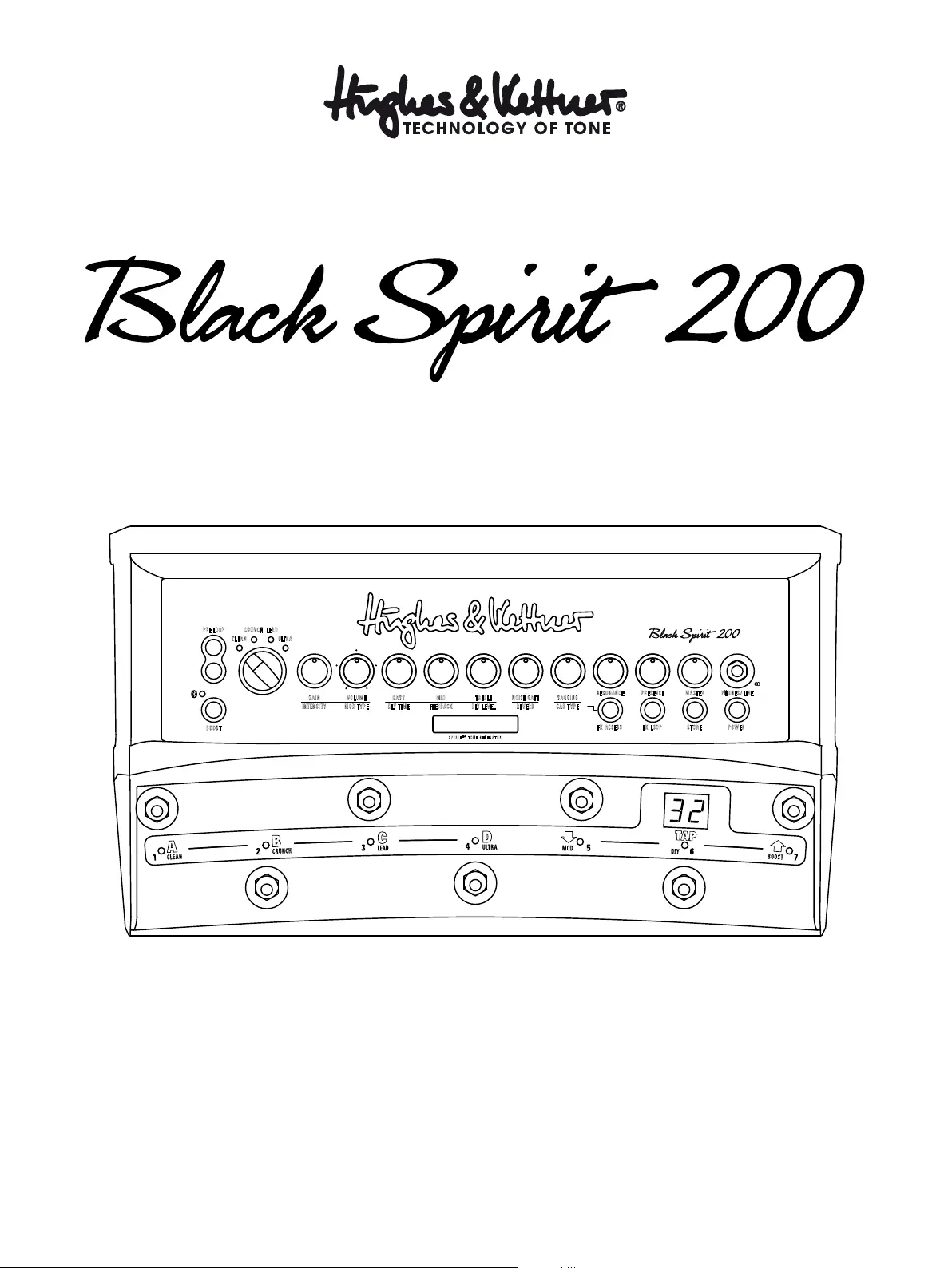

Hughes & Kettner Black Spirit 200 Bruksanvisning
Hughes & Kettner
itarforsterker
Black Spirit 200
Les nedenfor 📖 manual på norsk for Hughes & Kettner Black Spirit 200 (96 sider) i kategorien itarforsterker. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/96
MAS TERPRESENCERESONANCE
SAGGINGNOISE GAT ETREBLEMIDBASSVOLUME
50
18
27
36
45
GAIN
REVERBDLY LEVELFEEDBACKDLY TIMEMOD TYPEINTENSITY
CLEAN ULTRA
CRUNCH LEAD
POWER
PHONES /LINE
CAB TYPE
STOREFX LOOPFX ACCESS
BOOST
PR E LOO P
OFF
OFF
14 00
OFF
C
2
1
T
F
P
SPIRIT
™
TONE GENERATOR
• English • Deutsch • Français • Italiano • Español
• 日本語
•
中文
中文
Manual 1.0
)/225
Version 2.5 07/2018
Important Safety Instructions!
Read before connecting!
This product has been built by the manufacturer in
accordance with IEC 62368-1 and left the factory in
safe working order. To maintain this condition and
ensure non-risk operation, the user must follow the
advice and warning comments found in the operating
instructions. The unit conforms to Protection Class
1 (protectively earthed). If this product shall be used
in vehicles, ships or aircraft or at altitudes exceeding
2000 m above sea level, take care of the relevant
safety regulations which may exceed the IEC 62368-1
requirements.
WARNING: To prevent the risk of fire and shock
hazard, do not expose this appliance to moisture or
rain. Do not open case – no user serviceable parts
inside. Refer service to qualified service personnel.
This symbol, wherever it appears, alerts you to
the presence of uninsulated dangerous voltage inside
the enclosure – voltage that may be sufficient to
constitute a risk of shock.
This symbol, wherever it appears, alerts you to
the presence of externally accessible hazardous
voltage. External wiring connected to any terminal
marked with this symbol must be a "ready made cable”
complying with the manufacturers recommendations,
or must be a wiring installed by instructed persons only.
This symbol, wherever it appears, alerts you to
important operating and maintenance instructions in
the accompanying literature. Read the manual.
This symbol, wherever it appears, tells you: Take
care! Hot surface! To prevent burns you must not
touch.
All electrical and electronic products including
batteries should be disposed of separately from the
municipal waste stream via designated collection
facilities appointed by the government or the local
authorities.
Read these instructions. Keep these instructions.
Follow all warnings and instructions marked on the
product and in this manual.
• Do not use this product near water. Do not place the
product near water, baths, wash basins, kitchen sinks,
wet areas, swimming pools or damp rooms.
• Do not place objects containing liquid on the product
– vases, glasses, bottles etc.
• Clean only with dry cloth.
• Do not remove any covers or sections of the housing.
• The set operating voltage of the product must match
the local mains supply voltage. If you are not sure of
the type of power available consult your dealer or
local power company.
• To reduce the risk of electrical shock, the grounding
of this product must be maintained. Use only the
power supply cord provided with this product, and
maintain the function of the center (grounding) pin
of the mains connection at any time. Do not defeat
the safety purpose of the polarized or grounding-type
plug.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type
plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the device! Power supply cords should always be
handled carefully. Periodically check cords for cuts
or sign of stress, especially at the plug and the point
where the cord exits the device.
• Never use a damaged power cord.
• Unplug this product during lightning storms or when
unused for long periods of time.
• This product can be fully disconnected from mains
only by pulling the mains plug at the unit or the wall
socket. The product must be placed in such a way
at any time, that disconnecting from mains is easily
possible.
• Fuses: Replace with IEC127 (5x20mm) type and rated
fuse only! It is prohibited to use "patched fuses”
or to short the fuse-holder. Replacing any kind of
fuses must only be carried out by qualified service
personal.
• Refer all servicing to qualified service personnel.
Servicing is required when the unit has been
damaged in any way, such as:
- When the power cord or plug is damaged or frayed.
- If liquid has been spilled or objects have fallen into
the product.
- If the product has been exposed to rain or moisture.
- If the product does not operate normally when the
operating instructions are followed.
- If the product has been dropped or the cabinet has
been damaged.
• Do not connect external speakers to this product with
an impedance lower than the rated impedance given
on the product or in this manual. Use only cables
with sufficient cross section according to the local
safety regulations.
• Keep away from direct sunlight.
• Do not install near heat sources such as radiators,
heat registers, stoves or other devices that produce
heat.
• This apparatus is for moderate climates areas use, not
suitable for use in tropical climates countries.
• Do not block any ventilation openings. Install in
accordance with manufacturer’s instructions. This
product must not be placed in a built-in installation
such as a rack unless proper ventilation is provided.
• Always allow a cold device to warm up to ambient
temperature, when being moved into a room.
Condensation can form inside it and damage the
product, when being used without warming up.
• Do not place naked flame sources, such as lighted
candles on the product.
• The device must be positioned at least 20 cm/8"
away from walls with free air space inbetween, and
there must be free air space of at least 50 cm / 20"
immediately above the unit within which no object(s)
may be placed or positioned.
• Make sure that the device is always placed on a solid,
flat surface.
• Use only with the cart, stand, tripod, bracket or
table specified by the manufacturer or sold with the
product. When a cart is used, use caution when
moving the cart/product combination to avoid injury
from tip-over.
• Use only accessories recommended by the
manufacturer, this applies for all kind of accessories,
for example protective covers, transport bags,
stands, wall or ceiling mounting equipment. In case
of attaching any kind of accessories to the product,
always follow the instructions for use, provided by
the manufacturer. Never use fixing points on the
product other than specified by the manufacturer.
• This appliance is NOT suitable to be used by any
person or persons (including children) with limited
physical, sensorial or mental ability, or by persons
with insufficient experience and/or knowledge to
operate such an appliance. Children under 4 years
of age must be kept away from this appliance at all
times.
• Never push objects of any kind into this product
through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in
risk of fire or electric shock.
• This product is capable of delivering sound
pressure levels in excess of 90 dB, which may cause
permanent hearing damage! Exposure to extremely
high noise levels may cause a permanent hearing
loss. Wear hearing protection if continuously exposed
to such high levels.
• The manufacturer only guarantees the safety,
reliability and efficiency of this product if:
- Assembly, extension, re-adjustment, modifications
or repairs are carried out by the manufacturer or by
persons authorized to do so.
-
The electrical installation of the relevant area
c
omplies with the requirements of IEC (ANSI)
specifications.
- The unit is used in accordance with the operating
instructions.
- The grounding of the center pin of the mains plug is
maintained to reduce the risk of shock.
Things to do before operating the amp
• Please read these instructions carefully,
particularly the notes on safety, before
operating the amp.
• The manufacturer disclaims any liability on
responsibility whatsoever for any damage or
defect to this and other devices resulting from
misuse.
• Before you plug this amp into a mains power
outlet, make sure its Power switche is off and
that the voltage rating indicated on its rear
panel matches your local mains current.
• A word of warning before you fire up your
Black Spirit 200 Floor: It’s loud, and high
volume levels can cause hearing damage. To
avoid very loud and unwelcome surprises,
make a habit of backing the Volume knob of
the guitar connected to the Black Spirit 200
Floor all the way down before switching on
the amp!
3
Black Spirit 200 Floor – Manual 1.0
1 Quick-Start Guide ........................................................................ 3
2 The Fundamentals of Handling Black Spirit 200 Floor .................. 3
3 Control Features ........................................................................ 6
4 Connections .............................................................................. 7
5 Presets ....................................................................................... 9
6 Bluetooth
®
................................................................................. 10
7 MIDI .......................................................................................... 11
8 Technical Data ........................................................................... 13
Heads up: Black Spirit 200 Floor comes with a universal power supply
that works reliably at any mains voltage worldwide and maintains the
sound quality wherever you go. When the amp is connected to a mains
outlet, it will consume a tiny amount of power – less than 0.5 watts –
even when it is switched off. Every seven seconds or so, it will issue a
soft chirping sound that is only audible in a very quiet environment. This
does not constitute a material defect that can or needs to be repaired.
If this sound bothers you, we recommend that you plug the amp into a
switchable extension socket so you can flip its switch to cut off the power
supply to the amp.
1 Quick-Start Guide
MASTERPRESENCERESONANCE
SAGGINGNOISE G ATETREBLEMIDBASSVOLUME
50
18
27
36
45
GAIN
REVERBDLY LEVELFEEDBACKDLY TIMEMOD TYPEINTENSITY
CLEAN ULTRA
CRUNCH LEAD
POWER
PHONES/ LINE
CAB TYPE
STOREFX LOOPFX ACCESS
BOOST
PRE LO OP
OFF
OFF
1400
OFF
C
2
1
T
F
P
SPIRIT
™
TONE GENERATOR
On page 86 to 88 of this manual, you'll find example setups showing you
how to connect the amp for playing live and recording.
Mains In: Connect the factory-included power cord to this socket. Make
sure the mains power outlet is grounded before you plug in the amp!
Running your amp on non-grounded outlets is a safety hazard and may
cause audible noise and hum.
Speaker Out: Black Spirit 200 Floor provides speaker connection options
ranging from classic cabinets for a guitar amp to passive PA speaker
systems. Everything you need to know about this you’ll find in chapter 4,
Connections.
Bluetooth: The amp does not pair up with other devices automatically.
read chapter 6, Bluetooth, to learn more connecting via Bluetooth.
Power button: Press and hold this button for two seconds to power up the
amp. Press and hold it for three seconds to switch it off.
Heads up: In the event of a power outage, the amp will come back online
automatically when power is restored.
Phones/Line: Connect headphones to this 6.3 mm (1/4") jack output or
feed a line signal to any stereo multimedia input, such as a hi-fi system, if
you don't use the speaker out.
2 The Fundamentals of Handling
Black Spirit 200 Floor
Black Spirit 200 Floor is an advanced electric guitar amplifier with an
integrated MIDI board, but there is more to it than that. It also pairs a
purely analog sound generator with digital control and storage options.
Though it handles much like any other analog amp, there are a few things
you need to bear in mind:
• Although Black Spirit 200 Floor is an analog amplifier, all its switching
and controlling functions apart from the Master knob are programmable.
• Some knobs and switches are assigned different functions in different
operating modes.
• You can store and access all settings in 128 memory slots.
2.1 How the knobs work
Black Spirit 200 Floor is a four-channel amp. All four channels are
controlled by the same set of knobs. Your choice of channel determines
the knob's assignment. For example, when you choose the Clean channel
via the chicken-head selector switch explained in detail in section 3.1,
the Gain knob determines the Clean channel's gain level. This means the
channels are independently adjustable and no knobs need to be shared.
Heads up: The knobs look and feel like standard-issue pots with a
300-degree control range and left and right stops. But there's a difference
• English • Deutsch • Français • Italiano • Español
• 日本語
•
中文
中文
)/225
Produkspesifikasjoner
| Merke: | Hughes & Kettner |
| Kategori: | itarforsterker |
| Modell: | Black Spirit 200 |
Trenger du hjelp?
Hvis du trenger hjelp med Hughes & Kettner Black Spirit 200 still et spørsmål nedenfor, og andre brukere vil svare deg
itarforsterker Hughes & Kettner Manualer
22 September 2025
22 September 2025
22 September 2025
itarforsterker Manualer
- itarforsterker Behringer
- itarforsterker Vox
- itarforsterker Roland
- itarforsterker Zoom
- itarforsterker Marshall
- itarforsterker Electro Harmonix
- itarforsterker Victory
Nyeste itarforsterker Manualer
18 September 2025
30 August 2025
26 August 2025
26 August 2025
26 August 2025
26 August 2025
5 August 2025
5 August 2025
5 August 2025
4 August 2025
