LOCKOUT/TAGOUT PRODUCTS
SECURE | SAFE | TOUGH
Hinged Single-Pole Breaker Lockouts
• Hinged single-pole lockout
with locking post design,
locks lever in off position to
isolate and prevent breaker use
• Ideal where panel closure is preferred
Description Qty. Part No.
Hinged Single-Pole
Breaker Lockouts
3 44-810
100 44-1810
CIRCUIT BREAKERS | MISCELLANEOUS ELECTRICAL MISCELLANEOUS ELECTRICAL | SIGNS | TAGS | LOCKS
• Works with most major multi-
pole breakers with tie-bar type
switches from major brands including
GE, ITE Sylvania, Challenger, Bryant,
Westinghouse, SQUARE D (2/3 poles) and
General Switch Co.
• Easy to install — thumbscrew secures and
locks tie bar in place; no cable ties or tools
required
Multi-Pole Breaker Lockout
Description Qty. Part No.
Multi-Pole Breaker Lockout
1 44-783
Universal 120/277V Breaker
Lockouts
• Use thumbscrew to clamp lock-
out securely onto switch tongue,
then pull cover over thumbscrew
and lock in place to prevent clamp
from being loosened
• Blade design provides tighter
grip with less torque on thumbscrew
Description Qty. Part No.
Single-Breaker Lockouts
3 44-809
Cleat for Single-Pole Breaker
Lockouts
3 44-785
Single-Pole Breaker Lockouts 50 44-1809
Large Breaker Lockout
• Designed to lockout large
480/600V breaker switches
up to 2-1/2 in. wide and
7/8 in. thick
• Easy to install — no tools required
Description Qty. Part No.
Large Breaker Lockout
1 44-823
Oversized Circuit Breaker Lockout System
• Unique Lockout
system for over-
sized 480/600V
circuit breakers
• System can be
permanently installed
into an electrical panel putting all lockout
items at the point of need
• Easy installation of adhesive mounting rails –
no tools required
• Pegs in mounting rails mate with holes in
locking arms for security of arm when lock is
in place
• Red arms lock off, green arms lock on
Description Qty. Part No.
Oversized Circuit Breaker
System
1 44-822
Wall Switch Lockouts
• Universal Wall Switch Lockout
locks out both toggle and
Decora
®
wall switches
• Universal design assures switch
is locked on or off. Hinges open
for unobstructed normal
switch operation
• Standard wall switch lockout
fits most wall-mounted single
or three-way electrical switches
Description Qty. Part No.
Universal Wall Switch
1
44-772
Standard Wall Switch 44-789
Decora
®
is a registered trademark of Leviton
Manufacturing Co., Inc.
44-789
44-772
Circuit Breaker Lockout System
• Covers most
120V - 277V
including single-
and multi-pole
configurations
• Makes use of unique
lock rail system,
providing the
following benefits:
- Allows panel door to
be closed even when
lockouts are in place
- Accommodates multiple locks,
facilitating group lockout activity without
hasps
- Keeps weight off the breakers, protecting
delicate electrical components from
damage
- Positions locks and tags outside the panel,
making sure lockout activity is clearly
visible to anyone in the area
• Cables are 2 ft. in length
• Lockout devices constructed of high-impact
Isoplast
®
polymers
• Lock rails made of durable Isoplast
®
polymers with acrylic adhesive backing
• Snap-on – For use on Square D NQO and
other breakers that have a hole in the
switch tongue. Align pins with hole and
snap closed. Pins prevent switch from
being thrown.
• Clamp-on – For use on breakers that do not
have a hole in the switch tongue, including
multiple breakers with tie bars. Turn thumb-
screw to clamp lockout securely onto switch,
then snap the cover closed to prevent thumb
wheel from being loosened.
Description Qty. Part No.
Clamp-on lockout for
breakers without hole in the
switch tongue, including
multi-pole breakers with
tie bars
1
44-764
Snap-on lockout for Square
D NQO and other breakers
with a hole in the switch
tongue
44-768
4 in. Lock Rail with seven
lock loops
44-769
Isoplast
®
is a registered trademark of Lubrizol
Advanced Materials, Inc.
44-764
Clamp-on
44-768
Snap-on
Plug Lockouts
• Accommodates a variety
of electrical plug and cord
sizes to prevent accidental
connection or disconnection
• Durable plastic body resists wear,
chemicals, and job-site abuse
• Accommodates cable ties or padlocks
(with up to 3/8 in. shackles)
Description Size (in.) Part No.
100V 2 x 2 x 3-1/2 44-818
220/550V 3-1/4 x 3-1/4 x 7 44-819
44-819
Adjustable Cable Lockout
• Infinitely adjustable safety
hasp and cable
• Ideal for multiple
circuit breaker panels and
side-by-side gate valve lockouts
• Feed the cable end through the points to
be locked out, then back through the
lockout body. Cinch it tight to remove any
slack with the patented locking feature.
• Tough, flexible multi-stranded 6 ft., 1/4 in.
diameter. steel cable is insulated with a
clear vinyl coating
• Tough, lightweight, dielectric thermoplastic
body withstands chemicals; performs
effectively in extreme conditions
• Up to four workers can apply their personal
safety locks
• Complete with high-visibility, reusable,
write-on safety labels (English, French
& Spanish). Identify the responsible person,
then erase for the next job.
Description Part No.
Adjustable Cable Lockout 44-808
Steel Padlocks
• Rustproofed, steel case with nickel-
plated shackle withstands abuse
and environmental hazards
• Includes two keys
• 1-1/2 in. wide lock with 9/32 in.
shackle diameter
• Keyed-alike and Master Lock
®
Keyed
locks available by special order
Bumper
Color
3/4 In. Shackle
Part No.
2 In. Shackle
Part No.
Blue 44-900 44-901
Red 44-906 44-907
Master Lock
®
is a registered trademark of Master
Lock Company LLC.
480/600V Single/Multi-Pole Breaker
Lockouts
• Use thumbscrew to clamp lock-
out securely onto switch tongue,
then pull cover over thumb-screw
and lock in place to prevent clamp
from being loosened
• Blade design provides tighter
grip with less torque on thumbscrew
Description Qty. Part No.
480/600V Single/ Multi-Pole
Lockout
1 44-807
480/600V Single/Multi-Pole
Lockouts
50 44-1807
Cleat for 480/600V
Single/Multi-Pole Lockouts
2 44-786
Circuit Breaker Lockouts
• Attaches securely to breaker with simple
thumb turn and clamping handle
• 44-956 is designed for breakers with wide
or tall toggles
• 44-957 fits standard height and tie-bar
toggles
• The narrow profile permits side-by-side
breaker lockout
Description Part No.
Circuit Breaker Lockout
44-956
44-957
44-957
44-956
Plug Lockouts
• Plug lockout, 44-792 works with
high and low voltage plugs up
to 3 in. in diameter and
5-1/2 in. in length, up
to 1-1/4 in. cord diameter
• Plug lockout, 44-973 works
with 110V/220V plugs up to 1-3/4 in. in
diameter and 2-1/2 in. in length, up to a
1/2 in. cord diameter
Description Part No.
Plug Lockout 44-792
Plug Lockout 44-793
Electric Plug Lockout
• Slides over cord prongs and locks in
place to prevent cord from
being plugged into an
outlet
• Cannot be removed without key
• Works on any 2- or 3-prong plug
Description Part No.
Electric Plug Lockout 44-782
Cable Lockout
Description Part No.
Cable Lockout, 6 ft. cable 44-829
• Unique hasp lockout
device accepts up to
six 9/32 in. padlocks and
comes with a 6 ft. plastic-coated steel cable
Ball Valve Lockout Devices
• Best available method
for locking out ball valves
• Patented design fits most
major brand ball valves
• Designed to lock in off position only
• Complies with OSHA lockout standard
44-847
Valve Size
(in.)
Max.
Shackle
Length
Material Part No.
1/2 to 1-1/4
— Polypropylene
44-846
1-1/4 to 3 44-847
1/4 to 1
9/32 in.
Nylon 44-820
1-1/4 to 3 Heavy Steel 44-821

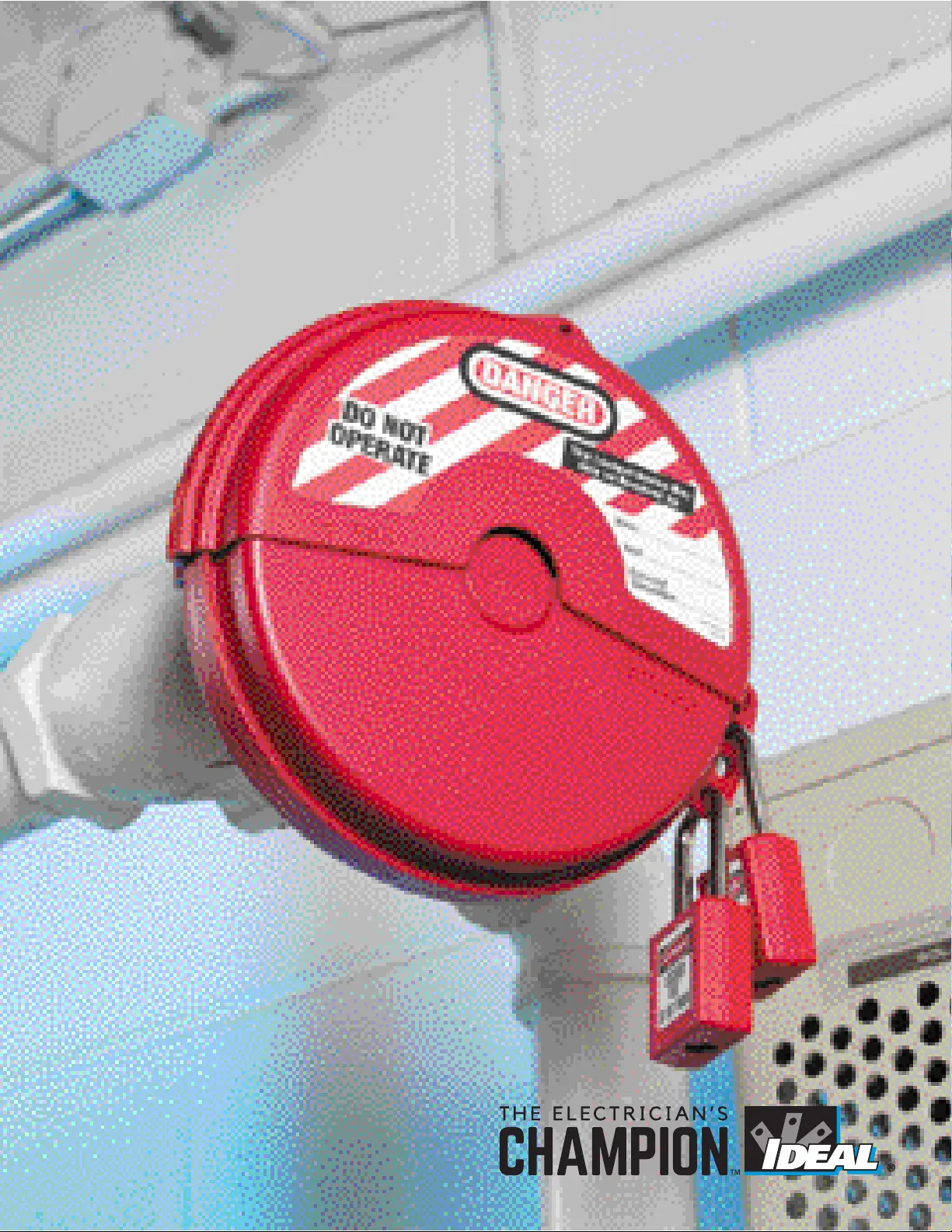

Gate Valve Lockouts
Valve Size Qty. Part No.
1 in. to 3 in.
1
44-824
2 in. to 5 in. 44-825
Set of 5 sizes (1 in. to 13 in.) 44-817
• Unique rotating design allows for easy
installation in confined space applications
• Each size rotates into itself and nests within
the next larger size to save space
• Up to four workers can apply their personal
safety locks
• High-visibility permanent safety labels
(English, French & Spanish) that can
be written on then erased for the next job
• Tough, lightweight, dielectric thermoplastic
bodies withstand chemicals and perform
effectively in extreme conditions,
• Temperature range:
-50°F (-46°C) to +350°F (177°C)
44-824 44-825 44-817
Safety Lockout Padlocks w/Key
Retention
• Dedicated safety lockout
device reduces confusion
with other locks
• Complies with OSHA’s “1-key,
1-lock”
• Non-conductive, lightweight body; four
colors for easy identification
• Key retention ensures keys do not get lost
while not in use
• 1-1/2 in. shackle clearance; 1-1/2 in. wide
lock with 1/4 in. shackle
• Keyed-alike, Master Lock
®
Keyed locks,
2nd key, additional colors available by
special order
Bumper Color Part No.
Blue 44-912
Black 44-914
Red 44-916
Yellow 44-918
Master Lock
®
is a registered trademark of Master
Lock Company LLC.
Lock Labels
• Easy identification of
employee’s locks
• Write-on, vinyl labels
with peel-off adhesive backing
• Polyester over laminate protects label
Description Qty. Part No.
Lock Labels 8 labels 44-898
Safety Lockout Hasps
• Rustproofed, plated
and vinyl-coated
• Labeled hasps feature anodized
aluminum alloy construction for
long-term durability
Jaw Diameter Qty. Part No.
1 in. 3 44-800
1-1/2 in. 2 44-801
44-801
Labeled Safety Lockout Hasps
• Allow up to six workers to lock
out a single energy source
• Permanent “Do Not Operate”
labels accept pens, pencils,
and permanent markers
Description Color Qty. Part No.
Do Not Operate
Blue 1 44-790
Red 1 44-791
Red 50 44-1791
44-790
Heavy-Duty Lockout Tags
• High-visibility lettering
• Laminated plastic tags have non-fade
legends, resist corrosive and harsh
environmental conditions
• Vinyl tags are silk screened with a 7/8 in.
metal grommet; fastener included
• Exceeds OSHA’s 50-lb. pullout requirement
• Matte finish for easy writing surface
Description
Qty.
Part No.
Do Not Operate
5/card 44-830
100/box 44-1830
Do Not Operate -
Electricians at Work
5/card 44-832
Do Not Operate -
(red striped
background)
5/card 44-833
100/box 44-1833
Description
Qty.
Part No.
Do Not Operate 25/bag 44-848
Do Not Operate -
Electricians at Work
25/bag 44-843
Do Not Operate - (red
striped background)
25/bag 44-849
Heavy-Duty Laminated
Economy Vinyl
LOCKS | ACCESSORIES | KITS

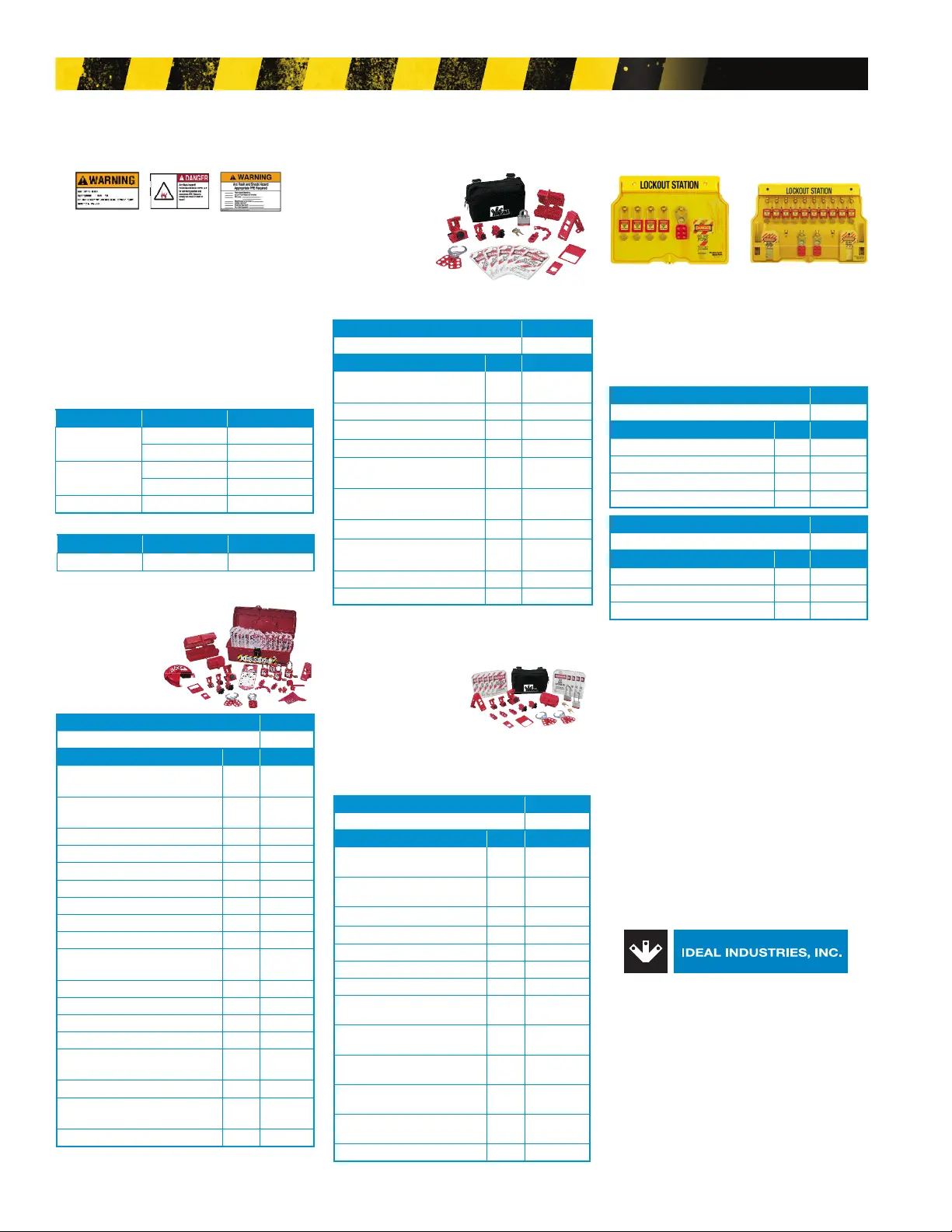

Standard Lockout/Tagout Kit
• Excellent selection
of lockout/tagout
devices, tags and
locks for maintenance
workers or contractors
• Small nylon zipper pouch features belt
loops and d-rings for easy attachment to
belts, tool pouches, tool carts and more
Description Part No.
Standard Lockout/Tagout Kit 44-971
Kit Includes: Qty. Part No.
Hinged Single-Pole Breaker
Lockouts
3 44-810
Universal 277V Breaker
Lockouts/Single Pole
2 44-809
480/600V Breaker Lockout 1 44-807
Wall Switch Lockout 1 44-789
110V Small Plug Lockout 1 44-818
2 in. Shackle Red Padlocks 2 44-907
1 in. Safety Lockout Hasps 2 44-800
Lockout Tags – Do Not
Operate
5 44-848
Striped Lockout Tags – Do
Not Operate
5 44-849
Cleat for 277V Breaker
Lockout
1 44-785
Cleat for 480/600V Breaker
Lockout
1 44-786
Universal Multi-Pole Breaker
Lockouts
2 44-783
Zipper Pouch 1 IA-3240
Quantities listed in kit description are for
individual pieces, not carded packages.
Basic Lockout/Tagout Kit
Industrial Lockout/Tagout Kit
• A great selection
of the most
popular lockout/
tagout devices
• Small nylon
zipper pouch
features belt
loops and d-rings for easy attachment to
belts, tool pouches, tool carts and more
Description Part No.
Basic Lockout/Tagout Kit 44-970
Kit Includes: Qty. Part No.
Universal Multi-Pole Breaker
Lockout
1 44-783
Wall Switch Lockout 1 44-789
1 in. Safety Lockout Hasp 1 44-800
480/600V Breaker Lockout 1 44-807
Universal 277V Breaker
Lockout/Single Pole
1 44-809
Hinged Single-Pole Breaker
Lockouts
2 44-810
110V Plug Lockout 1 44-818
Striped Lockout Tags – Do
Not Operate
5 44-849
3/4 in. Red Padlock 1 44-906
Zipper Pouch 1 IA-3240
Quantities listed in kit description are for
individual pieces, not carded packages.
Description Part No.
Industrial Lockout/Tagout Kit 44-974
Kit Includes: Qty. Part No.
Hinged Single-Pole Breaker
Lockouts
3 44-810
Universal 277V Breaker/Single
Pole Lockouts
2 44-809
480/600V Breaker Lockout 1 44-807
Wall Switch Lockout 1 44-789
110V Small Plug Lockout 1 44-818
Ball Valve Lockout 1 44-820
1 in. Safety Lockout Hasps 2 44-800
Red Labeled Lockout 1 44-791
220/550V Plug Lockout 1 44-819
Striped Lockout Tags – Do Not
Operate
10 44-849
Fuse Blockout 1 44-815
Fuse Blockout 1 K-7349
Gate Valve Lockout 1 44-824
Cleat for 277V Breaker Lockout 1 44-785
Cleat for 480/600V Breaker
Lockout
1 44-786
Red Lockout Padlocks 4 44-916
Universal Multi-Pole
Breaker Lockouts
2 44-783
Tool Box* (12 in. x 6 in. x 6 in.) 1 IA-3241
Quantities listed in kit description are for
individual pieces, not carded packages. *Tool Box
color may vary.
• An industrial selection of
lockout/tagout devices
• Polypropylene
plastic tool
box resists oil
and chemicals
Lock Stations
• Resilient polycarbonate material provides
twice the heat resistance and quadruple
the impact strength of typical stations
• Lockable cover prevents loss of valuable
safety products and innovative hinge holds
cover open for easy product selection
44-778
44-806
Description Part No.
Four-Lock Station Kit 44-778
Kit Includes: Qty. Part No.
Four-Lock Station Board 1 —
Safety Padlocks, Red 4 44-916
Heavy-Duty Lockout Tags 12 —
1 in. Safety Lockout Hasps 2 44-800
Description Part No.
Ten-Lock Station Kit 44-806
Kit Includes: Qty. Part No.
Safety Padlocks, Red 10 44-916
Heavy-Duty Lockout Tags 24 —
1 in. Safety Lockout Hasps 2 44-800
Flash Protection Labels & Signs
National Electric Code 110.16 Flash Protection:
Switchboards, panel boards, industrial control
panels and motor control centers, in other
than dwelling occupancies, that are likely to
require examination, adjustment, servicing or
maintenance while energized, shall be field
marked to warn qualified persons of potential
electric arc flash hazards. The marking shall be
located so as to be clearly visible to qualified
persons before examination, adjustment,
servicing or maintenance of the equipment.
Size Qty. Part No.
3-1/2 in. x 5 in.
5 44-892
100 44-892BK
5 in. x 7 in.
5 44-893
5 44-894
7 in. x 10 in. 1 44-896
Size Qty. Part No.
4 in. x 6 in. 5 44-895
44-893 44-894
44-896
NEC Arc Flash, Warning (Self-Sticking Polyester)
NEC Arc Flash, Danger (Self-Sticking Polyester)
®
1375 Park Avenue, Sycamore, IL 60178,
USA (815)-895-5181
(800)-435-0705 in USA
For complete sales office contact
information, visit us at
www.idealind.com
10/19 Printed in U.S.A.
Form No. P-2734
©2019 IDEAL INDUSTRIES, INC.
Produkspesifikasjoner
| Merke: | Ideal |
| Kategori: | lås |
| Modell: | 44-823 |
Trenger du hjelp?
Hvis du trenger hjelp med Ideal 44-823 still et spørsmål nedenfor, og andre brukere vil svare deg
lås Ideal Manualer
14 September 2025
lås Manualer
- lås ORNO
- lås SereneLife
- lås Lindy
- lås Kensington
- lås Kidde
- lås Tripp Lite
- lås Abus
- lås Vimar
- lås Biltema
- lås Honeywell
Nyeste lås Manualer
10 September 2025
10 September 2025
10 September 2025
5 September 2025
1 September 2025
23 August 2025
23 August 2025
18 August 2025
18 August 2025
18 August 2025
