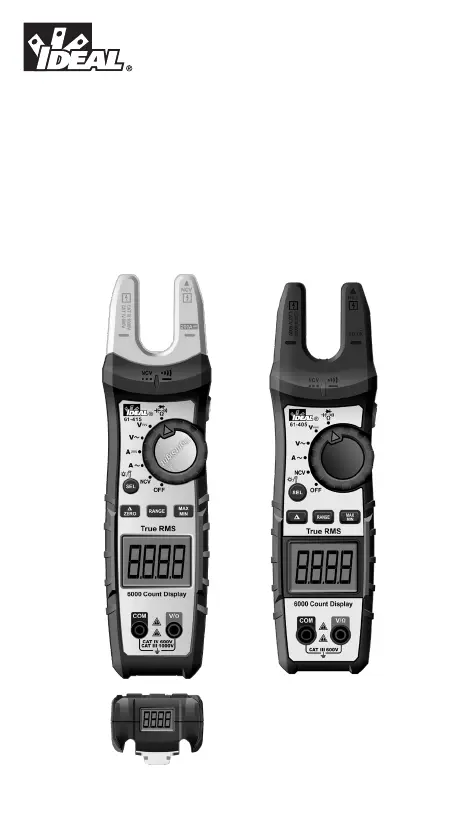

61-415 200-Amp AC/DC
61-405 200-Amp AC
TightSight™ Fork Meter
Operation and Safety Manual
IDEAL
®
Test and Measurement
Introduction ......................................................................3
Contacting IDEAL INDUSTRIES, INC ..........................................3
Safety Information ...............................................................4
Warnings ................................................................................................... 4-5
Cautions ........................................................................................................ 5
Symbols .................................................................................................... 6-7
Operation......................................................................8-23
Identification and description of operating controls and functions ........... 8-9
Operating Features ............................................................................... 10-11
Using Test Leads ........................................................................................12
Meter Operation ................................................................................... 13-17
Non-Contact Voltage Testing...........................................................13
Measuring Current .......................................................................... 14
Measuring Voltage ..........................................................................14
Measuring Continuity .....................................................................15
Measuring Resistance ..................................................................... 15
Measuring Capacitance ...................................................................16
Measuring Diodes ...........................................................................16
Measuring Frequency .....................................................................17
Measuring Temperature ..................................................................17
Functions Operation Table .................................................................... 18-19
Functions Indication Table .................................................................... 20-21
Electrical Specifications ........................................................................ 22-23
Environmental Specifications ................................................ 24
Mechanical Specifications ................................................... 24
EMC / EMI ....................................................................... 24
FCC ............................................................................... 25
Safety ............................................................................ 25
Maintenance and Service ................................................ 26-27
Table of Contents
2
Introduction
The IDEAL
®
61-415 TightSight™ and 61-405 Fork Meters are auto ranging true
root mean square (TRMS) digital fork meters that measure AC and DC current
(amps (61-415)) via the forks, measure voltage, resistance, continuity, capacitance,
diode via test-leads, and detects the presence of voltage between 40V to 600V AC
via a non-contact sensor in the right tip of the clamp.
Contacting IDEAL INDUSTRIES, INC.
To contact IDEAL INDUSTRIES, INC., call one of the following telephone numbers:
IDEAL Industries USA Customer Service
• Phone Number: 800-435-0705
• Email: contactus@idealindustries.com
IDEAL Industries Canada Customer Service
• Phone Number: 905-683-3400
• Email: ideal_Canada@idealindustries.com
IDEAL Industries EMEA
• Phone Number: +44 (0)1925 444 446
• Email: eur.sales@idealindustries.com
IDEAL Industries Australia
• Phone Number: +61 3 9562 0175
• Email: InfoAUS@idealindustries.com
Or visit the IDEAL Electrical Website at www.idealind.com
To register your product, find manuals, watch videos, simply scan this QR code.
3
Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures,
wear proper PPE in accordance to NFPA 70E. Read and fully understand the
instruction manual prior to using this product. Failure to comply can result in
serious injury or death.
