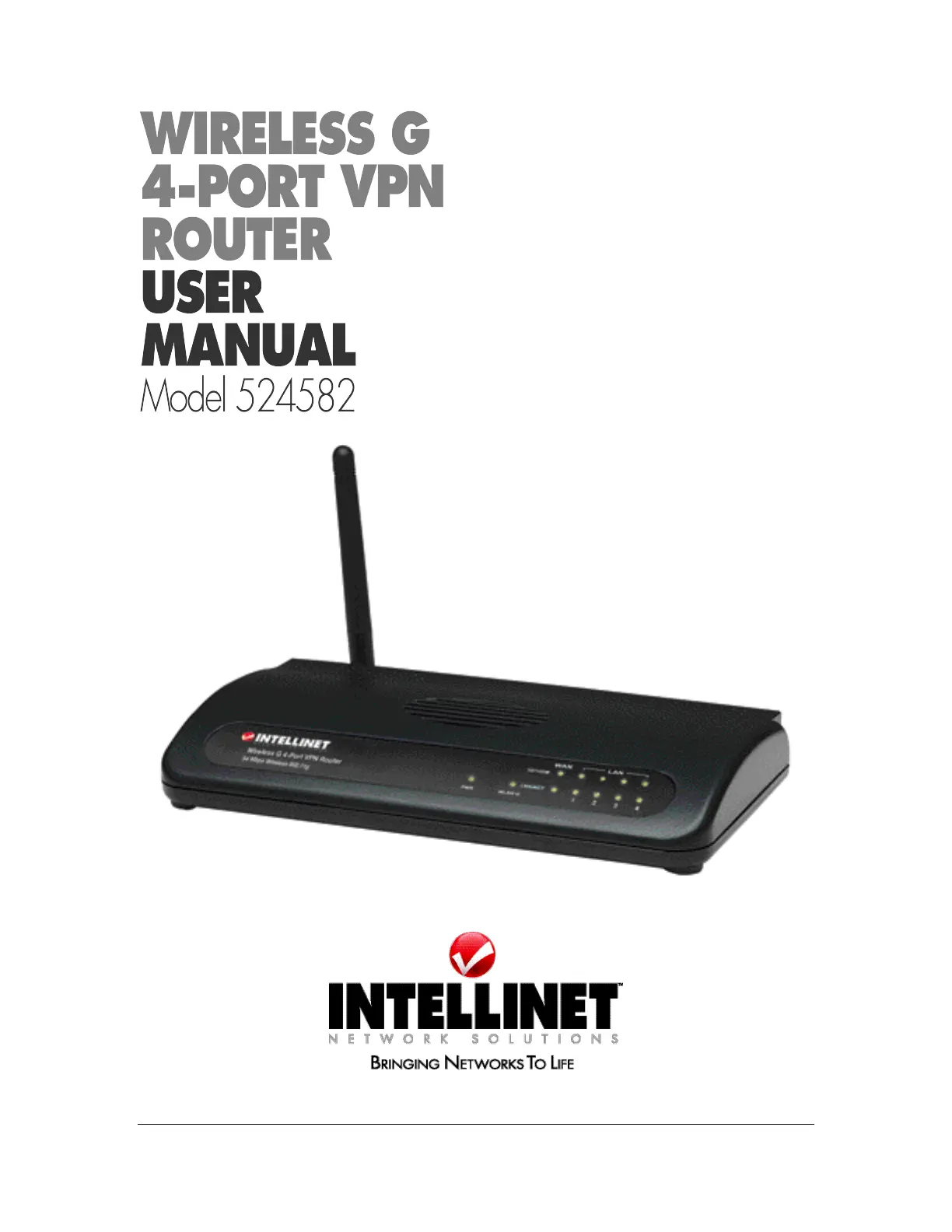

Intellinet 524582 Bruksanvisning

Intellinet Ruter 524582

Les nedenfor 📖 manual på norsk for Intellinet 524582 (84 sider) i kategorien Ruter. Denne guiden var nyttig for 8 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/84

INT-524582-UM-0309-01

Introduction .............................................................................. 4

Section 1: Hardware .............................................................................. 7

1.1 Back Panel .............................................................................. 7

1.2 Front Panel .............................................................................. 8

1.3 Setup Diagram .............................................................................. 9

Section 2: Quick Setup .............................................................................. 10

2.1 Getting Started .............................................................................. 10

2.2 Quick Setup Wizard .......................................................................... 15

2.2.1 Time Zone ............................................................................ 15

2.2.2 Broadband Type ................................................................... 16

2.2.2.1 Cable Modem ........................................................... 17

2.2.2.2 Fixed-IP xDSL .......................................................... 18

2.2.2.3 PPPoE ...................................................................... 19

2.2.2.4 PPTP ........................................................................ 21

2.2.2.5 L2TP......................................................................... 23

2.2.2.6 Telstra BigPond ........................................................ 25

Section 3: General Setup .............................................................................. 26

3.1 System .............................................................................. 26

3.1.1 Time Zone ............................................................................ 27

3.1.2 Password Settings ............................................................... 27

3.1.3 Remote Management ........................................................... 28

3.2 WAN .............................................................................. 30

3.2.1 Dynamic IP Address ............................................................. 30

3.2.2 Static IP Address .................................................................. 30

3.2.3 PPPoE .............................................................................. 30

3.2.4 PPTP .............................................................................. 30

3.2.5 L2TP .............................................................................. 31

3.2.6 Telstra BigPond .................................................................... 31

3.2.7 DNS .............................................................................. 31

3.2.8 DDNS .............................................................................. 32

3.3 LAN .............................................................................. 33

3.4 Wireless .............................................................................. 34

3.4.1 Basic .............................................................................. 35

3.4.2 Advanced.............................................................................. 39

3.4.3 Security .............................................................................. 40

3.4.3.1 WEP Only.............................................................. 40

3.4.3.2 802.1x Only ........................................................... 42

3.4.3.3 802.1x WEP Static Key ......................................... 42

3.4.3.4 WPA Pre-Shared Key............................................ 43

3.4.3.5 WPA RADIUS........................................................ 44

3.4.4 Access Control ..................................................................... 45

3.5 QoS .............................................................................. 46

3.6 NAT .............................................................................. 49

3.6.1 Port Forwarding .................................................................... 49

3.6.2 Virtual Server........................................................................ 50

3.6.3 Special Applications ............................................................. 53

3.6.4 UPnP .............................................................................. 55

3.6.5 ALG .............................................................................. 56

3.6.6 Static Routing ....................................................................... 56

3.7 Firewall .............................................................................. 58

3.7.1 Access Control ..................................................................... 58

3.7.2 URL Blocking........................................................................ 62

3.7.3 DoS .............................................................................. 63

3.7.4 DMZ .............................................................................. 64

3.8 VPN .............................................................................. 65

3.8.1 IPSec Server ........................................................................ 65

3.8.2 L2TP Server ......................................................................... 69

3.8.3 PPTP Server......................................................................... 70

Section 4: Status .............................................................................. 72

4.1 Internet Connection........................................................................... 72

4.2 Device Status .............................................................................. 73

4.3 System Log .............................................................................. 73

4.4 Security Log .............................................................................. 74

4.5 Active DHCP Client........................................................................... 74

4.6 Statistics .............................................................................. 75

Section 5: Tools .............................................................................. 76

5.1 Configuration Tools........................................................................... 76

5.2 Firmware Upgrades .......................................................................... 77

5.3 Reset .............................................................................. 77

Appendix: How to Manually Find IP and MAC Addresses............................. 78

Glossary .............................................................................. 79

Specifications .............................................................................. 82

Produkspesifikasjoner

Merke:	Intellinet
Kategori:	Ruter
Modell:	524582
Vekt:	800 g
LED-indikatorer:	LAN, Power, WLAN
Sertifisering:	FCC, CE, RoHS
Internminne:	16 MB
Inngangsspenning:	12 V
Kablingsteknologi:	10/100Base-T(X)
Nettverksstandard:	IEEE 802.11b, IEEE 802.11g, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Antall brukere:	10 bruker(e)
Støttede nettverksprotokoller:	CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DNS
MAC-adressefiltrering:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
Flash-minne:	4 MB
DHCP-server:	Ja
Universal Plug and Play (UPnP):	Ja
DHCP-klient:	Ja
Antall kanaler:	11 kanaler
Dimensjoner (B x D x H):	187 x 100 x 30 mm
Produktfarge:	Sort
Type strømforsyning:	DC
Strømforbruk (vanlig bruk):	5.5 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	4
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Quality of Service (QoS) støtte:	Ja
tilbakestillingsknapp:	Ja
Innebygd prosessor:	Ja
Oppgraderbar fastvare:	Ja
DC-inngangskontakt:	Ja
Modulator:	DQPSK, QPSK
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Sikkerhetsalgoritmer:	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA-AES, WPA-TKIP, WPA2, WPA2-PSK
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
Prosessormodell:	Realtek RTL8186
Nettverksgrensesnitt:	Raskt Ethernet
Strøm over Ethernet (PoE):	Ja
WLAN-støttede dataoverføringshastigheter:	11, 54 Mbit/s
Antenne forbedringsnivå (max):	2 dBi
Innput-strøm:	1.0 A
VPN-støtte:	PPTP, IPSec, L2TP
Ethernet LAN-grensesnittype:	Raskt Ethernet
Utendørs rekkevidde:	300m
Innendørs rekkevidde:	100m
Frekvens (MHz):	2.412 - 2.484
Støttede dataoverføringsrater:	IEEE 802.11b: 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps; IEEE 802.11g: 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps
DMZ støttes:	Ja
Network Address Translation (NAT):	Ja
Antennetilkoblingstype:	RP-SMA
Antall antenner:	1
