USER GUIDE

KeyMander 2 Keyboard/Mouse Adapter plus Controller Crossover

GE1337P2

Package Contents

1 x KeyMander 2

1 x Micro USB Cable

1 x Quick Start Guide

1 x Warranty Card

Note: an optional micro USB power supply may be required with certain RGB keyboards that have a larger than normal current draw.

System Requirements:

• PS4™: Sony Playstation brand PS4 wireless controller connected via included micro USB cable

• PS3™: Sony Playstation brand PS3 wireless controller connected via a mini USB cable (Sony DualShock 3

SIXAXIS controller is recommended)

• Xbox One®: Microsoft brand Xbox One wireless controller connected via included micro USB cable

• Xbox 360®:Microsoft brand Xbox 360 wired controller

• Nintendo Switch™: Nintendo Switch connected to Switch dock (not included)

• Android 6.0+ device or iOS 10+ device supporting Bluetooth 4.1+

• USB Keyboard and USB Mouse*

*Required branded game controllers not included

Hardware Review

Front View

1. Gamepad USB Port

2. Keyboard USB Port

3. Mouse USB Port

4. Power Port (optional)

Note: GE1337P2 KeyMander 2 will

function without additional power,

however some RGB keyboards such as those with built-in USB hubs, etc. may require more power than

KeyMander 2 can provide. If the KeyMander 2 LED indicator is flashing red or a low voltage warning

appears on the K2 app, connect a micro USB cable between the KeyMander 2’s Power port and a USB

power supply (minimum 1A output) such as a charger for a tablet or smartphone.

5. Game Console USB connector

*Some gaming keyboards may have accessories that require more power than the KeyMander 2 is able to supply. Please

visit http://www.IOGEAR.com/product/GE1337P2 for more information.

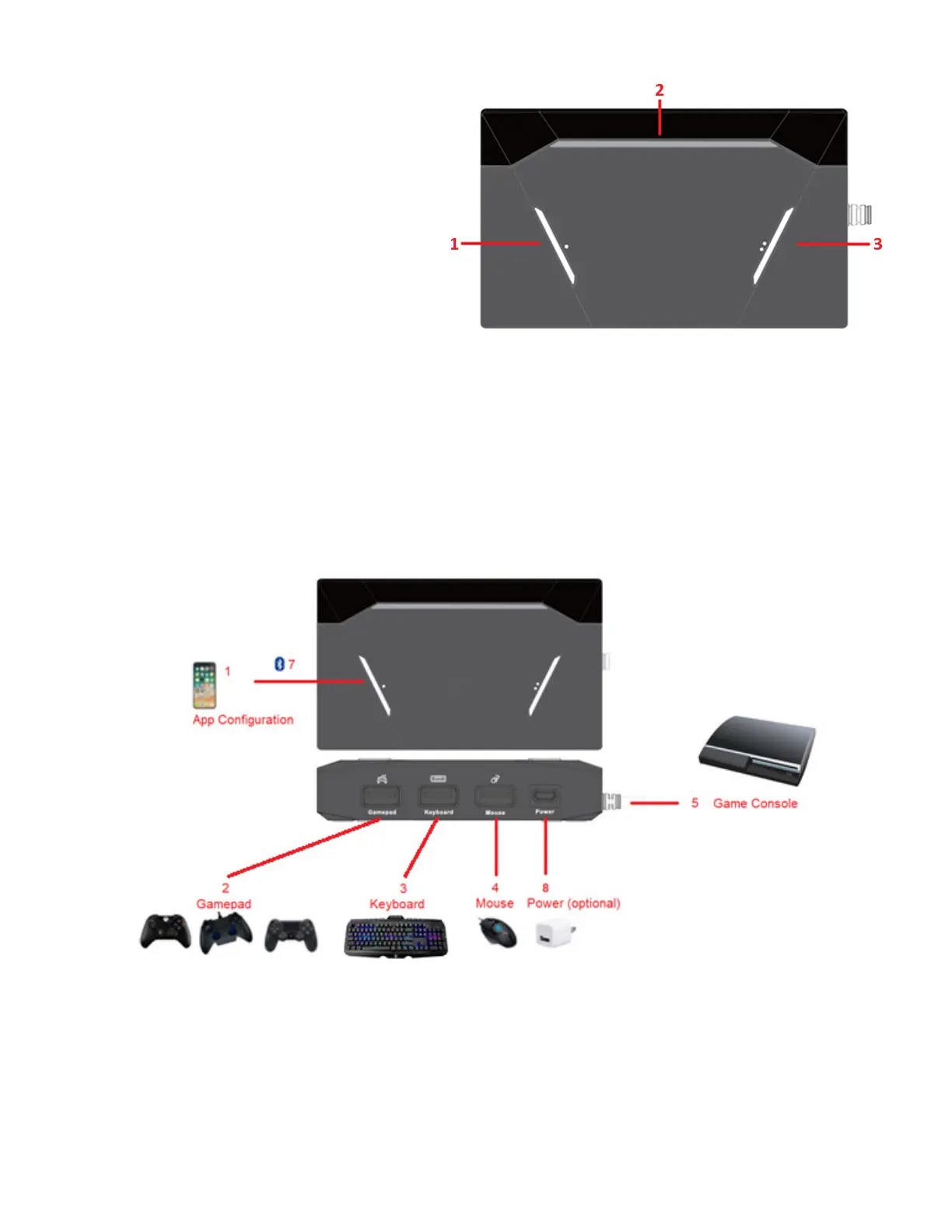

Top View

1. Button 1: Bluetooth Pairing Button

2. LED Indicator

3. Button 2: Mode Button

K2 App

The K2 App is required to use the KeyMander 2, and is designed to download and manage your game profiles

and help make configuration changes as needed. A game profile consists all of your mouse settings and

keyboard mappings, and formats the profile for your console type (Nintendo Switch, PS4 or Xbox One. Please

download and install the K2 App to optimize your KeyMander 2 experience.

Hardware Installation

1. Connect your PS4 / PS3 / XBOX One or XBOX 360 wired controller to the Gamepad Port. Note: Nintendo

Switch does not require a controller connected to KeyMander 2 for keyboard and mouse interface.

2. Connect your USB keyboard to the Keyboard Port.

Note: If you are using a wireless keyboard/ mouse set, plug the receiver into the Keyboard Port.

3. Connect your USB Mouse to the Mouse Port.

4. Connect the USB cable from the KeyMander 2 to the USB port on the game console.

Produkspesifikasjoner

Merke:	IOGEAR
Kategori:	kontroll
Modell:	KeyMander 2
Vekt:	100 g
Bredde:	110 mm
Dybde:	65 mm
Høyde:	23 mm
Pakkevekt:	250 g
Antall USB 2.0-porter:	3
Antall mikro-USB 2.0-porter:	1
Produktfarge:	Black, Grey
Pakkedybde:	177 mm
Pakkehøyde:	235 mm
Pakkebredde:	166 mm
Kabler inkludert:	USB
Strømforbruk (vanlig bruk):	0.96 W
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Relativ luftfuktighet under drift (H-H):	0 - 80
Guide for hurtiginstallering:	Ja
DC inngående spenning:	5 V
Kontrollskjermenhet:	Nei
