Side 1/60
Sidemount Composite Sand Filters
JS
Essential installation and startup instructions are included in this manual.
Additional operation and troubleshooting information is available online by
scanning the QR code with your phone or visiting jandy.com
WARNING
FOR YOUR SAFETY – This product must be installed and serviced by a contractor who is licensed and qualifi ed in pool
equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. The
maintainer must be a professional with suffi cient experience in pool equipment installation and maintenance so that all of
the instructions in this manual can be followed exactly. Before installing this product, read and follow all warning notices and
instructions that accompany this product. Failure to follow warning notices and instructions may result in property damage,
personal injury, or death. Improper installation and/or operation may void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which may cause serious injury, property
damage, or death.
ATTENTION INSTALLER – This manual contains important information about the in stal la tion, operation and
safe use of this product. Thisinformation should be given to the owner/operator of this equipment.
Installation and Operation Manual
Manuel d’installation et d’utilisation
Manual de instalación y operación
Page 2
ENGLISH Jandy
®
Sidemount Composite Sand Filters | Installation & Operation Manual
EQUIPMENT INFORMATION RECORD
DATE OF INSTALLATION
INSTALLER INFORMATION
INITIAL PRESSURE GAUGE READING (WITH CLEAR FILTER)
PUMP MODEL
HORSEPOWER
FILTER MODEL
SERIAL NUMBER
NOTES:
Table of Contents
Section 1. Safety Information ...................... 3
1.1 Important Safety Warning ......................... 3
1.2 General Safety Instructions ...................... 3
Section 2. General Information .................... 4
2.1 Introduction ............................................... 4
2.2 Description ................................................ 4
2.3 General Requirements .............................. 4
2.4 Specifications and Dimensions ................ 4
Section 3. Installation Instructions .............. 5
3.1 Filter Location ........................................... 5
3.2 Anchoring the Filter to the
Equipment Pad ......................................... 5
3.3 Filter Preparation ...................................... 6
3.4 Filter Plumbing .......................................... 6
3.5 Filling Filter with Sand ............................... 8
3.6
Use of Zeobrite
®
as an Alternative to Sand 9
3.7 Lid Installation ......................................... 10
Section 4. Start-Up and Operation ............ 10
Section 5. Filter Cleaning ........................... 11
5.1 Filter Cleaning Instructions ..................... 11
5.2 Optimal Filter Performance ..................... 12
5.3 Chemical Cleaning Procedure ................ 12
Section 6. Maintenance .............................. 12
6.1 General Maintenance .............................. 12
6.2 Pressure Gauge ...................................... 13
Section 7. Winterizing ................................. 13
Section 8. Removing the Lid ...................... 13
Section 9. Troubleshooting ........................ 13
Section 10. Parts List and Exploded View .. 15
10.1 Jandy JS60-SM Sand Filter Parts List .... 15
10.2 Jandy JS100-SM Sand Filter Parts List .. 15
10.3 Jandy JS60-SM Sand Filter
Exploded View ....................................... 16
10.4 Jandy JS100-SM Sand Filter
Exploded View ....................................... 17
Section 11. Head Loss Curves ..................... 18
11.1 Jandy JS Series Sand Filters Design
Head Loss Curves .................................. 18
Jandy
®
Sidemount Composite Sand Filters | Installation & Operation Manual ENGLISH
Page 3

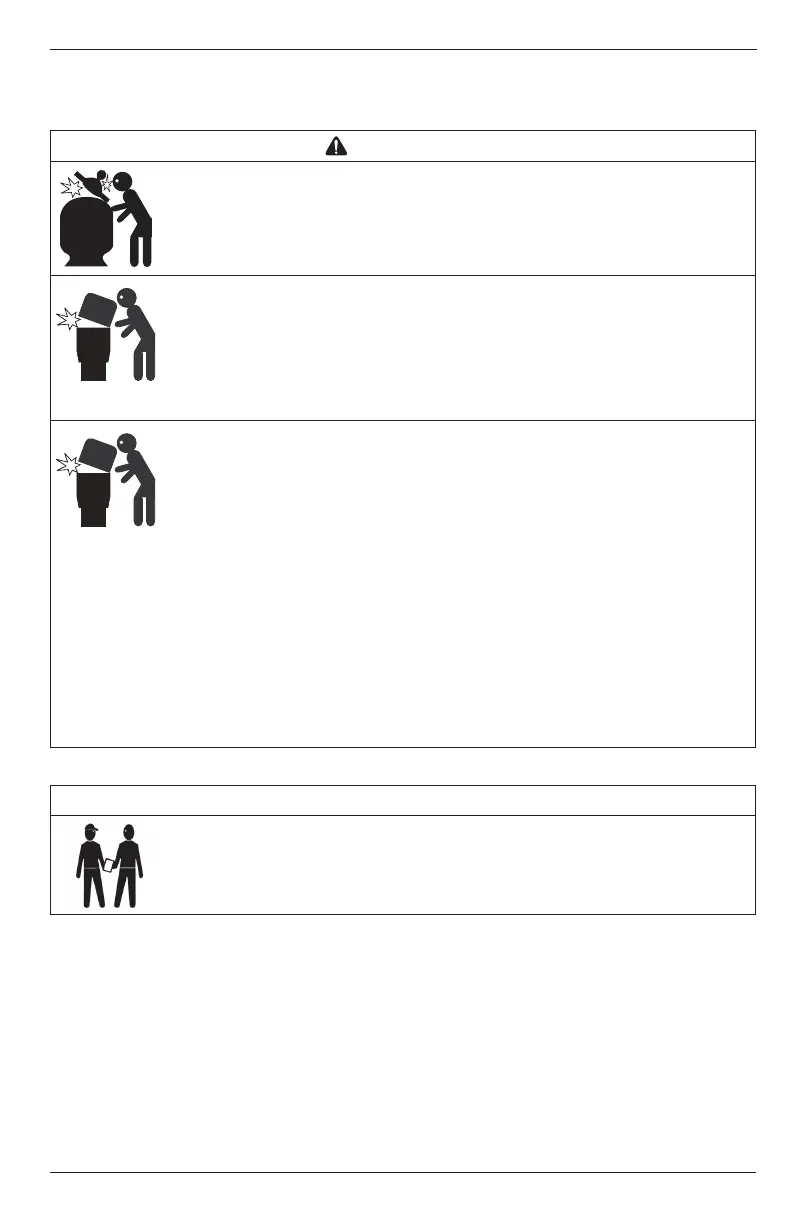

Section 1. Safety Information
1.1 Important Safety Warning
WARNING
• Do not connect system to an unregulated city water system or other external source of pressurized
water producing pressures greater than 35 PSI.
• Pressurized air in system can cause product failure or also cause the filter lid to be blown off
which can result in death, serious personal injury, or property damage. Be sure all air is out of
system before operating or testing the equipment.
MAXIMUM OPERATING PRESSURE OF THE FILTER IS 50 PSI. NEVER SUBJECT THE FILTER TO
ANY OPERATING PRESSURE EXCEEDING 50 PSI.
This filter operates under high pressure. When any part of the circulating system, i.e., filter, pump,
valve(s), etc. is serviced, air can enter the system and become pressurized when the system is
restarted. Pressurized air can cause product failure or also cause the filter lid to be blown off which
can result in death, serious personal injury or property damage. To avoid this potential hazard, follow
all of the instructions in this manual.
To minimize risk of severe injury or death the filter and/or pump should not be subjected to the piping
system pressurization test.
Local codes may require the pool piping system to be subjected to a pressure test. These
requirements are generally not intended to apply to the pool equipment such as filters or pumps.
Jandy Pro Series pool equipment is pressure tested at the factory.
If however this WARNING cannot be followed and pressure testing of the piping system must include
the filter and/or pump BE SURE TO COMPLY WITH THE FOLLOWING SAFETY INSTRUCTIONS:
• Check all clamps, bolts, lids, lock rings and system accessories to ensure they are properly
installed and secured before testing.
• RELEASE ALL AIR in the system before testing.
• Water pressure for test must NOT EXCEED 35 PSI.
• Water temperature for test must NOT EXCEED 100°F (38°C).
• Limit test to 24 hours. After test, visually check system to be sure it is ready for operation.
Notice: These parameters apply to Jandy Pro Series equipment only. For non-Jandy equipment, consult equipment manufacturer.
1.2 General Safety Instructions
ATTENTION INSTALLER
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner/operator of this equipment.
1. Use equipment only in a pool or spa installation.
2. Before repositioning valve(s) and before beginning
the assembly, disassembly, or adjustment of the
clamp, or any other service of the circulating system;
(A) turn the pump off and shut off any automatic
controls to ensure the system is not inadvertently
started during servicing; (B) open the air release
valve; (C) wait until all pressure is relieved (air will
have stopped flowing from the air release valve).
3. Whenever installing the filter clamp follow Section
3.7 of this manual, “Lid Installation”.
4. Once service on the circulation system is complete,
follow Section 4 of this manual, “Start-up and
Operation”.
5. Maintain circulation system properly. Replace worn
or damaged parts immediately.
6. Be sure that the filter is properly mounted
and positioned according to these installation
instructions.
7. Do not pressure test above 35 PSI. Pressure testing
must be done by a trained pool professional.
READ AND FOLLOW ALL INSTRUCTIONS
