C-Series
Owner's Manual
Mode d’emploi
Manual del propietario
Montageanleitung
Manuale utente
Руководство пользователя
取扱説明書
用户手册
擁有者手冊

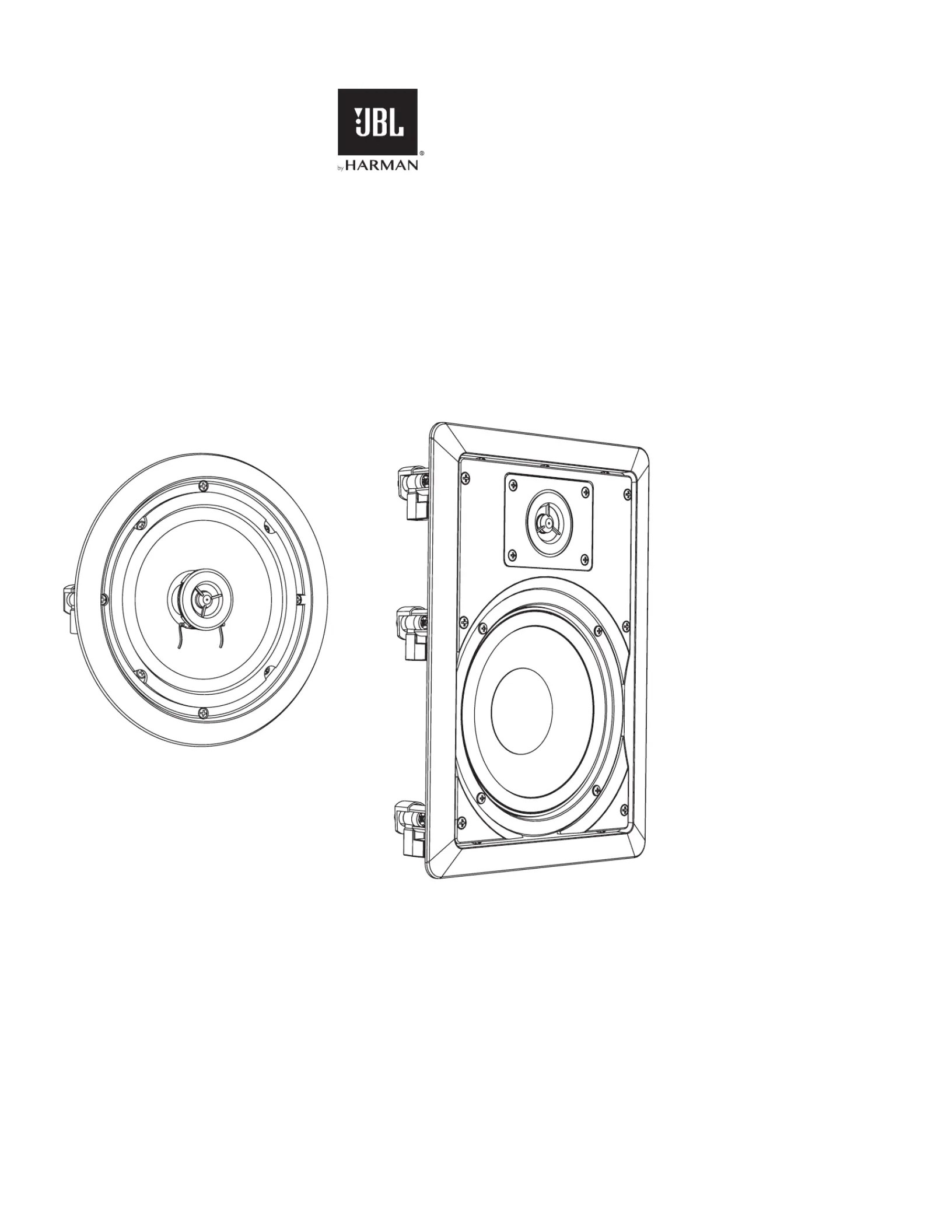

JBL C-Series Architectural Loudspeaker
Owner's Manual
EN
ENGLISH
INTRODUCTION
Thank you for purchasing your new JBL C-Series architectural
loudspeaker. This loudspeaker is designed to bring the best sound to your
home. We urge you to take a few minutes to read through this manual,
which describes the product and includes step-by-step instructions to
help you set up and get started.
Customer Support: Please contact your dealer if you have any
questions about your product, its installation or its operation. For
more information about this product, or to contact JBL please visit
our website at
www.JBL.com.
BOX CONTENTS
1 x Loudspeaker
1 x Loudspeaker grille
1 x Paint Shield
1 x Wall cut-out template
1 x Owner’s manual
MINIMUM TOOLS REQUIRED FOR INSTALLATION
• Philips Screwdriver
• Wire strippers
• Level
• Stud Finder
• Saw

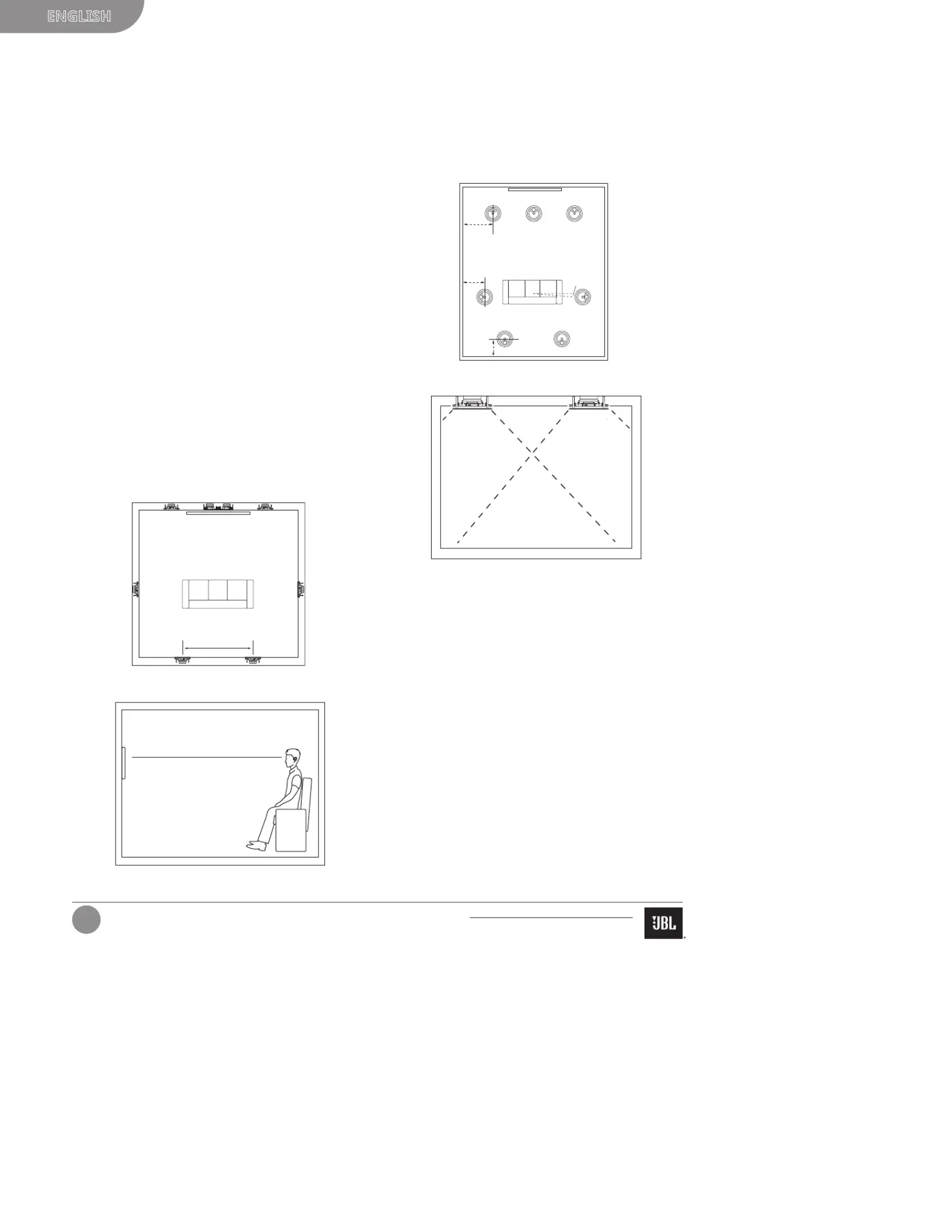

IN-WALL LOUDSPEAKER PLACEMENT
JBL C-series in-wall loudspeakers are designed for standard drywall
construction, ceiling and drop ceilings with at least 3/8" wall material
thickness. For stereo or home theater listening, position the loudspeakers
so the tweeters are close to ear-level, and position the left and right
speakers closely with the television. (See Fig 1 &2) For background
listening, position the loudspeakers in any convenient location.
Front Left Center Front Right
Video Display
Surround
Left
Surround
Right
3' – 6'
(0.9m – 1.8m)
Surround Back Left Surround Back Right
Figure 1
Figure 2
In-Ceiling Speaker placement
JBL C-series in-ceiling loudspeakers are designed for standard drywall
ceilings and drop ceilings with at least 3/8" thick wall material. In
drop ceiling installations, JBL recommends to replace the ceiling tile
with plywood or medium density fiber board to prevent sagging ceiling
tiles. For home theater, position the loudspeakers as in Figure 3. For
background music, position the speakers in any convenient location to
distribute the sound throughout the room. (Figure 4)
Video Display
CenterFront Left Front Right
More than
2' (0.6m)
More than
2' (0.6m)
More than
2' (0.6m)
0
°
- 10
°
Surround Left Surround Right
Surround Back
Left
Surround Back
Right
Figure 3
Figure 4
Installation
Make sure to allow at least 1” (25.4mm) between the edge of the
supplied installation template and any rafters or other obstructions behind
the wall, so the speaker’s locking mechanism will have room to engage
fully. Be sure that there are no studs, lengths of conduit, pipes, heating
ducts or air returns in any wall/ceiling cavity that will interfere with the
speaker.

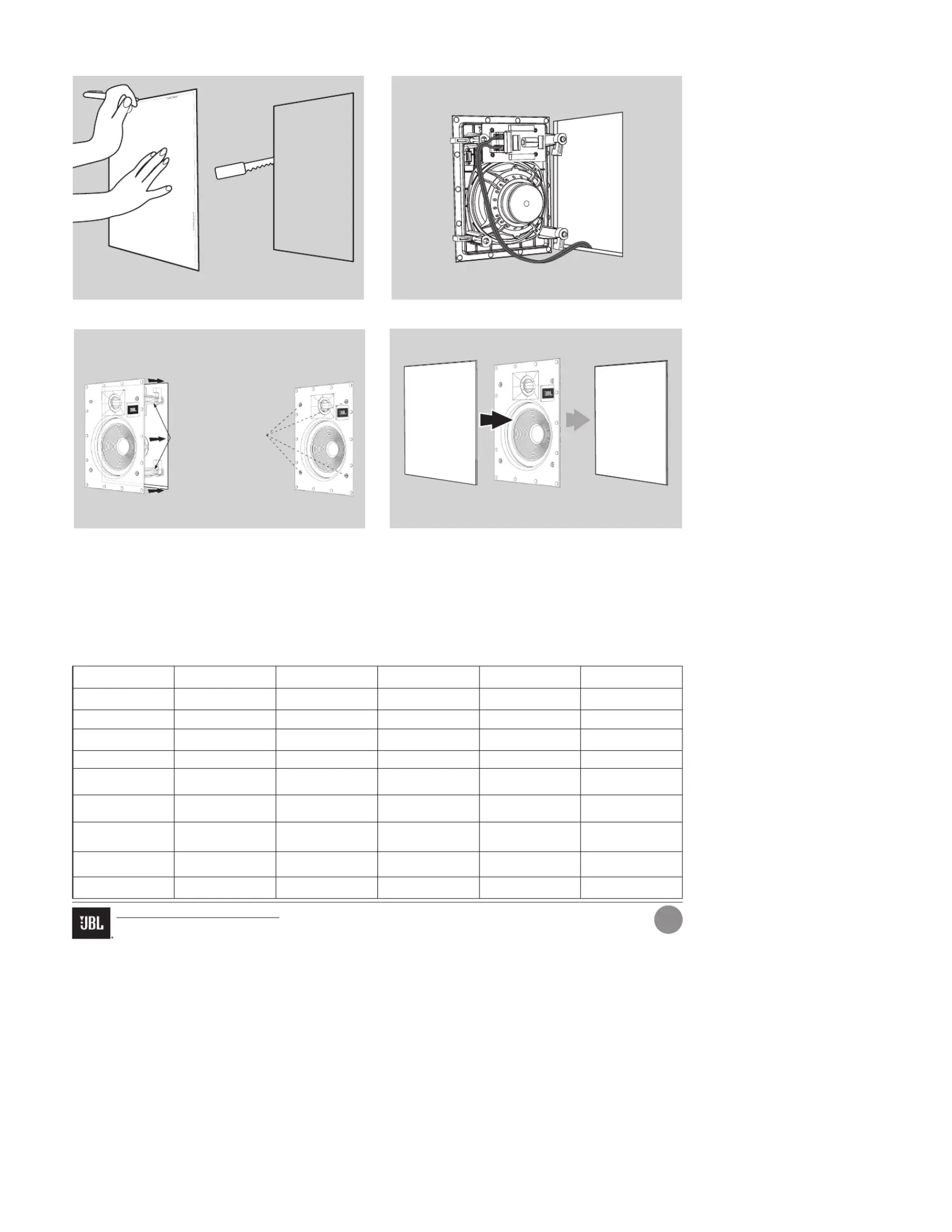

1. Use the provided wall cut-out template to mark the location of the
loudspeaker. Use a saw to cut the appropriate size. (Figure 5)
2. Run speaker wiring to the wall openings. Be sure to comply with all
local construction and building codes. Attach the speaker wire to the
loudspeaker’s appropriate speaker terminals. Confirm that each wire
matches the correct color and polarity on the system amplifier. (Figure 6)
3. Insert the loudspeaker into the opening. Use your screwdriver to
tighten the four screws on the loudspeaker front side. The loudspeaker
brackets will clamp down on the wall material. (Figure 7)
4. If needed, paint speaker grill before inserting on the loudspeaker.
Gently remove the cloth before painting and replace after the paint
dries. This loudspeaker grille is designed to support most types of
interior paint.
5. Place the grille into the loudspeaker. (Figure 8)
Note: Once the grille is installed, you may need to use a screwdriver to
remove the grille from the loudspeaker.
JBL C-Series Architectural Loudspeaker
Owner's Manual
EN
Figure 5
Figure 7
Figure 6
Figure 8
Specifications C-6IC C-8IC C-6ICDT C-6IW C-8IW
Nominal Impedance 8-Ohm Compatible 8-Ohm Compatible 8-Ohm Compatible 8-Ohm Compatible 8-Ohm Compatible
Power (RMS/Peak) 35/140W 40/160W 35/140W 35/150W 45/160W
Frequency Response 50Hz – 20kHz 45Hz – 20kHz 50Hz – 20kHz 50Hz – 20kHz 45Hz – 20kHz
Loudspeaker Sensitivity 91dB 89dB 87dB 89dB 89dB
Woofer 6.5" (165mm) Poly woofer 8" (203mm) Poly woofer 6.5" (165mm) Poly woofer 6.5" (165mm) Poly woofer 8" (203mm) Poly woofer
Tweeter
0.5" (13mm) Polymer
Tweeter
0.5" (13mm) Polymer
Tweeter
0.5" (13mm) Polymer
Tweeter
0.5" (13mm) Polymer
Tweeter
0.5" (13mm) Polymer
Tweeter
Cutout Dimensions 7.7" (195mm) 9.4" (238mm) 7.7" (195mm)
7.4" x 10.8"
(188.6 x 275.1mm)
8.8" x 12.9"
(223.4 x 326.4mm)
Grille Finished Dimensions
9" (228mm) 10.7" (271.7mm) 9" (228mm)
8.7" x 12"
(220 x 306.5mm)
10" x 14.1"
(255 x 358mm)
Mounting Depth 2.9" (73mm) 3.3" (84mm) 2.9" (73mm) 3" (75mm) 3.2" (81mm)
WARNING: HARMAN International assumes no responsibility for
improper installation of hardware or for any personal injuries or product
damages resulting from improper installation or a fallen loudspeaker.
Limited Warranty
JBL C-Series speakers are warranted against defects. The duration of the
speaker’s warranty depends on the laws in the country in which it was
purchased. Your local JBL retailer can help you determine the length of
your warranty.
Insert Speaker
Straight Into
Mounting Cut-Out
Cutout Template
All Clamps
Inside
Mounting
Cut-Out
Tighten
Clamping
Screws
Attach Supplied Grille
1.
1. 2.
2.
