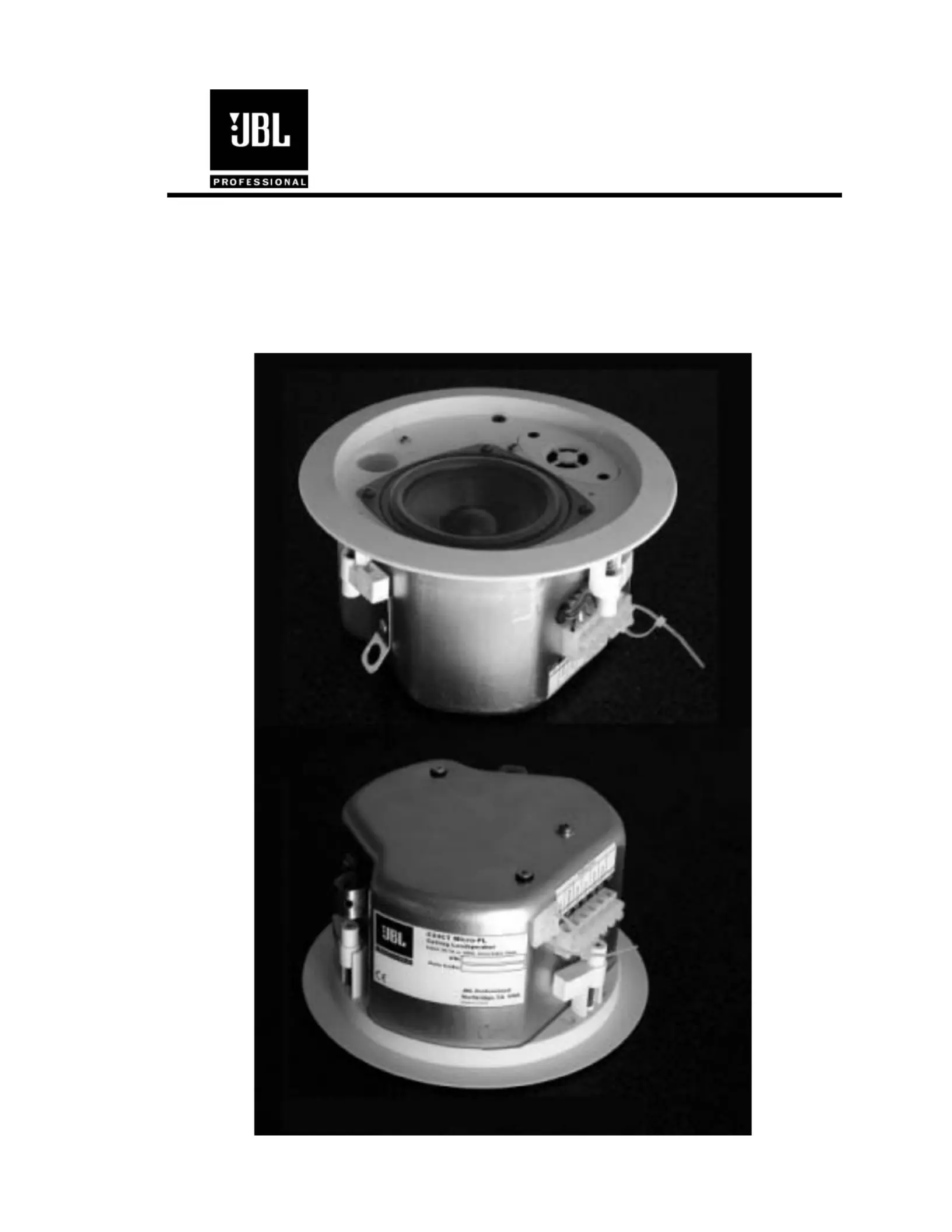

Control Contractor

Ceiling Loudspeakers

Control 24C/CT Micro and

Control 24CT MicroPlus

Owner's Manual

Product Description

Product Feature Identification

Installation Preparations

Step-By-Step Installation and Wiring

Painting the Speaker

Maintenance

Contacting JBL

Table of Contents

Thank you for purchasing JBL Control Contractor ceiling loudspeakers.

Read through this manual to familiarize yourself with the features,

applications and precautions bef

ore you use these products.

The JBL Control Contractor ceiling loudspeakers utilize innovative design and materials

to provide premium level performance from compact in-ceiling speakers.

CONTROL 24C MICRO - Most compact of the JBL ceiling speakers, the Control 24C

Micro contains a 4" woofer and a ¾" titanium-coated tweeter, providing high-fidelity

sound over an extremely wide coverage area. The Control 24C Micro also has a small

backcan and is ideal for smaller ceiling spaces.

CONTROL 24CT MICRO - The Control 24CT Micro includes a multitap transformer

for use on 70V or 100V line distribution systems. The transformer has a top tap rating of

9 Watts.

CONTROL 24CT MICROPLUS - The Control 24CT MicroPlus includes a multitap

transformer for use on 70V or 100V line distribution systems. The transformer has a top

tap rating of 25 Watts.

Product Description

Produkspesifikasjoner

Merke:	JBL
Kategori:	Høyttaler
Modell:	Control 26CT-LS
Vekt:	4200 g
Bredde:	252 mm
Dybde:	252 mm
Høyde:	210 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Diameter:	252 mm
Pakkevekt:	9700 g
Sertifisering:	UL1480 UUMW, UL1480, UEAY, UL2043, NFPA90 & NFPA 70, S7232/UL, UL1876, IEC60849/EN60849
Anbefalt bruk:	Hjem
Høyttalerplassering:	Innbygget Vegg/Tak
Basshøyttaler:	Ja
Diskanthøyttaler:	Ja
Avtakbart beskyttelsesdeksel:	Ja
Produktfarge:	Hvit
Kroppsmateriale:	Stål
Lyd-utgang kanaler:	- kanaler
RMS-rangert strøm/utgangseffekt:	150 W
DC inngående spenning:	70/100 V
Frekvensrekkevidde:	80 - 20000 Hz
Basshøyttalerens diameter:	165 mm
Diskant diameter:	19 mm
Sensitivitet/følsomhet:	89 dB
Diskanthøyttalerens diameter:	0.75 "
Basshøyttalerens diameter (imperisk):	6.5 "
Driversylinder, materiale:	Aluminium
Ledningskontakt:	Ja
Svingspolediameter:	25 mm
Transformatortilkoblinger:	7.5, 15, 30, 60 W
