Side 1/50

521 East 3

Street Mt. Vernon, NY 10553 • www.keydigital.com

Rev 1.0 – Jan, 2023

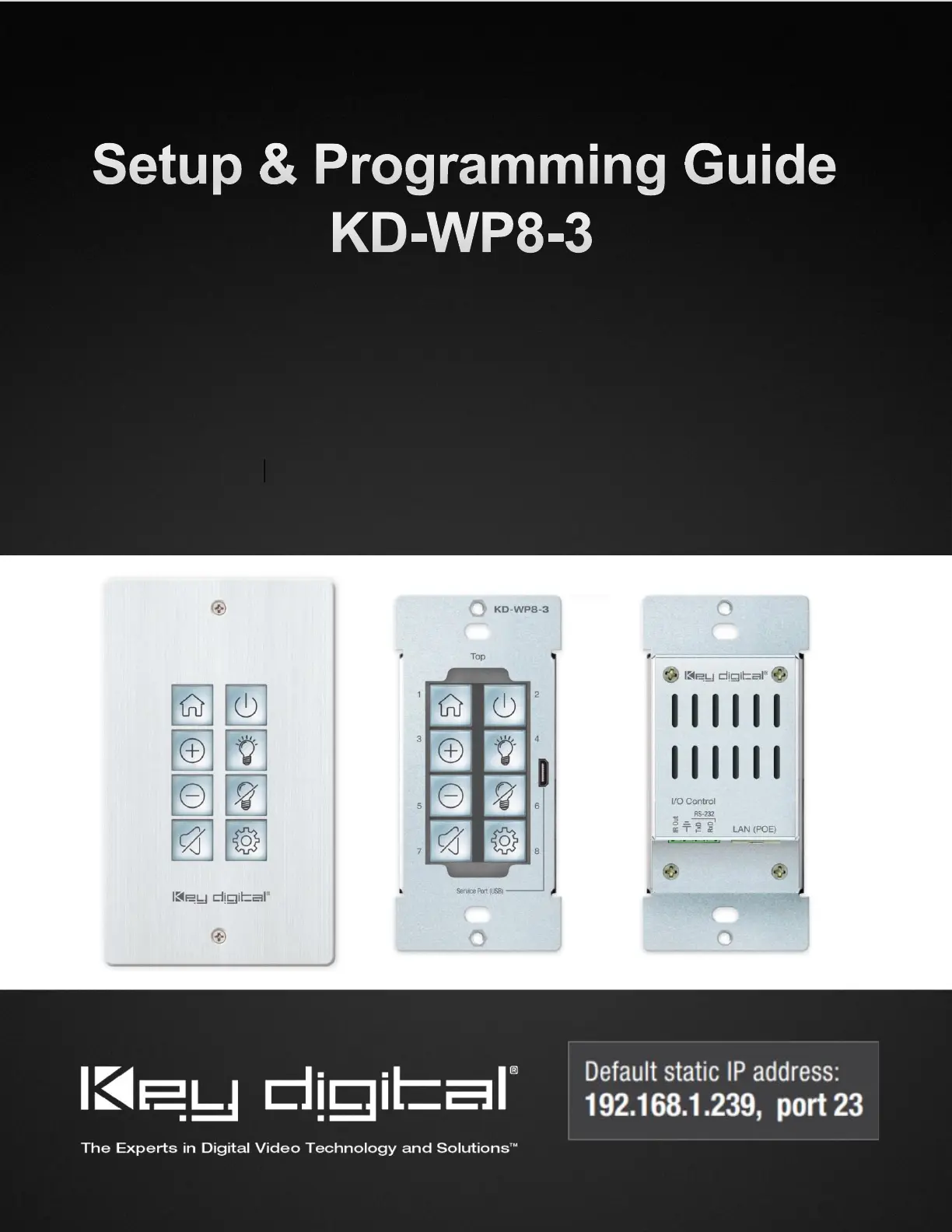

Setup

& Programming

Guide

WP8

8 Button Programmable IP, IR, RS232 Wall Plate Control

Keypad with PoE for KDPlug & Present™, Compass

Control® Pro, and Third-Party Systems via Open API

521 East 3
rd
 Street Mt. Vernon, NY 10553 • www.keydigital.com
Rev 1.0 – Jan, 2023


2
Table of Contents
ABOUT KD-WP8-3 ..................................................................................................................................................................... 3
APPLICATION DIAGRAMS ....................................................................................................................................................... 4
QUICK SETUP GUIDE .............................................................................................................................................................. 6
•  BUTTON CAPS ............................................................................................................................................................. 6
•  CONNECT .................................................................................................................................................................... 7
•  CONFIGURE ................................................................................................................................................................. 8
•  COMMON BUTTON & EVENT EXAMPLES .............................................................................................................. 30
•  CONTROL ................................................................................................................................................................... 36
•  INSTALLATION IN GANG BOX .................................................................................................................................. 38
USER VIRTUAL KEYPAD ....................................................................................................................................................... 39
LED INDICATOR TABLE ......................................................................................................................................................... 41
TCP/IP CONTROL COMMANDS ............................................................................................................................................ 40
IR & RS232 PORT INFO……………………………………………………………………………………………………………….41
KD-WP8-3 IN COMPASS CONTROL PRO SYSTEMS ……………………………………………….…………………….……..42
OPEN API CONTROL OF IR & RS232 PORTS……………………………………………………………………………………..44
SPECIFICATIONS ................................................................................................................................................................... 45
WARRANTY INFORMATION .................................................................................................................................................. 49
PRODUCT WARNINGS & SAFETY INSTRUCTIONS ............................................................................................................ 47
Accessories
•  Qty 1: 6ft USB A to USB micro cable
•  Qty 1: Brushed aluminum decora plate
•  Qty 4: Decora and box mounting screws
•  Qty 10: Inner button caps
•  Qty 10: Outer buttons caps (clear)
•  Qty 1: Flathead mini screwdriver
•  Qty 1: Set button icon sheet
•  Qty 1: IR Emitter, 6ft
