Side 1/2
12000 Biscayne Blvd., Suite # 108
Miami, FL, United States 33181
Telephone: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
5659 Royalmount Ave.
Montreal, QC, Canada H4P 2P9
Telephone: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com / mvpgroupcorp.com
Model
Number
Description
Capacity
(cubic
feet)
External
Dimensions
w/handle
(W x D x H in)
Compresssor
Size
Voltage /
Frequency
Amps
Working
Temp
Refrigerant
Shipping
Dimensions
(WxDxH)
Ship
Weight
(lbs)
KCD-36
Counter top
Display
5.15
35.4 x 19.6 x
29.1
¼ HP
115/60/1
4.63
36-40°F
R134A
38x22.5x36
276
KCD-48
Counter top
Display
7.0
47.2 x 19.6 x
29.1
¼ HP
115/60/1
5.13
36-40°F
R134A
50x22.5x36
331
- Elegant slanted double paned front glass
- Front, sides and doors are tempered glass
- Inside deck is stainless steel finish
- Stainless steel shelf
- Forced air refrigeration
- Removable sliding rear doors for easy access
- Product stop on shelf
- Easy to use digital display temperature control panel
- Anti-condensate system for front glass
- All units utilize R134a refrigerant which is CFC and HCFC free
- The cabinet is filled with high density polyurethane insulation
- LED interior lighting
Durable Design
Energy Efficiency
NEMA
5-15P
Dedicated
Circuit
Superior Quality
Refrigerated Display Cases
Can be used as a countertop display or as a
drop-in display
KCD-36 and KCD-48
12000 Biscayne Blvd., Suite # 108
Miami, FL, United States 33181
Telephone: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
5659 Royalmount Ave.
Montreal, QC, Canada H4P 2P9
Telephone: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com / mvpgroupcorp.com

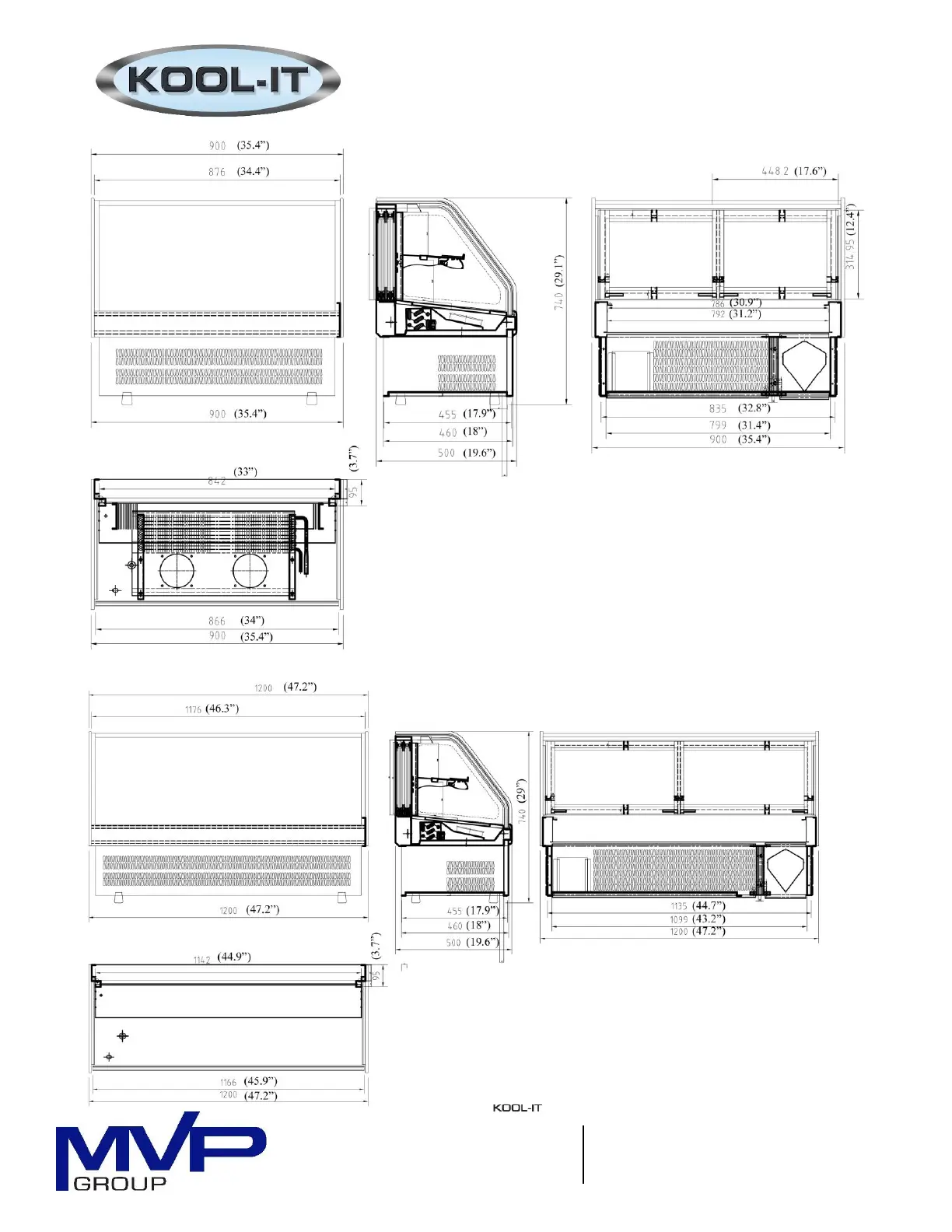

Technical Drawings KCD-36
These units should not surpass a 75°F ambient temperature and 55% relative
humidity. There must be adequate ventilation at the top, sides & rear of the
unit for proper operation.
Warranty: 24 months parts & labor.
Additional 36 months on compressor (part only)
is a registered trademark of MVP Group. Specifications subject to change without
n
o
t
i
c
e
.
Technical Drawings KCD-48
