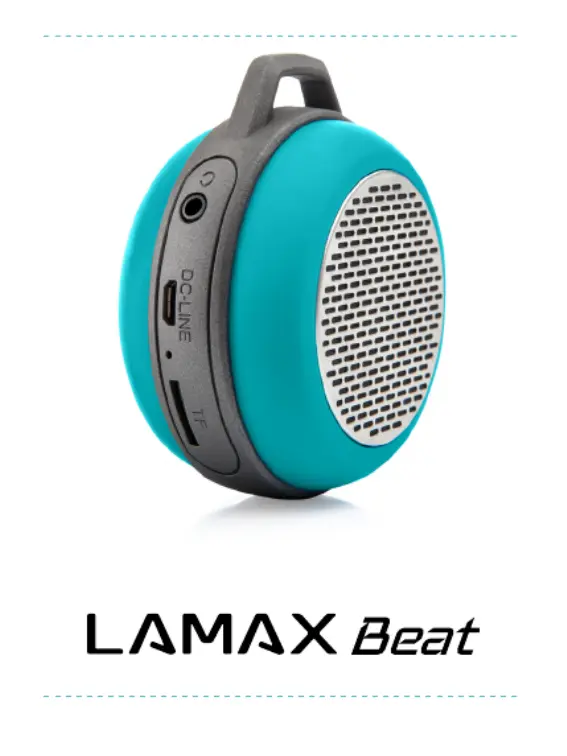

Sphere SP-1 by

Quick starting guide

Functions: Buttons:

Bluetooth 2.1

Micro SD card

Micro USB

FM radio

Handsfree

Audio imput

Headphones

Button

name

Bluetooth

mode

FM radio

mode

Audio

mode

Power ON / OFF

Switch On/O to turn on/o the device

Previous /

Volume -

Press –

Go to

previous track

Press –

Go to the pre-

vious station

Press –

Go to previous

track

Hold – Decrease volume

Play / Pause

Press –

Stop / Start

playback

Press – Turn

radio On / O

Hold – Search

for stations

Press –

Stop / Start

playback

Handsfree

Press – Answer call

Hold – Reject call

Next /

Volume +

Press –

Go to the next

track

Press –

Go to next

station

Press –

Go to the next

track

Hold – Increase volume

Mode Press – Go to next mode

Power ON / OFF

Previous / Volume -

Play / Pause / Handsfree

Mode

Next / Volume +

Overview of voice alerts:

„Bluetooth mode. Pair the device.“ - The unit is in Bluetooth mode and

is ready for pairing.

„Paired“ - it has been successful paired with a Bluetooth device.

„Radio“ - the device is in FM radio mode.

„Media mode“ - The unit is in playback mode, ready to play audio

recordings from the micro SD card or micro USB device connected via

the 3.5mm jack.

„SD card“ - the equipment is ready to play songs from a micro SD card.

„Low battery“ - low battery warning.

Pairing with a Bluetooth device:

Press „M“ to go into Bluetooth mode. Speaker can be paired with a

device which supports Bluetooth 2.1 or higher.

In the list of active devices the Sphere SP-1 is displayed as „SP-1 by

LAMAX Beat“.

Once paired, you will hear the notication „Paired“.

If the device is disconnected or the connection is lost you will hear

„Bluetooth mode. Pair the device”.

FM radio mode:

Go to mode by pressing „M“.

Connect the micro USB cable, which acts as an antenna. To nd all

available stations hold down „Play / Pause / Handsfree“. The device will

then scan all FM frequencies and store all stations found.

You can then navigate between the stations using the „Previous“ and

„Next“.

Audio le playback mode:

Go to mode by pressing „M“.

Sphere SP-1 plays songs:

- from inserted micro SD card in MP3 format

- from devices connected via micro USB

Produkspesifikasjoner

Merke:	Lamax
Kategori:	Høyttaler
Modell:	Sphere SP-1
Produkttype:	Bærbar monohøyttaler
Vekt:	100 g
Bredde:	70 mm
Dybde:	70 mm
Høyde:	40 mm
Bluetooth:	Ja
Wi-Fi:	Nei
Bluetooth-versjon:	2.1+EDR
Tilkoblingsteknologi:	Ledning & Trådløs
Strømkildetype:	Batteri
Antall høyttalere:	1
FM-radio:	Ja
Anbefalt bruk:	Universell
3,5 mm-kontakt:	Ja
Bluetooth-rekkevidde:	20 m
Produktdesign:	Sfærisk
Støttede lydformater:	MP3, WAV
Produktfarge:	Cyan
Batteriliv (maks.):	5 timer
Innebygd kortleser:	Ja
Lyd-utgang kanaler:	1.0 kanaler
Antall drivere:	1
