Side 1/32

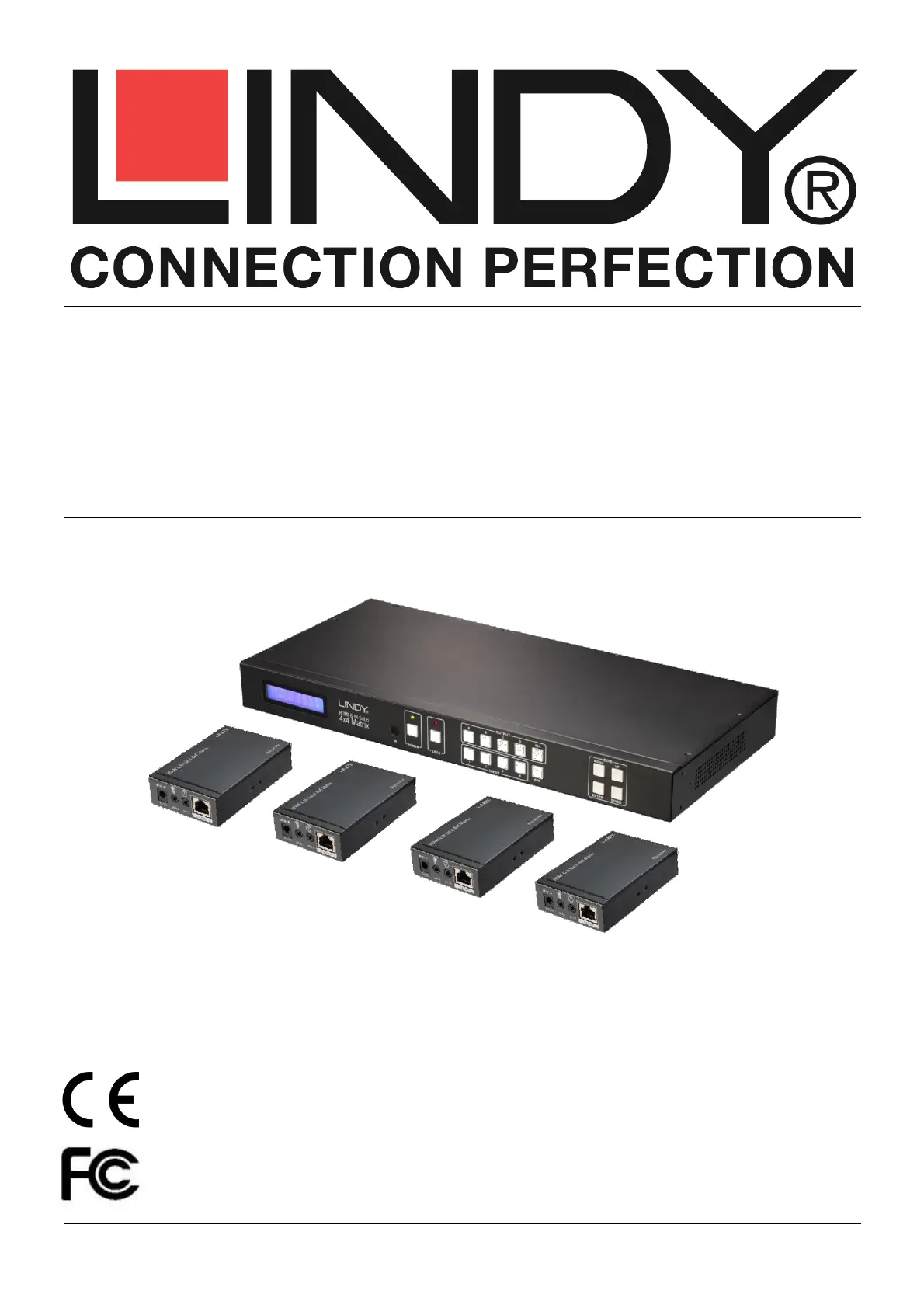

HDMI & IR CAT6 Extender 4x4 Matrix, 50m

User Manual English

Benutzerhandbuch Deutsch

Manuel Utilisateur Français

Manuale Italiano

No. 38143

www.lindy.com

Tested to Comply with

FCC Standards

For Home and Office Use!

User Manual English

Introduction

The LINDY HDMI & IR CAT6 Extender 4x4 Matrix supports the transmission of high definition video

(resolutions up to 1080p Full HD and 1920×1200@60Hz, including 1080p 3D*), multi-channel digital

audio and control via push button, IR, RS-232 and TCP/IP from four high definition sources to four

remote displays over a single CAT5e/6 cable of up to 50m for each output. Each of the 4 outputs is also

simultaneously mirrored on local HDMI output ports, perfect for monitoring outputs or for the creation of a

secondary local zone.

It supports high resolution digital audio formats such as LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus

and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3DTV and 3D

source.

This flexible feature rich product has been designed to be used in a number of different applications,

such as:

 Domestic HDMI Matrix system

 Video/TV wall display and control

 Security surveillance and control

 Commercial advertising, display and control

 University Lecture hall display and control

 Retail Sales and demonstration

Package Contents

 HDMI & IR CAT6 Extender 4x4 Matrix

 4 x HDMI & IR CAT6 Receivers

 12V DC 2.5A Multi County PSU (with Euro, US, UK & Australian/China AC connectors)

 4 x 5V DC 1A Multi County PSU (with Euro, US, UK & Australian/China AC connectors)

 4 x IR Emitter with 3.5mm connector

 5 x IR Receiver with 3.5mm connector

 4 x IR Remote Control (with CR2025 battery)

 RS-232 9 Pin Male/Female Cable

 Mounting Ears & Screws

 This Manual

Specification

 Extends HDMI 1.4 & IR signals via CAT5e/CAT6 UTP Cable

 Supports resolutions: 1080p24/30/50/60, 1080i, 720p, 576p, 480p

 4K 30Hz is only supported by EDID setting/cloning on local HDMI output ports

 Support for 3D Signals, including 1080p 3D according to HDMI 1.4

 Deep Colour capable: supports 30/36/48 bit colour depth

 Audio Formats: LPCM, DTS Digital, DTS HD, Dolby Digital & Dolby True HD

 Supports 20 – 60kHz IR Frequencies (Bi-directional: Rx to Tx or Tx to Rx)

 Maximum HDMI Cable length, 5m in/out

 Preset or Cloned EDID can be used independently on each port

 Each Output (A-D) supports simultaneous output over HDMI & CAT6

 Transmitter/Matrix ports: 4 x HDMI Type A In, 4 x HDMI Type A Out, 4 x CAT6 Out, 4 x 3.5mm IR In,

4 x 3.5mm IR Out, IR Ext In 3.5mm, DC Socket, RS232 & RJ45 (TCP/IP)

 Receiver ports: HDMI Type A Out, 1x CAT6 In, 3.5mm IR In, 3.5mm IR Out, Coaxial SPDIF Out & DC

Socket

 Supports RS-232, remote control, on-panel control and TCP/IP Control

 Power consumption: 23W Maximum, 0.5W standby

Produkspesifikasjoner

Merke:	Lindy
Kategori:	AV ekstender
Modell:	38143
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	1920 x 1200 piksler
Strømforbruk (maks.):	23 W
3D:	Ja
HDMI-versjon:	1.4
Fargedybde:	48 bit
HDMI inn:	4
RS-232 inngangsporter:	1
Antall HDMI-utganger:	8
Strømforbruk (standby):	0.5 W
Støttede lydformater:	LPCM
Produktfarge:	Sort
Monteringssett:	Ja
Kabler inkludert:	AC
Støttede videofunksjoner:	480p, 576p, 720p, 1080i, 1080p
Fjernkontroll medfølger:	Ja
Fjernkontrolltype:	IR
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	4
Video ut:	4
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
Videoopptaksgrensesnitt:	4
Fjern (IR)-utgang:	8
AC-adapter bunt:	Ja
Fjerninngang (IR):	8
Maksimal overføring avstand:	50 m
Kabeltyper som støttes:	Cat6
RJ-45-utgangsporter:	4
IR-mottaker inkludert:	Ja
