INSTALLATION INSTRUCTIONS
107-FD1B
Patent Pending
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.

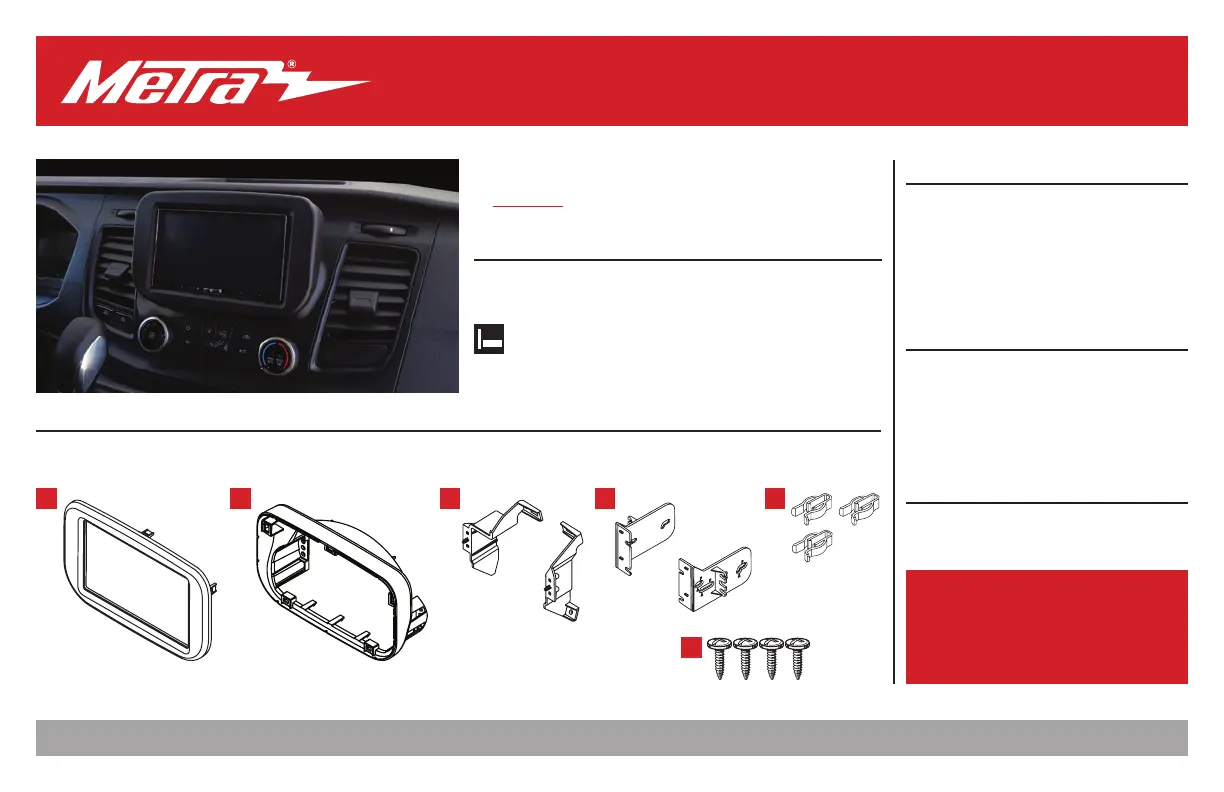

KIT COMPONENTS
• A) Radio trim panel • B) Radio housing • C) Sub dash brackets • D) Radio brackets • E) Panel clips (3) • F) #8 x 1/2” Phillips screws (4)
TOOLS REQUIRED
• Panel removal tool • 9/32” socket
• Phillips screwdriver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DDIN radio provision .....................................4
–Pioneer Modular radio provision .......................5
WIRING & ANTENNA CONNECTIONS
(sold separately)
See metra-online.com or axxessinterfaces.com
for audio and SWC interface options
Antenna Adapter: 40-EU10
A C D E
F
B
Ford Transit (excludes factory radio delete models) 2020
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• ISO DDIN radio provision*
• Painted scratch resistant matte black
* This kit is designed for an ISO DDIN radio which have an “L” shaped chassis
design, with the radio chassis at the bottom of the screen,
or Pioneer modular 6.8” radios.
† Refer to the radio manufacturer for current models
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C)
1. Unclip the trim behind the radio display,
then remove (3) 9/32” screws exposed.
(Figure A)
2. Slide the radio display up and out, then
unplug and remove. (Figure B)
3. Remove (2) screws securing the center
dash panel, then unclip, unplug, and
remove. (Figure C)
4. Remove (4) 9/32” screws securing the
radio display mount, then remove.
(Figure D)
5. Unplug the connectors from the radio
chassis. Remove (2) 9/32” screws
securing the chassis, slide out, then
remove. (Figure E)
Continue to Kit Preparation
