PR-LOC2.2 & PR-LOC2.4
INSTALLATION INSTRUCTIONS
MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 9/12/22 INSTPR-LOC2.2 & PR-LOC2.4
TABLE OF CONTENTS
Quick Start Guide
Things to Know .................................................2
Connections .......................................................2
Gain setup
Basic setup.........................................................3
Advanced Setup ................................................3
Feature Breakdowns ..............................................4
Quick Reference: PR-LOC2.2 ..................................5
Diagram: PR-LOC2.2 ...............................................6
Quick Reference: PR-LOC2.4 ..................................7
Diagram: PR-LOC2.4 ...............................................8
Specifications .........................................................9
Universal Premium LOCs
PR-LOC2.2 2 IN - 2 OUT with Max Input 20v
PR-LOC2.4 2 IN - 4 OUT With Max Input 20v
TOOLS RECOMMENDED
• Digital Multi-meter
• Test Tones
Universal Premium LOCs
The Proscenium PR-LOC2.2 & PR-LOC2.4 can be used to add amplifiers to an audio system that does not have RCA outputs or when replacing
an OEM radio and retaining the factory amplified system. Variable Gain Controls with Clipping Indicators, Selectable Ground Isolation and Load
Select features ensure a pure, noise-free signal for any type of audio system.

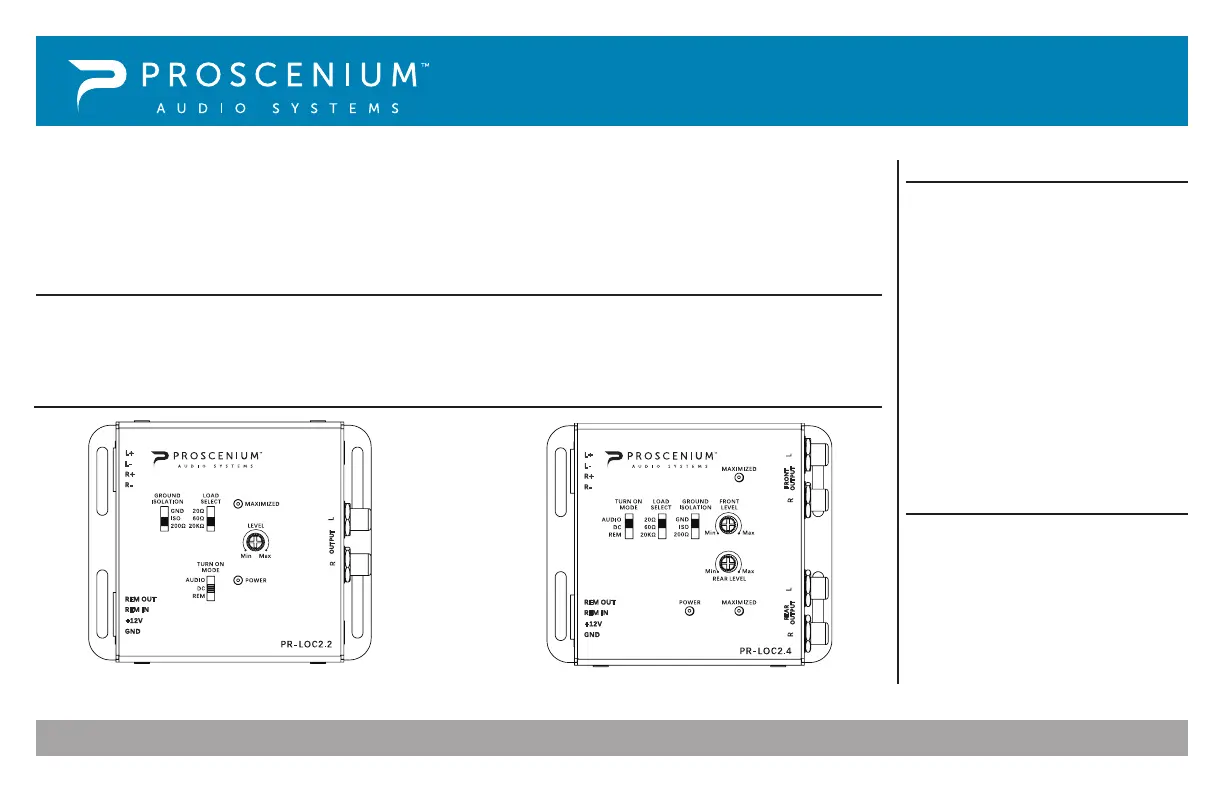

PR-LOC2.4
Line Out Converter (LOC)
KIT COMPONENTS
PR-LOC2.2
Line Out Converter (LOC)
2
THINGS TO KNOW
1. This is an active LOC and MUST have constant 12 volt and a good ground to operate properly.
Having a poor ground can induce noise into your system, use the same gauge wire as the
12 volt line.
2. Determine a suitable mounting location. Make sure you can access all controls and
connections.
3. When ready to mount your LOC check under your selected mounting location to make sure
it is clear of any wiring harnesses, fuel or brake lines or anything else that may affect the
vehicle safety.
QUICK START GUIDE
CONNECTIONS
1. Connect your 12 volt and ground wires to the terminals. 14-16 gauge wire is recommended.
2. By default the LOCs Turn On Mode is set to DC Offset. Other turn on options are available and
described in the Turn On Signal Feature Breakdown portion of this manual.
3.
Connecting your Speaker Input can happen in a few different places based on your
factory system.
a. If your vehicle doesn’t have an OE amplifier your best option is to use the speaker wires
located behind the radio. Your LOC only requires two inputs, we recommend a left
and right full range signal.
b. If your vehicle has an OE amplifier your best option is to use the speaker wires on
the output side of your factory amplifier, look for a full range signal.
4. Connect your RCAs. Red RCA’s are for the right channel. Black, Gray, or White are for the
left channels. An explanation of the RCAs Main Output and Bass Output are described in the
Feature Breakdown portion of this manual.
