IMPORTANT

The function of the RED and YELLOW wires is

reversed for the vehicles listed below. Yellow

connects to Ignition and Red connects to 12V

Constant.

1997-'02 Porsche Boxster

1999-'01 Porsche 911

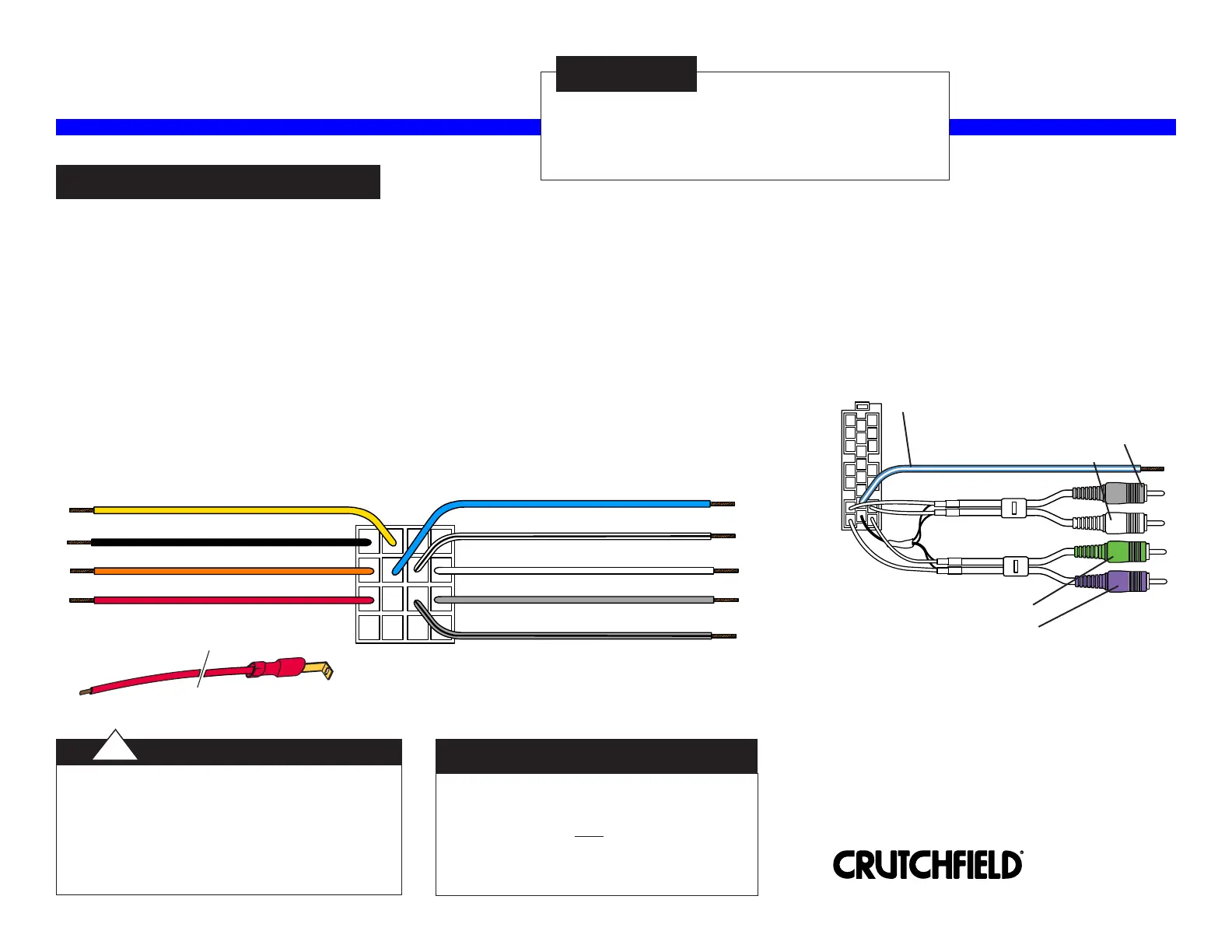

Receiver Wiring Adaptor

120 70-1787

Revision 08/11/14

White - Left Front Speaker Positive

***

Red - 12 Volts Switched Power

***

Yellow - 12 Volts Constant Power

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

***

Orange - Illumination

White/Black - Left Front Speaker Negative

***

Black - Chassis Ground

***

Blue - Power Antenna

STEP 1 -- CONNECT WIRES

*120701787*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call

Crutchfield at 1-888-955-6000.

***

Blue/White - Amplifier Turn-On

White - Left Front AMP Input

***

Violet - Right Rear AMP Input

***

Green - Left Rear AMP Input

Gray - Right Front AMP Input

WIRE APPLICATION GUIDE

Use in vehicles without factory-equipped

Premium or Bose system.

Use in vehicles with factory Premium or

Bose system.

***

Use in vehicles with either system.

NOTE: The long red wire included applies to certain vehicles that require a switched power source at the fuse panel. See page 2 for speciﬁc applications.

Long Red Wire - See page 2 for applications.

*Asterisks denote referral to Wire Application Guide below.

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver).

The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function,

disregarding color.

If your receiver does not have a Dimmer or Illumination wire, tape off the Orange wire.

Connect the Black wire to the Ground wire of the new receiver.

Individually tape off any unused wires.

Make final wiring connections following instructions on page 3.
