Note: If vehicle is equipped with factory power
antenna, part number 120 E5000 may also be
required and will be supplied with your order if
applicable for your vehicle. Use instructions
supplied with the 120 E5000.

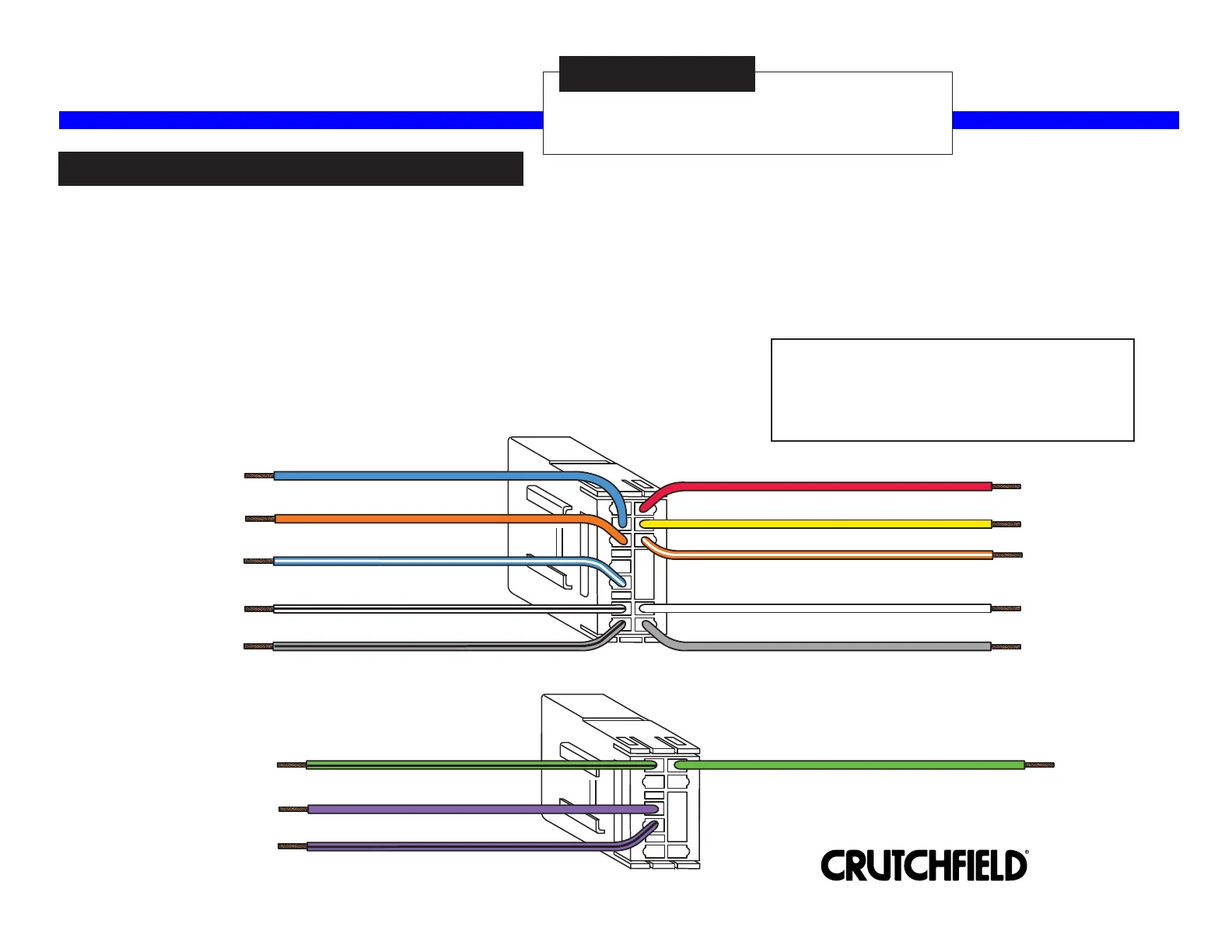

White - Left Front Speaker Positive
Red - 12 Volts Switched Power
Yellow - 12 Volts Constant Power
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Blue - Power Antenna
Blue/White - Factory Amp Turn-On
Orange/White - Illumination
Violet/Black - Right Rear Speaker Negative
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Green/Black - Left Rear Speaker Negative
*120707901*
Copyright 2018 Crutchfield Corporation
Receiver Wiring Adaptor
120 70-7901
Revision 08/14/18
STEP 1 -- MATCH & CONNECT WIRES
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
A.
B.
C.
D.
E.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness
by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Connect ground wire of new receiver to vehicle chassis.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
Orange - Not Used (Tape Off)
