The World’s best kits.
®
MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 8/30/23 INST99-6525
INSTALLATION INSTRUCTIONS
99-6525
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air bag
indicator light, must be secure before cycling
the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.

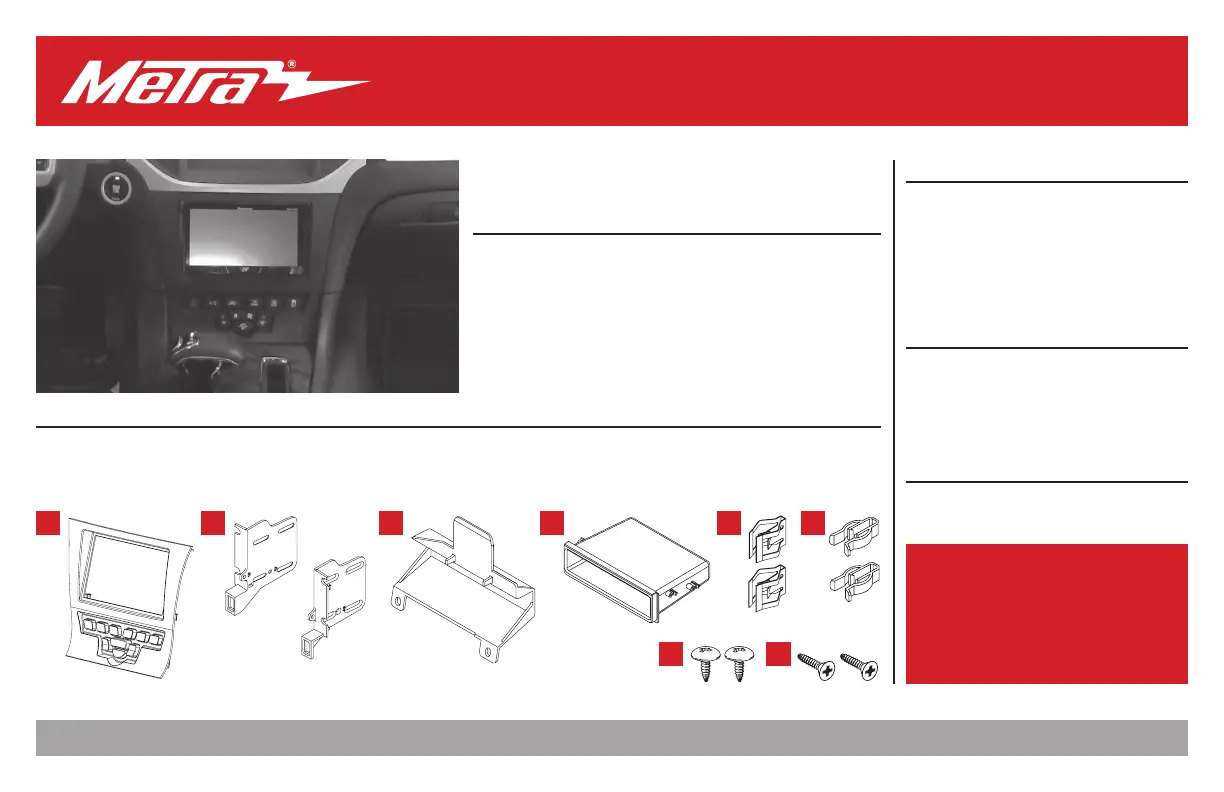

KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Integrated buttons and included interface for climate functions
• Painted matte black (99-6525B) or high gloss black (99-6525HG)
Note: • Does not retain sound from Driver Convenience Group.
• Track and launch control features from SRT Package will be lost.
KIT COMPONENTS
• A) Radio trim panel with climate controls • B) Radio brackets • C) Lower support bracket • D) Pocket • E) Metal panel clips (2) • F) Plastic panel
clips (2) • G) #8 x 3/8" Phillips pan-head screws (2) • H) #8 x 1/2" Phillips countersunk flat-head screws (2) • Climate extension cable (not shown)
• AXXESS interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-30 Torx driver
TABLE OF CONTENTS
Dash Disassembly .................................................. 2
Kit Assembly
– ISO DIN radio provision with pocket .................3
– ISO DDIN radio provision ...................................4
AXXESS interface installation ...........................5-10
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included
Antenna Adapter: 40-EU55 (sold separately)
AXXESS steering wheel control interface
(sold separately)
Chrysler 300 2011-2014
A B C D E
G H
F
386-257-1187
|
MetraOnline.com
2

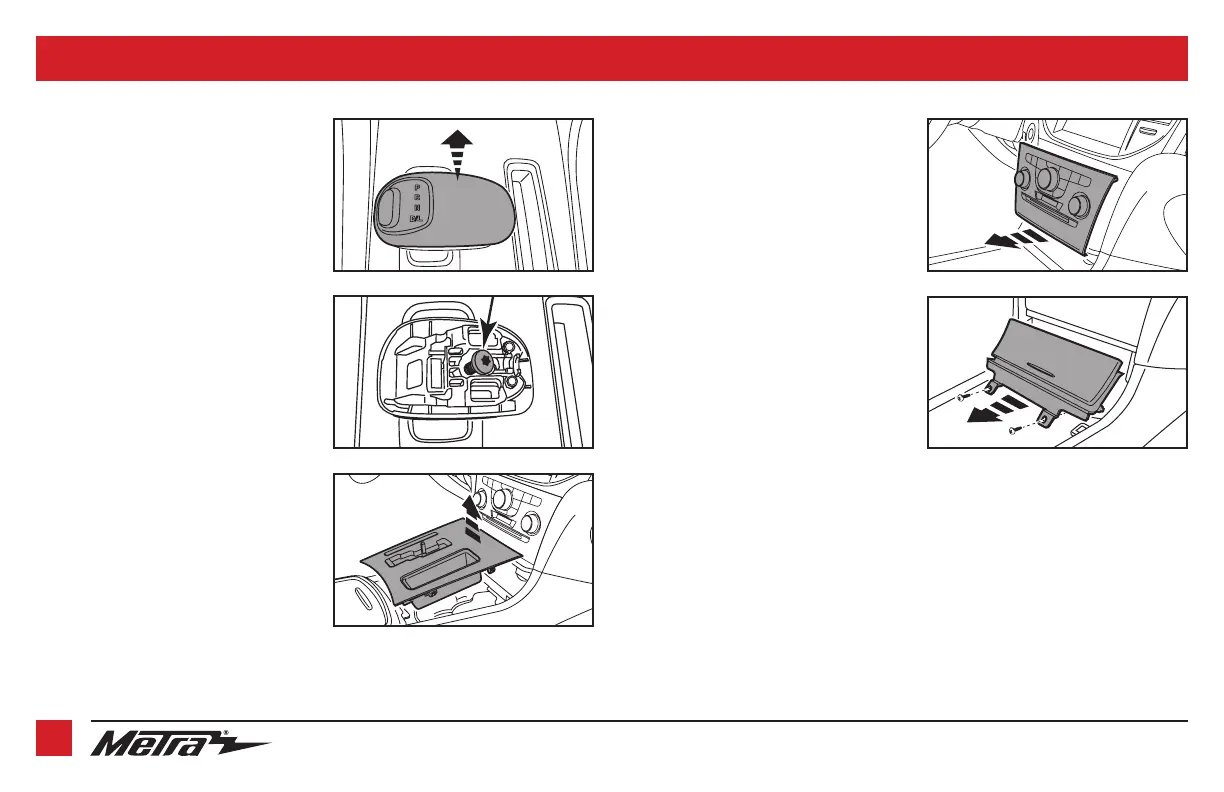

DASH DISASSEMBLY
1. Unsnap and remove the top half of the
shift knob. (Figure A)
2. Remove (1) T-30 Torx screw securing the
knob and then remove the knob. (Figure B)
3. Unsnap and remove the panel
surrounding the shift knob. (Figure C)
4. Using the panel removal tool, carefully
unclip, unplug and remove the radio/
climate control panel. (Figure D)
Note: The harness removed from
this panel will connect to the climate
extension cable.
5. Remove (2) Phillips screws securing the
pocket below the climate control panel,
and then unclip and remove the pocket.
(Figure E)
6. Remove the (4) Phillips screws securing
the radio chassis, and then unplug and
remove the chassis from the dash cavity.
Note: The white round cable connected
to the radio chassis will connect into
the Axxess interface to drive the factory
display screen.
Continue to Kit Assembly
(Figure D)(Figure A)
(Figure C)
(Figure E)(Figure B)
