METRA. The World’s best kits.
™
metraonline.com
© COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
REV. 9/11/2015 INST99-9225
Installation instructions for part 99-9225
CAUTION!
Metra recommends disconnecting the negative bat
-
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con
-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
• DIN radio provision with pocket
A) Radio housing
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Not available
Antenna Adapter: • Not available
• Panel removal tool • Torx screwdriver
TOOLS REQUIRED
Volvo XC90 2003-2014
99-9225
Dash Disassembly ................................................. 2
Kit Assembly
– DIN radio provision with pocket ............................ 3
Table of Contents
A
99-9225
2
CAUTION: Do not remove any
connectors with the key in the on
position, and do not cycle the key
with any modules disconnected.

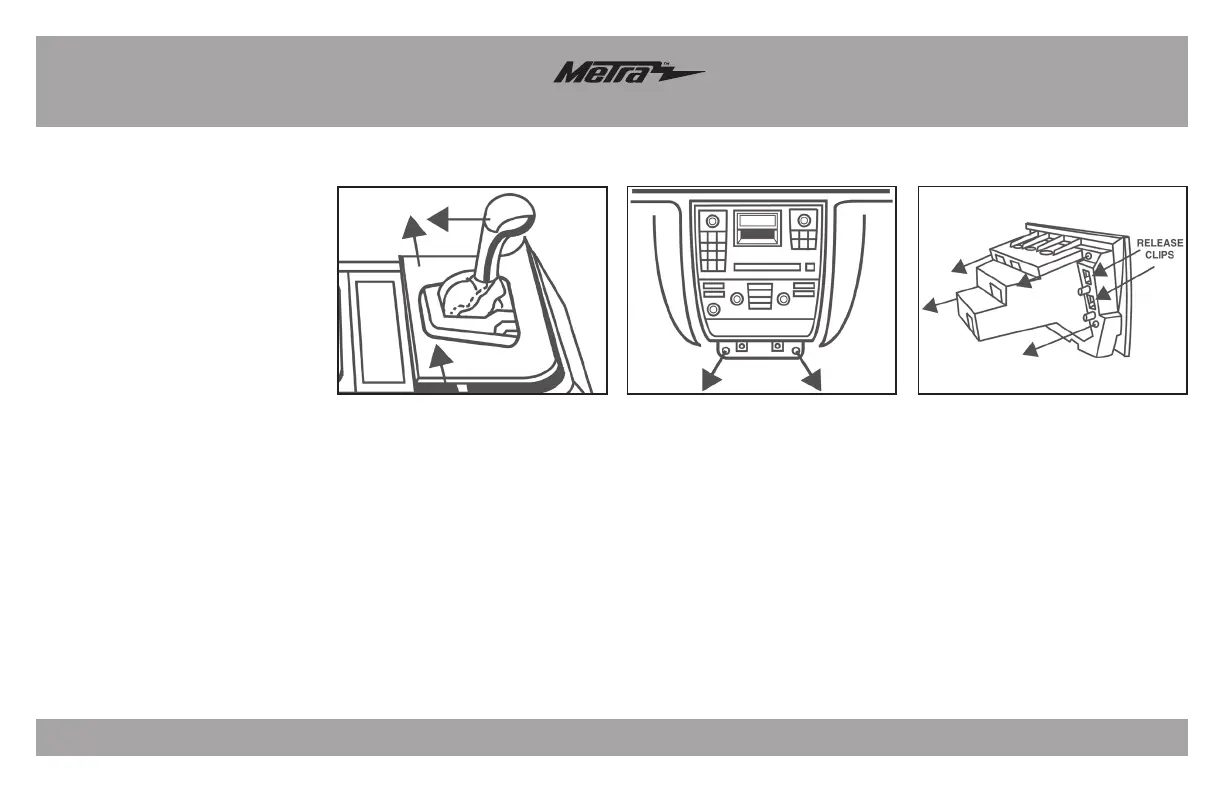

1. Move the shifter to the rearmost
position, unsnap the shifter trim
and move it to one side. (Figure A)
2. Remove (2) Torx screws from the
bottom of the radio/climate control
panel, then disconnect the plugs
and remove. (Figure B)
3. With the radio/climate control
panel removed from the vehicle,
remove (4) screws securing the
radio to the bracket, then release
the clips and remove the radio.
(Figure C)
Continue to kit assembly
Dash Disassembly
(Figure A)
(Figure B) (Figure C)
