Side 1/8
AXDSPH-HN2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 8/12/22 INSTAXDSPH-HN2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
TABLE OF CONTENTS
Installation Options ...............................................2
Installation .............................................................2
20-Pin Harness Pinout...........................................3
Adding A Subwoofer To A Factory System...........4
Adding A Full-Range Amp and
Subwoofer To A Factory System ........................5

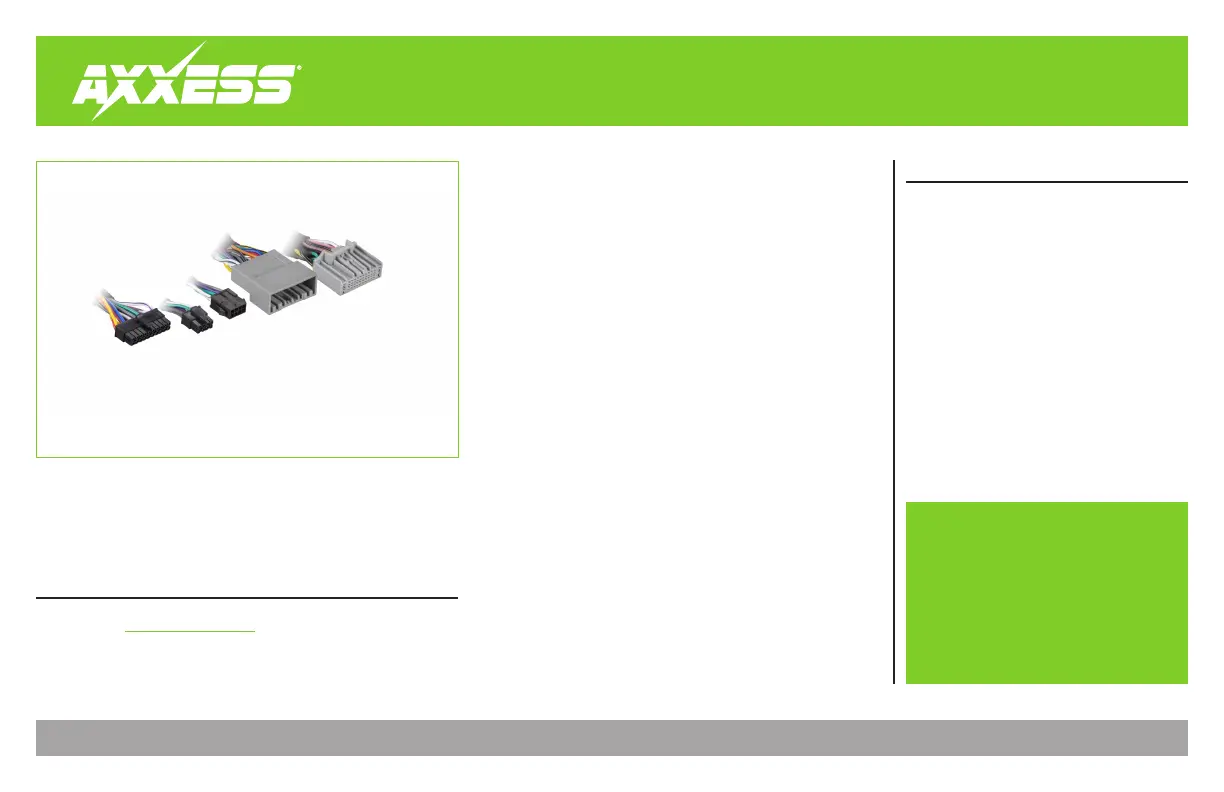

AX-DSP T-Harness
The Axxess T-harness is a basic and simple plug-n-play harness for
easy installation of the AXDSP-X or AXDSP-L (sold separately) for
vehicle specific applications. Most T-harnesses created by Axxess
will have an 8-pin harness, with the speaker wires pinned. If you are
installing a 4-channel amplifier with one of the AXDSP interfaces,
leave these connectors disconnected. The only reason for connecting
these harnesses together would be if the AXDSP interface is being
used for adding a subwoofer amplifier only. Some T-harnesses
require additional wiring and/or installation steps, see page 2.
Refer to page 3 for a pinout legend for the 20-pin harness, and also
additional wiring and notes.
APPLICATIONS
Visit AxxessInterfaces.com for more detailed
information about the product and
up-to-date vehicle specific applications.
Visit Metraonline.com or AxxessInterfaces.com
for harness and interface options.
Visit
AxxessInterfaces.com
for current application list.
2
Adding a subwoofer to a factory system:
The diagram on Page 4 shows the connections that need to be made to add a subwoofer to the
factory system.
Note: RCA jacks sold separately.
Adding a full-range of amps and subwoofer to a factory system:
The diagram on Page 5 shows the connections that need to be made to add: Subwoofer (RCA jacks
sold separately)
Amplifier (SPDT relay E-123 required) or
Additional Amp (RCA jacks sold separately).
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.†
2. Install the AXDSPH-HN2 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. Plug the AXDSPH-HN2 vehicle T-harness to the AXDSPH-HN2 interface.
4. Plug the AXDSPH-HN2 interface harness to the AXDSPH-HN2 interface.
5. Download the AXDSP-XL app from the Google Play Store or Apple App store.
6. Refer to the AXDSP-X or AXDSP-L for tuning instructions.
† For dash disassembly instructions, refer to metraonline.com. Enter the year, make,
and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra
Radio Install kits.
INSTALLATION OPTIONS I N STALL AT I O N
