AXDSPX-FD2

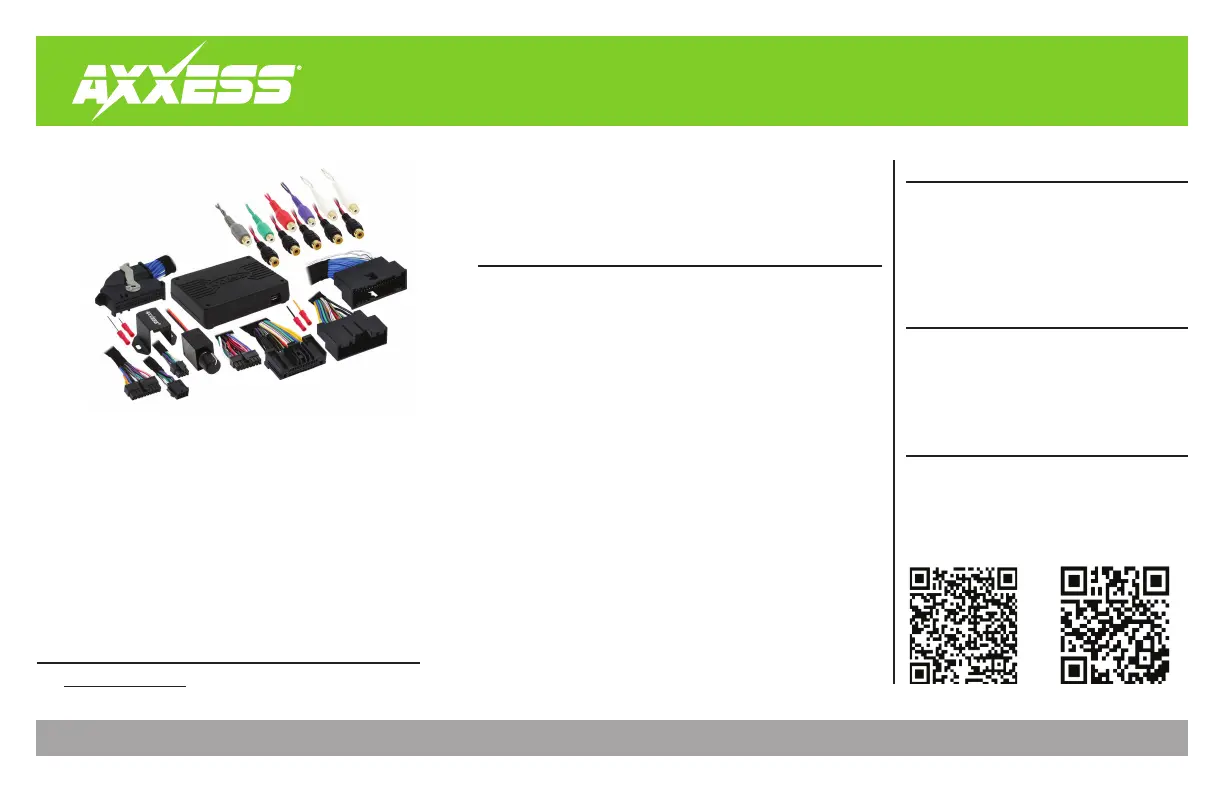

INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 7/30/20 INSTAXDSPX-FD2
Google Play Store
Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Installation Options ...............................................2
Installation .............................................................2
Connections ........................................................3-4
Mobile App ........................................................ 5-13
Specifications ....................................................... 14
Ford DSP Interface With Pre-Wired Harness
2014-Up
• Includes a DSP (Digital Signal Processor)
• 31 Band graphic EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains SYNC® voice prompts
• Adjustable chime level
• Can be used in amplified and non-amplified models
• Easy behind the radio installation with pre-wired harness
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth
®
in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
• AXDSPX-FD2 interface
• AXDSPX-FD2 interface harness
• AXDSPX-FD2 vehicle T-harness • Bass knob
• AXDSPX-FD2 display T-harness
APPLICATIONS
Visit axxessinterfaces.com for current application list
2
Adding a sub to a factory system:
This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-
amplified. (refer to page 3)
Adding a full-range amp & sub to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether
amplified
†
or non-amplified. (refer to page 4)
†
For amplified models the amp must be bypassed/unplugged, and With OE Amplifier chosen in
the Configuration tab under Vehicle Type. Use Axxess AXABH-FD1 (sold separately) to bypass the
amp for best results.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio †, then unplug all connectors.
2. Install the AX-DSPX-FD2 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. For NAV models only: Install the AX-DSPX-FD2 display T-harness to the vehicle and
make all necessary connections.
4. Plug the AX-DSPX-FD2 vehicle T-harness to the AX-DSPX-FD2 interface.
5. Plug the AX-DSPX-FD2 interface harness to the AX-DSPX-FD2 interface.
6.
Download and install the AXDSP-X app from the Google Play Store or Apple App Store
.
7. Open the app then select the Bluetooth Connection tab. Follow the instructions to
pair the mobile device to the interface. Refer to page 6 for more information.
8. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down ‡
button to save the configuration. Refer to page 7 for more information.
9. Connect the amp turn-on wire.
10. Adjust the settings in the app as desired. Press the Lock Down ‡ button to save any
new configurations.
† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle,
disassembly will be within those instructions.
‡ Anytime the interface is locked down the key must be cycled off then back on.
INSTALLATION OPTIONS I N STALL ATI O N
