~Al:::la

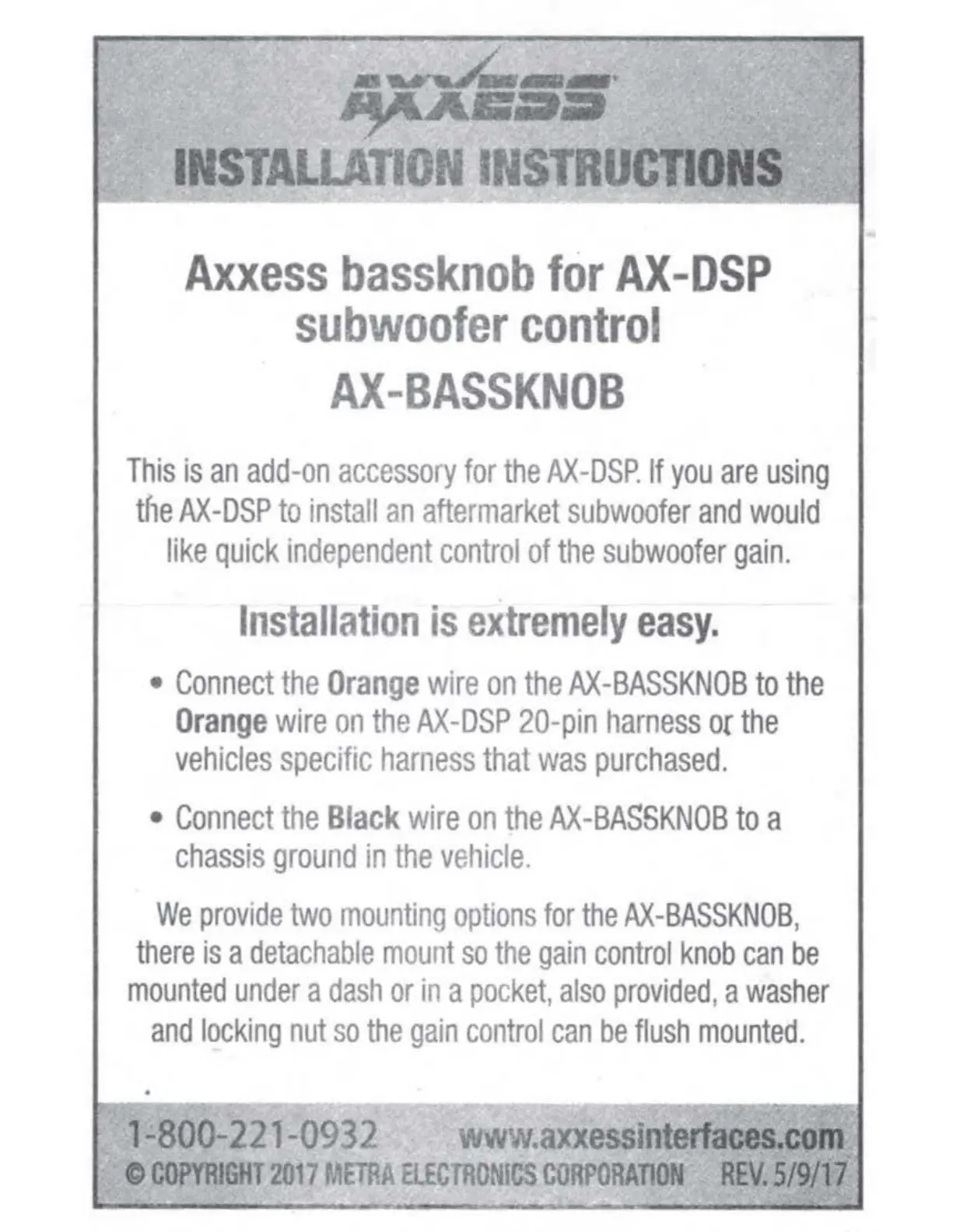

INSTALLATION
INSTRUCTIONS
Axxess
bassknob
for
AX-DSP
subwoofer
control
AX-BASSKNOB
This
is
an
add-on
accessory
for
the
AX-DSP.
If
you
are
using
the
AX-DSP
to
install
an
aftermarket
subwoofer
and
would
like
quick
independent
control
of
the
subwoofer
gain.
Installation
is
extremely
easy.
•
Connect
the
Orange
wire
on
the
AX-BASSKNOB
to
the
Orange
wire
on
the
AX-DSP
20-pin
harness
or
the
vehicles
specific
harness
that
was
purchased.
•
Connect
the
Black
wire
on
the
AX-BASSKNOB
to
a
chassis
ground
in
the
vehicle.
We
provide
two
mounting
options
for
the
AX-BASSKNOB,
there
is
a
detachable
mou
nt
so
the
gain
control
knob
can
be
mounted
under
a
dash
or
in
a
pocket,
also
provided,
a
washer
and
locking
nut
so
the
gain
control
can
be
flush
mounted
.
•
1-800-221-0932
www.axiessinterfaces.C81II
0
COPYRIGHT
2017
METRA
ELECfflONICS
CORPORATION
REV.
S/9/i1
..
AXDSPL-GL9
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/2/20 INSTAXDSPL-GL9
Google Play Store
Apple App Store
iOS 12.1 or higher
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Installation Options ...............................................2
Installation .............................................................2
Connections ........................................................3-4
AXDSPL-BT Installation...........................................5
AXDSPL-SP Installation...........................................6
Mobile App .........................................................7-15
Specifications ....................................................... 16
GM DSP Interface With Pre-Wired Harness
2016-2017
• Includes a DSP (Digital Signal Processor)
• 15 Band graphic EQ
• 4 inputs and 6 individually assignable outputs
• Independent equalization for front, rear, and sub
• Selectable low pass, band pass, and high pass filters
• Selectable crossover slopes; 12db, 24db, 36db, 48db
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Retains factory parking sensor chimes
• Retains OnStar® voice prompts
• Adjustable chime level
• Can be used in amplified and non-amplified models
• Easy behind the radio installation with pre-wired harness
• Internal header port for adding interface modules
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth
®
in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
• AXDSPL-GL9 interface
• AXDSPL-GL9 interface harness
• AXDSPL-GL9 vehicle T-harness • Bass knob
APPLICATIONS
Visit axxessinterfaces.com for current application list
