Tools and Materials You Will Need
31-1000774 Rev. 0
06-24
Installation
Instructions
ZKPN
Handle Mounting Fastener
Kit For Custom Panels
Before you begin - Read these instructions completely and carefully.
Note to Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Installation Instructions for future reference.
Pour obtenir une version française de ce manuel d'instructions, visitez notre site monogram.com
Para consultar una versión en español de este manual de instrucciones, visite nuestro sitio de internet monogram.com
WARNING
To reduce the risk associated with choking, do not allow children under 3 years of age to have access
to small parts during the installation of this product.
ABCD
Drill - 1/8”, 1/2” and 11/32” bits
Router - 1” (2.54cm) Router
Bit and Straight Line Guide
Scrap Piece of Wood
Measuring Tape or Scale
Monogram Statement or
Minimalist Handle
Custom Door Panel
Safety Glasses
Center Punch
Hammer
Torque Gauge
Pencil
Wood Glue (1/2" (1.27cm)
Panel Installations Only)
Parts Included
This kit allows for the attachment of up to four Monogram
Minimalist or Statement collection handles on custom panels.
A - Spacer (Qty 8)
B - Threaded Bracket (Qty 8)
C -
Handle Mounting
Fastener (Qty 8)
D -
5/16 Countersunk Screw
(Qty 8)
E - Allen Wrench (Qty 1)
E
3RXUUpGXLUHOHULVTXHGpWRXႇHPHQWSHQGDQWOLQVWDOODWLRQGHFHSURGXLWQHODLVVH]SDV
les petites pièces à la portée des enfants âgés de moins de 3 ans.
AVERTISSEMENT
$¿QGHUHGXFLUHOULHVJRDVRFLDGRFRQGHVFDUJDVQRSHUPLWDTXHORVQLxRVPHQRUHV
de 3 años de edad tengan acceso a las partes pequeñas durante la instalación de este producto.
ADVERTENCIA
9DULRXV+DQGOH(QGFDSYLHZVVKRZLQJGLႇHUHQWVHWVFUHZDQGFRXQWHUVXQNVFUHZORFDWLRQGHWDLOV
PSRQ

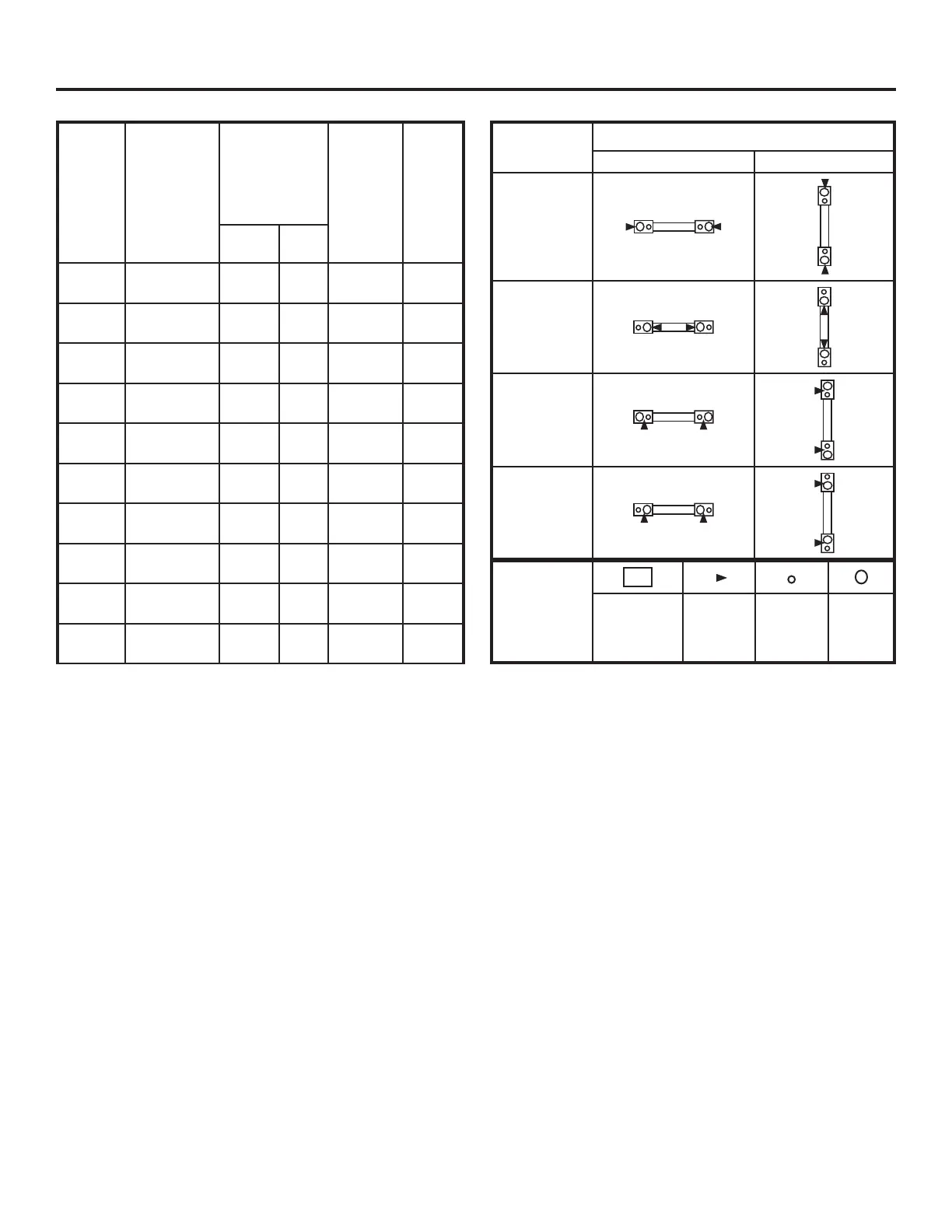

Handle Measurement Details
+DQGOH&RQ¿JXUDWLRQ P, Q R S
Handle Style Minimalist Statement (2 Hole) Statement (3 Hole)
Dimension Units in cm in cm in cm
Handle width at widest point 11/16 1.71 1 7/16 3.63 1 7/16 3.63
Handle height from door surface 2 3/32 5.33 2 19/32 6.56 2 19/32 6.56
Mounting hole center to end of end cap 1 3/32 3.02 7/8 2.20 1 3/32 3.02
2
31-1000774 Rev. 0
Installation Instructions
Handle
Style
Handle
&RQ¿JXUDWLRQ
Center-to-
Center distance
(L) for Handle
Mounting
Fastners
Handle
Orientation
Set
Screw
location
on
Handle
Endcaps
In. Cm.
Minimalist P 32 1/32 81.4 Vertical Outside
Minimalist P 33 5/8 85.4 Vertical Outside
Minimalist Q 24 7/32 61.5 Vertical Inside
Minimalist Q 25 29/32 65.8 Vertical Inside
Statement R 25 29/32 65.8 Vertical Side
Statement S 32 1/32 81.4 Vertical Side
Statement S 33 5/8 85.4 Vertical Side
Statement R 25 29/32 65.8 Horizontal Bottom
Statement S 27 1/8 68.9 Horizontal Bottom
Statement S 33 1/16 84.0 Horizontal Bottom
Handle
&RQ¿JXUDWLRQ
Handle Orientation
Horizontal Vertical
P
Q
R
S
Handle
Endcap Hole
&RQ¿JXUDWLRQ
Symbol
Legend:
Outline of
Handle
Endcap
Set Screw
Location
5/16"
Counter-
sunk
Screw
Handle
Mounting
Fastener
Table 1
Table 2
3
31-1000774 Rev. 0
Installation Instructions

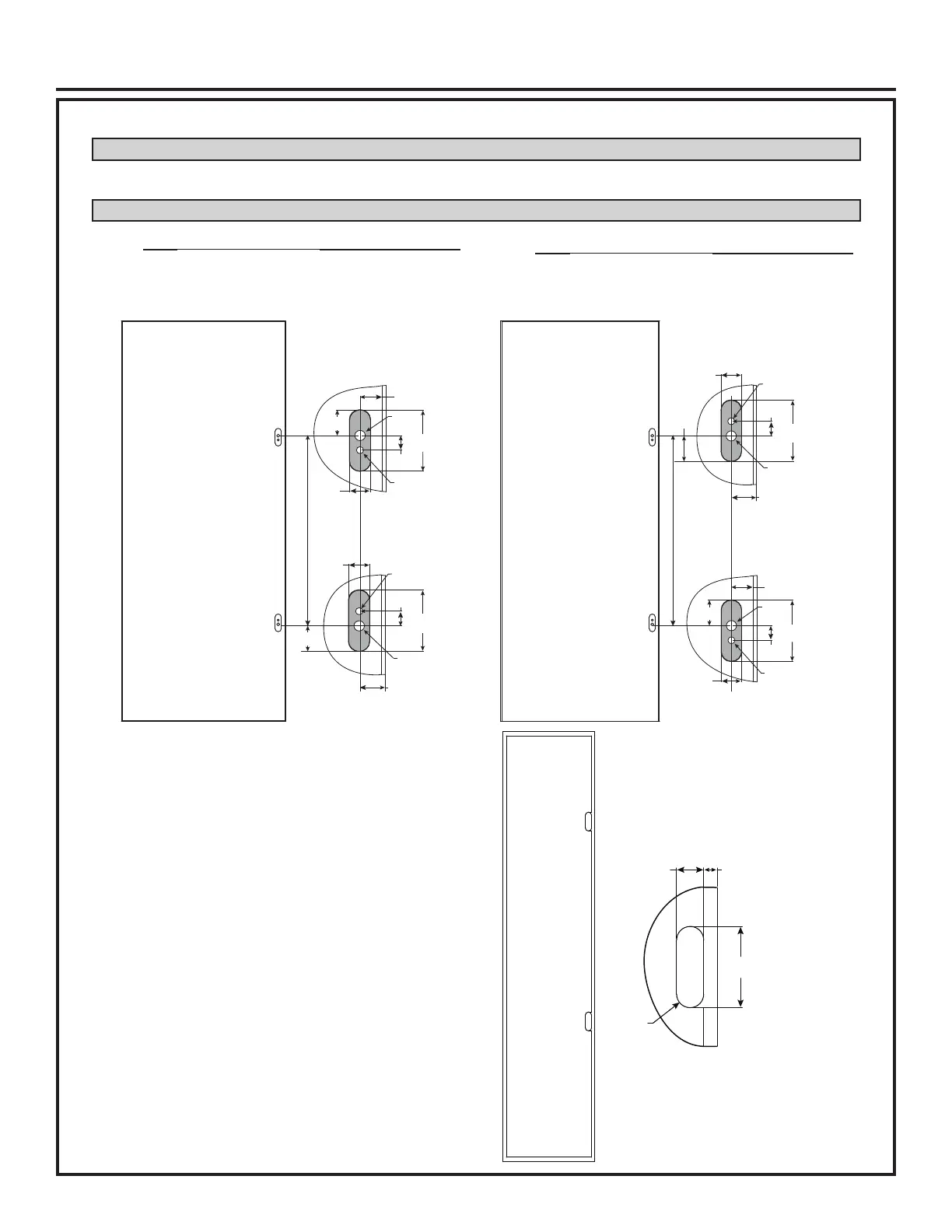

1-1/4"
(3.18cm)
1-1/4"
(3.18cm)
1/2"
(1.27cm)
11/32"
(0.87cm)
23/32"
(1.83cm)
3"
(7.62cm)
1-1/4"
(3.18cm)
1"
(2.54cm)
23/32"
(1.83cm)
3"
(7.62cm)
1-1/4"
(3.18cm)
1"
(2.54cm)
center to center distance (L)
1/2"
(1.27cm)
11/32"
(0.87cm)
Hinge side
or Drawer Bottom
Handle side
View from
Nonappearance side
Detail Top Side
Detail Bottom Side
1-1/4"
(3.18cm)
1-1/4"
(3.18cm)
1/2"
(1.27cm)
11/32"
(0.87cm)
23/32"
(1.83cm)
3"
(7.62cm)
1-1/4"
(3.18cm)
1"
(2.54cm)
23/32"
(1.83cm)
3"
(7.62cm)
1-1/4"
(3.18cm)
1"
(2.54cm)
center to center distance (L)
1/2"
(1.27cm)
11/32"
(0.87cm)
Hinge side
or Drawer Bottom
Handle side
View from
Nonappearance side
Detail Bottom Side
Detail Top Side
3/4" (1.91cm) thick panels, follow steps 1 through 7.7 ONLY.
1/2" (1.27cm) thick panels, follow steps 1 through 7.6, 8 & 9, SKIP step 7.7.
Hinge side
or Drawer Bottom
Handle side
1"
(2.54cm)
3"
(7.62cm)
R1/2"
(1.27cm)
1/2"
(1.27cm)
Hole detail
for Figure 3
NOTE: Views are from
Nonappearance side of
custom panels.
P&R +DQGOH&RQ¿JXUDWLRQV ONLY (See Figure 4)
Follow All Steps: 1-6 and Step 7.7
For Vertical Handles Only: Steps 7.1 and 7.2
For Horizontal Handles Only: Step 7.5
IMPORTANT: Grayed areas are routed ONLY on 3/4" (1.91cm) thick panels in step 7.7).
IMPORTANT: Do NOT rout the grayed areas on the 1/2" (1.27cm) thick panels - SKIP step 7.7.
Figure 3
Figure 4 Figure 5
NOTE: Views are from
Nonappearance side of
custom panels.
NOTE: Views are from
Nonappearance side of
custom panels.
Q&S +DQGOH&RQ¿JXUDWLRQV ONLY (See Figure 5)
Follow All Steps: 1-6 and Step 7.7
For Vertical Handles Only: Steps 7.3 and 7.4
For Horizontal Handles Only: Step 7.6
