Instructions for NXT Hunter Feeder Kit
Thank you for your purchase of a Moultrie NXT Hunter Feeder Kit. Please read this sheet before operating
the unit. If you should have any questions about this product or any other Moultrie product, please contact
us using the information on the back of this sheet. Allow us to better serve you by activating your 1-year
warranty online at http://www.moultriefeeders.com/warranty
ATTENTION:
Always position safety switch to OFF position before
performing any maintenance or while setting up feeder
to avoid shock.
OPERATING ELECTRIC VARMINT GUARD
A
Electric Varmint Guard
There are two wires, one is positive and the other is negative. To maintain
Moultrie’s standard in high battery eciency, the guard is inactive until both
wires are rst touched at the same time. When both wires are touched a
second time, the circuit is completed, creating a shock.
If mounting the Moultrie Quick-Lock Feeder Kit to:
• a Moultrie 30 or 55-gallon barrel* or Moultrie 6.5-gallon bucket, refer to Section C.
• a Moultrie 30-Gallon Quick-Lock Hopper, refer to Section D.
• any other containers, please visit our website at www.moultriefeeders.com
STOP
READ THIS FIRST
BEFORE
PROCEEDING

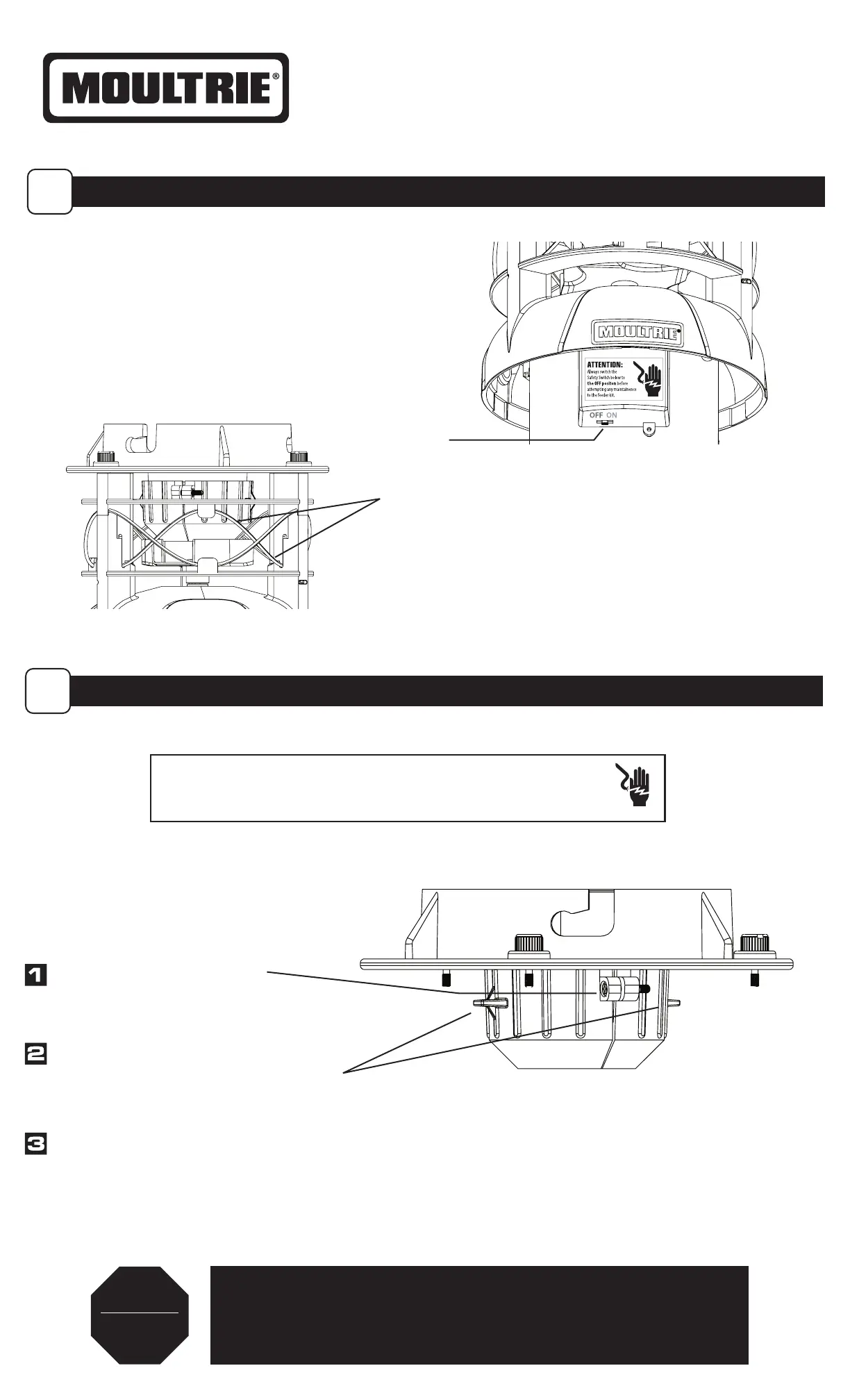

ADJUSTING FUNNEL HEIGHT
B
ATTENTION: Make sure the electric varmint guard is turned OFF and
battery is disconnected before adjusting funnel!
Once the funnel is in desired position,
retighten the screw with Phillips-head
screwdriver. Do not over-tighten.
Adjusting the funnel height may be desired when
using dierent types or sizes of feed.
To adjust funnel height:
With a Phillips-head screwdriver,
loosen screw.
With screw loosened, use tabs to position funnel
in one of the two positions by either pushing
down or up depending on desired position.
Safety
Switch
NOTE: DO NOT LOAD FEEDER UNTIL IT IS STANDING UP AND IN PLACE (SEE SECTION F).
ASSEMBLE WITH MOULTRIE QUICK-LOCK ADAPTER
C
Place hopper bottom at on the ground, and
slide the three provided angled leg brackets
into the hopper as shown.
Make sure to fully insert brackets as far as
you are able to ensure the strength of the feeder.
Angled
Leg
Brackets
Insert two (2) leg sections into each of the square leg brackets.
Tap leg sections into place to ensure tight t.
Flip hopper bottom assembly upside-down so that all three (3)
legs are on the ground.

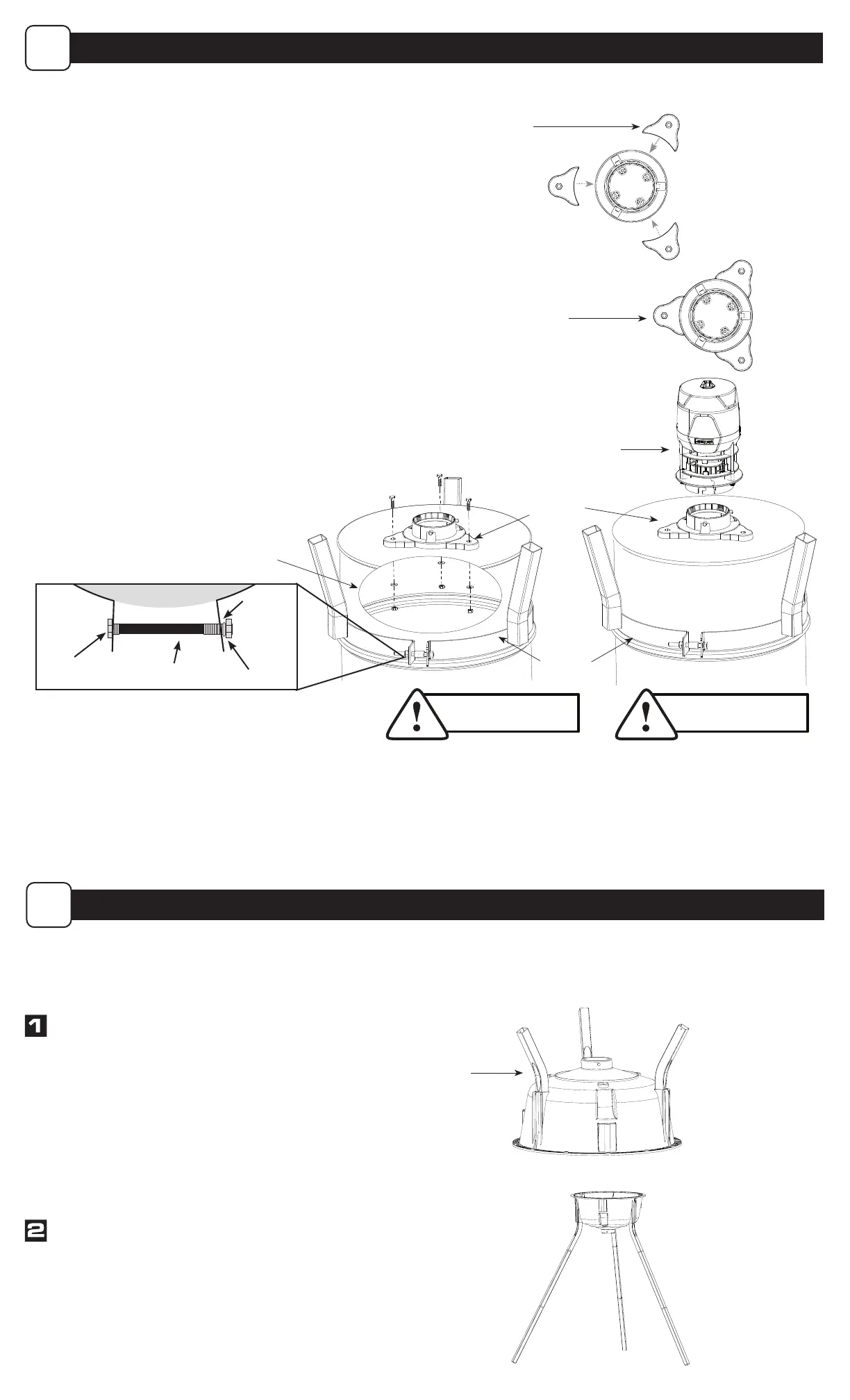

ASSEMBLE MOULTRIE 30-GALLON QUICK LOCK HOPPER
D
DO NOT EXCEED 400 LBS
OF FEED IN 55-GAL FEEDERS
Quick-Lock
Feeder Kit
Quick-Lock
Adapter
Belly Band
Ring
Bolt
Spacer
Lock
Washer
Nut
DO NOT EXCEED 200 LBS
OF FEED IN 30-GAL FEEDERS
Belly Band
Ring
55-Gallon or 30-Gallon Barrel*
a. Assemble Quick-Lock adapter by snapping bolt tabs in place as shown.
b. Turn the metal drum upside down and slide the belly band ring
around perimeter and make sure that belly band is snug against
the bottom structure ring as shown (Moultrie barrel only).
c. Slide the bolt through the belly band ring, spacer and
lock washer as shown. Tighten nut on bolt until metal
belly band ring tabs are touching spacer on each side.
d. Mount Quick-Lock adapter using (3) 1/4” x 1” bolts, nuts and
washers provided in the pre-drilled holes (Moultrie barrel only).
Or use the Quick-Lock adapter as a template to mark and drill
the mounting holes (non-Moultrie barrel).
e. Connect Quick-Lock feeder kit to assembled adapter as shown.
*Can also be used on a 6.5-gallon bucket.
Assembled
Quick-Lock
Adapter
Barrel cut-away for clarity.
NOTE: If using a 325 feeder, please see additional
instructions for assembly in separate instruction manual.
Bolt Tabs
