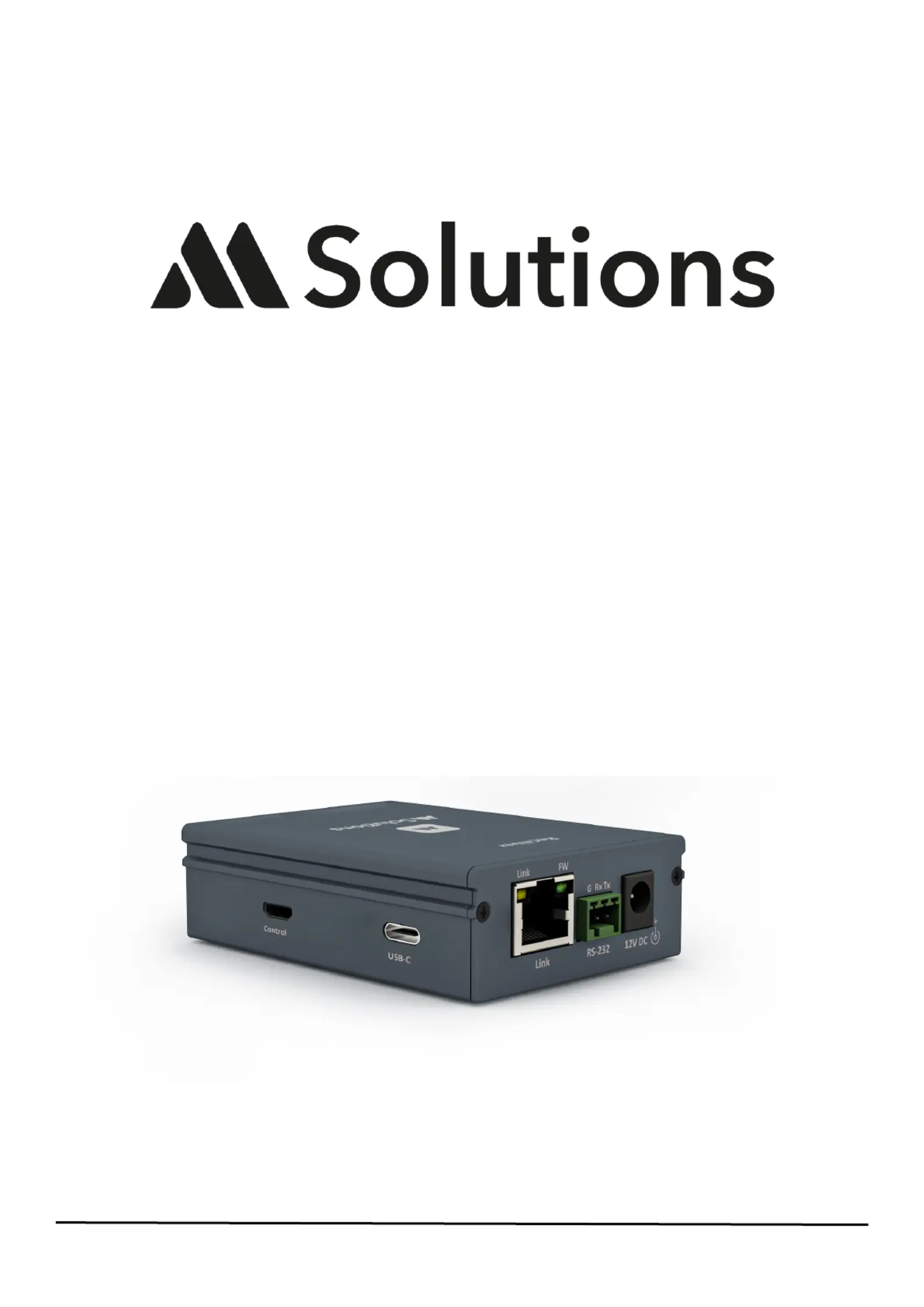

User Guide
MS-6U1C
USB-C Extender Set - up to 100m. PoC, RS-232 pass through
Revision: 1.0 - Jun 2021
02
support@m4sol.com | www.m4sol.com
MS-6U1C USER GUIDE
Introduction 03
Key Features 03
Connectivity Overview (Host and Device) 04
Understanding the LED’s 05
Cabling for HDBaseT 05
Audio 05
USB 06
RS-232 Control & Power 06
Specifications & Package Contents 07
Schematic 08
Contents
Notices
• This MSolutions product contains electrical components that may be damaged by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of surge protection is highly recommended in order to protect and extend the life
of your equipment.
• The transmission distances of data over Cat cables are measured using TE CONNECTIVITY 1427071-6 EIA/
TIA-568-B termination (T568B) of cables is recommended for optimal performance. To minimise interference of
unshielded twisted pairs in the CAT5e/6 cable, do not run the Cat5e/6/6a cabling with or in close parallel proximity
to mains power cables.
• Do not substitute or use any other power supply other than the enclosed unit, or an MSolutions approved
replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the
manufacturer’s warranty.
• MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this,
physical representations or graphical elements contained within this user guide may not be accurate.
MS-6U1C USER GUIDE
03
support@m4sol.com | www.m4sol.com
Introduction
The MSolutions MS-6U1C is an entry level USB-C extender allowing for a single USB-C data
channel to be extended to distances of up to 100m over a single CATx cable infrastructure.
The extender features RS-232 serial pass-through and bi-directional 12V PoC (Power over Cable)
expand the capabilities of this extender kit for a variety of commercial uses.
Key Features
• Uncompressed extension of USB data up to 100m over single CAT
• 1x USB-C channel for up to 320Mbps data connectivity of USB-C devices across the links
• Flexible USB extension for: USB-C PTZ cameras, hard drives, laptops and other USB-C
peripherals
• Bi-directional RS-232 serial pass through
• Bi-directional 12V PoC (Power over Cable)
