Side 1/2
© MuxLab Inc. - -D - -D 94 000803 SE 000803
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588 Fax: (514) 905- 0589
Toll Free (North America): (877) 689- 5228
E-mail: videoease@muxlab.com URL: www.muxlab.com
Specications
Environment
HDMI 1.3a
Devices
DVDs, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Video Wall
NxM video wall capabilities.
Compatibility
Compatible with , 500752 500753 and 500811
Transmission
Transparent to the user.
Video Bandwidth
225MHz
Signals
HDMI 1.3a protocol.
Connectors
One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jack for IR emitter/sensor.
One (1) DB9 Serial Port Connector.
Four (4) DIP switches for device ID addressing.
Note: HDMI, RS232, IR and Cat 5e/6 cables not included.
Maximum Distance
Based on a maximum length
of 6.6ft (2m) of HDMI cable
per end.
Cat5e/6: 330ft (100m) up to 1080P
Note: When installed in an electrically noisy environment, an STP cable must be
used. Also, cross-connections in the signal path reduce the eective distance
depending on the grade of twisted pair cable used.
Latency
One (1) Frame.
Compression
Motion JPEG
Network Bandwidth
60Mbps
Network Requirement
100BaseT for Point- -Point; 0BaseT for multi-point conguration to 100 s.
IR Frequency
38 to 56 KHz
RJ45 Pin Conguration
Reverse Polarity Sensitive.
Use EIA/TIA 568A or 586B
straight-through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 ( T)
Pin 7 (R) Pin 8 (T)
Cable
One (1) Cat 5e/6 or better twisted pair cable required.
Power Source
This device supports PoE (PD), an external power supply is not included. It is
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500992) may be purchased separately.
PoE
IEEE 802.3af
Power Consumption
Transmitter: 2.9Watt Receiver: 1.8Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal
Dimensions
4.40” x 3.00” x 1.00” (11.2 x 7.6 x 2.5cm)
Weight
1.1lbs (0.5kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
Order Information
500754 Video Wall Over IP Extender Kit with PoE
500754-TX Video Wall Over IP Transmitter with PoE
500754-RX Video Wall Over IP Receiver with PoE
Accessories
(These items are sold
separately)
500905 3-Port Rackmount Transceiver Chassis
500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
500990 IR Emitter, and 500991 IR Sensor
500992 Univ. Power Supply 5VDC/1.2A US/UK/EU Blade
500754 Video Wall over IP Extender Kit with PoE
Quick Installation Guide

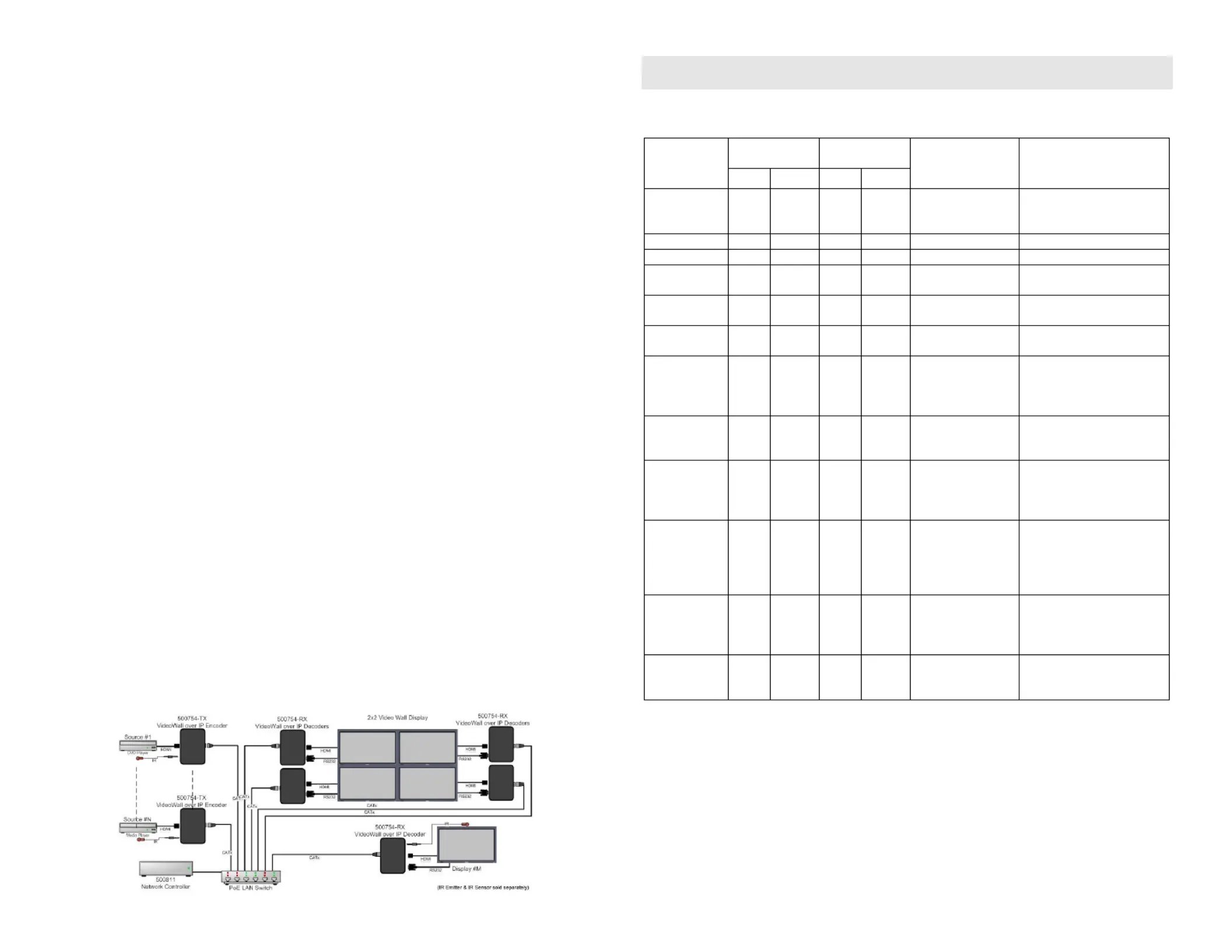

Overview
The Video Wall over IP Extender Kit with PoE (500754) allows HDMI equipment to be connected up to
330ft (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a point- -point to
conguration. Point- -multipoint, multipoint- -multipoint, and Video Wall congurations are also to to
possible by connecting several Transmitters and Receivers to the same Ethernet local IP network via an
Ethernet Switch. The Transmitter ( -TX) and Receiver (500754 500754-RX) also support PoE (PD) if
used with a PoE Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR
Emitter and IR Sensor, if required, may be purchased separately for remote control applications.
Additional Transmitters and Receivers may be purchased as kits or purchased separately depending on
the intended application and number of units required.
For the point- -multipoin and multipoint- -multipoint conguration the Ethernet Switch must have to t to
Gigabit ports and DHCP Server capability and additionally support the IGMP communication protocol
for the multipoint- -multipoint case. MuxLab recommends using the Cisco SG300 Series Managed to
Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the conguration and
utilization of the and other MuxLab IP based products via an Ethernet web interface 500754 .
Applications
Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product labels,
see the above front and rear product views for further details.
2. Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specications (see Specications table for further details ).
3. To install the Transmitter:
3a. Connect the ansmitter to the HDMI video source with an HDMI compliant cable. Tr
3b. If the application is point- -point, then connect one (1) length of Cat 5e/6 (or higher) to
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between the TX & RX unit.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant cable.
4b. If the application is point- -point, then connect one (1) Cat 5e/6 cable (or higher) to
coming from the Transmitter, to the RJ45 LINK connector on the Receiver. If
transmitting over the network, use an Ethernet Switch between the TX & RX unit.
