Decorative Fan-Light
Ventilateur à éclairage décoratif
Ventilador-Luz de decorativo
ARN80RB
Model number:
Numéro de modèle :
Número de modelo:
INSTALLATION AND
USE & CARE INSTRUCTIONS
DIRECTIVES D’INSTALLATION,
D’UTILISATION ET D’ENTRETIEN
INSTRUCCIONES PARA INSTALACIÓN
Y USO Y CUIDADO
English - See page 2
Français - Voir page 9
Español - Consulte la página 16
INSTALLATION AND USE & CARE INSTRUCTIONS
SAFETY
2
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive
appearance - lower or remove grille and vacuum interior
of unit with the dusting brush attachment.
The motor is permanently lubricated and never needs
oiling. If the motor bearings are making excessive or
unusual noises, replace the blower assembly (includes
motor and impeller).
OPERATION
Use an on/off switch or speed control to operate this
ventilator. See “Wiring Diagram” for details.
WARNING
To reduce the risk of fire, electric
shock, or injury to persons, observe the
following:
• Use this unit only in the manner
intended by the manufacturer. If
you have questions, contact the
manufacturer at the address or
telephone number listed in the warranty.
• Before servicing or cleaning unit,
switch power off at service panel and
lock the service disconnecting means
to prevent power from being switched
on accidentally. When the service
disconnecting means cannot be locked,
securely fasten a prominent warning
device, such as a tag, to the service
panel.
• Installation work and electrical wiring
must be done by a qualified person(s)
in accordance with all applicable codes
and standards, including fire-rated
construction codes and standards.
• Sufficient air is needed for proper
combustion and exhausting of
gases through the flue (chimney) of
fuel burning equipment to prevent
backdrafting. Follow the heating
equipment manufacturer’s guideline
and safety standards such as those
published by the National Fire
Protection Association (NFPA), and
the American Society for Heating,
Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local
code authorities.
• When cutting or drilling into wall or
ceiling, do not damage electrical wiring
and other hidden utilities.
• Ducted fans must always be vented to
the outdoors.
• This unit must be grounded.
CAUTION
• For general ventilating use only. Do not
use to exhaust hazardous or explosive
materials and vapors.
• For installation in flat ceilings only.
• To avoid motor bearing damage and
noisy and/or unbalanced impellers, keep
drywall spray, construction dust, etc. off
power unit.
• Please read specification label on
product for further information and
requirements.
Please visit our websites - www.nutone.com, or www.nutone.ca -
to register this product and to view installation tips and videos.
Installer: Leave this manual with the homeowner.
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION AND USE & CARE INSTRUCTIONS
INSTALLATION
3
OPTION - To mount housing anywhere between ceiling
framing: Use optional Hanger Bar Kit (sold separately from local
distributors or website). Follow mounting instructions included
with kit.

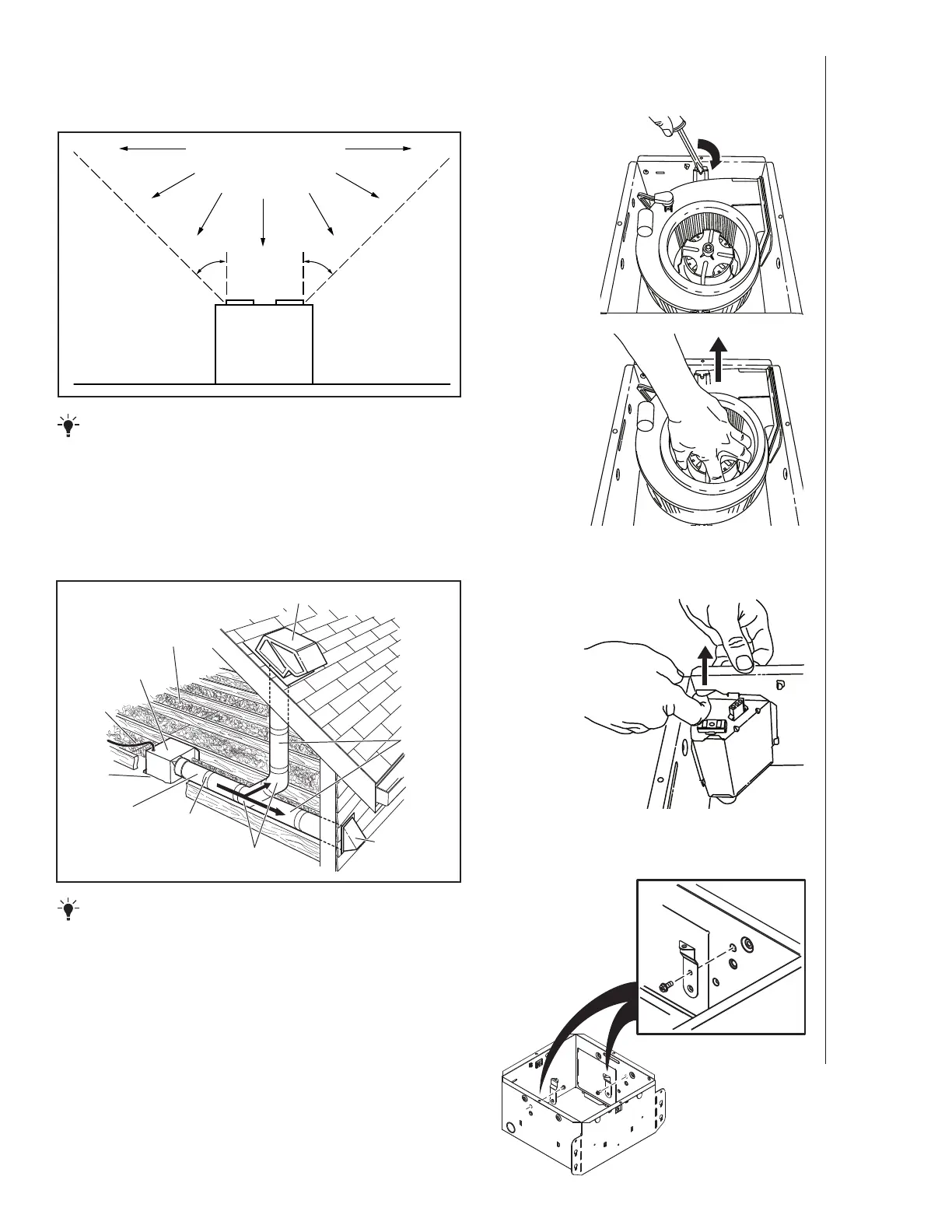

1. Remove blower and all
packing material from fan
housing.
2. Remove wiring panel from
fan housing.
ROOF CAP
*
(with built-in damper)
WALL CAP
*
(with built-in
damper)
4-IN. ROUND
ELBOWS
*
FAN
HOUSING
Seal gaps
around
housing.
Seal duct joints
with tape.
INSULATION
(Place around and
over fan housing.)
POWER
CABLE
*
*
Purchase separately.
OR
Keep duct
runs short.
4-IN. ROUND
DUCT
*
ALL INSTALLATIONS
Start here.
IMPORTANT - The ducting from this fan to the outside
of the building has a strong effect on the air flow, noise and
energy use of the fan. Use the shortest, straightest duct routing
possible for best performance, and avoid installing the fan with
smaller ducts than recommended. Insulation around the ducts
can reduce energy loss and inhibit mold growth. Fans installed
with existing ducts may not achieve their rated airflow.
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45
o
45
o
NOT FOR USE IN
A COOKING AREA.
3. Attach grille brackets to
housing.
