Omega Diver 300M CO-AXIAL Bruksanvisning

Omega armbåndsurer Diver 300M CO-AXIAL

Les nedenfor 📖 manual på norsk for Omega Diver 300M CO-AXIAL (2 sider) i kategorien armbåndsurer. Denne guiden var nyttig for 5 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/2

1 / 2

SEAMASTER

DIVER 300 M CO-AXIAL 41 MM

Steel on steel

Caliber

2500

212.30.41.20.01.002

Co-Axial escapement

Automatic

Chronometer

Sapphire crystal

Anti-reﬂective treatment

Screw-in crown

Helium escape valve

3-year International Warranty

Water-Resistant to a relative pressure of 30 bar

(300 metres/1000 feet)

WATCH FUNCTIONS

The crown has 3 positions:

1. Normal position (wearing position): when the crown is positioned against the

case, the crown ensures that the watch is water-resistant.

Occasional winding: if the watch has not been worn for 48 hours or more, wind it

up with the crown in position 1.

2. Correcting the date: pull the crown out to position 2, turn the crown

backwards, then push the crown back to position 1.

NB: date-setting is not recommended between 8 pm and 2 am.

3. Time setting: hours – minutes – seconds. Pull the crown out to position 3. The

seconds hand will stop. Turn the crown forwards or backwards. Synchronise the

seconds by pushing the crown back to position 1 to coincide with a given time

signal.

2 / 2

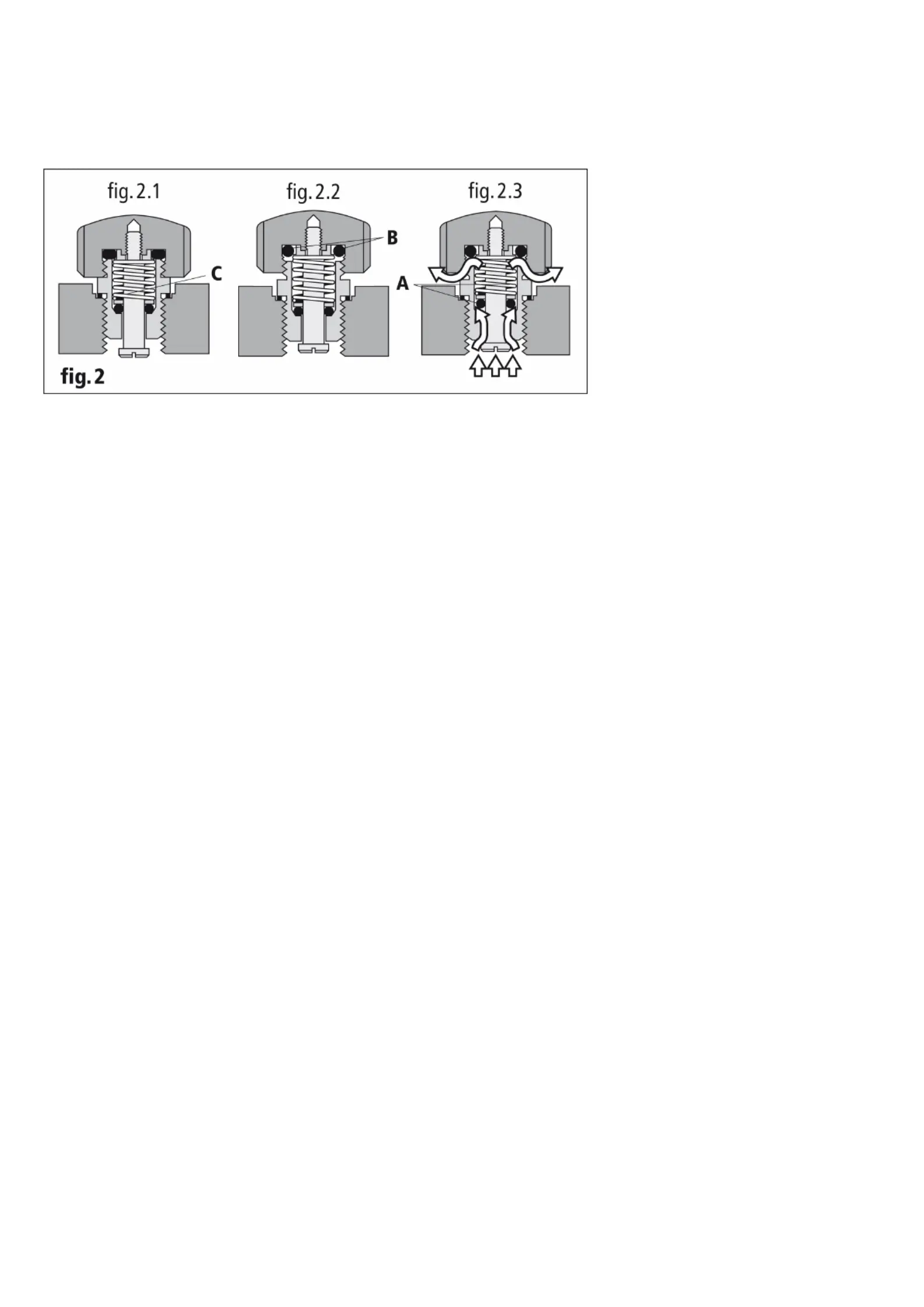

HELIUM ESCAPE VALVE

How to use the helium escape valve? (ﬁg. 2)

In its normal position (ﬁg. 2.1), the OMEGA helium escape valve is perfectly

watertight thanks to the gaskets (B), but it is not functional, since it is screwed

down.

During the decompression phase, unscrew the crown of the valve in order to

release the mechanism (ﬁg. 2.2). The valve is now watertight from the outside.

As the interior pressure becomes greater than the exterior pressure, it pushes the

gasket (A) out of its seating, thus releasing the gas (ﬁg. 2.3). Once the pressure is

equalised, gasket (A) returns to its original position, pushed by the spring (C) (ﬁg.

2.2).

This operation is automatically repeated several times during the decompression

phase. Once atmospheric pressure is reached, screw down the crown of the valve

(ﬁg. 2.1).

Note: Even if the valve is unscrewed, and we strongly recommend that the valve

remains screwed down whenever the watch is immersed in water, the watch is still

water-resistant to a relative pressure of 5 Bar (50 metres). However, complete

water-resistance to the dial depth can only be achieved with gasket (B) and the

valve in the screwed down position.

Produkspesifikasjoner

Merke:	Omega
Kategori:	armbåndsurer
Modell:	Diver 300M CO-AXIAL
Mekanismetype:	Mechanical (auto winding), Mechanical (hand winding)
Kronometer:	Ja
Vanntett:	Ja
Støtsikker:	Ja
Kalendertype:	Dato
Kalender:	Ja
Klokketype:	Armbåndsur
Kjønnstype:	Hankjønn
Dekselfarge:	Sølv
Glasstype:	Krystall
Klokkeetuiets materiale:	Sølv
Ur-innstilling:	12 timers
Urskivetype:	Analog urskive
Vannbestandig dybdenivå:	300 m
Armbånd, materiale:	Stål
Hovedfarge på reim:	Sølv
Boks-form:	Rund
Hovefarge på urskive:	Sort
Vannbestandig trykknivå:	30 ATM
Produsent av urverk:	Omega
Modell urverk:	2500
Anti-reflekterende maling:	Ja
Urviser farge:	Hvit
Husdiameter:	41 mm
Co-axial flukt:	Ja
Kraft reserve:	48 timer
Helium utløps-ventil:	Ja
Skru-inn krone:	Ja
Ripe-sikkert glass:	Ja
