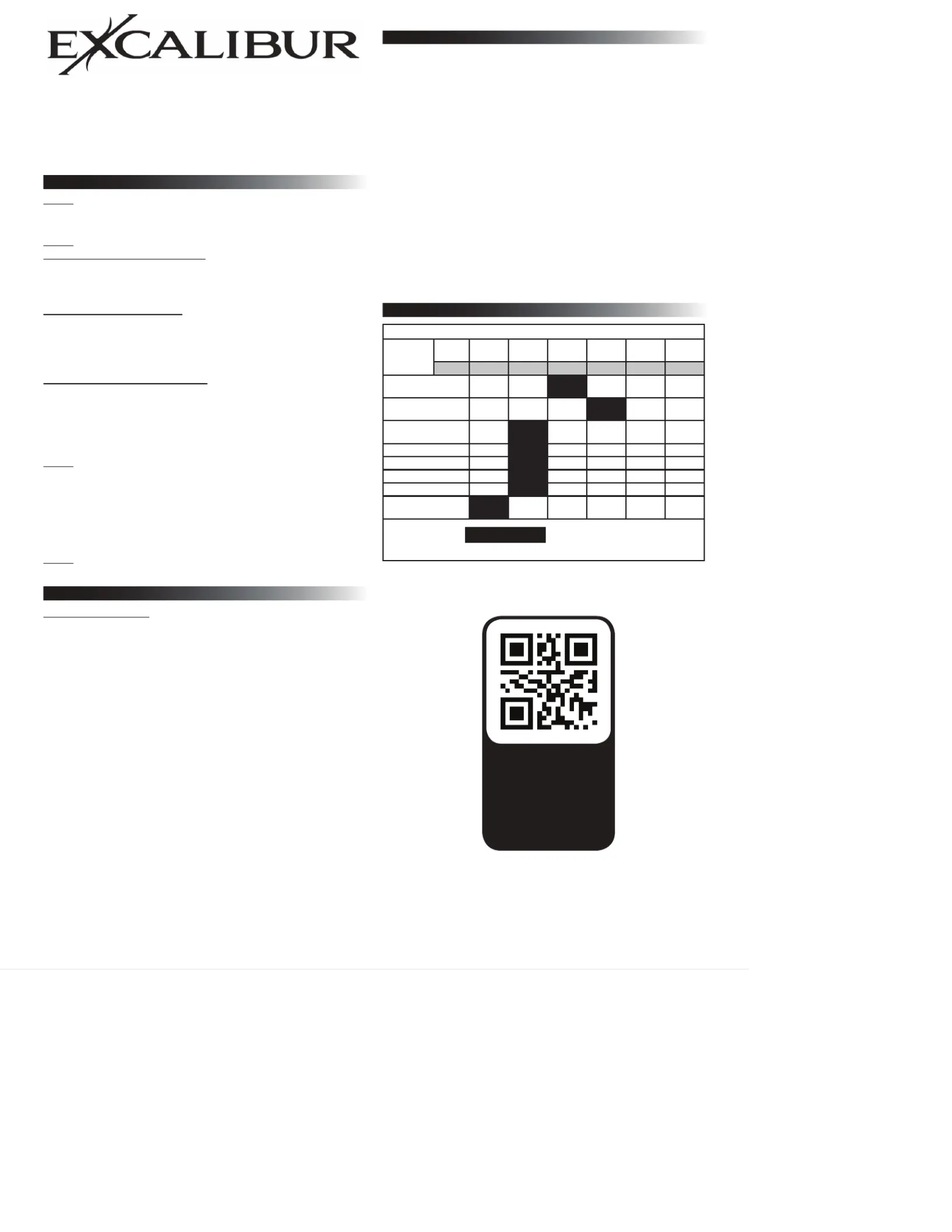

Installation Overview

Step 1 Install the Excalibur or Omegalink/EVO remote start:

Follow the instructions provided with the remote start and be sure to

program the module to the vehicle successfully.

Step 2 Connect the RFK-X2-2N9 antenna: (See wiring on page 2)

a. Excalibur 70-Series RS systems: Connect the mating end of the

4 pin antenna harness to the RFK-XX-SST antenna and connect

the other end of the 4 pin antenna harness to the antenna port. The

adaptor harness is not used.

b. OL-RS/EVO-ONE modules: Connect the mating end of the 4 pin

antenna harness to the RFK-XX-SST antenna and connect the other

end of the 4 pin antenna harness to the adaptor harness. Connect

the mating end of the adaptor harness to the proper data port of the

module. Red and Black wires are not used.

c. OL-MDB-ALL/EVO-ALL modules: Connect the mating end of the

4 pin harness to the RFK-XX-SST antenna and connect the other

end of the 4 pin antenna harness to the adaptor harness. Plug the

mating connector of the adaptor harness into the OL-MDB-ALL/EVO-

ALL accordingly. Connect the Red & Black wires to constant power &

Ground as shown in the diagram on page 2.

Step 3 Mount the RFK-XX-SST antenna:

Choose a mounting location high on the windshield for best

operating range. Be sure that the location will not obstruct the driver’s

view and is easily reached to access the valet/programming button.

Route the ribbon harness to your chosen location avoiding sharp or

moving objects. Clean the mounting surface and attach the antenna

with the provided double-stick tape.

Step 4 Proceed with remote programming.

Scan To Download

the full installation

guide from

OmegaDealer.com!

(login required)

BEFORE YOU BEGIN: Have all remotes for the system at hand.

1) Turn the ignition key “ON” (do not start).

2) Press the valet button 5 times within 5 seconds of step 1.

7KHKRUQPD\EULHÀ\VRXQG

3) Press & release the “lock” button on each transmitter one at a time.

- 1-button models, press the “start” button.

- The siren/horn may chirp once for each transmitter.

- NOTE: When any remote is learned all previous remotes are

erased.

- NOTE: All other button functions will automatically be assigned.

4) Turn the ignition key “OFF” to exit programming.

- NOTE: The system will auto-exit after 10 seconds of no activity.

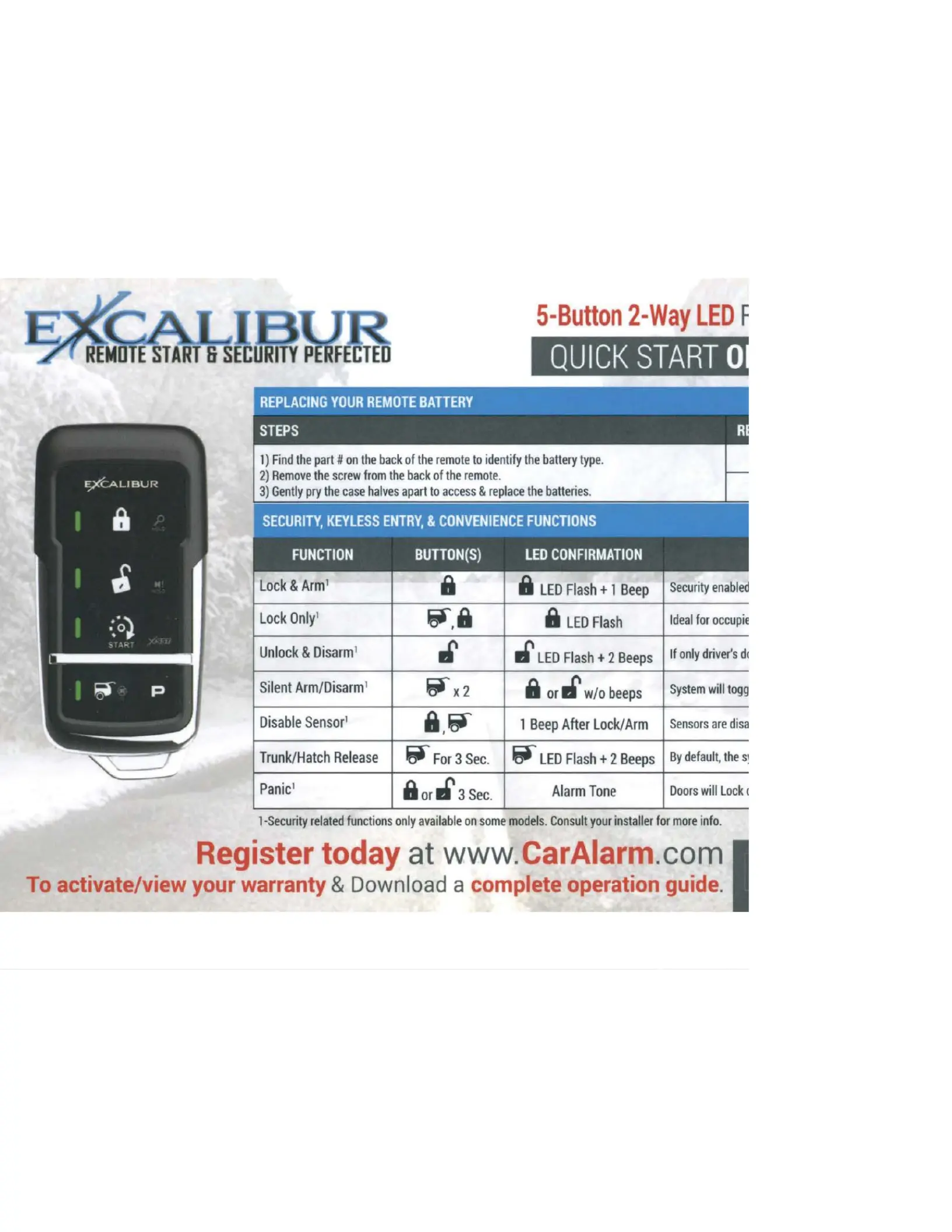

Programming Transmitters/Controllers

Programming Features (OmegaLink/EVO units only*)

1) Turn the ignition key “ON”, then “OFF”.

2) Press the valet button 5 times

- This must be done within 5 seconds of step 1.

7KHZLOOÀDVKLQGLFDWLQJ\RXKDYHHQWHUHGSURJUDPPLQJ

3) Press the valet button equal to the desired feature number.

7KH/('ZLOOÀDVKWRPDWFKWKHVHOHFWHGIHDWXUHQXPEHUSDXVH

then repeat.

<RXPXVWFRPSOHWHSUHVVHVEHIRUHWKH/('EHJLQVWRÀDVK

(;$03/(3UHVVWKHYDOHW[WKHQ\RXFRXQWÀDVKHV

4) Press the transmitter button that matches the desired setting.

- 1-BUTTON MODELS: Change the feature by pressing the

transmitter button equal to the desired setting (see chart below).

&RPSOHWHDOOSUHVVHVEHIRUHWKH/('ÀDVKHVWRFRQ¿UP

7KH/('ZLOOÀDVKHTXDOWRWKHFXUUHQWO\VHOHFWHGVHWWLQJ

5) TO CHANGE ADDITIONAL FEATURES: Repeat steps 3 & 4

6) Turn the ignition key “ON” then “OFF” to exit programming.

- NOTE: The system will auto-exit after 10 seconds of no activity.

Programmable Features:,JQLWLRQRQRIISUHVVYDOHWWLPHVIDVW/('ÀDVK

# Feature

4-Button Lock Unlock Trunk Start

Lock +

Unlock

Trunk +

Start

1-Button Start 1x Start 2x Start 3x Start 4x Start 5x Start 6x

1 2-way Run Time Display

(match RS module)

3 min 10 min

15 min 25 min 30 min 35 min

2 Ignition Lock / Unlock

Lock +

Unlock

Ign On =

Lock

Ign Off =

Unlock

Off

3 Unlock w/ Trunk

Release

Off

4 Last Door Locking On Off Enhanced

5 Automatic Relocking On

Off Enhanced

6 RS Activation (Remote) Start x 1

Start x 2 Start x 3 Start x 4

7 1-Button Unlock Only On

Off

8 Flashing Status Light

when Locked

On Off

FEATURE SETTING KEY:

Default Setting

* - See 70-Series install guide for feature programming when used with 70-Series units.

Programmable Features (OmegaLink/EVO only*)

RFK-X2-2N9 QUICK REFERENCE

INSTALL & PROGRAMMING GUIDE (FOR FIRMWARE v1.0)

visit www.OmegaWeblink.com to get the latest firmware

REMOTE START & SECURITY PERFECTED

www.caralarm.com www.omegaweblink.com www.wiresheet.com | | | 800.554.4053

IS_RFKX2_20190905

Federal Communications Commission (FCC) Compliance Statement. This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION&KDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHPDQXIDFWXUHUUHVSRQVLEOHIRUFRPSOLDQFHFRXOGYRLGWKHXVHU¶VDXWKRULW\WRRSHUDWHWKHHTXLSPHQWNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more if the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment

and receiver • Connect the equipment into an outlet on a circuit ifferent from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help

AL-XX70-B

RS-X70

2-WAY READY

ECHO

www.caralarm.com www.omegaweblink.com www.wiresheet.com | | | 800.554.4053

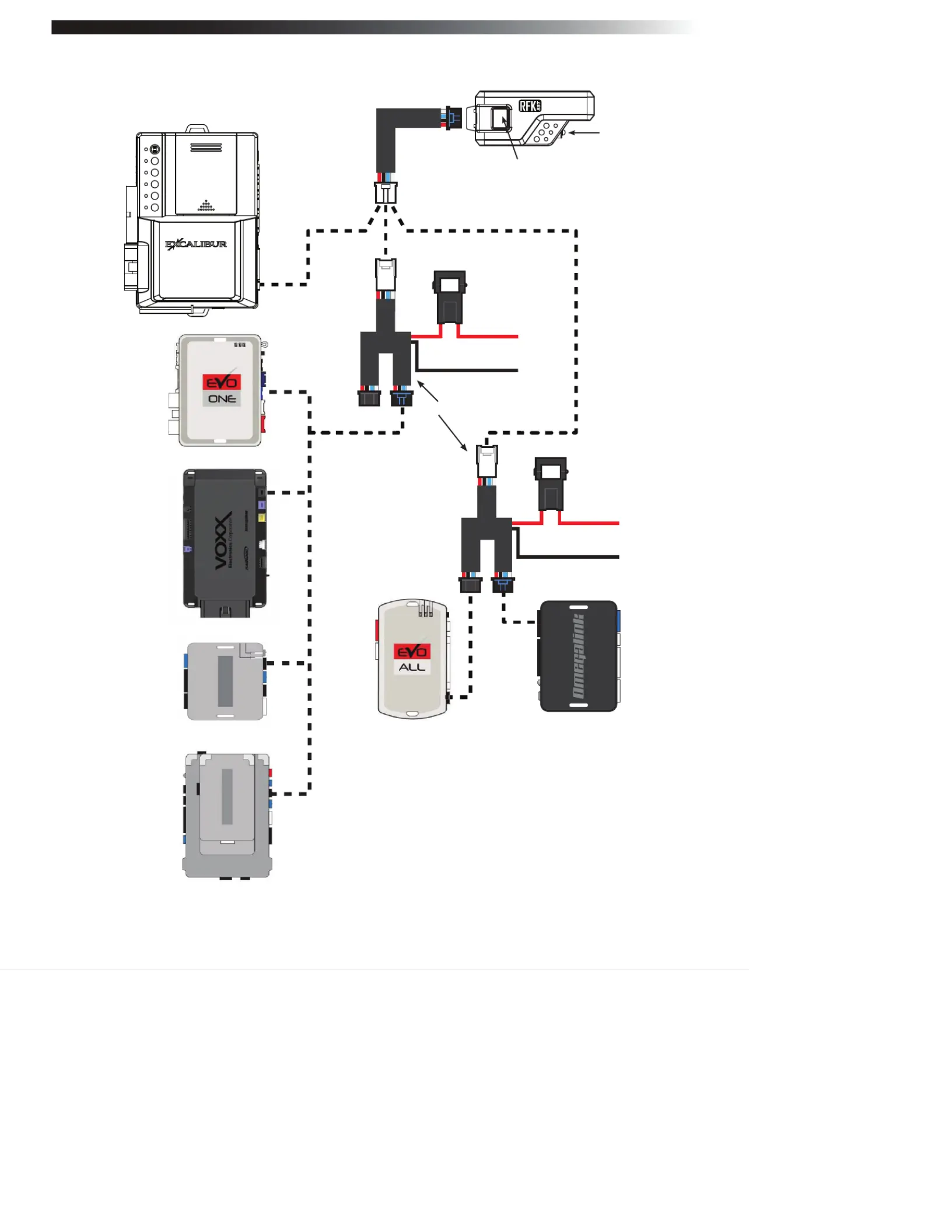

RFK-X2-2N9 Wiring Overview

H-RF4B Adaptor Harness

OL-MDB-ALL w/ RS

Firmware

EVO-ALL w/

Stand-Alone Firm-

ware

(+) 12V

Constant

(-) Ground

Main Harness

(p/n: H-RECXN4)

RFK-X2-2N9 Antenna Module

Valet/Programming

Button

Status

LED

Do Not

Connect

Do Not

Connect

OL-RS-BA EVO-ONE

OL-RS KITS

OL-RS-BM1/BZ

KITS

70-Series

IS_RFKX2_20190905
