Side 1/27

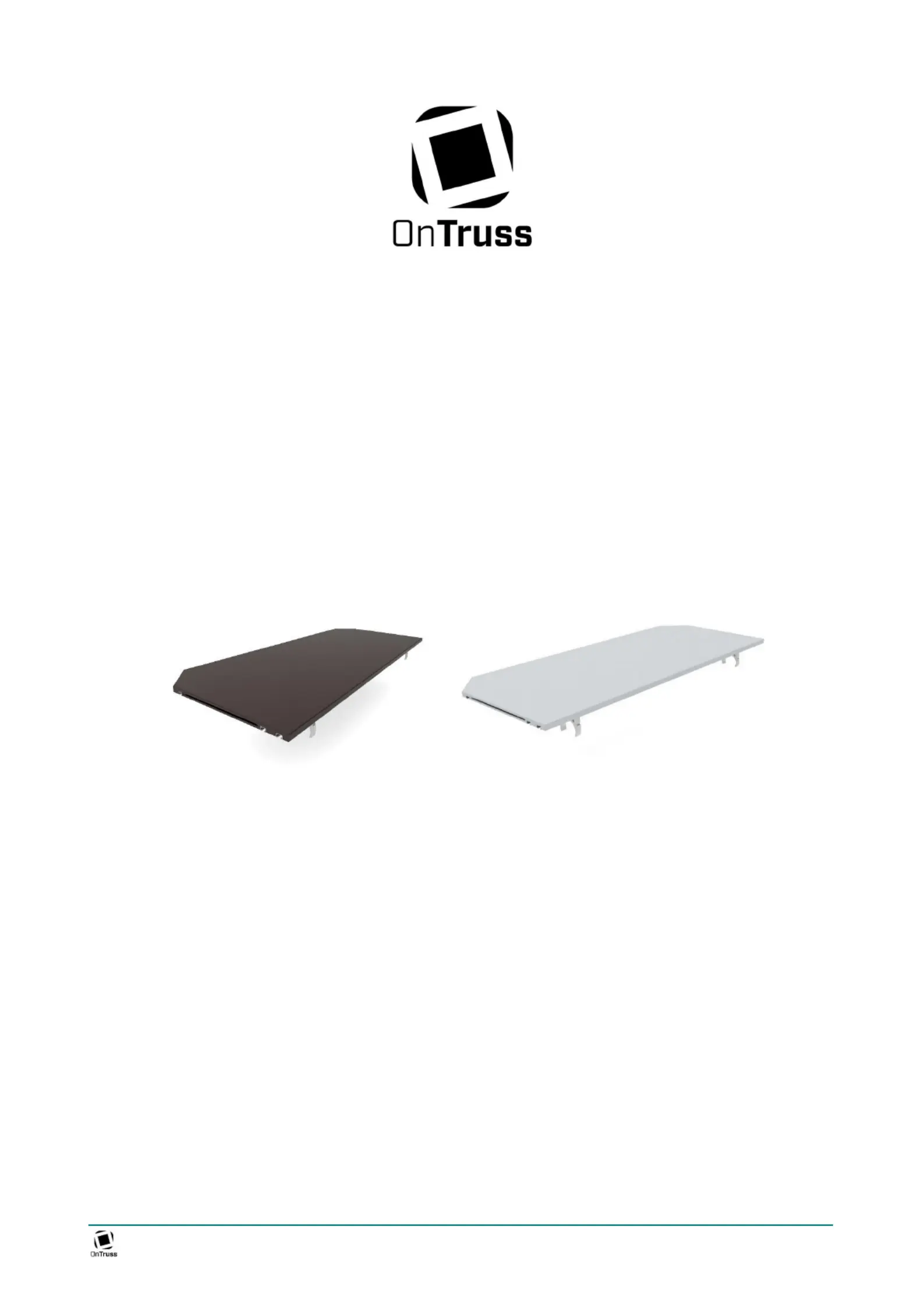

OnTruss Prinz Gewerbepark - Halle 78 Bozener Str. 1 86165 Augsburg / GERMANY 1 von 27
User manual
EventBoard
Basic / Premium
Acessory parts:
TrussClip
TrussClip Safety
GripSlat
BoardBinder ReleaseTool
ENGLISH
Version: 17.02.2020 / F
OnTruss Prinz Gewerbepark - Halle 78 Bozener Str. 1 86165 Augsburg / GERMANY 2 von 27
Contents
Contents .................................................................................................................................................................................. 2
1. Introduction .................................................................................................................................................................. 3
2. Technical data ............................................................................................................................................................. 4
3. Safety instructions .................................................................................................................................................... 8
4. Basics .............................................................................................................................................................................. 9
5. Unpacking the product .......................................................................................................................................... 10
6. Perspective ................................................................................................................................................................. 10
7. EventBoard - Types ...................................................................................................................................................11
8. Truss assembly ......................................................................................................................................................... 12
9. Mounting the TrussClips – Thanks’ to OnTruss concept. ....................................................................... 13
10. Mounting the EventBoards on trusses ...................................................................................................... 16
11. Locking the EventBoard on the truss ........................................................................................................ 20
12. Integration into a roof construction ............................................................................................................ 21
13. Disassembly .......................................................................................................................................................... 22
14. Design examples ................................................................................................................................................. 25
15. Cleaning the EventBoards .............................................................................................................................. 26
16. Service / Support................................................................................................................................................ 27
OnTruss Prinz Gewerbepark - Halle 78 Bozener Str. 1 86165 Augsburg / GERMANY 3 von 27
1. Introduction
Tha
Tha
Tha
ThaThanks
nks
nks
nksnks
for y
for y
for y
for y for your
our
our
our our de
de
de
dedecisio
cisio
cisio
cisiocision
n
n
n n and y
and y
and y
and yand your t
our t
our t
our tour tr
r
r
rrust in
ust in
ust in
ust in ust in our
our
our
our our pro
pro
pro
proproduc
duc
duc
ducduct!
t!
t!
t!t!
You made a good choice with OnTruss EventBoard.
These instructions apply to all OnTruss EventBoards of series Basic and Premium with a length of 50cm,
100cm and 200cm. We also describe how to use the EventBoard Corners C90A, C90C, C45A and C90I.
Furthermore, we explain how to use the accessories TrussClip, TrussClip Safety, GripSlat, BoardBinder und
BoardBinder ReleaseTool.
EventBoard has left our company in best condition. If you follow the instructions below and pay attention
to the instructions, you will enjoy this product for a very long time.
We explicitly declare that we - as the manufacturer - do not take any liability for damages
caused to the product or damages at the event caused by improper use of the product.
Please note that damages caused by manual changes to the product are not covered by warranty.
In this manual we will explain step by step how to assemble several EventBoards to a safe counter.
You can find useful videos and helpful information on our website www.ontruss.de.
