Stretch DisplayPort

User’s Manual

(M1-5000)

Manual Contents

______________________________________________________

Manual Contents 1-0

Welcome!, Product Description 1-1

System Requirements for Setup 1-2

Installation 1-3

Troubleshooting, Maintenance, Technical Support 1-5

Product Specifications 1-6

Warranty Information 1-7

Regulatory Statements 1-8

Pictorials

Figure 1 – Optical DisplayPort Extension Cable,M1-5000 1-1

Figure 2 – Tx Module of M1-5000 Cable 1-3

Figure 3 – Tx Module of M1-5000 Cable with adapter 1-3

Figure 4

– Rx Module of M1-5000 Cable 1-4

Frgure5 – Whole Connection of M1-5000 Cable 1-5

1- 0 Manual Contents

Welcome!

Congratulations on your purchase of the Stretch DisplayPort

M1-5000

Optical DisplayPort Extension Cable. This manual contains information that

will assist you in installing and operating the product.

Product Description

Shipping Group

 M1-5000 Optical DisplayPort Cable: One (1) unit, length as your

request.

 DisplayPort Copper Cable: Two (2) units, 0.5M.

 +5V AC/DC power adapter : One (1) unit

 User’s Manual

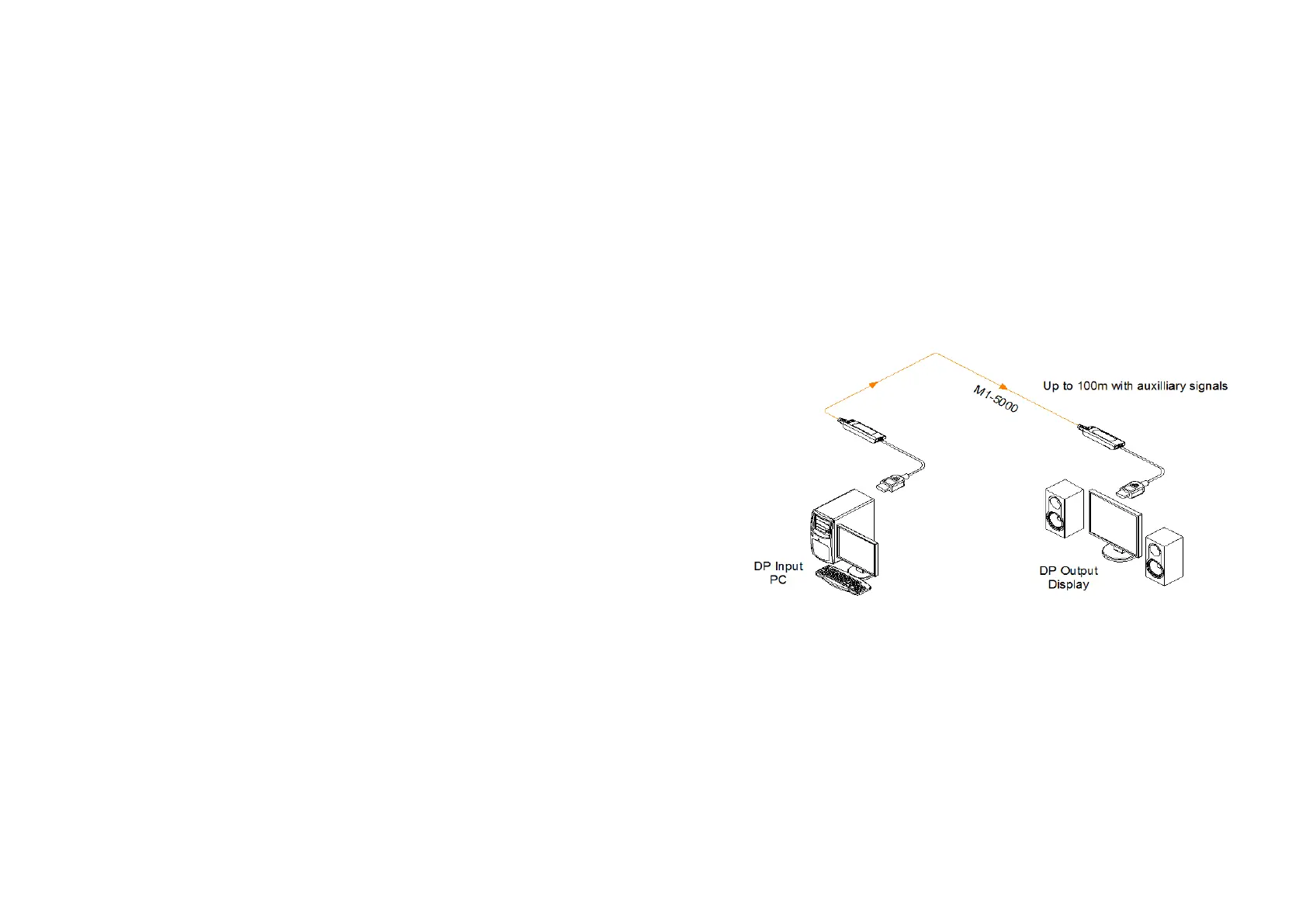

Figure 1 – Optical DP extension Cable, M1-5000

1-1 Welcome, Product Description

Produkspesifikasjoner

Merke:	Opticis
Kategori:	kabler for datamaskiner og annet
Modell:	M1-5000-40
Tilkobling:	2 x DP F
Maksimal oppløsning:	2560 x 1600 piksler
Antall per pakke:	1 stykker
Tilkobling 1:	DisplayPort
Tilkobling 2:	DisplayPort
Kabelmateriale:	Fiber optisk
Dataoverføringshastighet:	10.8 Gbit/s
Kabellengde:	40 m
Produktfarge:	Sort
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-30 - 70 °C
Harmonisert system (HS)-kode:	84733080
Krav til strømforsyning:	5V, 1A
Kontaktkjønn:	Hunkjønn/Hunkjønn
