Side 1/2

and value in everything we make. To ensure you get the most out of your new patio speakers, please take a moment to read this manual before you get started.

Installing Speakers

These weather resistant patio speakers are manufactured to resist

a variety of weather condition. The most ideal place to install these

speakers is the undersides of most eaves and overhangs as they

provide the best protection.

Like all speakers, they sound the best when placed no more than

seven feet apart from each other, and slightly higher than ear level.

If the speakers are more than seven feet apart, toe them in toward

the center of the listening area.

These speakers are not waterproof and cannot be submerged under

water.

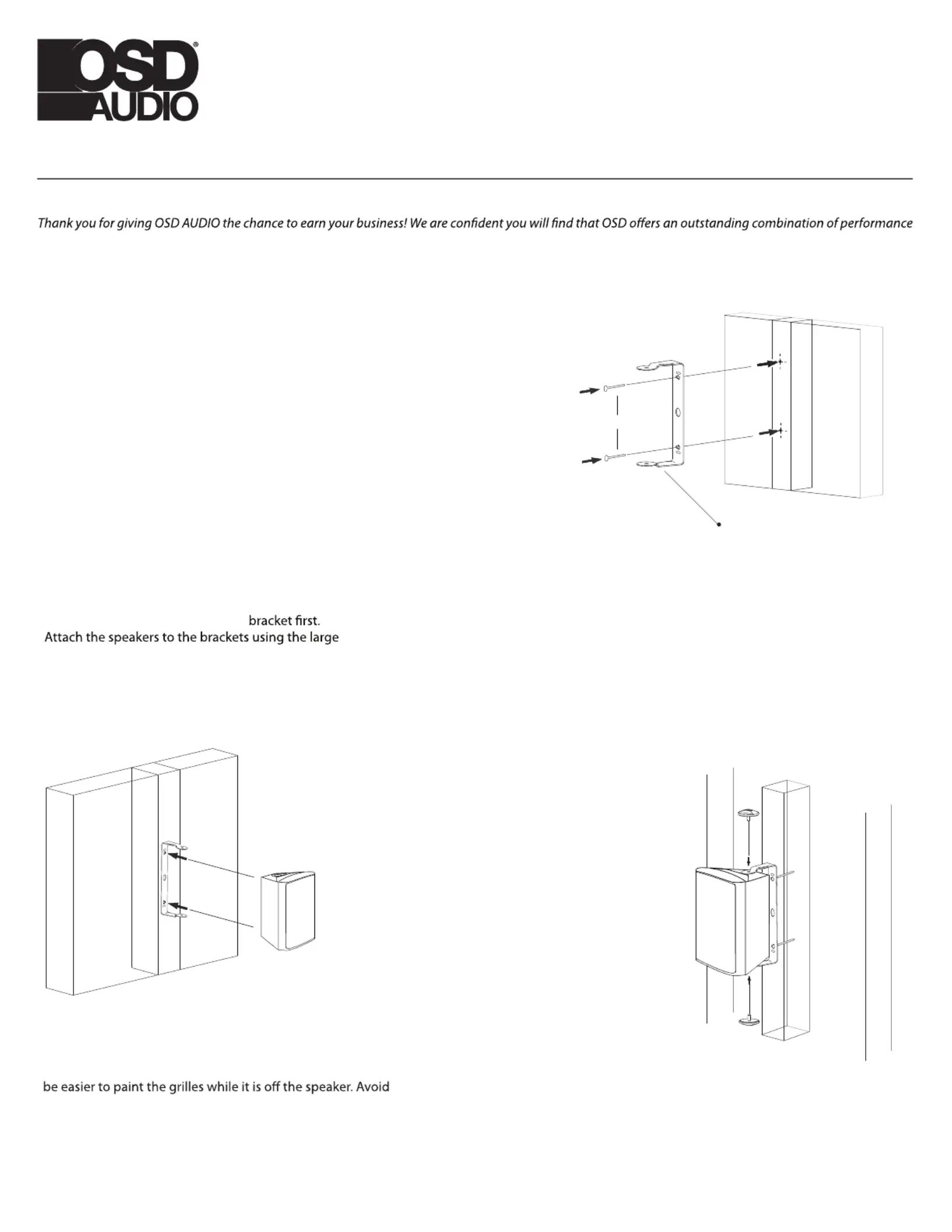

Placing Speakers

If your application requires the speaker to be mounted, please

follow these directions. Mount the

plastic knobs supplied. Never mount a speaker on a wall made

of unreinforced drywall or plasterboard. If you are unsure,

consult a professional contractor. (See Diagram 1)

Painting the grilles

The metal grilles may also be painted. Use very thin paint (5:1). It will

plugging up the holes with excess paint.

Mounting

To install the bracket on the speaker. Screw the bracket knobs into the

cabinet. Point the speaker toward the listening area. Once the direction

of the speaker has been determined tighten the bracket knobs securely.

(See Diagram 2)

Diagram 1

Screw

Bracket

Diagram 2

First remove the grille from the speaker then using spray paint lightly go

over the front of the grille and then go over the back of the grille.

Two coats may be nessesary for desired look.

Knob

Patio Speaker Installation Manual

8Ω

100V 8W 16W 32W N.C.

70V 4W 8W 16W 32W

Warranty & Repair

All OSD AUDIO speaker products have (1) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany all claims.

During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either parts or labor

are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit

must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage are not considered defects, nor

is damaged resulting from abuse or from servicing performed by an agency or person

OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD AUDIO product

purchased from an unauthorized dealer or other source, including retailers, mail over dealers and online sellers will not be honored or serviced under existing OSD

AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable

product.

Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the basis of the retail

value of the parts and labor. To return for repairs, you must email customer service at RMA@audiogeargroup.com for a Returned M

erchandise Authorization

(RMA) number#

then

e unit must be shipped to OSD AUDIO at the owner's expense, along with a note explaining the nature of service required.

Be sure to pack the speaker(s) in a corrugated

container with at least 3 inches of resilient material to protect the unit from damage in transit.

This Warranty Does Not Cover:

Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) •

• Any product whose

identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and maintenance.

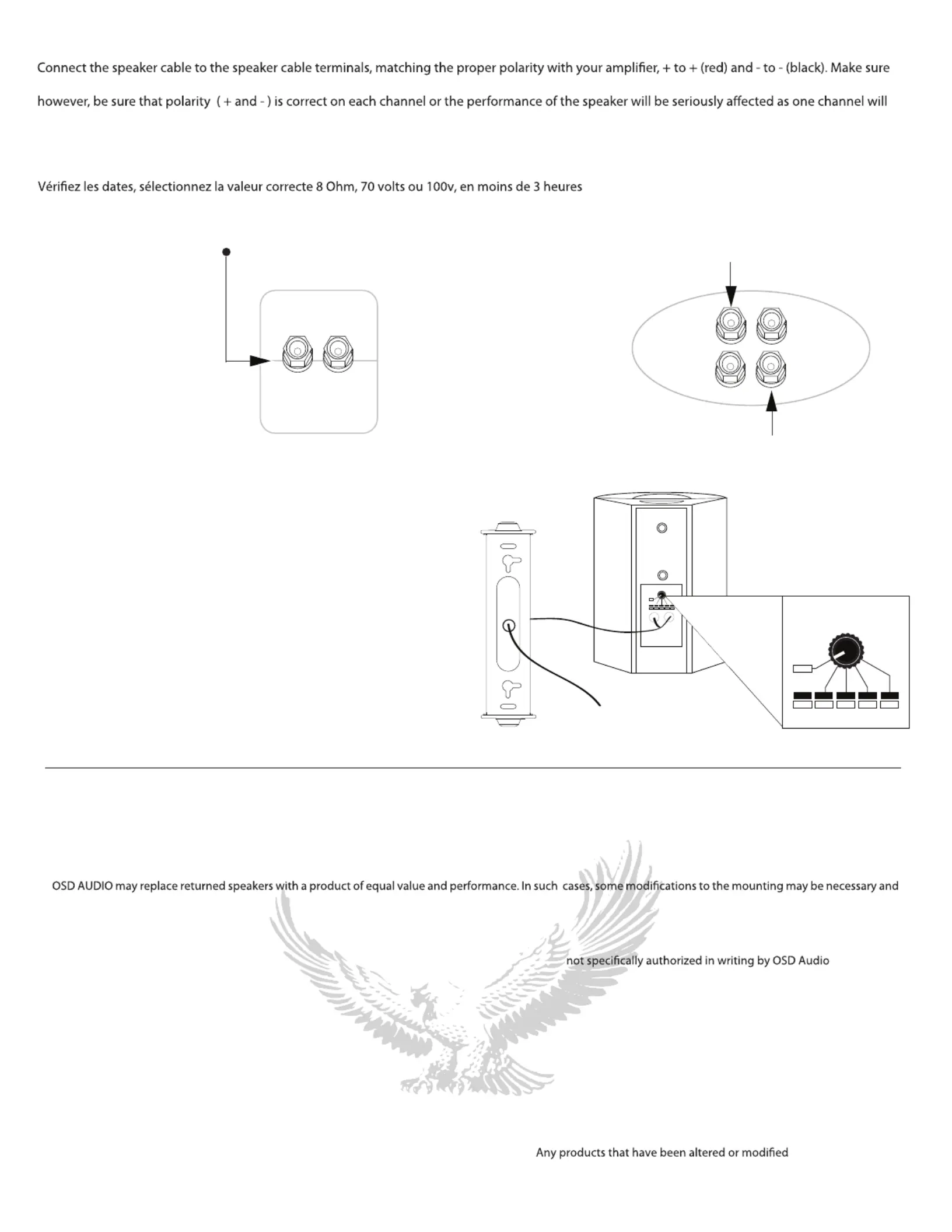

WIRING

to connect the right channel to the right speaker and the left channel to the left speaker . Either channel may be attached to either terminals set,

cancel out the other.

70/100 Volts Considerations (Only for Speakers with 70/100V Option)

The 70/100V

Patio manual Gen. 8/20

transformer offers you the ability to daisy chain multiple

number of speakers in paralell. In doing so, you would simply connect

1 pair of outputs to each speaker and daisy chain to subsequential

speaker/s. If you don’t intend to daisy chain the speakers, set the

default setting to 8 ohms. (See Diagram 3 - Example of Settings)

(Red = Positive / Black = Negative)

Connect Left channel set

Connect Right channel set

Diagram 3

L/R

NOTE: To avoid damage please select correct input 8 Ohm, 70 volt or 100v, prior to connecting

Para evitar daños, seleccione la entrada correcta 8 Ohm, 70 voltios o 100v, antes de conectar

Um Schäden zu vermeiden, wählen Sie bitte vor dem Anschließen den richtigen Eingang 8 Ohm, 70 Volt oder 100 Volt

Pair Speaker

Single - Stereo

OSD Audio | Brea, CA | osdaudio.com

8Ω

100V 8W 16W 32W N.C.

70V 4W 8W 16W 32W

Produkspesifikasjoner

Merke:	OSD Audio
Kategori:	Høyttaler
Modell:	AP525
Vekt:	7260 g
Bredde:	185.42 mm
Dybde:	167.64 mm
Høyde:	246.38 mm
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Inngangsspenning:	70 V
Anbefalt bruk:	Universell
Impedans:	8 Ω
Egnet for utendørs bruk:	Ja
Høyttalerplassering:	Vegg.monterbar
Basshøyttaler:	Ja
Diskanthøyttaler:	Ja
AirPlay:	Nei
Banankontakt:	2
Produktfarge:	Hvit
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	120 W
Antall drivere:	2
Høyttaler type:	5-veis
Frekvensrekkevidde:	45 - 20000 Hz
Diskanthøyttalerens diameter:	1 "
Basshøyttalerens diameter (imperisk):	5.25 "
Antall basshøyttalerdrivere:	1
Multi-Rom Streaming (MRS) støtte:	Nei
