Side 1/2

18AWG minimum - for distances up to ………………………. . 10 ft

16AWG - from ……………………………………………. 10 to 50 ft

14AWG - from …………………………………………… 50 to 100ft

- Where is the best place to install the speakers

- Where do the speakers sound the best?

- Try to separate the speakers 6 - 10 feet apart.

- If you intend to paint the grilles, try to do so before installation.

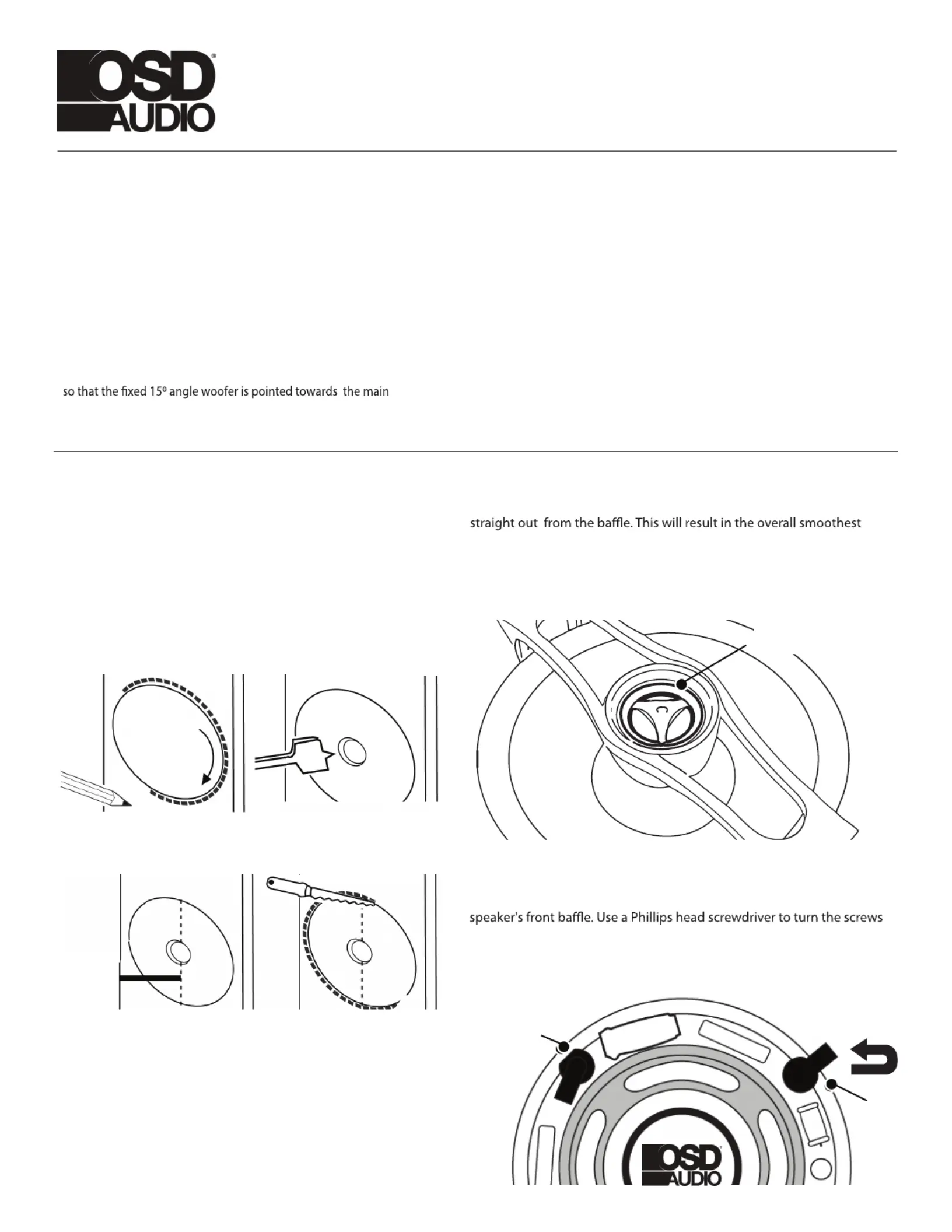

Quick installation guide

- Pencil

- Drill

- Tape Measure

- Wire cutter

- Philips-head screwdriver

- Sandpaper

Tools needed for installation

STEP 4: Mounting Dog Ear

Tighten the dog-ear brackets by simply turning the screws on the

slowly clockwise. The quick-turn mounting system and frame will

"sandwich" or clamp around the wall to hold the speaker securely in

place. (See Diagram 3)

STEP 1: Cutout Tracing

Trace along the inclusive template. Cut along the traced line using a

drywall saw or rotary drill. A simple, inexpensive drywall saw (about

$10 at your local hardware store) is the best choice for beginners.

Caution: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw. Use a

piece of sandpaper to sand down the cut out edge for a smoother

contour. (See Diagram 1 )

STEP 3: Tweeter Adjustment

To determine the length and the gauge of speaker wire, you will need to

measure the distance between your receiver/amplifier to the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

- Utility knife

- Safety eyewear

- Gloves

Speaker wire

In-Ceiling Speakers

Owner’s Manual

- When placing the speakers in the ceiling, try to install them

listening area. (For LCR model only)

Your in-ceiling speakers come from the factory with the tweeter facing

response. However, you can adjust the tweeter to focus the sound at

your listening location. In order to do this, gently press on the grill (See

Diagram 3). Caution: Do not touch the tweeter dome while adjusting for

your hearing preference. (See -Pivoting Tweeter Model Only.

Adjust the tweeter here

Tweeter

Diagram 1:

Diagram 2:

Dog Ear

Diagram 3:

Mounting Dog Ear

Lock

LOOSE

Diagram 2:

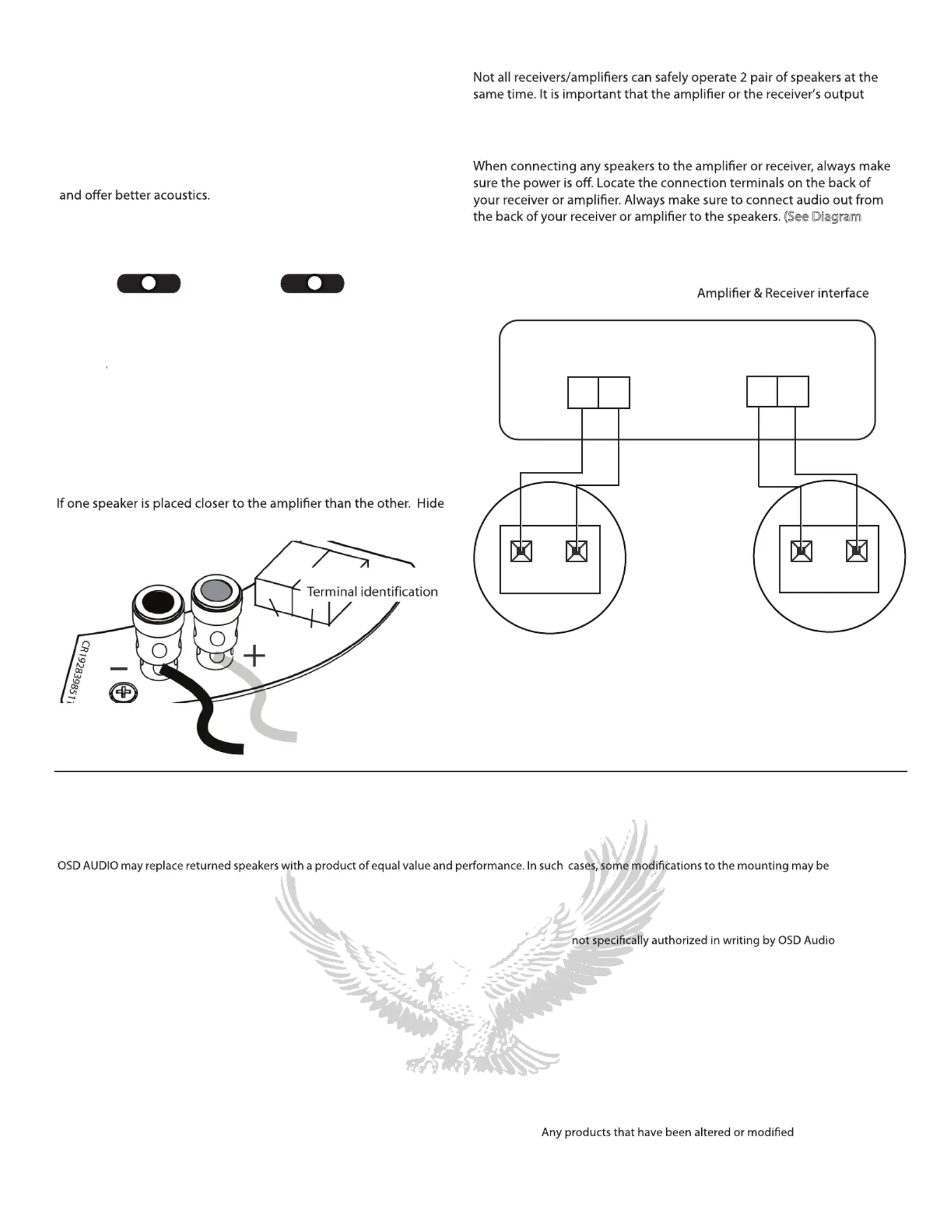

Run the cable into the cut out location while leaving an extra two

feet to make the connection to the speaker easier. Strip back

approximately ½ inch of the speaker cable insulation and twist

the copper wires tightly for easy insertion.

On the back of the speaker, press down on the gold-plated

compression terminal to reveal the "eye" and insert the speaker

cable through the eye for secure connection. Release the compres-

sion terminal to lock each cable securely.

STEP 2:

Connection

Produkspesifikasjoner

Merke:	OSD Audio
Kategori:	Høyttaler
Modell:	ICE610
Vekt:	- g
Bredde:	241.3 mm
Dybde:	60.325 mm
Høyde:	241.3 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Anbefalt bruk:	Universell
Impedans:	- Ω
Egnet for utendørs bruk:	Nei
Høyttalerplassering:	Innbygget Vegg/Tak
Basshøyttaler:	Ja
Forsterker:	Nei
Diskanthøyttaler:	Ja
Produktfarge:	Black, White
Lyd-utgang kanaler:	1.0 kanaler
RMS-rangert strøm/utgangseffekt:	100 W
Utjevner/frekvenskorrigerer:	Nei
Antall drivere:	1
Frekvensrekkevidde:	60 - 22000 Hz
Basshøyttalerens diameter:	165 mm
Diskant diameter:	12.7 mm
Sensitivitet/følsomhet:	90 dB
Diskanthøyttalerens diameter:	0.5 "
Basshøyttalerens diameter (imperisk):	6.5 "
Antall drivere til diskant:	1
Antall basshøyttalerdrivere:	1
