SELF SHIELDED
FLUX CORED
INVERTER
ARC WELDER
100A
INSTRUCTION MANUAL
SPECIFICATIONS
Mains Voltage: 240V ~ 50Hz
Welding Current: 30 - 100A (15.5 - 19V)
Welding Wire Size: 0.8 / 0.9mm (Flux-Cored)
Wire Feed Speeds: 1.6 - 5.0m/min
Max. Wire Spool Weight: 1kg
IP Rating: IP21S
Weight: 6.2kg
* Additional specifications provided under equipment
classification.
IMW-100
STANDARD EQUIPMENT
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: valve adapters and accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARRANTY
OZITO Australia/New Zealand (Head Office) 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
ozito.com.au
Self Shielded Flux Cored Inverter
Arc Welder
0.9mm Torch Tip, Spare Shroud &
Chipping Hammer/Wire Brush
Handle, Welding Mask, Lens
Assembly & Fasteners
0321
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
I
0
AC 240V ~ 50Hz
OFF
ON
AC POWER
ON
THERMAL
OVERLOAD
ALLOW
WELDER
TO COOL
DOWN
!
100A
INVERTER
MIG WELDER
VOLTAGE
MIN MAX
FEED RATE
MIN MAX
Safety Precautions
• Read all safety warnings and all instructions before use. Failure
to follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
• Always wear appropriate protective equipment when welding.
These include: welding helmets, overalls, welding gloves, closed
shoes, leather apron, sock protectors. Overalls should be of the
type designed to be buttoned at the wrists and the neck.
• Remove loose clothing and accessories and ensure any loose
hair is tied up or tucked away.
• Toxic gases are given off during the welding process, which
may collect in the welding area. Always ensure to weld in a
well-ventilated area and use a fume extractor when required.
• The electric arc generated by the welding process gives direct
heat and ultraviolet radiation. It is essential that the eyes of
the operator and any bystanders are protected from the glare
during welding. ALWAYS use a face shield or welding helmets
fitted with the correct glass filter.
• Inspect the welder, welding torch and all connecting wires for
damage / worn insulation before each use and if any damage is
found, replace the damaged parts before use.
• Parts of the welding torch and welding material can be
extremely hot immediately after welding. Wait for the electrode
and the material to cool down before handling and always
ensure welding gloves are worn when handling hot materials.
WARNING! ENSURE ALL OIL, PETROL AND
FLAMMABLE CONTAINERS HAVE BEEN REMOVED
FROM THE WELDING AREA.

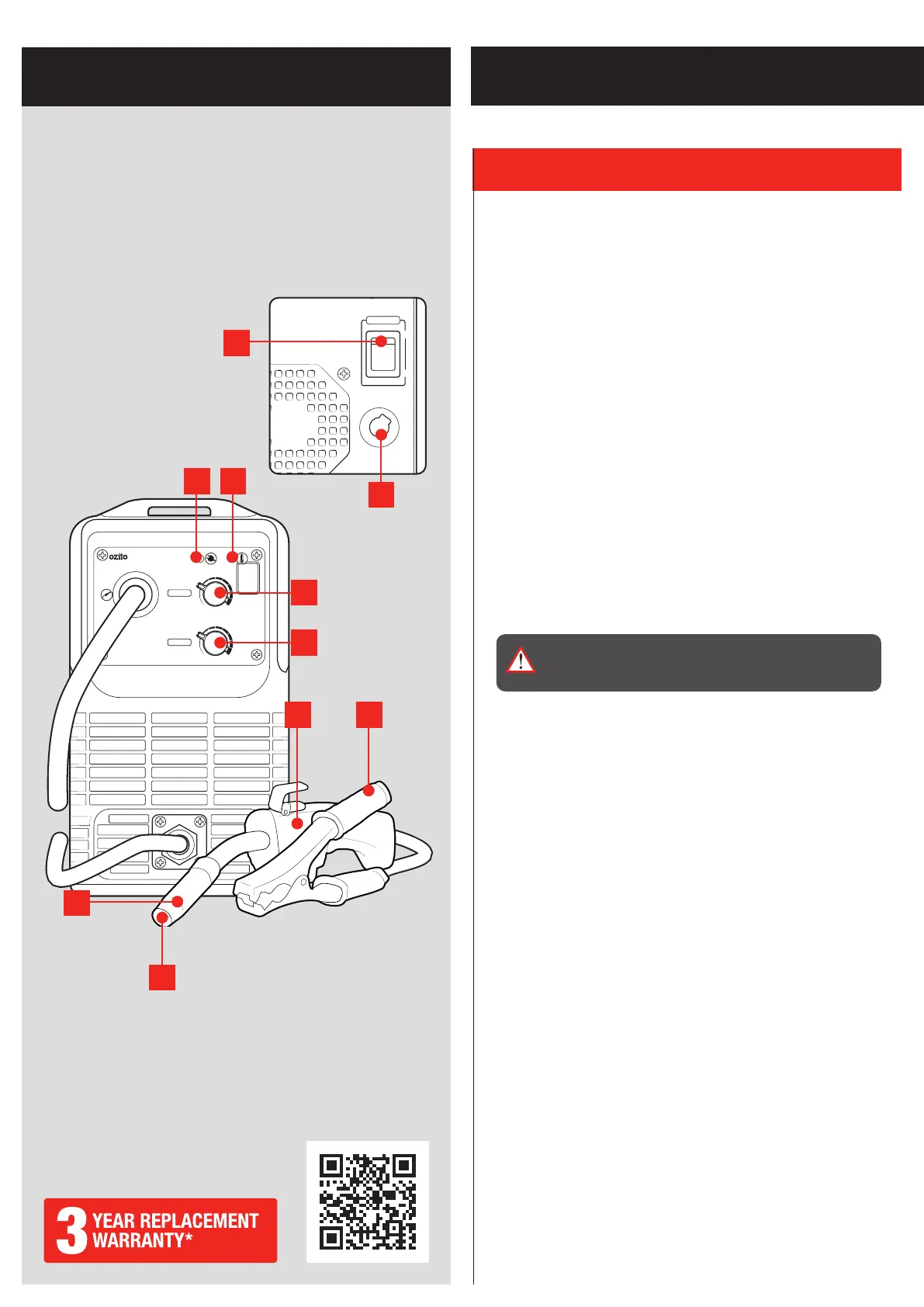

1. On/Off Switch
2. AC Power Cord
3. Power ON LED
4. Thermal Overload LED
5. Voltage Control Dial
6. Feed Rate Control Dial
7. Torch
8. Earth Clamp
9. Torch Tip
10. Torch Shroud
SELF SHIELDED FLUX CORED INVERTER ARC WELDER
KNOW YOUR PRODUCT
1. BEFORE STARTING
SETUP & PREPARATION
4
8
3
7
1
10
9
2
5
6
ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.

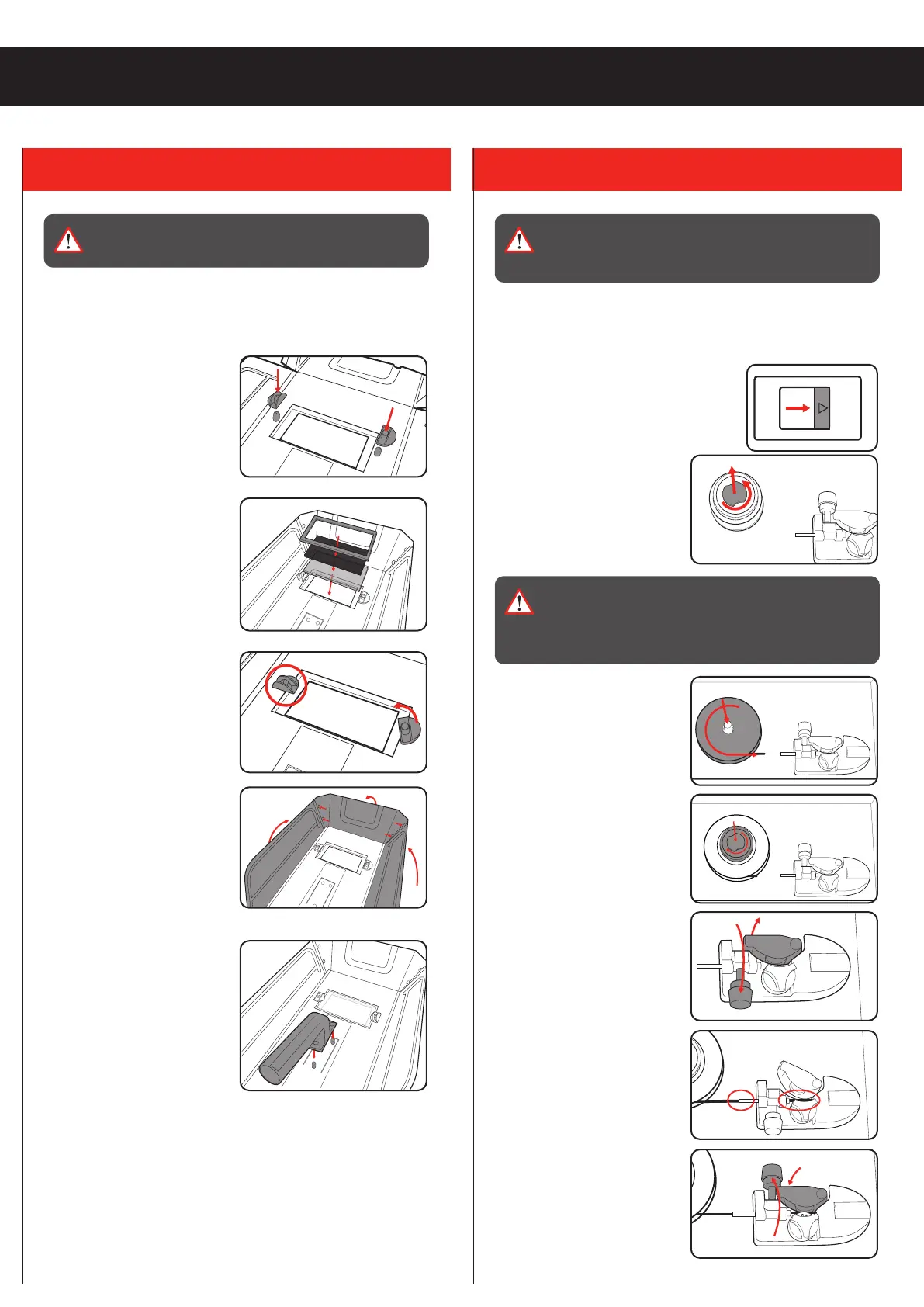

Installing A Wire Spool
The welder can be fitted with 0.8mm or 0.9mm gasless welding
wire. Welding wire up to 1kg can be fitted to this welder.
1. Push the latch towards the back of the
welder unit and lift the top cover.
2. Undo the spool nut then
remove the spring and spool
plate.
Note: Before first use, be sure to
remove all the packaging from
the included wire spool.
WARNING! DO NOT PULL THE END OF THE WIRE FREE
UNTIL YOU ARE READY TO THREAD THE MACHINE. THE
SPOOL IS COILED UNDER TENSION AND WILL UNWIND
IF RELEASED WHICH MAY CAUSE TANGLING & WIRE
FEED ISSUES DURING USE.
3. Place the spool onto the
spindle so that the wire
unwinds in an anti-clockwise
direction.
4. Replace the spool plate and
spring, then lock it in place
with the spool nut.
5. Flip the tension adjustor bar
up and swing the pressure
arm away from the roller
guide.
6. While maintaining a firm hold
of the wire end, pull it free of
the spool and thread it through
the feed tube and into the
cable housing.
7. Rotate the pressure arm back
into place and flip the tension
adjustor bar back to lock it in
place.
Assembling The Welding Mask
The included welding mask must be fitted with the lens assembly
and handle before using it for welding.
1. Push the plastic pins into the
mask from the outside and
secure it with the retaining
clips from the inside of the
mask. Rotate the retaining
clips so that the lens assembly
can be inserted.
2. Insert the clear glass into the
recess of the welding mask,
then the dark safety glass and
finally the plastic lens frame.
3. Rotate the retaining clips to
lock the lens assembly in
place.
4. Bend the sides and top of the
welding mask inwards and
clip it together at the corners.
5. Insert the 3 screws into the
handle mounting holes from
the outside. Fit the handle onto
the screws on the inside of the
mask and secure them using
the 3 nuts.
2. ASSEMBLY 3. SETTING UP THE WELDING WIRE
WARNING! ENSURE THE TOOL IS TURNED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING OPERATIONS.
WARNING! ALWAYS ENSURE THE WELDER IS
SWITCHED OFF WHEN REPLACING THE WELDING WIRE
&/OR MAKING ADJUSTMENTS TO THE WIRE DRIVE
SYSTEM.
a
b
a
b
