SPECIFICATIONS
Voltage: 18V
No Load Speed: 0-1,200/min
Impact Rate: 0-5,500bpm
Impact Power: 2.2 joules
Accessory Fitment: SDS+
Drilling Capacities: 30mm (Timber)
20mm (Masonry)
13mm (Metal)
Weight: 2.5kg
BRUSHLESS
ROTARY
HAMMER DRILL
INSTRUCTION MANUAL
ozito.com.au
STANDARD EQUIPMENT
Brushless Rotary
Hammer Drill
Metal Depth Rod
Side Handle
PXBRHS-200
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO
Australia/New Zealand (Head Ofce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
0218
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts, for example: included accessories.

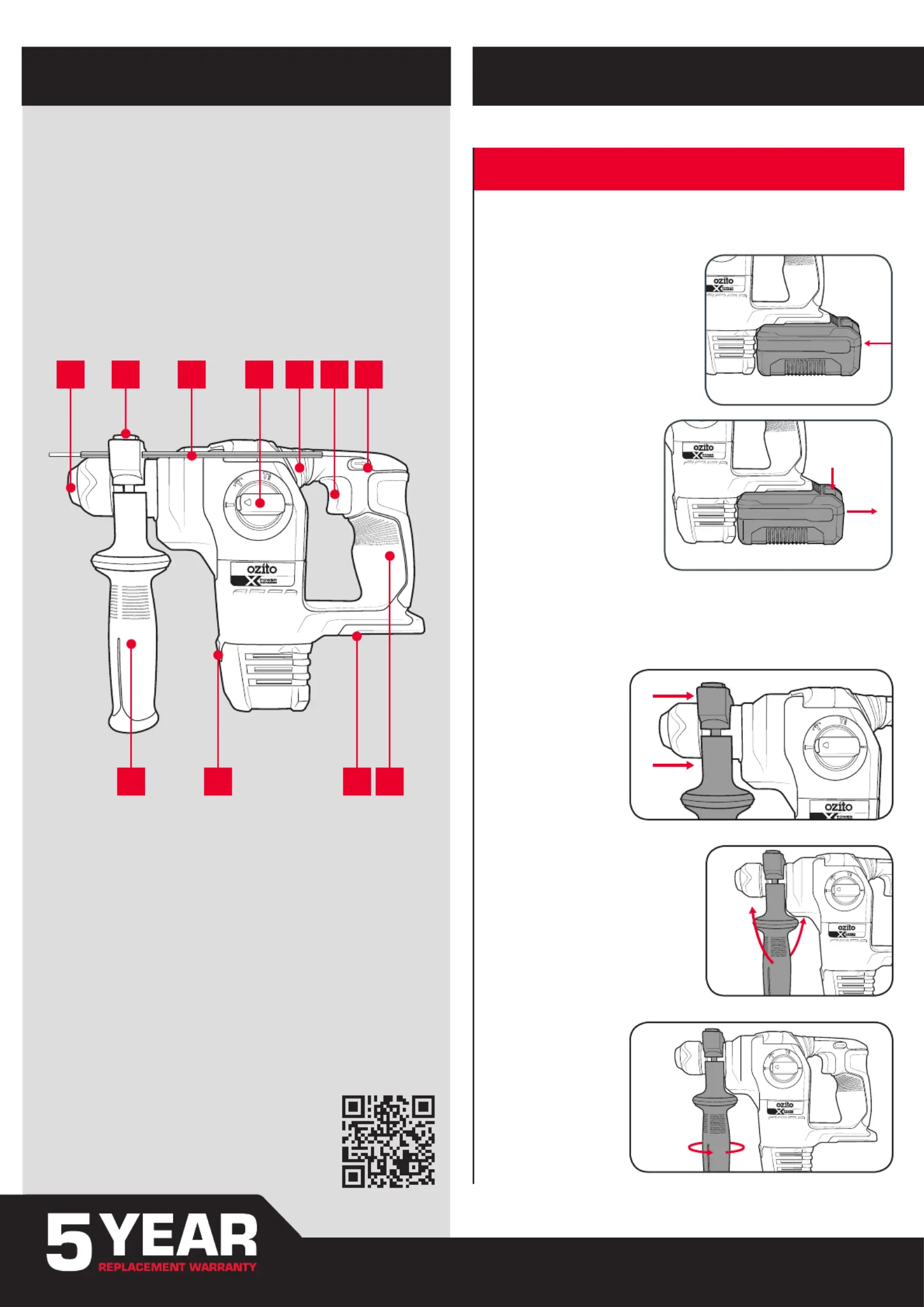

1. FITTING THE BATTERY & HANDLE
Inserting & Removing the Battery
1 Slide the battery into the seating
at the rear of the tool until it
clicks into place.
2 To remove, press and
hold the battery release
tab and then slide out.
a
b
Attaching the Side Handle
3 Secure in position
by rotating the
lower section of the
handle clockwise.
2 Rotate into the desired
handle position and then push
backwards so that the notch
below the chuck inserts into
one of the grooves in the upper
handle.
Note: Ensure the handle is
pushed all the way back to avoid
interference with the chuck.
KNOW YOUR PRODUCT SETUP & PREPARATION
BRUSHLESS ROTARY HAMMER DRILL
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
BATTERY & CHARGER
This tool is compatible with all battery and chargers from the Ozito
Power X Change Range.
For optimal performance, we recommend the use of a 3.0Ah battery or
higher to operate this Power X Change Rotary Hammer.
1 SDS+ Chuck
2 Depth Rod Release Button
3 Metal Depth Rod
4 Mode Selector Dial
5 Anti-vibration Rear Handle
6 On/Off Trigger
7 Forward / Reverse Lever
8 Side Handle
9 LED Worklight
10 Battery Seating
11 Sure Grip Handle
1 2 3 4 5 6 7
111098
1 Loosen the side
handle by rotating
the lower section
anti-clockwise and
then slide over the
chuck and onto the
neck of the drill.
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
THE BATTERY IS REMOVED BEFORE PERFORMING ANY
OF THE FOLLOWING TASKS.

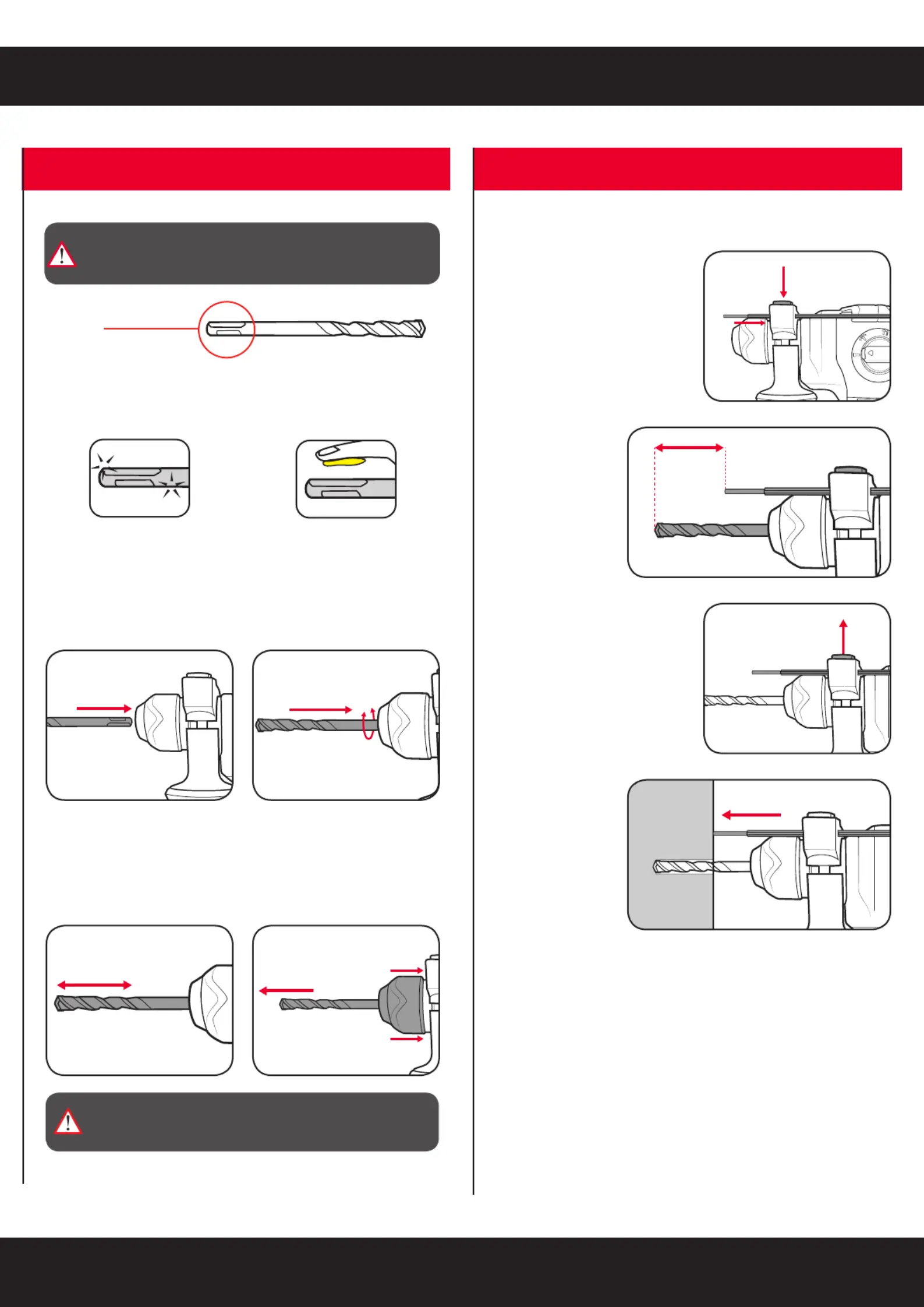

2. SDS+ ACCESSORIES 3. USING THE DEPTH ROD
The depth rod allows you to drill to a predetermined depth.
Required
Drilling
Depth
a
b
2 While holding the
release button
down, adjust the
depth rod so the
drill bit extends
beyond the end
of the rod to the
required drilling
depth.
4 Drill the hole until
the end of the depth
rod touches the
workpiece.
1 Press and hold the depth rod
release button down and insert
the depth rod into the hole in the
upper handle.
1 Prior to inserting into chuck,
ensure the SDS+ accessory is
clear of dust and debris.
3 Insert SDS+ Accessory into
locking sleeve.
Note: The locking sleeve should
not be pulled back when inserting
accessory.
5 Pull on the SDS+ accessory to
check it is locked in.
Note: It should have approximately
10–20mm movement. This is normal.
2 Prior to inserting into drill add
lubricant to the SDS+ accessory.
4 Rotate until accessory is inserted
as far as possible into locking
sleeve.
Note: You should hear a click when it
is correctly inserted.
6 To remove the SDS+ accessory
pull back the locking sleeve and
pull accessory out.
3 Release the depth rod release
button to secure the depth rod in
position.
Accessory
SDS+
CAUTION: TO REDUCE THE RISK OF INJURY
WE RECOMMEND THE USE OF GLOVES WHEN
HANDLING DRILL BITS.
