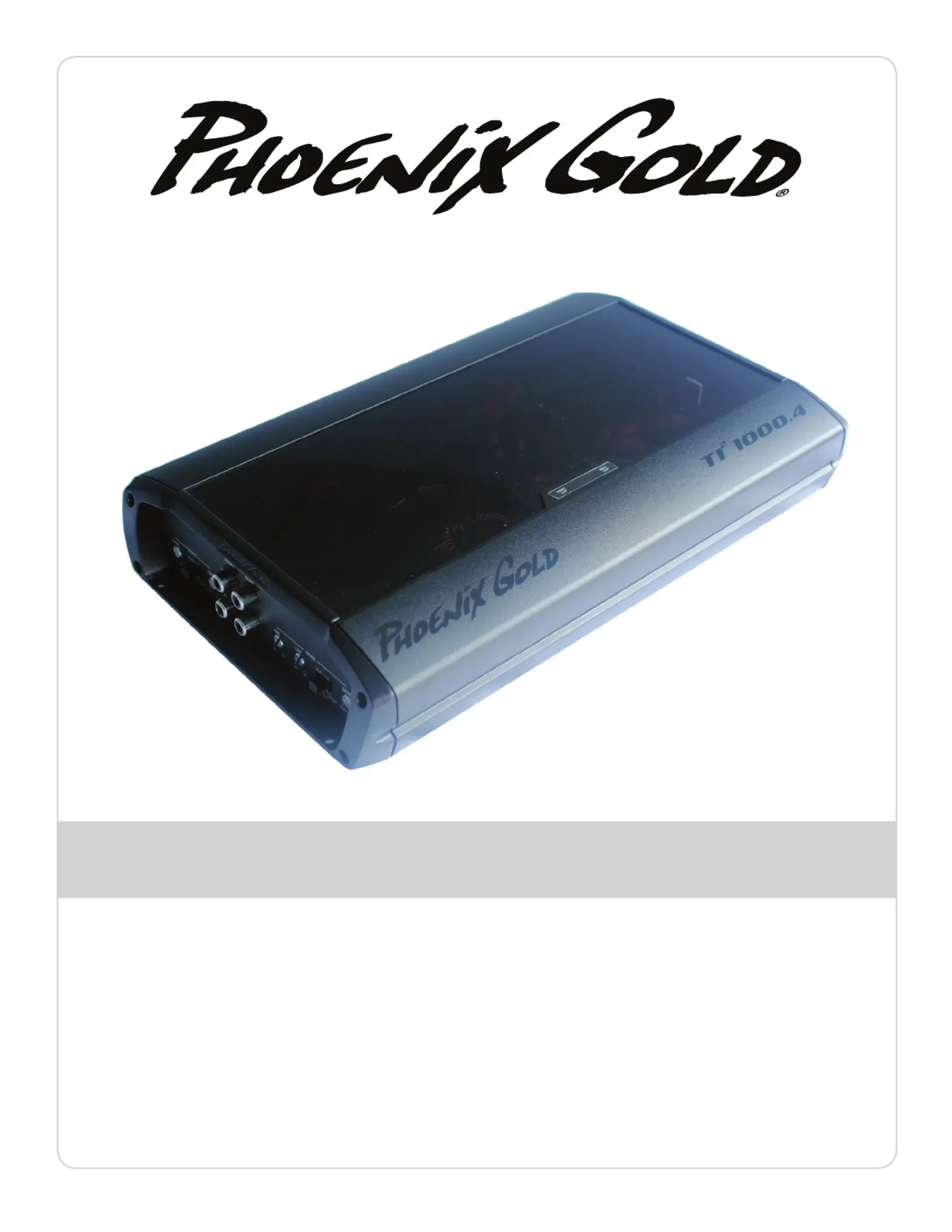

Amplifier Manual
Manual del Amplificador
Manuel del’amplificateur
Features: Caractéristiques:
Models: Ti2 1000.4, Ti2 1600.5
• High Eciency Class D Topology
• Compact Size for Easy Installation
• Balanced Dierential Input Circuitry
• Audiophile NJM2068M Operational Ampliers
• Ultra High Speed IR Class D Chipset
• High, Band and Low Pass Crossovers
• ADAPT Power Management System
• Surface Mount Component Technology
• Direct Insert Power and Speaker Terminals
• Audio Precision Quality Control Verication
• High Temperature Plexiglass cover
• Signal Clipping Indicators
• RMD - Remote Monitoring Display Port
• RBCF- Remote Subwoofer Level Control included
(Ti2 1600.5)
• Petit format pour faciliter l’installation
• Topologie de classe D de gamme complète
• Circuit équilibré Entrée diérentielle
• Audiophile NJM2068M Amplicateurs opérationnels
• Haute Vitesse IR de classe D chipset
• Filtres croisés passe-haut et passe-bas
• ADAPT système d’alimentation
• Technologie de composant monté en surface
• Terminaux d’alimentation et de haut-parleurs à
insertion directe
• Vérication du contrôle de la qualité de la précision audio
• Couvercle de plexiglas résistant aux températures élevées
• RMD - Entrée De L’achage de Tension a Distance
• RBCF- Niveau de contrôle de passe-bas inclus (Ti2 1600.5)
Características:
• Alta eciencia de clase D Topología
• Tamaño compacto para fácil instalación
• Diferencial balanceada circuitos de entrada
• Audiophile NJM2068M amplicadores operacionales
• IR Chipset Ultra Alta Velocidad
• Crossovers paso alto y bajo
• ADAPT Sistema de Gestión de Energía
• Tecnología “Surface Mount Component”
• Conexiones directas de terminales de poder y de
parlantes
• Control de vericación de calidad de precisión de audio
• Cubierta de Plexiglás resistente a altas temperaturas
• RMD - Puerto de display para monitoreo remoto
• RBCF - Control de nivel de Subwoofer remoto incluido
(Ti2 1600.5)
Amplier Owner’s Manual
www.phoenixgold.com
SPECIFICATIONS
Ti2 1000.4 SPECIFICATIONS
Frequency Response: ± 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >100dB
Crossover Slopes: 12dB per Octave
Front High/Low Pass Crossover Range: 45Hz to 4kHz
Rear High Pass Crossover Range: 20Hz to 4kHz
Rear Low Pass Crossover Range: 40Hz to 4kHz
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 4 ohms Bridged/2 ohms Stereo
Typical Eciency: 80%
Damping Factor Greater than 200
RMS Power Output
150w x 4 @ 4 ohms Stereo
250w x 4 @ 2 ohms Stereo
500w x 2 @ 4 ohms Bridged
Power/Ground Wire Size: 4 Gauge
Recommend Power Wire Fuse: 80a
Dimensions: 11.7” L x 7.1” W x 2.0” H
296mm L x 180mm W x 52mm H
SUBWOOFER CHANNEL:
Frequency Response: ± 1dB from 20Hz to 300Hz
Signal to Noise Ratio: >100dB
Crossover Slopes: 12dB per Octave
Low Pass Crossover Range: 20Hz to 300Hz
Subsonic Crossover Range: 10Hz to 50Hz
Variable Phase: 0 to 180 degrees
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 2 ohms
Typical Eciency: 80%
Damping Factor: Greater than 200
Ti2 1600.5 SPECIFICATIONS
FRONT AND REAR CHANNELS:
Frequency Response: ± 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >100dB
Crossover Slopes: 12dB per Octave
Front High Pass Crossover Range: 20Hz to 4kHz
Rear High Pass Crossover Range: 20Hz to 4kHz
Rear Low Pass Crossover Range: 40Hz to 4kHz
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 4 ohms Bridged/2 ohms Stereo
Typical Eciency: 80%
Damping Factor Greater than 200
RMS Power Output 500w x 1 @ 4 ohms
800w x 1 @ 2 ohms
Recommend Power Wire Fuse: 100a
Power/Ground Wire Size: 4 Gauge
Dimensions: 14.4” L x 7.1” W x 2.0” H
366mm L x 180mm W x 52mm H
RMS Power Output 125w x 4 @ 4 ohms Stereo
200w x 4 @ 2 ohms Stereo
400w x 2 @ 4 ohms Bridged
POWER OUTPUT NOTE: A power birth certicate is included for each amplier. Ti2
ampliers are conservatively rated and will exceed their RMS power rating shown
here. All RMS power ratings and measurements are at 14.4 volts with no more than
1% THD. Ti2 1000.4 and Ti2 1600.5 feature ADAPT technology which provides the
same power output from 11 to 15 volts with music material.
www.phoenixgold.com
Amplier Owner’s Manual
Key Features
ADAPT POWER MANAGEMENT SYSTEM
Full power output from 11 to 15 volts: ADAPT delivers the same output
power regardless of the vehicle’s electrical system voltage. Instantaneous or
long term voltage drops have no eect on the amplier’s power output. This
means more dynamic and less distorted audio output.
Dual power modes provide maximum efficiency: ADAPT seamlessly
optimizes the power supply and Class D operating circuitry by adapting to
the end user’s listening habits. When the ADAPT circuit senses lower signal
levels, it will automatically optimize the amplier’s power supply and Class
D circuitry to a low power mode that maximizes eciency and minimizes
heat to almost zero. As a signal increase is detected the amplier instantly
shifts into a high power mode, where the power supply and Class D sections
are now optimized to deliver massive power and headroom for those
demanding listening sessions. The amplier is constantly monitoring and
adapting between these modes which results in higher overall eciency,
much lower operating temperatures and rock solid reliability.
BALANCED DIFFERENTIAL INPUTS
Provides maximum rejection of unwanted noise from upstream
components.
AUDIOPHILE NJM2068M OP-AMPS
Most mobile ampliers today use the standard NJM4558 op-amp which
has a bandwidth of 3MHz, slew rate of 1V/uSec and noise level of 1.4uV.
The NJM2068M is simply a better performer with a bandwidth of 19MHz,
slew rate of 6V/uSec and noise level of .44uV.
The result is quieter, faster and wider bandwidth performance that
ensures the original music material is reproduced as accurately as
possible.
ULTRA HIGH SPEED IR CLASS D CHIPSET
State of the art IR20957 chipset switches at more than 300kHz
for blistering audio performance. All four or ve chipsets are
sync’d together in unison to eliminate unwanted harmonics or
distortion.
POST FILTER FEEDBACK
Feedback is when part of the output signal is “fed back” into the
original signal to ensure stability and accurate sound. Class D
ampliers use output lters (see the 4 vertical coils below), but
most DO NOT INCLUDE these lters in the feedback loop. Ti2
ampliers INCLUDE or take feedback after its passed through
these lters. The result is more accurate sound that rivals some
of the best class A/B ampliers.
THERMAL ROLLBACK CIRCUIT
Under most conditions, Ti2 ampliers generate moderate
to low heat. However, if extreme conditions exist, as
temperatures rise the amplier will automatically adjust the
power output, so your music continues to play. These changes
are inaudible and vastly reduce the chance for any thermal
shutdown events.

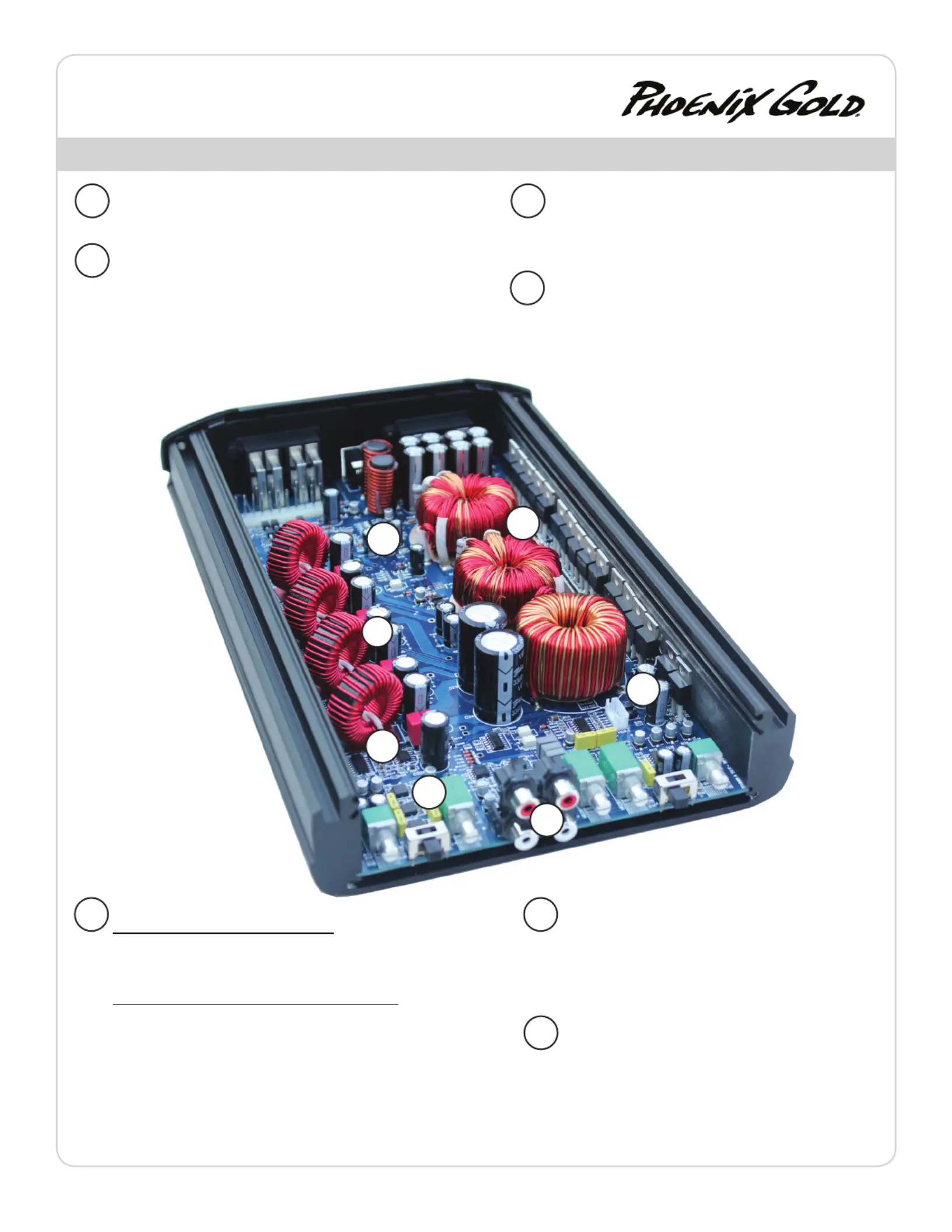

LOW EMI CIRCUIT BOARD DESIGN
Most class D ampliers can emit EMI noise that can cause
problems with AM/FM reception or other devices in the
vehicle. Ti2 ampliers have undergone intense real world
engineering and testing to vastly reduce or eliminate these
issues. Careful PCB layout using four layers (most ampliers
feature just two) along with many key lters ensures a very
low possibility of any interference issues.
A
B
C
D
E
F
A
G
B
C
D
E F
G
