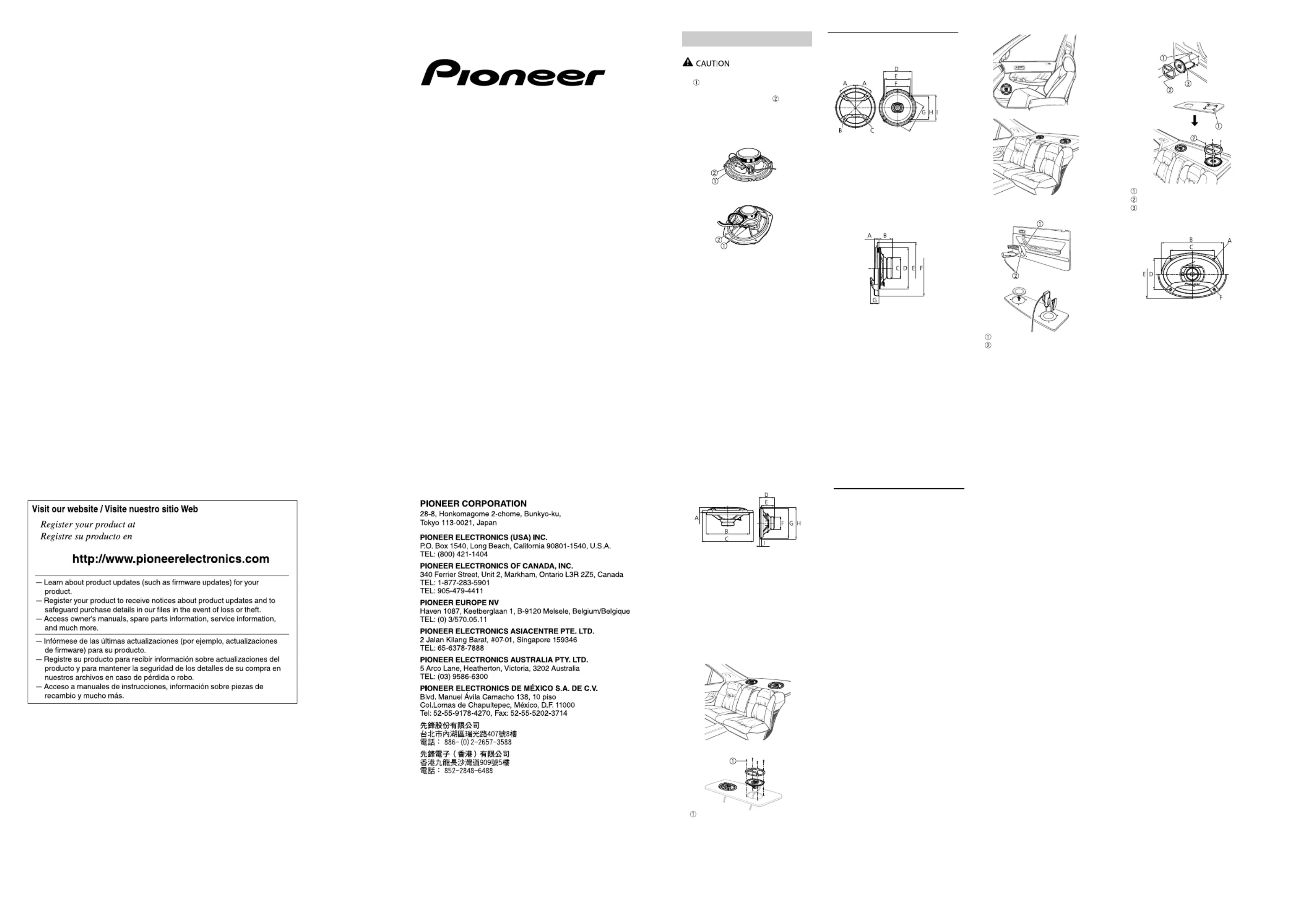

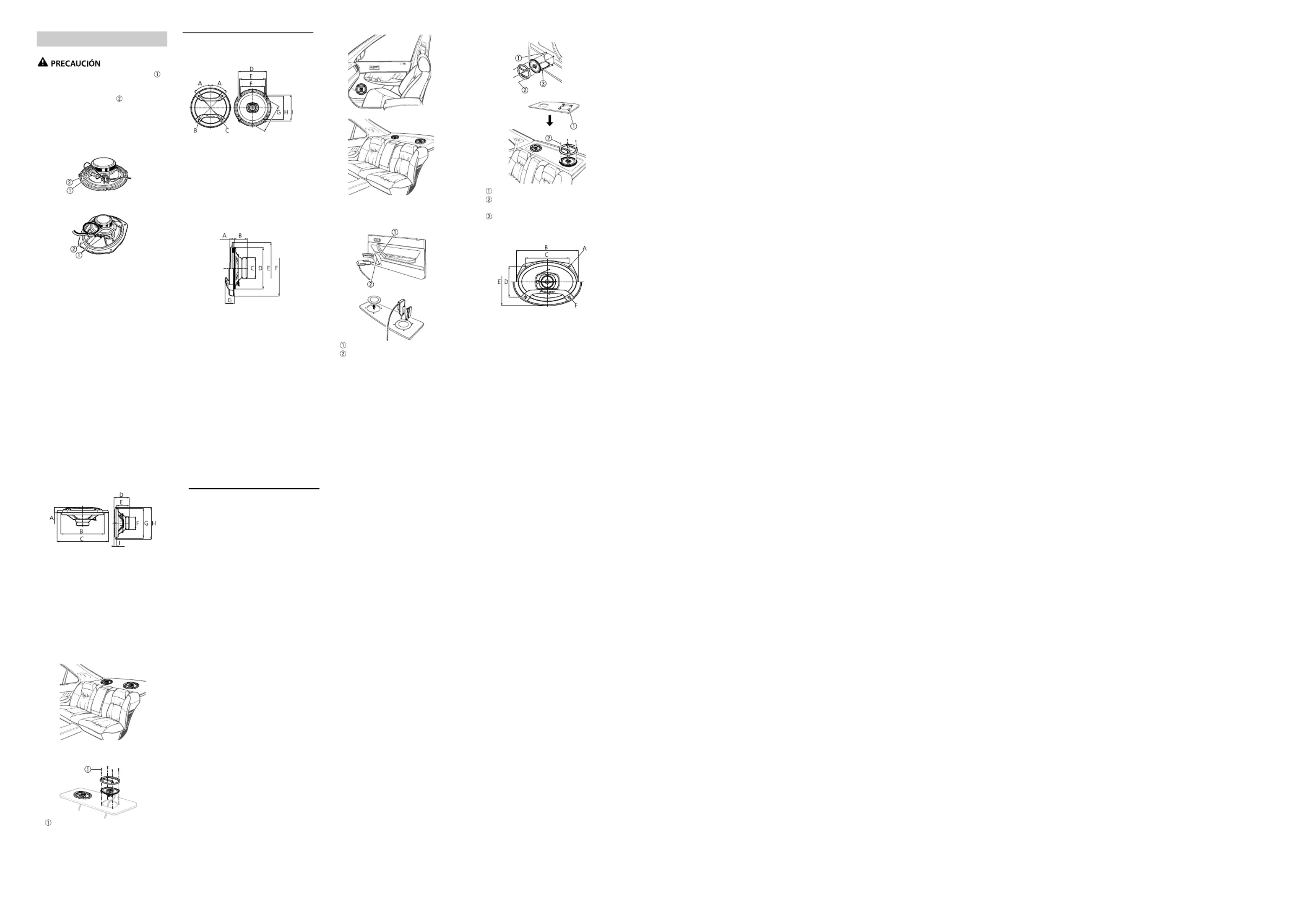

TWO 6-1/2" 2-WAY SPEAKERS AND TWO 6" × 9" 3-WAY SPEAKERS
DOS 6-1/2" ALTAVOCES DE 2 VÍAS Y DOS ALTAVOCES DE 3 VÍAS DE 6" × 9"
TS-165P
TS-695P
Installation Manual
Manual de instalación
English
Speaker installation
16 cm 2-way speakers
1Determine the location of the speaker
as illustrated.
1
2
3
4
16 cm 2-way speakers
6" × 9" 3-way speakers
Do not touch the speaker flexible wire
.
Do not change the direction of the
speaker terminal assembly .
Make sure lead and speaker terminals do
not contact metal.
When making connections, refer also to
the instruction manual of the car stereo
used.
Front
A
B
C
D
E
F
G
H
I
45°
ф 4.3 mm holes (3/16 in. Dia.)
ф 142 mm (5-5/8 in. Dia.)
123 mm (4-7/8 in.)
113 mm (4-1/2 in.)
100 mm (3-7/8 in.)
123 mm (4-7/8 in.)
100 mm (3-7/8 in.)
113 mm (4-1/2 in.)
Side
A
B
C
D
E
F
G
13 mm (1/2 in.)
41 mm (1-5/8 in.)
ф 65 mm (2-5/8 in. Dia.)
ф 128 mm (5 in. Dia.)
ф 158 mm (6-1/4 in. Dia.)
ф 170 mm (6-3/4 in. Dia.)
27 mm (1 in.)
2Make holes as illustrated. (If needed,
remove the door upholstery.)
3Install the speakers as illustrated.
6" × 9" 3-way speakers
ф 4.3 mm (3/16 in. Dia.)
ф 128 mm (5 in. Dia.)
Speed nut
Tapping-screws (4 mm × 25 mm)
Cable (gray or white)
Front
A
B
C
D
E
F
5.6 mm × 8.7 mm holes
(3/16 in. × 5/16 in.)
237 mm (9-3/8 in.)
166.6 mm (6-1/2 in.)
117.5 mm (4-5/8 in.)
182 mm (7-1/4 in.)
ф 4.8 mm holes (3/16 in. Dia.)
1Determine the location of the speaker
as illustrated.
2Install the speakers as illustrated.
Specifications
16 cm 2-way speakers
Reproduction system: Coaxial two way
Woofer: ф 158 mm (6-1/4 in. Dia.)
Water-resistant
Injection-molded polypropylene cone
High compliance, rolled edge
Heat-resistant voice coil
Magnet: 130 g (4.4 oz)
Tweeter: ф 30 mm (1-3/16 in. Dia.)
Dome
Nominal impedance: 4 Ω
Sensitivity: 88 dB (±1.5 dB)
Frequency response: 31 Hz to 16 kHz
(–20 dB)
Maximum music power: 200 W
Nominal power: 25 W
Grille material: Heat-proof resin
Weight (per speaker including accessory
parts): 0.45 kg (16 oz)
6" × 9" 3-way speakers
Reproduction system: Coaxial three way
Woofer: 163 mm × 237 mm
(6-3/8 in. × 9-3/8 in.)
Injection-molded polypropylene cone
High compliance, rolled edge
Heat-resistant voice coil
Magnet: 150 g (5.3 oz)
Midrange: ф 52 mm (2 in. Dia.)
Magnet: 12 g (0.5 oz)
Tweeter: ф 11 mm (3/8 in. Dia.)
Nominal impedance: 4 Ω
Sensitivity: 88 dB (±1.5 dB)
Frequency response: 28 Hz to 32 kHz
(–20 dB)
Maximum music power: 230 W
Nominal power: 30 W
Grille material: Heat-proof resin
Weight (per speaker including accessory
parts): 0.63 kg (1 lb 6 oz)
NOTE
Specifications and the design are subject
to modifications without notice.
Side
A
B
C
D
E
F
G
H
I
28.3 mm (1-1/8 in.)
222 mm (8-5/8 in.)
262 mm (10-3/8 in.)
77.6 mm (3 in.)
66.3 mm (2-5/8 in.)
ф 65 mm (2-5/8 in. Dia.)
153 mm (6 in.)
163 mm (6-3/8 in.)
11 mm (3/8 in.)
Tapping-screws (4 mm × 30 mm)
© 2016 PIONEER CORPORATION. All rights reserved.
© 2016 PIONEER CORPORATION. Todos los derechos reservados.
<CYR1184-A> <127075007111> US
