Operation

Manual

Chicken Holding Bin

DHB2PT-44D

Product Identification

Prince Castle's DHB2PT-44D Chicken Holding Bin is

designed to hold all your bone-in fried chicken better

than ever before. Capable of holding up to 360 pieces of

chicken, the DHB2PT-44D is designed to both hold

and merchandise your chicken in a dual line store

format.

TABLE OF CONTENTS

355 East Kehoe Blvd. • Carol Stream, IL 60188

Phone: 630-462-8800 • Toll Free: 1-800-PCASTLE

www.PrinceCastle.com

Product Identification ........................................... 1

Safety Information ............................................... 2

I m p o r t a n t ! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

I n s t a l l a t i o n / Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

I n i t i a l S t a r t u p .... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

R e c o m m e n d e d Settin g s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

R e s e t t i n g t o F a c t o r y D e f a u l t s . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

C o n t r o l Panel ..... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 4

P r o g r a m m i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

C l e a n i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

T r o u b l e s h o o t i n g . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 6

P a r t s & S e rvi c e . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 7

W i r i n g D i agram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 9

LIMITED WARRANTY

This product is warranted to be free from defects in material and/or

workmanship for a period of 1 year from date of original installation, not

to exceed 18 months from the date of manufacture.

Any component which proves to be faulty in material and/or workmanship

will be replaced or repaired (at the option of Prince Castle, Inc.) without cost

to the customer for parts and labor. This warranty covers on-location service

(i.e. trip charges and/or mileage). Travel mileage is limited to 100 miles

(200 Kilometers) round trip (one trip warranty) from an authorized service

agency or its sub-service agency.

This warranty is subject to the following exceptions/conditions:

• Use of any non-genuine Prince Castle parts voids this warranty.

• All labor to be performed during regular work hours. Overtime

premium (the incremental amount) will be charged to the customer.

•

Damage caused by carelessness, neglect and/or abuse (e.g., dropping,

tampering or altering parts, equipment damaged in shipment, by fire,

flood or an act of God) is not covered under this warranty.

• All problems due to operation at voltages other than that specified on

equipment nameplates are not covered by this warranty. Conversion

to correct voltage is the customer’s responsibility.

•

This equipment must be serviced by Prince Castle Authorized Service

Agency or a Prince Castle Service Technician during the warranty period.

Chicken Holding Bin

DHB2PT-44D

528-503 RevJ_EN

Safety Information Important!

WARNING

Indicates information important to the proper operation of the

unit. Failure to observe may result in damage to the equipment

and/or severe bodily injury or death.

CAUTION

Indicates information important to the operation of the unit.

Failure to observe may result in damage to the equipment.

Prince Castle reserves the right to change specifications and

product design without notice. Such revisions do not entitle the

buyer to corresponding changes, improvements, additions or

replacements for previously purchased equipment.

Installation / Setup

Remove the unit from the carton and inspect for signs of

damage. If there is damage to the unit:

• Notify the carrier within 24 hours of delivery,

• Save carton and packaging materials for inspection purposes,

•

NOTE: When installing this unit, the a

mbient temperature at the

mounting site should not excee

d 37.8°C (100°F).

CAUTION

All electrical connections must be in accordance with local

electrical codes and any other applicable codes.

Plug the unit into an applicable electrical receptacle.

Contact your local dealer, or if purchased directly, the Prince

Castle Sales Department at 1-800-722-7853 opt 1 or

630-462-8800 opt 1 to arrange for a replacement unit.

A. Place the bin on a counter or workstation.

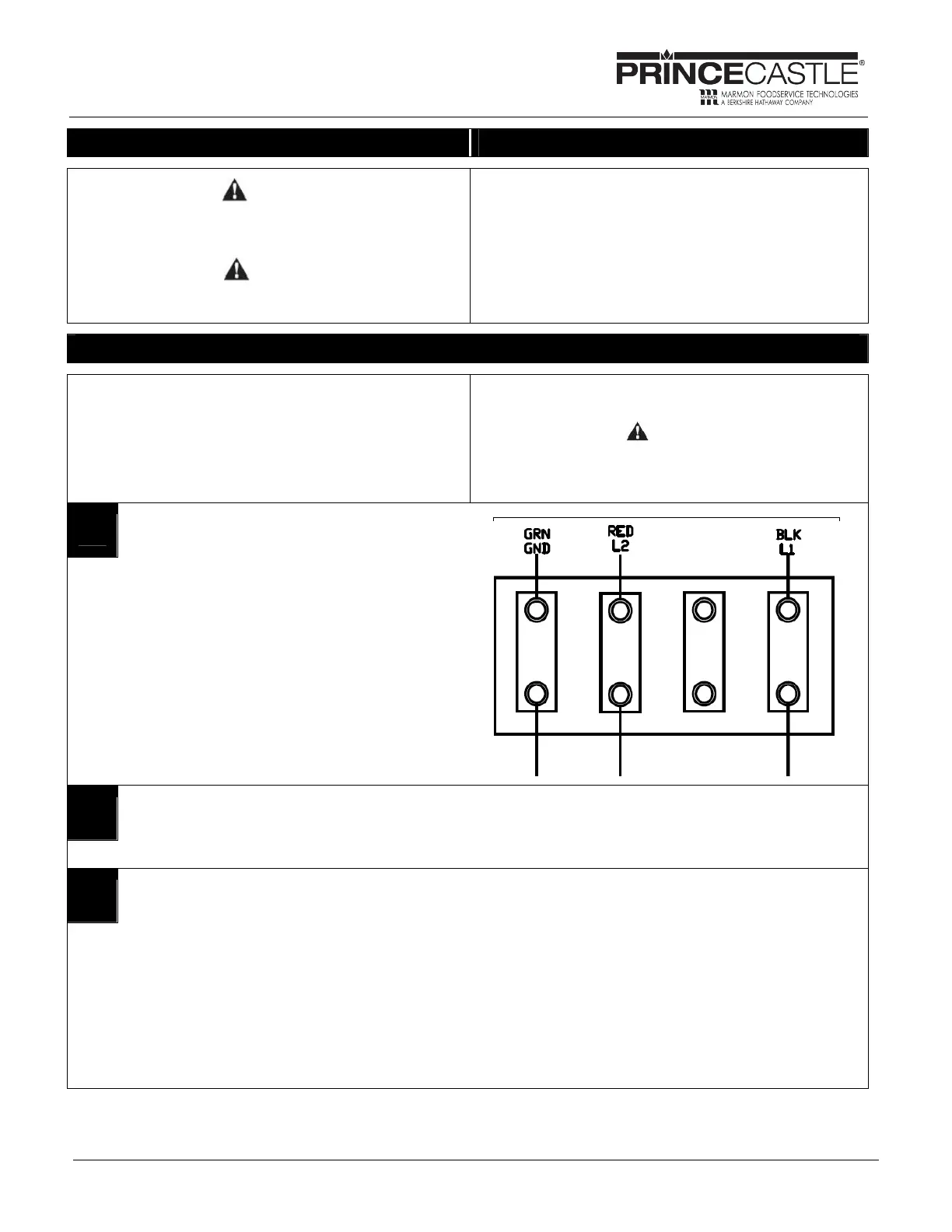

B. Make power connection to the terminal block on

the top of the bin. Required voltage is 208 TO 240

VOLTS SINGLE PHASE, and the connections are

L1, L2, and Earth Ground (see figure of wiring

diagram).

The bin draws 31 amps at 208 or 35 amps at 240

volts during the 35 min. warm-up.

The current drops to approximately half when the

heaters reach the set-point temperature.

A. Turn the power switches ON.

B. Allow 35 mins. for warm-up.

Environmental Issues

Airflow through the bin will adversely affect the

performance of the bin. Sources of airflow include:

• Air conditioning vents

• Air currents

• Make-up air Inflows

• Drive-through window

None of the above should be directing airflow towards the

bin or through the cavities of the bin. To check for airflow,

remove a pan from a hot steam table and watch the

direction of the steam coming out of the steam table.

The direction the steam flows is an indicator of the airflow

direction and its intensity. Th

ere is no airflow if the steam

flows straight up as it dissipates. There is an intense airflow

if the steam quickly changes direction and flows parallel to

the floor.

If there is airflow, check for the source(s). It is recommended

that air diverters be installed to direct the airflow away from

the bin.

Do NOT reduce the amount of cooled air brought into the

building. Direct the flow of air away from the cavities of the

Chicken Holding Bin.

RED 8AWG

BLK 8AWG

GRN 8AWG

Chicken Holding Bin

DHB2PT-44D

528-503 RevJ_EN

Initial Startup

During the first few hours of operation, you may notice a

faint odor. This is normal, and the odor disappears after the

first few hours of use.

The bin is tested and calibrated at the factory before shipment.

However, due to temperature and climate changes during

shipment, the insulation in bin can absorb moisture.

The odor during the first few hours of use is from the drying out

of the insulation (moisture is driven from the insulation’s

binders, a starch-like material).

If the florescent lights do not turn on, verify that the bulbs are

seated in their sockets.

Recommended Settings

The recommended settings listed below are starting points only.

The final setting for each cavity is influenced by the airflow

through the cavity.

The airflow is influenced by the bins location relative to the

Drive-Through window, the front door, and/or the air

conditioning vents.

The final setting must achieve the required serving temperature

at the end of the hold time.

Therefore, the setting of each cavity may have to be adjusted up

or down from the recommended starting points listed below to

meet the quality and temperature requirements.

A higher setting yields hotter chicken, but in achieving a

hotter temperature, more moisture is driven from the

chicken. Thus, there must be a balance at the end of the

maximum hold time, where the chicken is above a

minimum serving temperature and all quality requirements

are met.

Cavity A & B Factory Settings

The default Set-Point for the Upper Heater is 60%.

The Lower Heater default is 40% for Cavity A and 60% for

Cavity B.

Resetting to Factory Defaults

To revert all settings back to the original factory defaults:

A. Turn the unit off.

B. Press and hold both UP and DOWN arrows.

C. Turn the unit back on and wait 5 secs.

D. Release UP and DOWN arrows.

All previously saved settings are lost upon resetting the

defaults! Use with caution.

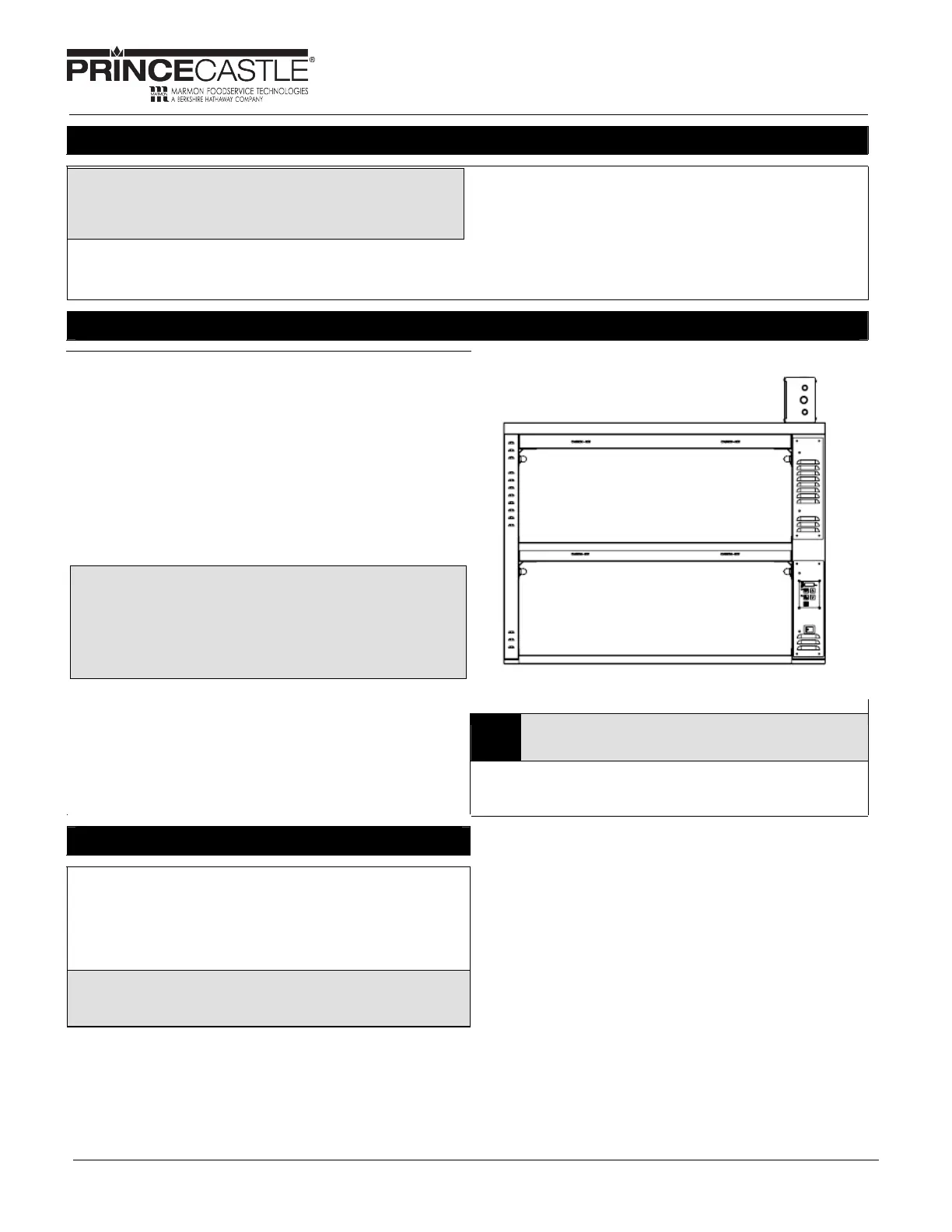

Cavity A

Cavity B

Upper

Heater

Upper

Heater

Lower

Heaters

Lower

Heater

Cavity A

Cavity B
